Fresh Water Systems

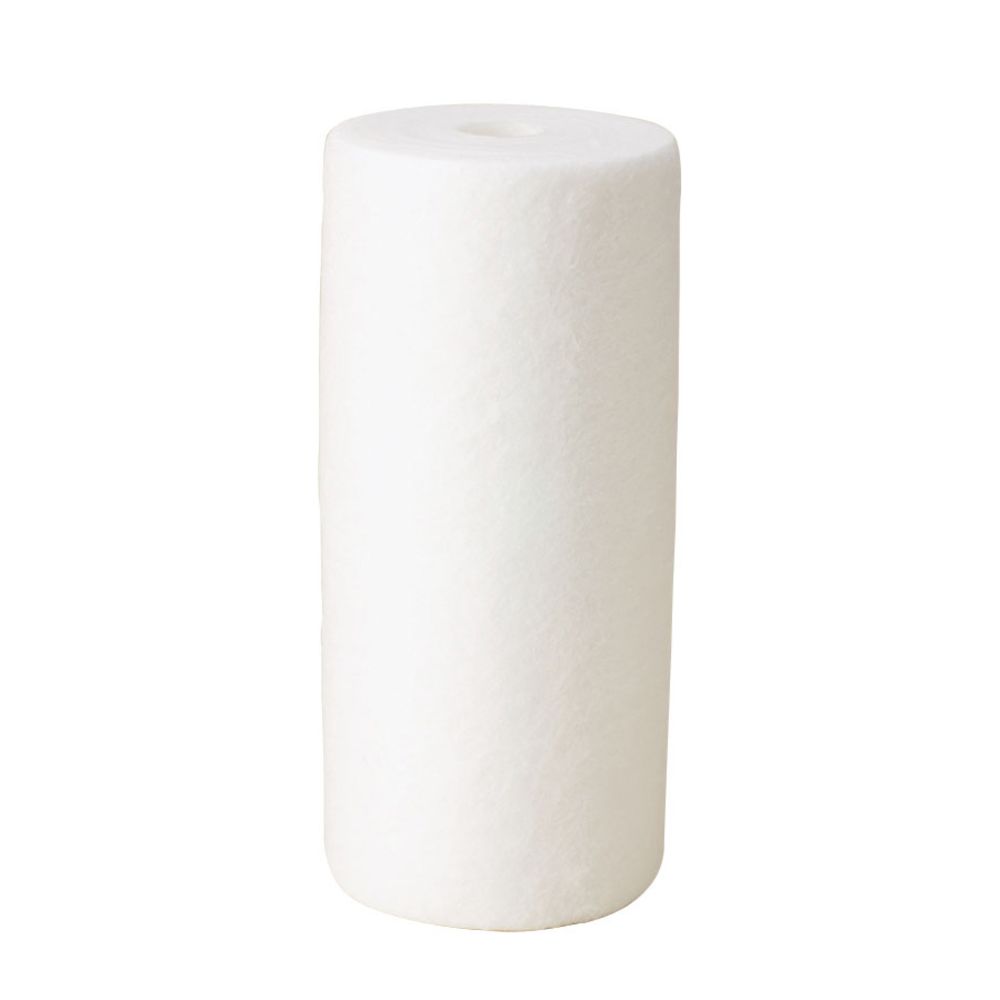

10" BB Dual Gradient Polypropylene Sediment Filter 60/10 mic

Part Number: SGD-45-1010

Alt. Part Number: 1227869-V-BB, VX10-10BB, CMMF10975-45W1

In Stock

out of stock

In Stock

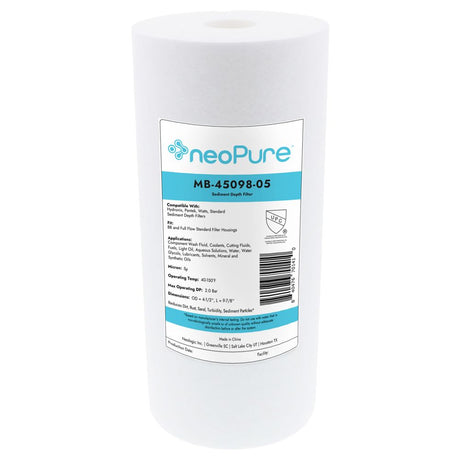

This item is discontinued. We recommend the Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic as a substitute.

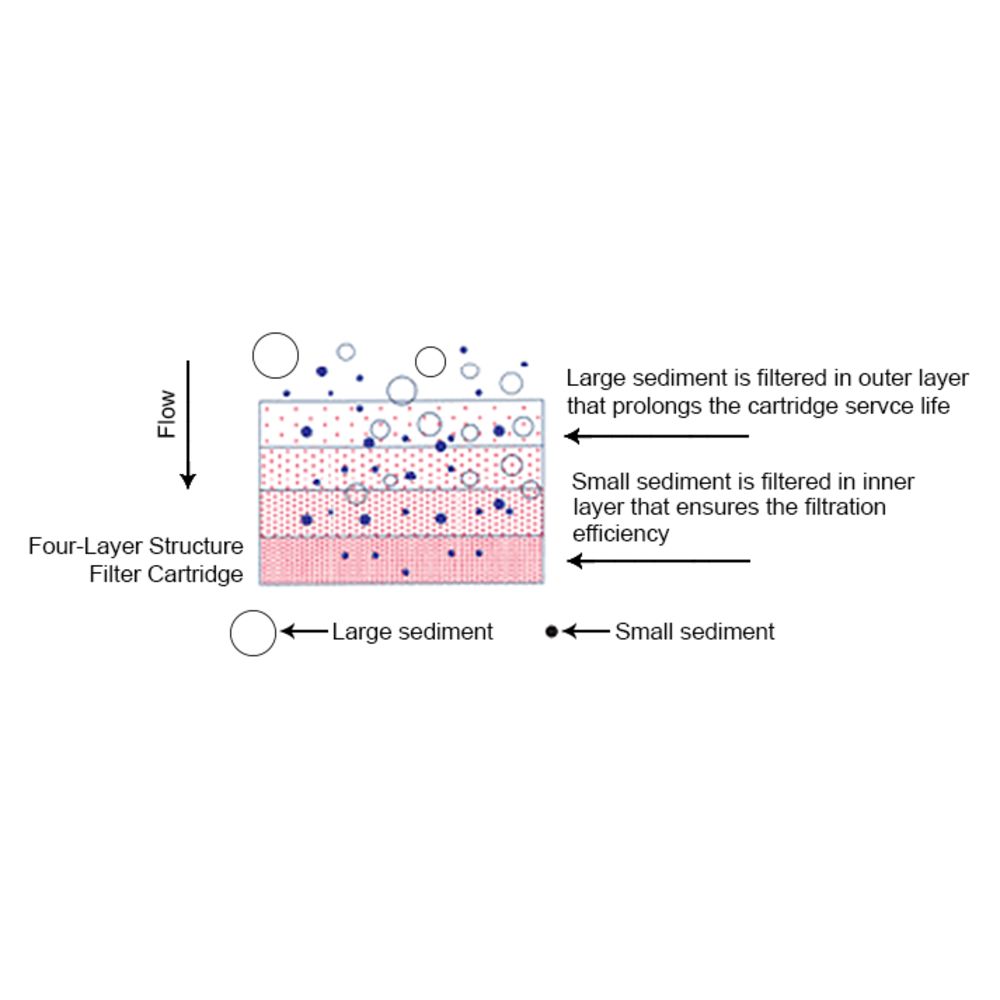

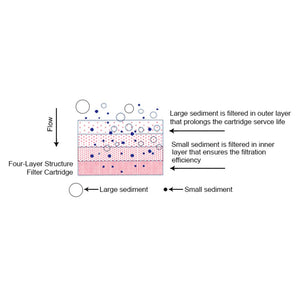

Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 60 micron pre-filter that takes out larger sediment, thus reducing the load on the 10 micron inner-layer post filter allowing it to operate more efficiently and consistently.
The pure polypropylene construction makes it resistant to chemicals and corrosion.
Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications
Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.



Compatible with:
Filter SpecialistCMMF10975-45W1
HydronixSDC-45-1010
LiquatecSDF-45-1010
Valuetrex1227869-V-BB, VX10-10BB

Weight & Dimensions

Weight (lbs)

1.05

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

Pre 60 µm, Post 10 µm

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42, FDA CFR-21




Dual Gradient Density Filters work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home. The outer layer is a 60 micron pre-filter that takes out larger sediment, thus reducing the load on the 10 micron inner-layer post filter allowing it to operate more efficiently and consistently.
The pure polypropylene construction makes it resistant to chemicals and corrosion.
Features:
  • Will not add taste, odor, or color to the liquid being filtered
  • Designed for purity, bacteria resistance, and chemical resistance
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles
  • Has three times the dirt-holding capacity of similar sized sediment water filter cartridges
  • Ideal for all residential, rural, commercial, industrial, and municipal applications
Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.



Compatible with:
Filter SpecialistCMMF10975-45W1
HydronixSDC-45-1010
LiquatecSDF-45-1010
Valuetrex1227869-V-BB, VX10-10BB

NOTE: This item is discontinued. We recommend the Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic as a substitute.

Weight & Dimensions

Weight (lbs)

1.05

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Max Temp (°F)

145

Min Temp (°F)

40

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

12

End Cap Type

Double Open Ended (DOE)

Filter Application

Sediment/Dirt/Rust

Flow Rate

10 GPM

Media Type

Polypropylene

Micron Rating (Nominal)

Pre 60 µm, Post 10 µm

Outer Diameter

4-1/2"

Warranty & Certifications

Certifications

NSF 42, FDA CFR-21
