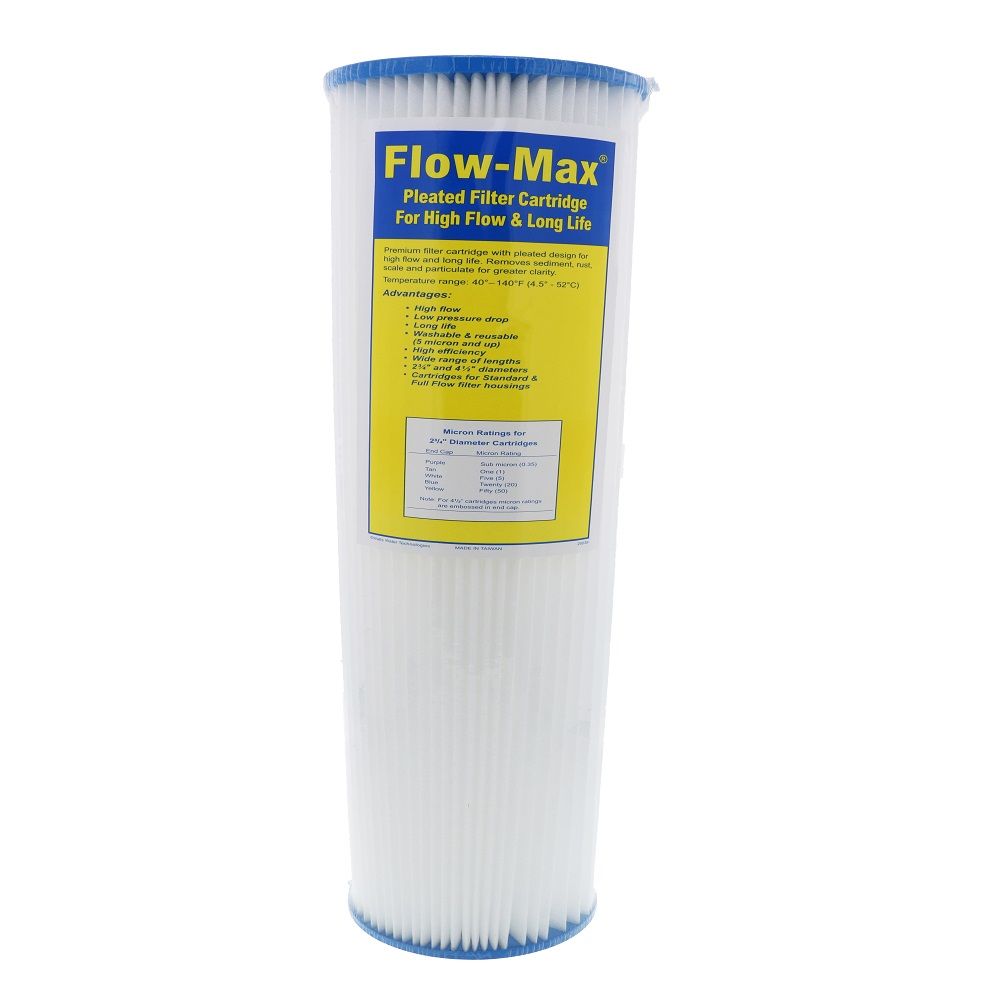

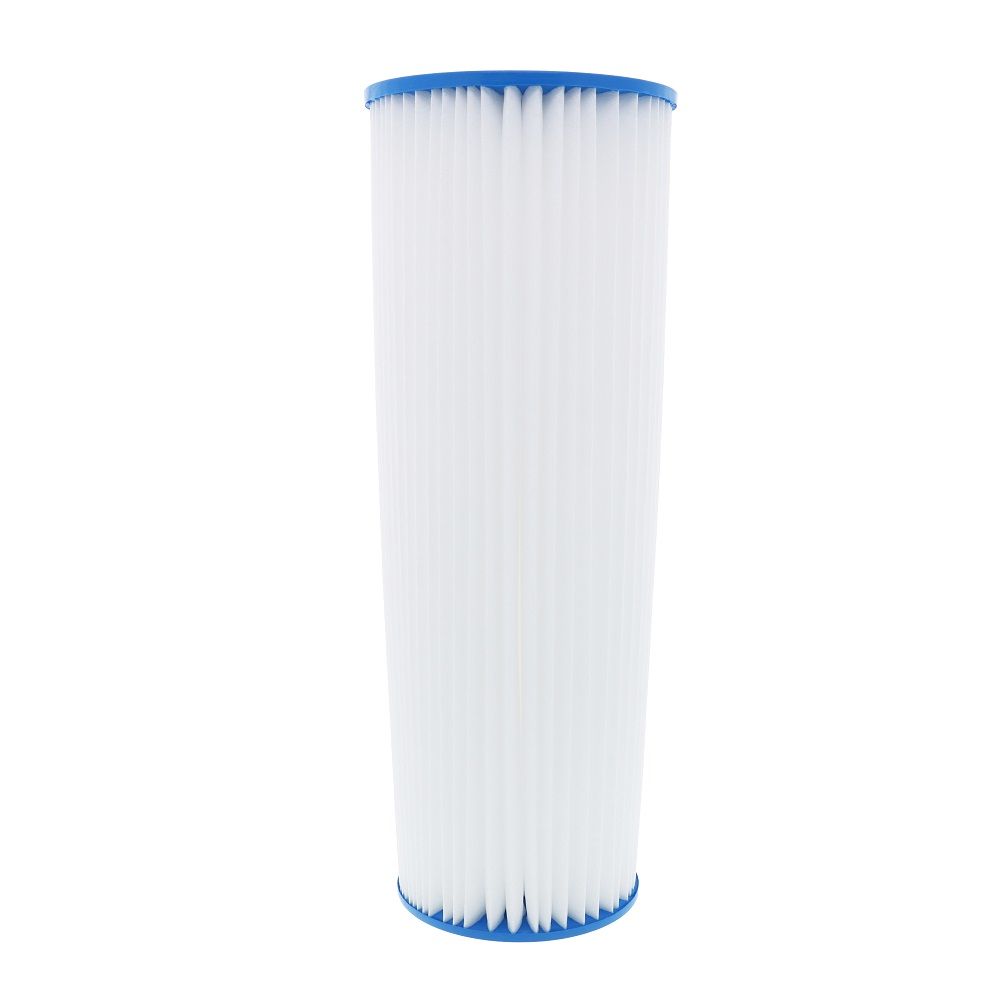

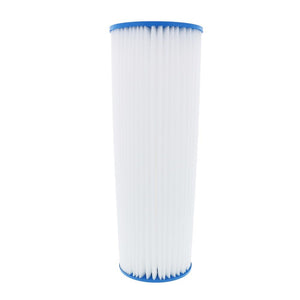

10" × 4-1/2" BB Flow-Max Pleated - 1 Mic Filter

Part Number: FM-BB-10-1

Alt. Part Number: WPC1FF975

In Stock

out of stock

In Stock

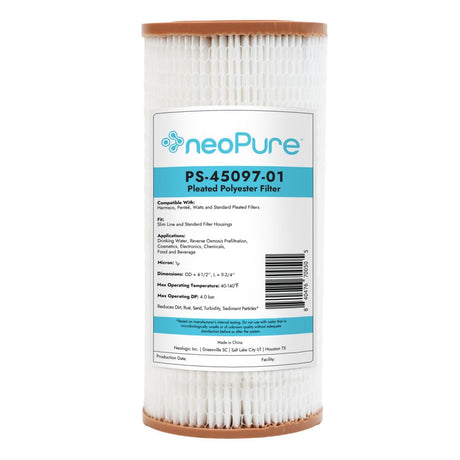

This item is discontinued. We recommend the Neo-Pure PS-45097-01 9-3/4" BB Standard Efficiency Pleated Filter 1 micron as a substitute.

The Watts Flow-Max FM-BB-10-1 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Sediment Filtration
  • 1 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10BBM1

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Box Dimensions

14.5x14.5x21.125

Case Quantity

8

Weight (lbs)

1.05

Details

Filter Application

Sediment/Dirt/Rust

Max Temp (°F)

140

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Outer Diameter

4-1/2"

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-3/4"


10"

10"




The Watts Flow-Max FM-BB-10-1 Filter Cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because the chemically resistant pleated polyester media provides increased surface area and longer life, and are cleanable on filter of 5 microns and up.

Features:
  • Sediment Filtration
  • 1 Micron Nominal
  • Chemically Resistant Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL10BBM1

NOTE: This item is discontinued. We recommend the Neo-Pure PS-45097-01 9-3/4" BB Standard Efficiency Pleated Filter 1 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Box Dimensions

14.5x14.5x21.125

Case Quantity

8

Weight (lbs)

1.05

Details

Filter Application

Sediment/Dirt/Rust

Max Temp (°F)

140

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Outer Diameter

4-1/2"

Cap Material

PVC

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

4-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

10 GPM

Media Type

Polyester

Micron Rating

1 µm

Product Length

9-3/4"
