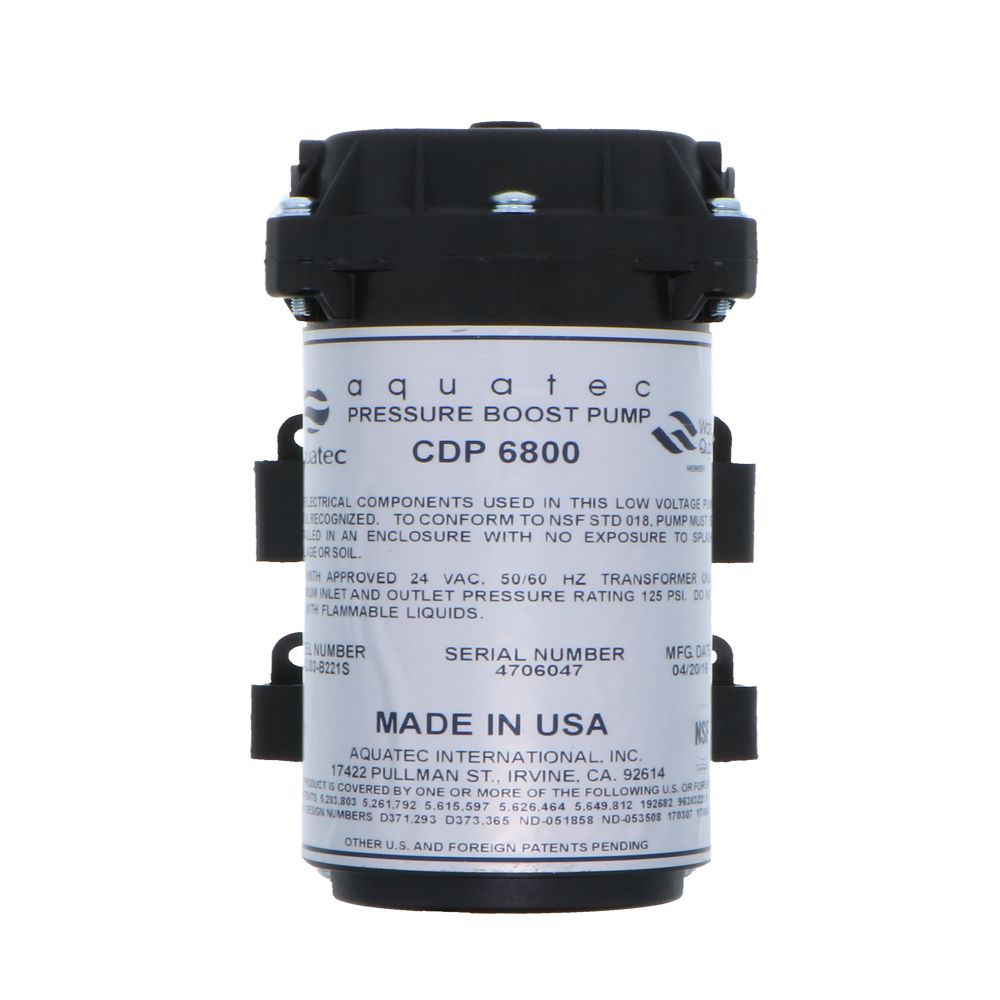

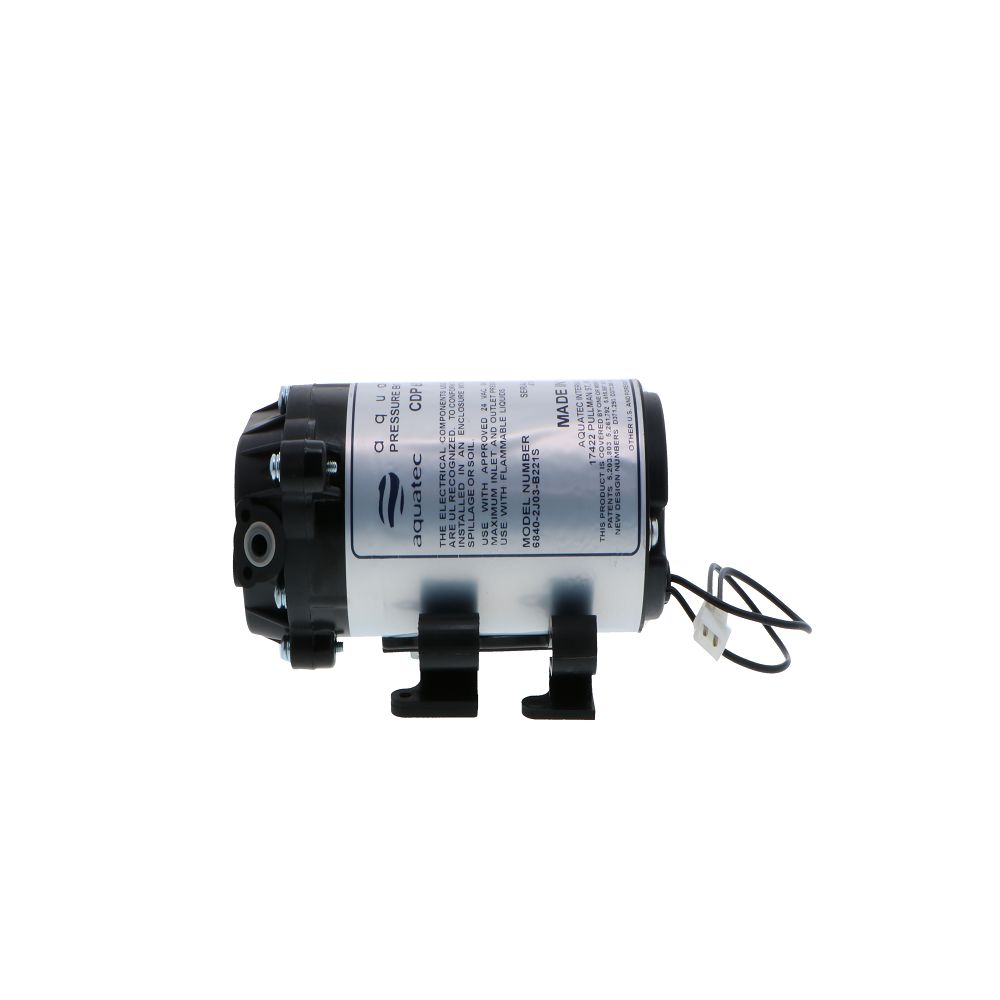

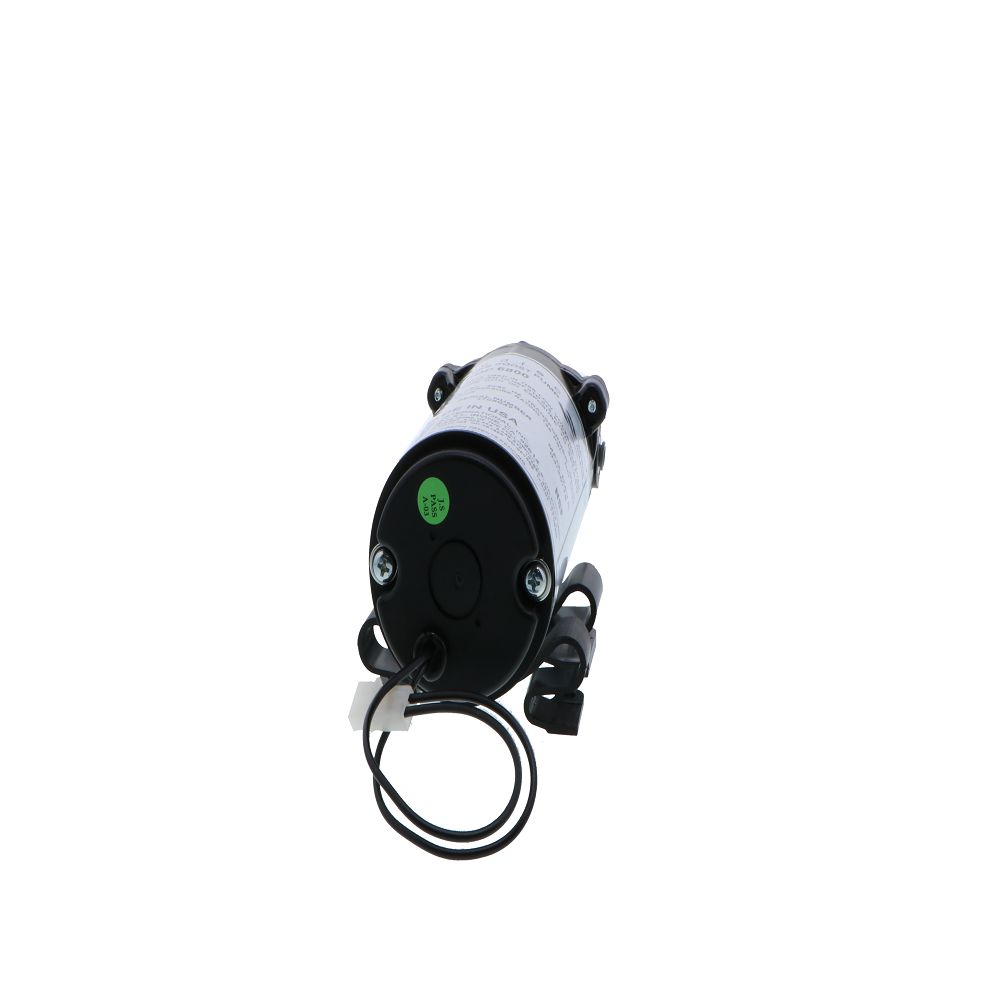

Aquatec 6800 Series RO Booster Pump for up to 50 GPD, 1/4"JG, 24 VAC

6840-2J03-B221 Aquatec6841-2J03-B223Show Picture 1Show Picture 2Show Picture 3
Mouse over to view larger image.
You might like:

NSF Certified  Made in USA

RO Booster Pump - For Increasing Water
Pressure To Pre-Water Treatment applications

For RO Membranes up to 50 GPD

Model: CDP6800
Part Number: 6840-2J03-B221
Alt. Part Number: 6841-2J03-B223, PAB6800-FLEX, CDP6800
In Stock, Ready to Ship!
MSRP: $116.79
Price: $83.42
Qty:
Select Additional Options
6800 Series Transformer 120VAC/24VAC (US) +$16.05
Tank Pressure Shut Off Switch w/Wire Harness 40 PSI - 1/4" QC +$14.49
Electronic Shut-off Solenoid Valve with QC fittings 24VAC 1/4" QC +$27.99
Wire Harness Assembly; Two-Way Divider 11" +$3.65

How do we compare?
$85.99 $2.57 more ea @ DiscountFilterStore
  as of Aug 18, 2018
$84.98 $1.56 more ea @ IsopureWater
  as of Aug 18, 2018

Aquatec 6800 Booster Pump 24 VAC, 1/4 Push-In Fitting Features:


The Aquatec 6800 Series Pumps are used in RO systems with a flow rate up to 50 GPD, they are designed for use when feed pressure is below 40 psi. A booster pump is suggested when there is high levels of Total Dissolved Solids (TDS) in the water, the higher the osmotic pressure the harder the force is to create RO water. Reverse Osmosis requires pressure to work properly. These pumps are designed for optimal operation with a tank shut-off switch (PSW), its purpose is to turn off the booster pump when the RO tank is full. When used in typical under-counter RO systems, this switch can be increased with an electronic shut-off valve (ESO), which uses the tank and the pump pressure switch to automatically close off the feed water source when the RO storage tank is full.

Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.

Self Priming. The Aquatec 8800 Series Pump is self priming with a 6 foot lift. The 8842-2J03-B424 is also capable of running dry.

Certification. The Aquatec 8800 Series Pump are builit of certified materials that meet the NSF standard number 58.

Aquatec 6800 Booster Pump Specifications


  • Voltage: 24VAC
  • Prime: 60" lift
  • Runs dry without damage
  • Corrosion resistant exterior
  • Outlet pressures up to 110 PSI
  • Inlet/Outlet: 1/4" quick connect
  • Max Liquid Temperature: 170°F
  • EMI/RFI electronic noise suppression
  • Expels trapped air, eliminates "air locks"
  • Designed for 30,000+ operating hours
  • Mounting Options: Vertical or Horizontal
  • Manufactured of NSF 58 Certified Materials
  • Improved venting system removes moisture
  • Extremely quiet operation, less than 45 DBA

Aquatec 6800 Series Booster Pump Data

Also Compatible With:
AXEON/RO Ultratec 200759
Hague® PAB6800
Sterilight CDP-6800
Certifcations
NSF Standard 58
2 years
Made in USA
Dimensions
7.28 "
3.5 "
3.38 "
Materials
Nylon
EPDM
Santoprene
Operating Conditions
170 °F
125 psi
Pump Specifications
Booster
1/4" QC
1/4" QC
24VAC
0.23 (0 psi) - 0.62 (80 psi) AMP
870 RPM
20-200 psi
Bell Ends w/ Lead Wires
