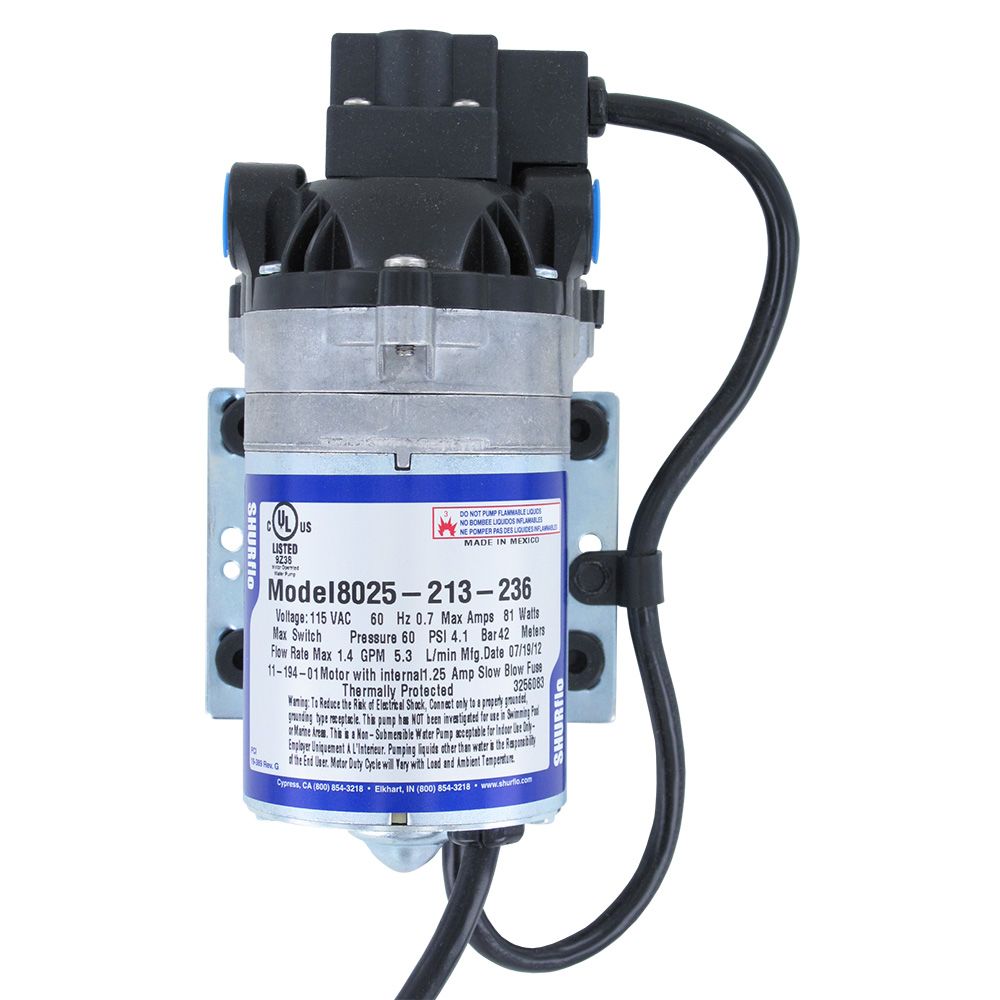

The SHURflo 8025-213-236 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.
Additional Specifications:
Additional Specifications:
- 1.4 GPM flow rate
- Demand Switch
- Can run dry without damage
- Self priming up to 9 vertical feet
- 3/8" NPT female ports
- Santoprene® diaphragm
- Built-in check valve
- NSF, UL and CSA listed
- Water delivery
- Soil extraction
Weight & Dimensions
Approx Height (Inches) | 4.24 Inches |
Approx Length (Inches) | 7.66 Inches |
Approx Width (Inches) | 4.00 Inches |
Details
Series | 8000 |
Amps | 0.31-0.57 Amps @ 0-60 PSI |
Diaphragm Materials | Santoprene |
Flow Rate | 1.4 GPM |
Liquid Temperature | Max 170 °F |
Pressure Switch | 60 PSI |
Size | 3/8" |
Voltage | 115VAC |
Suction Lift | Self prime up to 9 ft |
Inlet/Outlet Connection | 3/8" | FPT |

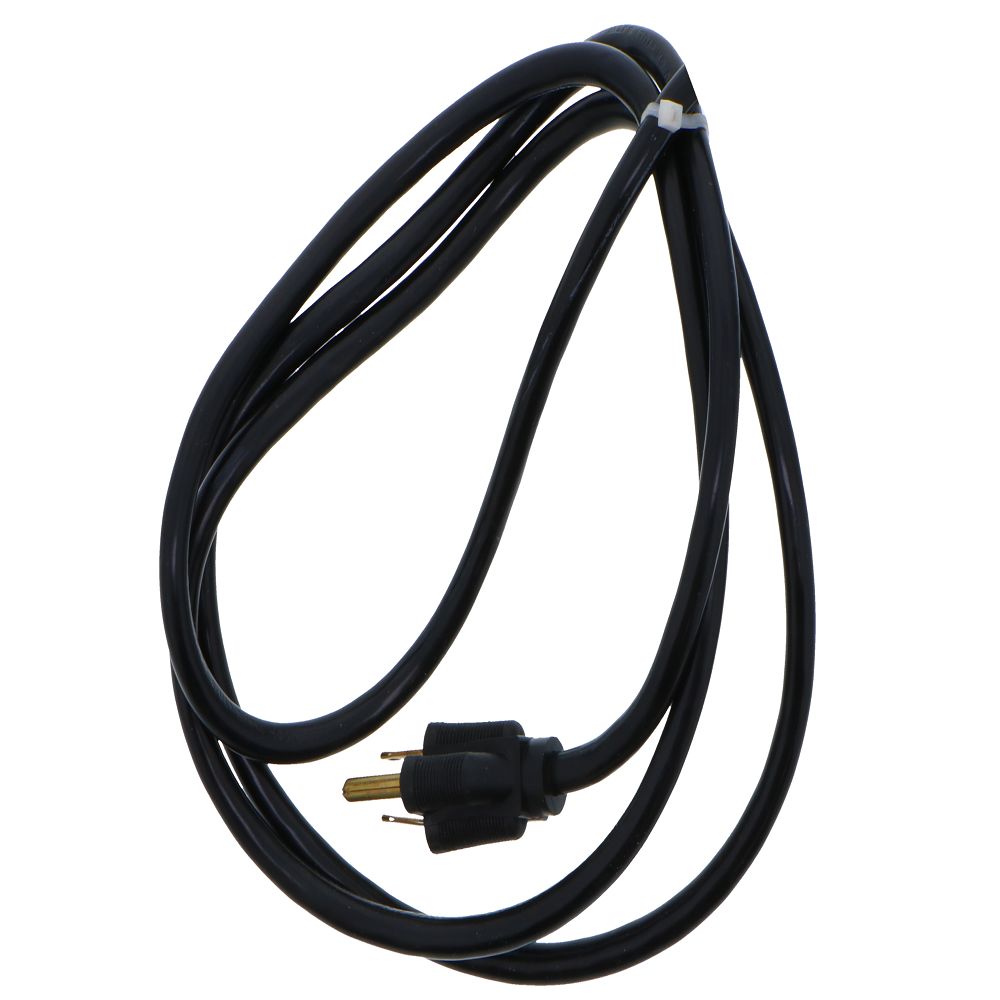

Wire Option | Wall Plug |
Warranty & Certifications
Certifications | NSF |
The SHURflo 8025-213-236 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.
Additional Specifications:
- 1.4 GPM flow rate
- Demand Switch
- Can run dry without damage
- Self priming up to 9 vertical feet
- 3/8" NPT female ports
- Santoprene® diaphragm
- Built-in check valve
- NSF, UL and CSA listed
- Water delivery
- Soil extraction
Weight & Dimensions
Approx Height (Inches) | 4.24 Inches |
Approx Length (Inches) | 7.66 Inches |
Approx Width (Inches) | 4.00 Inches |
Details
Series | 8000 |
Amps | 0.31-0.57 Amps @ 0-60 PSI |
Diaphragm Materials | Santoprene |
Flow Rate | 1.4 GPM |
Liquid Temperature | Max 170 °F |
Pressure Switch | 60 PSI |
Size | 3/8" |
Voltage | 115VAC |
Suction Lift | Self prime up to 9 ft |
Inlet/Outlet Connection | 3/8" | FPT |
Wire Option | Wall Plug |
Warranty & Certifications
Certifications | NSF |
Documentation
