Amtrol

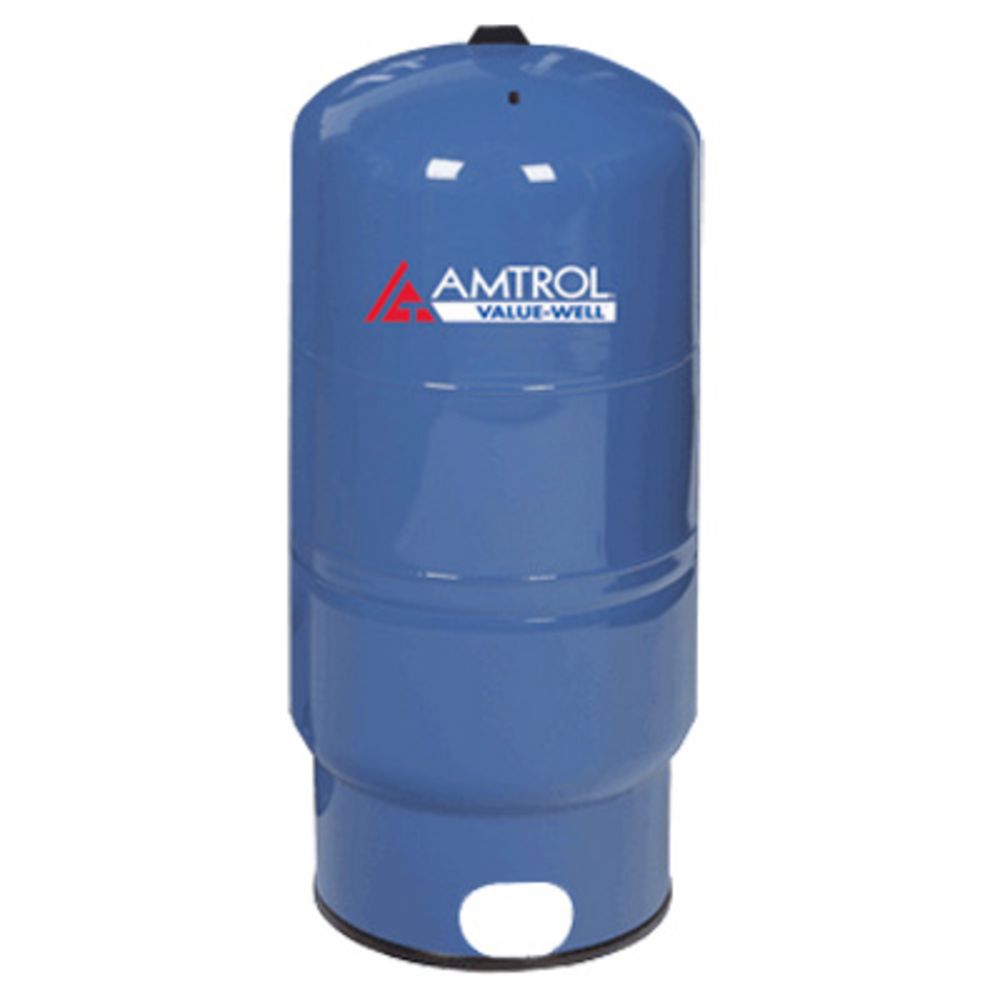

Value-Well VW-20 Well Pressure Tank 20 gal

Part Number: VW-20
Sold Out
Amtrol

Value-Well VW-20 Well Pressure Tank 20 gal

Part Number: VW-20
$181.50

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal as a substitute.

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Value-Well VW-20 Well Pressure Tank provides an economical upgrade from galvanized or imported well tanks.

Features:
  • Butyl/EPDM Diaphragm
  • Polypropylene Liner
  • Rubber Air Stem
  • 100% Helium Tested
  • 5 Year Limited Warranty
  • NSF Standard 61 Listed
  • Value-Well VW-20 Pump Tank Brochure
  • Value-Well VW-20 Pump Tank Installation Manual

Specifications
    Product Details

    Body Material

    Metal

    Diaphragm Materials

    Butyl Rubber

    Inlet Connection

    1" FPT

    Material Of Construction

    Stainless Steel

    Max Pressure (Psi)

    90

    Max Temp (°F)

    200°F

    Outlet Connection

    1" FPT

    Size

    1"

    Volume

    20 Gallons

    Connection Type

    Female (FPT)

    Diameter

    15"

    Origin

    U.S.A.

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 61

    Warranty

    5 Years

    Product Weight & Dimensions

    Height W/ Stand

    32"

    Product Weight (lbs)

    33

Downloads
Value-Well VW-20 Well Pressure Tank 20 gal ManualValue-Well VW-20 Well Pressure Tank 20 gal Manual
