Toray

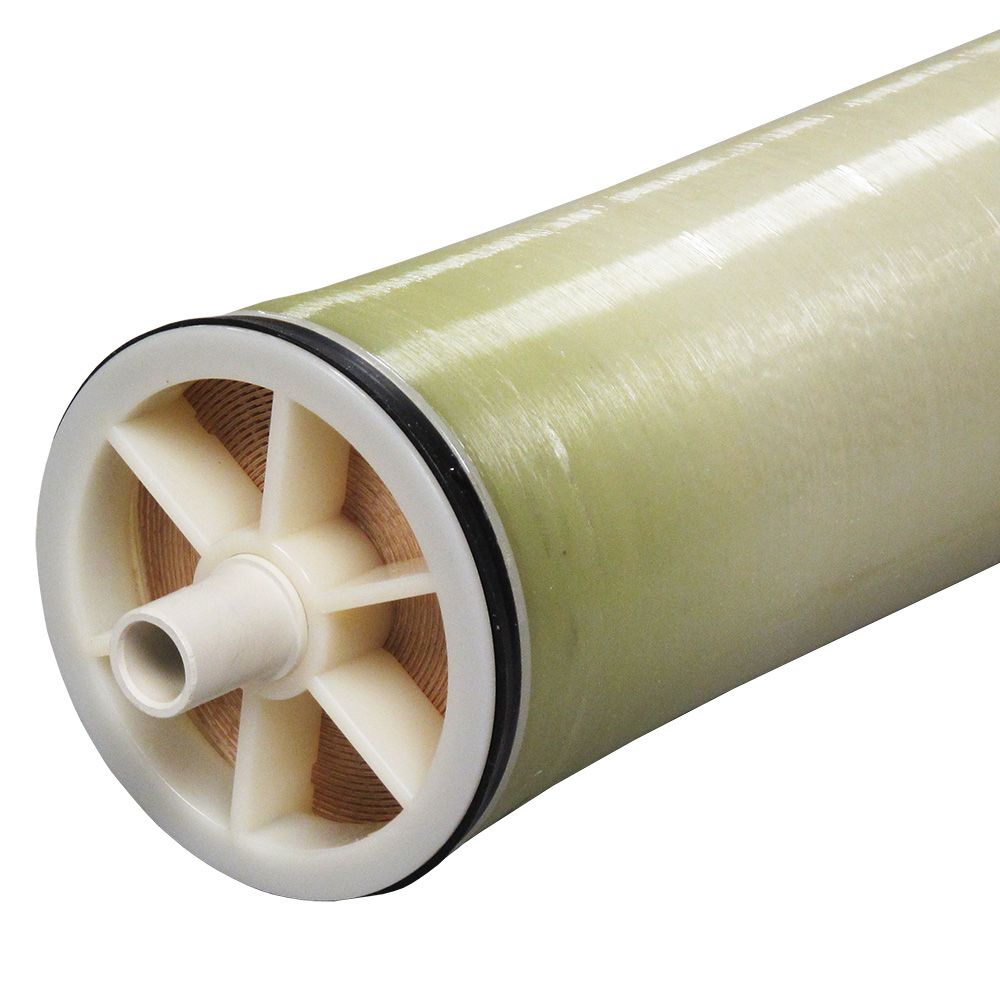

Toray TM810 1200 gpd Sea Water Membrane 4 x 40

Part Number: TM810

Alt. Part Number: CDTM810

In Stock

out of stock

In Stock

$270.45

The Toray TM810 1200 gpd Sea Water Membrane is designed to be used on water sources with high salinity (>10,000 ppm). They can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Specifications:
  • Permeate Flow Rate: 1200 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 800 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal



Compatible with:
Filmtec MembranesSW30HRLE-4040

Weight & Dimensions

Weight (lbs)

9.7

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

1000

Diameter

4"

Flow Rate

1200 GPD

Material Of Construction

Cross-Linked Polyamide

Origin

USA

Active Area

73 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

31 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

3/4"

Ph Range

2-11


Toray

Toray

Toray

Toray




The Toray TM810 1200 gpd Sea Water Membrane is designed to be used on water sources with high salinity (>10,000 ppm). They can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Specifications:
  • Permeate Flow Rate: 1200 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 800 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal



Compatible with:
Filmtec MembranesSW30HRLE-4040

Weight & Dimensions

Weight (lbs)

9.7

Approx Length (Inches)

40"

Details

Max Temp (°F)

113

Max Pressure (Psi)

1000

Diameter

4"

Flow Rate

1200 GPD

Material Of Construction

Cross-Linked Polyamide

Origin

USA

Active Area

73 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

31 mil

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

3/4"

Ph Range

2-11
