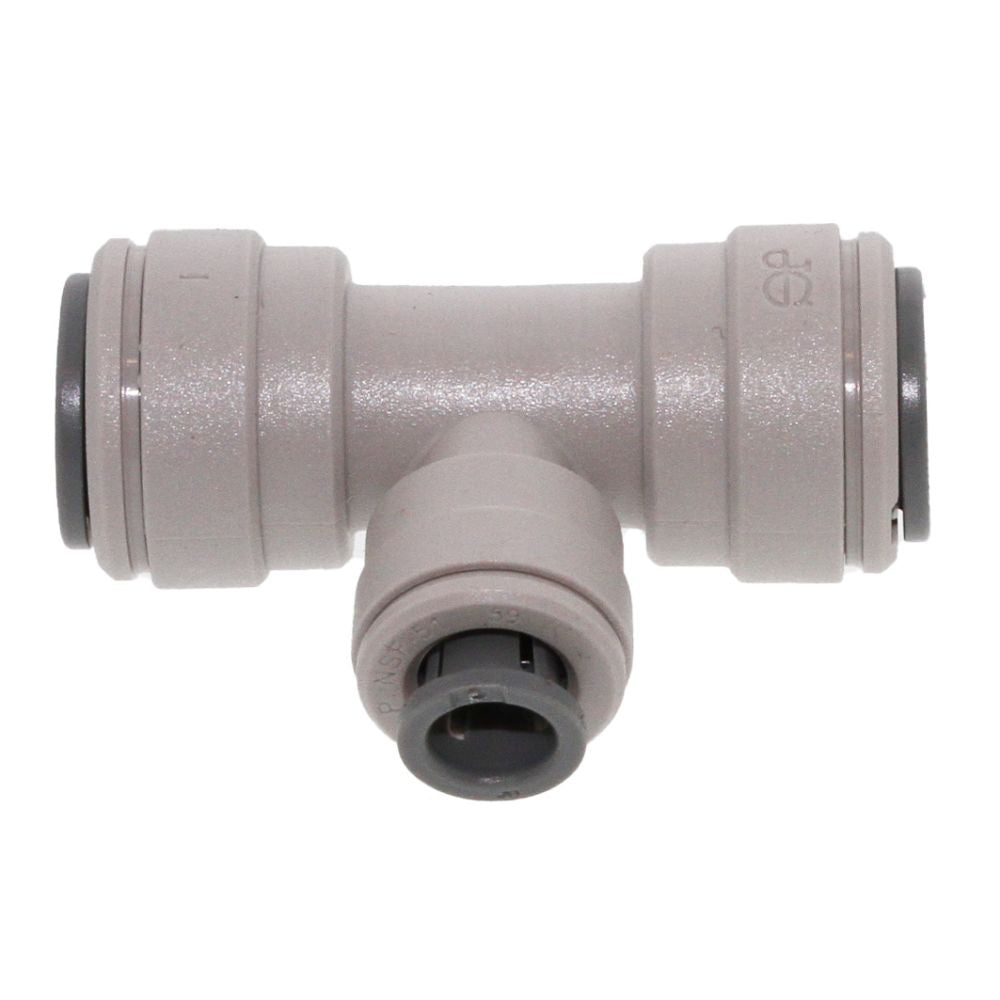

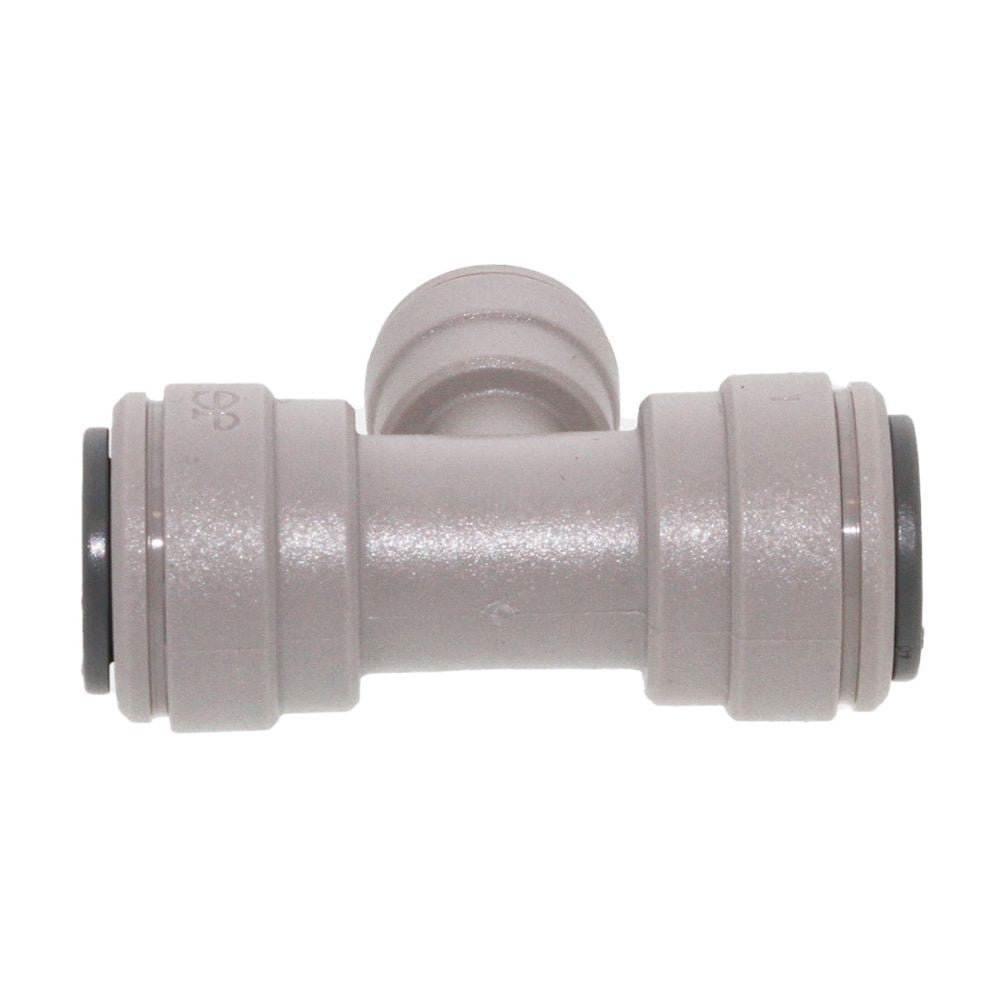

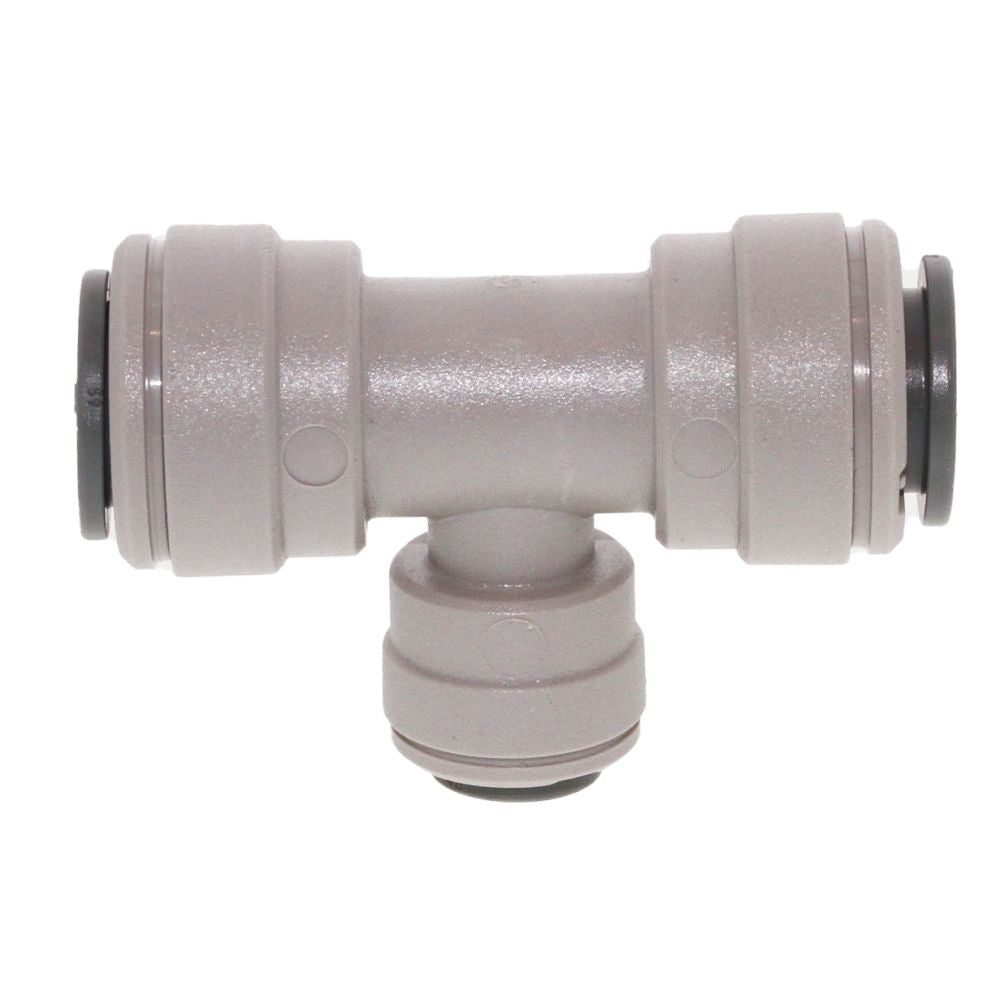

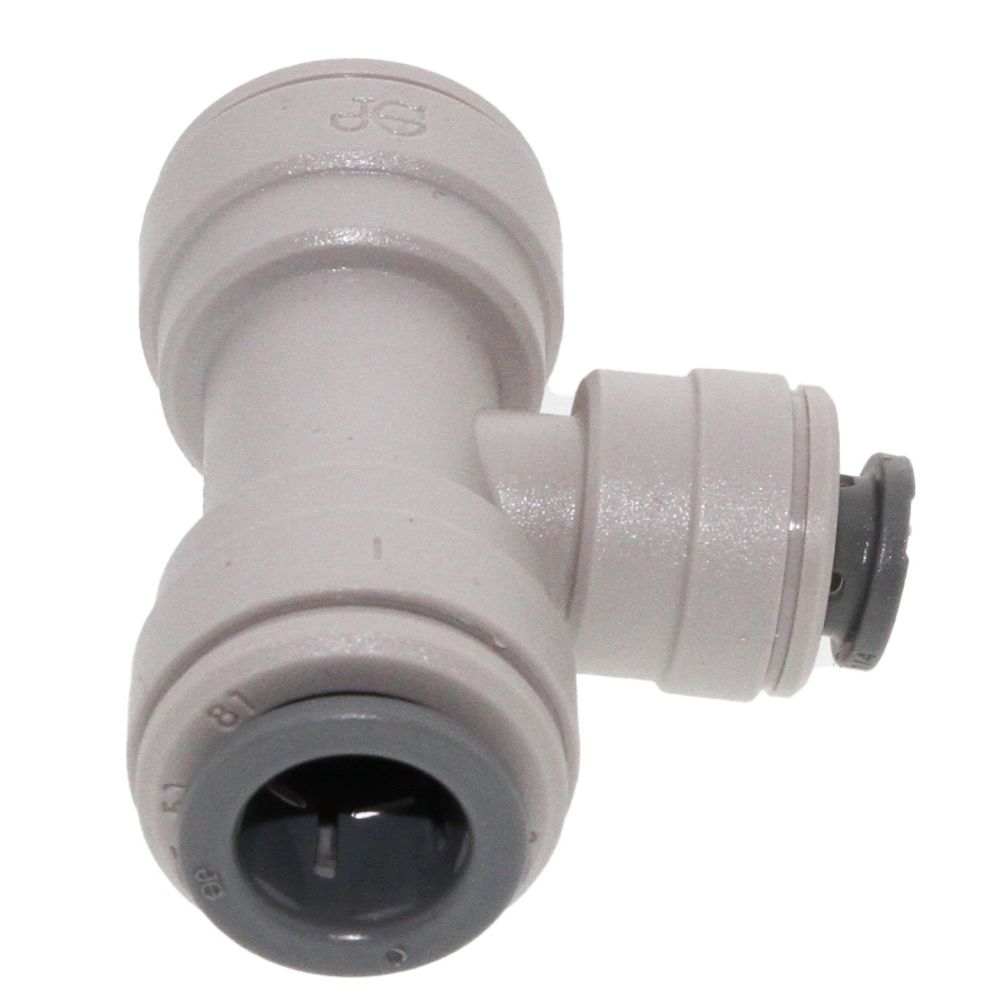

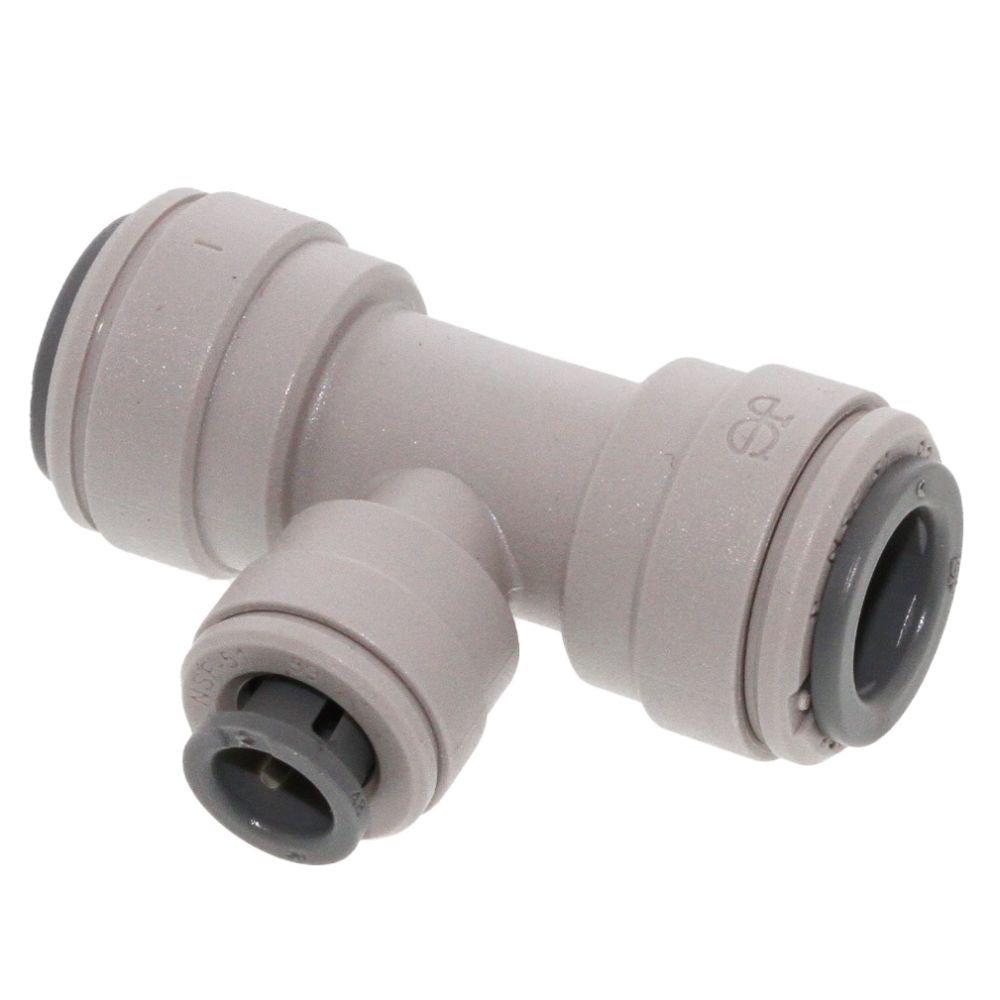

John Guest Reducing Tee - 3/8 x 3/8 x 1/4

4.3

(7 reviews)

Part Number: PI301208S-US

1 5

John Guest

John Guest Reducing Tee - 3/8 x 3/8 x 1/4

4.3

(7 reviews)

Part Number: PI301208S-US

MSRP: $6.86

$4.12

Quantity

Unit Price

Price

Savings

$4.12

—

$3.69

$36.98

10%

150

$3.59

$539.20

12%

Product variants

You May Also Need

Optional Accessory
John Guest Blue 3/8" OD LLDPE Polyethylene Tubing

Regular price From $2.05
Optional Accessory
John Guest White 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.91

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest reducing tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect two OD tubing sizes of different sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with Nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

Compatible with:

Hague®

202356

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD 1/4" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.875 in.
Shipping Width	1.25 in.
Shipping Height	0.875 in.
Product Weight & Dimensions
Product Height	0.875 in.
Product Length	1.875 in.
Product Width	1.25 in.
Product Weight (lbs)	0.0294

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD 1/4" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.294

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD 1/4" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Reducer Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	4.41

Downloads

John Guest Reducing Tee - 3/8 x 3/8 x 1/4 Manual

Reviews (7)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

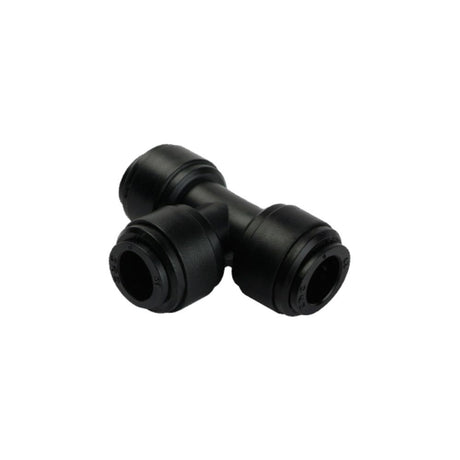

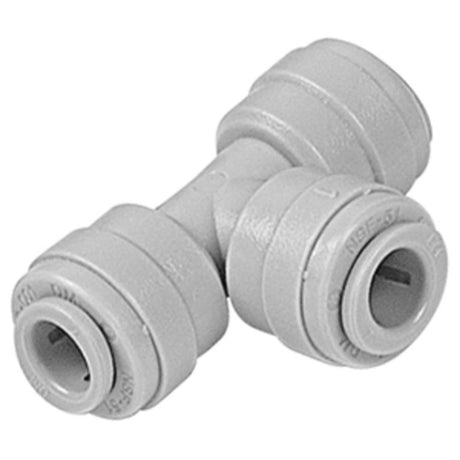

Facet	John Guest John Guest Reducing Tee - 3/8 x 3/8 x 1/4 4.3 Regular price From $4.12 Part #: PI301208S-US Save up to 12% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Union Tee 3/8" run x 1/4" branch Regular price From $3.29 Part #: ATU646-E Save up to 14% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Reducing Union Tee- 3/8" run x 1/4" branch Regular price From $3.29 Part #: ATU646-W Save up to 14% with bulk pricing View details	NeoFit NeoFit - Acetal Gray Reducing Union Tee- 3/8" run x 1/4" branch Regular price From $3.29 Part #: ATU646-G Save up to 14% with bulk pricing View details
