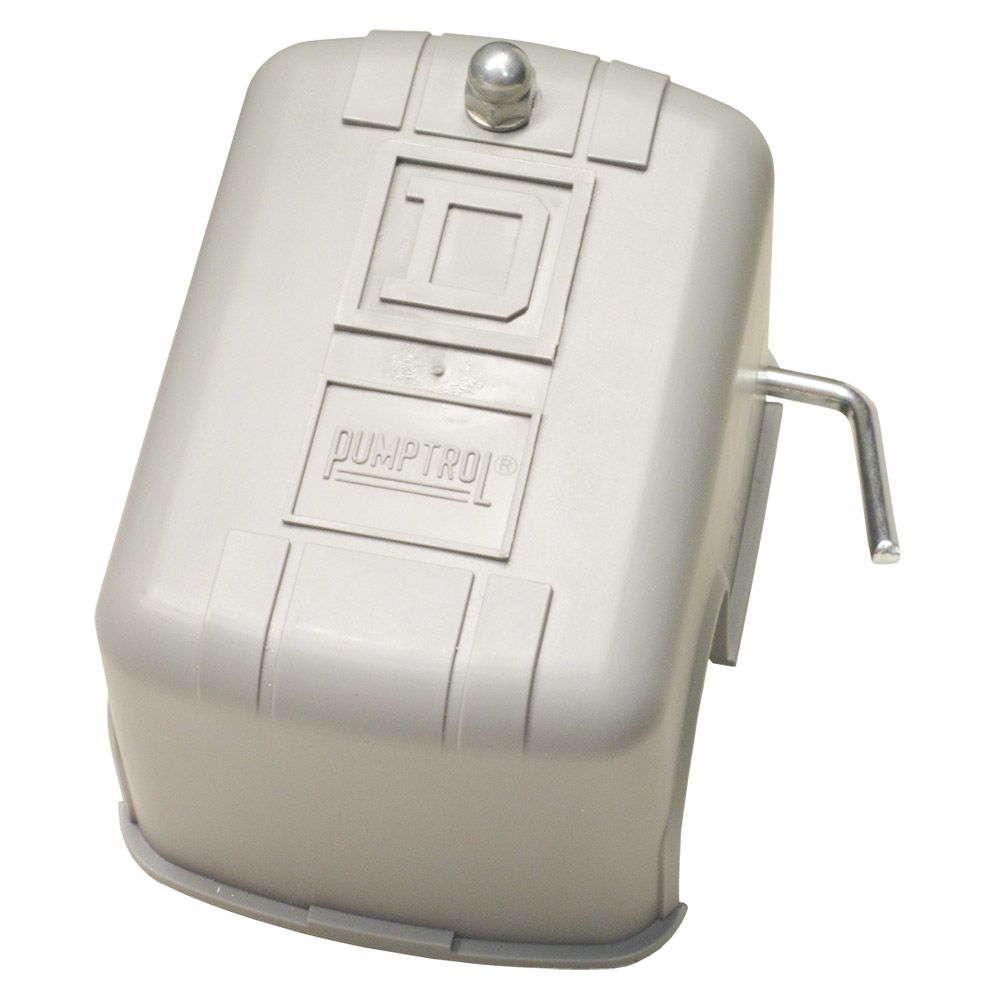

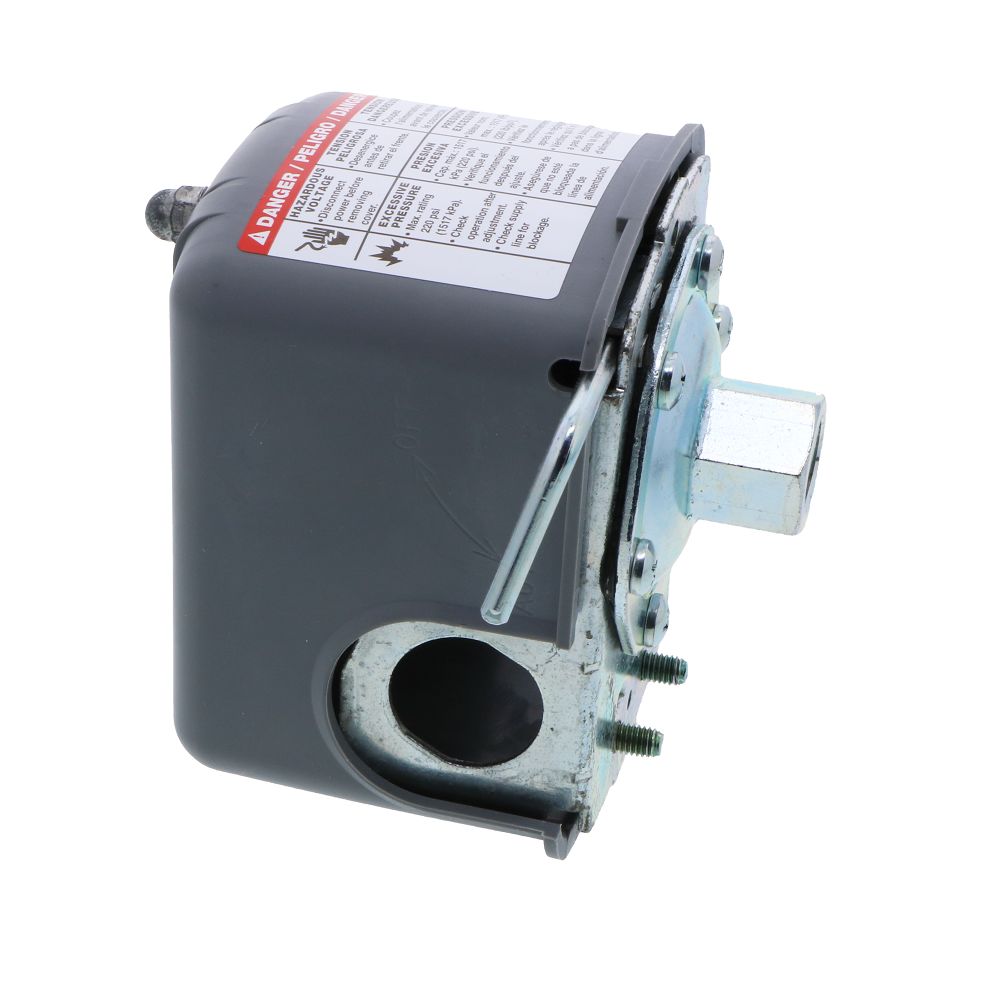

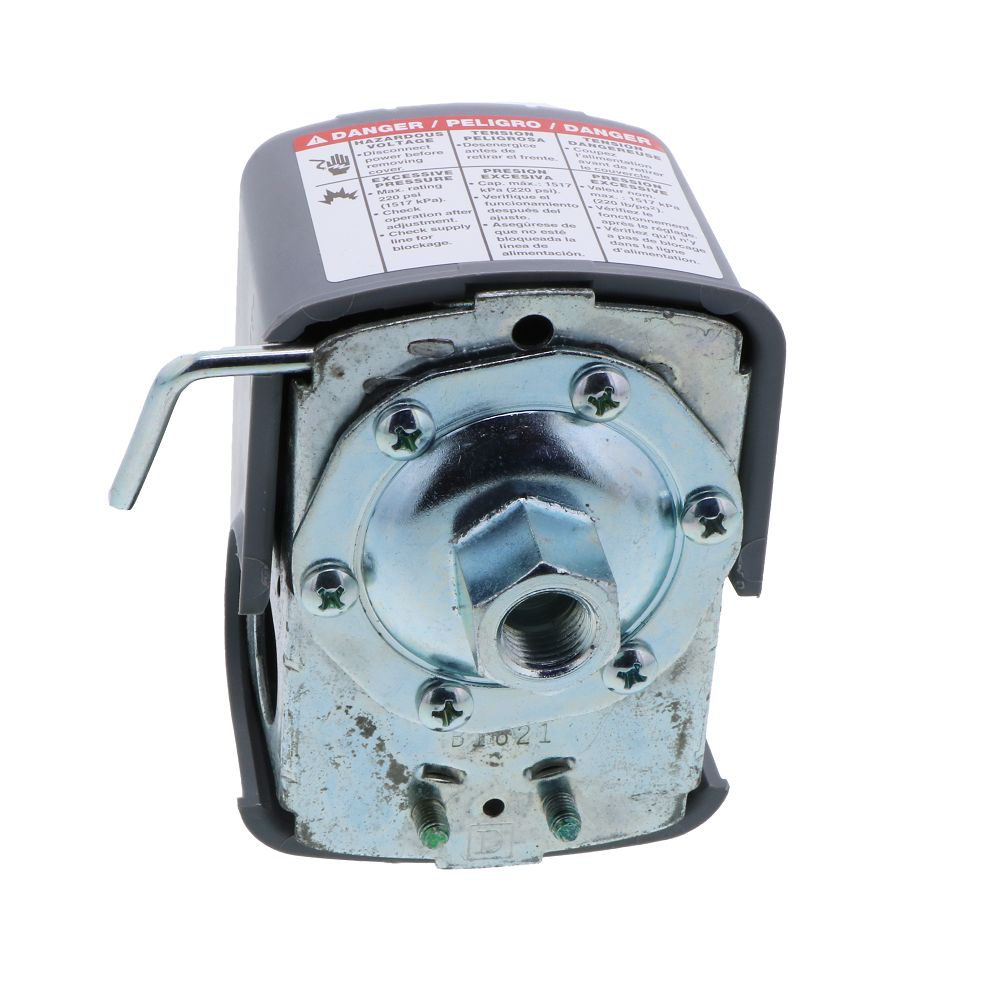

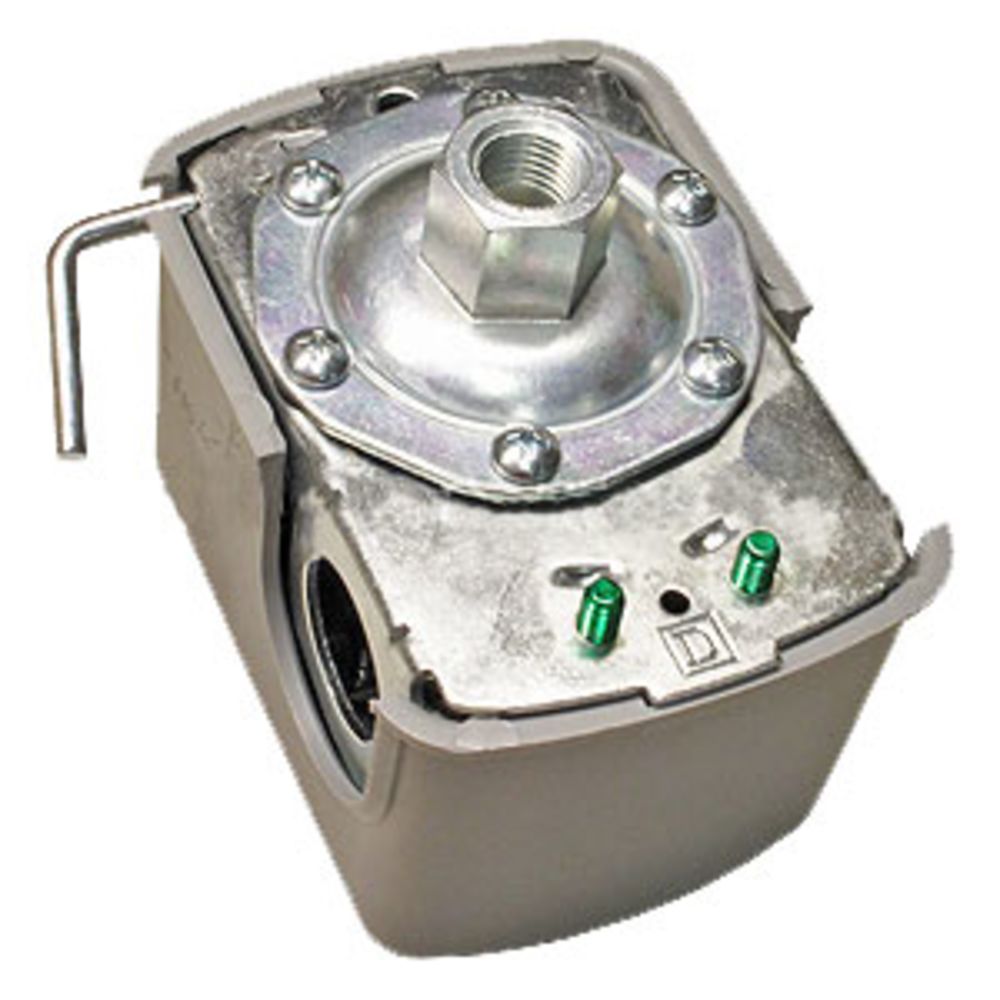

Square D Pressure Switch, Hi Press NC, DPST, 20/40 PSI adjustable, ON/OFF Lever, Diaphragm 9013FSG2J20M1

Part Number: 9013FSG2J20M1

Square D Pressure Switch, Hi Press NC, DPST, 20/40 PSI adjustable, ON/OFF Lever, Diaphragm 9013FSG2J20M1

Part Number: 9013FSG2J20M1
MSRP: $36.00
Regular price $21.60

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Square D Pumptrol 9013FSG2J20M1 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Amps: 10A
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • Pressure Connection: 1/4" FPT
  • Maximum Voltage Rating: 575VAC
  • Factory Set Cut-In Pressure: 20 psi
  • Factory Set Cut-Out Pressure: 40 psi
  • Maximum Allowable Pressure: 220 psig
  • Certification: UL listed and CSA certified


Specifications

    Product Details

    Amps

    10 Amps

    Diaphragm Materials

    Buna-N

    Max Pressure (Psi)

    40

    Min Pressure (Psi)

    20

    Power

    1.5 HP @ 115 VAC (1-phase)

    2 HP @ 230 VAC (1-phase)

    3 HP @ 230 VAC (3-phase)

    1 HP @ 460/575 VAC (3-phase)

    Connection Type

    Screw Clamp

    Origin

    Mexico

    Voltage

    115V

    230V

    Shipping Dimensions

    Shipping Length

    4 in.

    Shipping Width

    3 in.

    Shipping Height

    4 in.

    Product Weight & Dimensions

    Approx Depth

    2.78"

    Product Height

    2.80"

    Product Width

    3.76"

    Product Weight (lbs)

    1.13

Downloads

Square D Pressure Switch, Hi Press NC, DPST, 20/40 PSI adjustable, ON/OFF Lever, Diaphragm 9013FSG2J20M1 Manual
