Square D

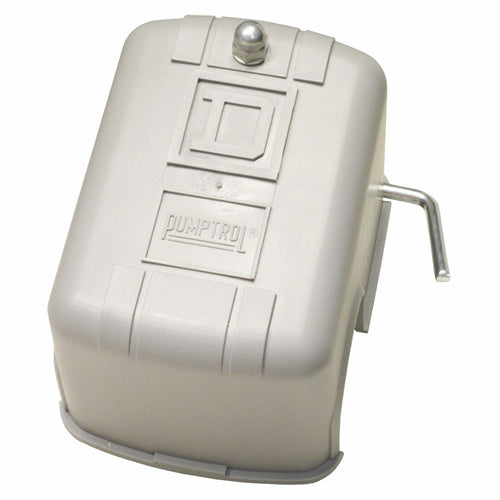

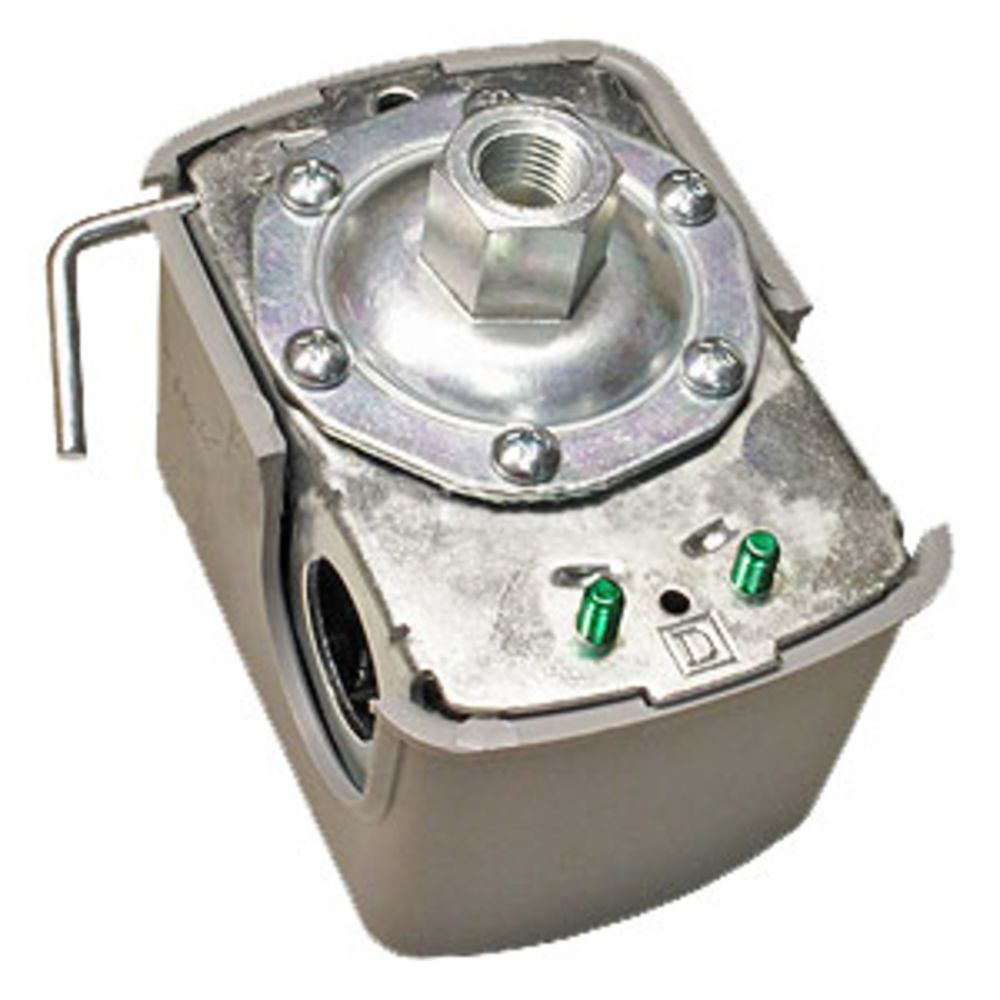

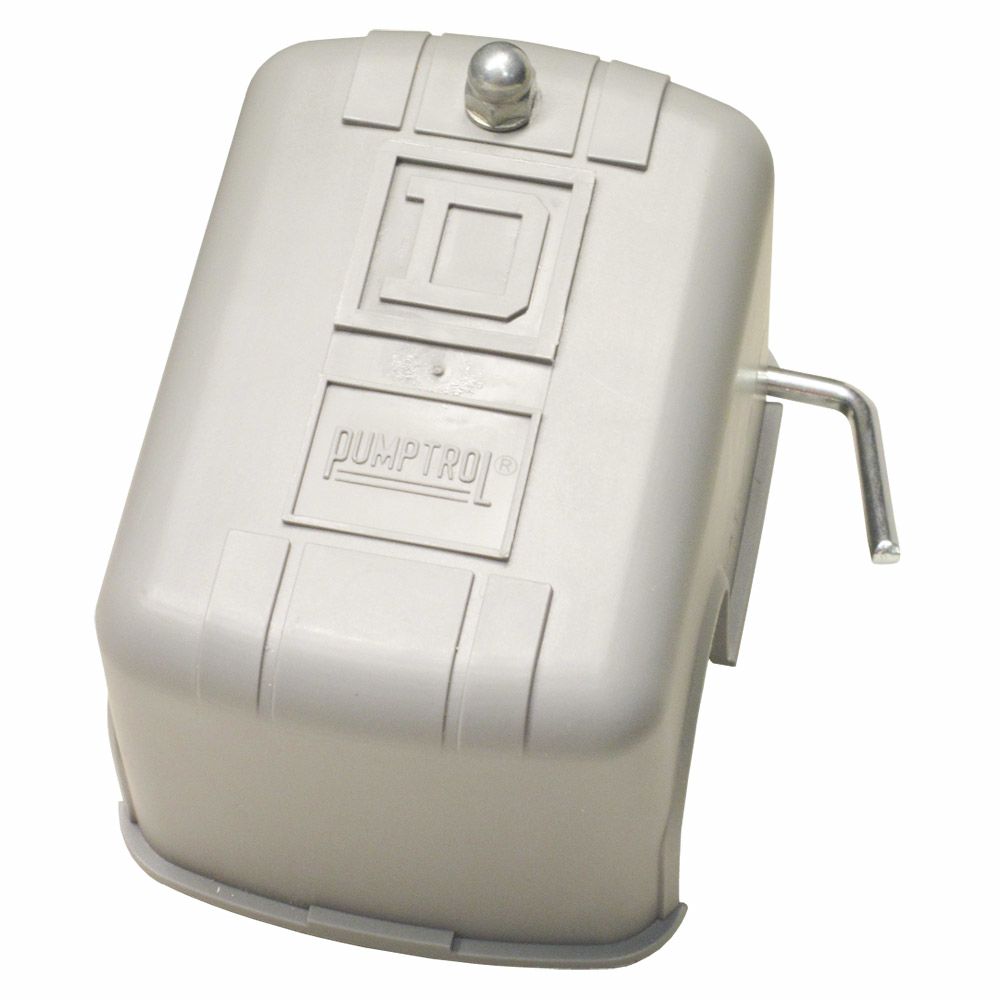

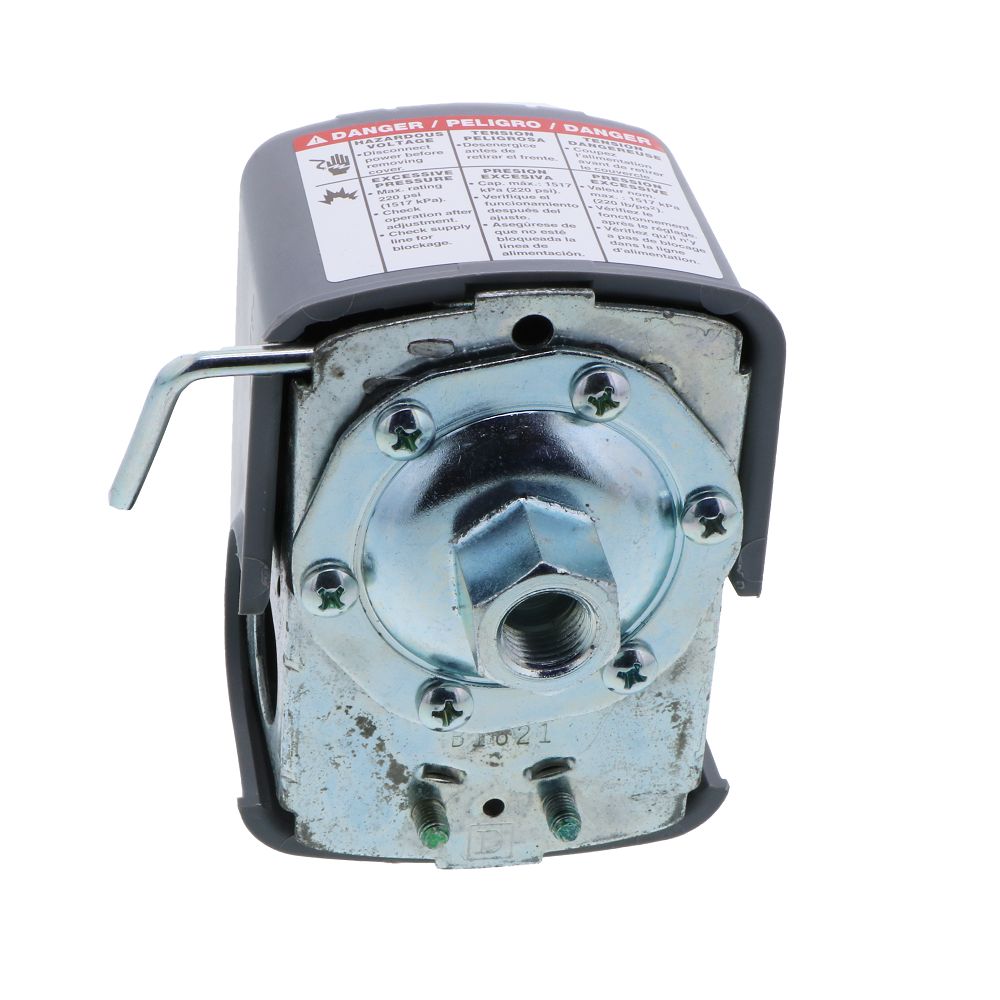

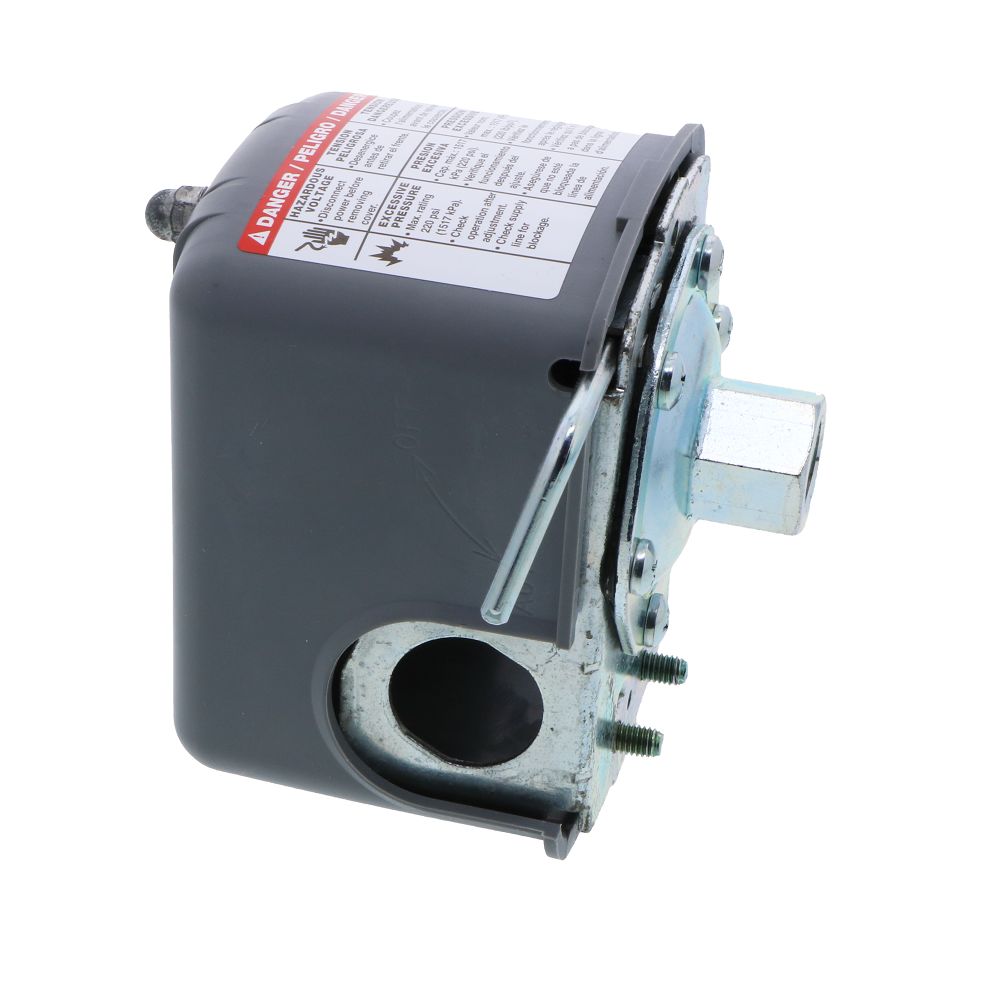

Square D Pressure Switch, Hi Press NC, DPST, 20/40 PSI adjustable, ON/OFF Lever, Diaphragm 9013FSG2J20M1

Part Number: 9013FSG2J20M1

In Stock

out of stock

In Stock

$22.48


Square D Pumptrol 9013FSG2J20M1 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Amps: 10A
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • Pressure Connection: 1/4" FPT
  • Maximum Voltage Rating: 575VAC
  • Factory Set Cut-In Pressure: 20 psi
  • Factory Set Cut-Out Pressure: 40 psi
  • Maximum Allowable Pressure: 220 psig
  • Certification: UL listed and CSA certified


Weight & Dimensions

Approx Height (Inches)

2.80 Inches

Approx Weight

1.13 Lbs

Approx Width (Inches)

3.76 Inches

Approx Depth

2.78 Inches

Details

Contact Arrangement

DPST

Differential Type

Adjustable

Enclosure Type

General Purpose (Indoor)

Flange Material

Zinc Plated Steel

Amps

10

Diaphragm Materials

Nitrile (Buna N)

Max Operating Pressure

220 psig

Operating Pressure Range

20 - 40 psig

Origin

Mexico

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 230 VAC (1-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Rating

NEMA 1, 575 VAC

Pressure Setting

20/40 psi

Number Of Poles

2-Pole

Range On Decreasing Pressure

15 - 30 psig

Range On Increasing Pressure

20 - 65 psig

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed; CSA Certified


Square
