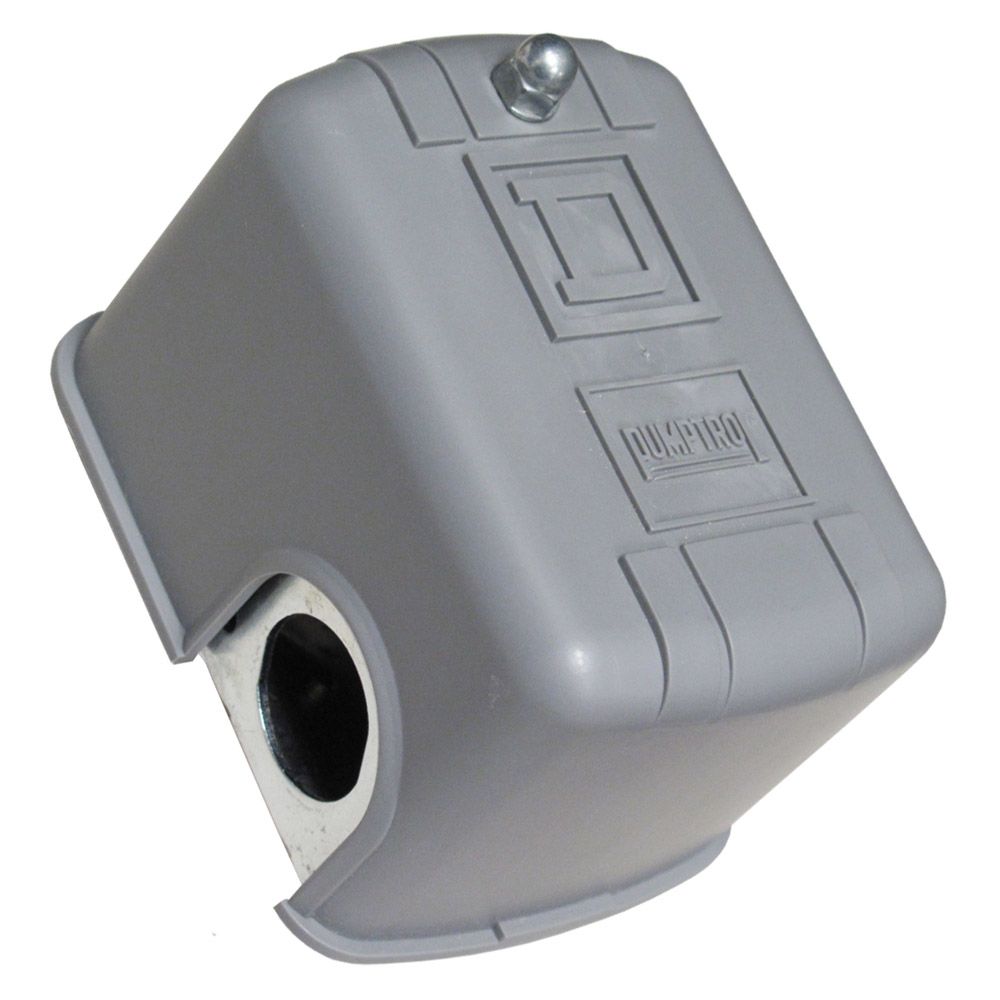

Square D Pressure Switch, DPST, 20/40 PSI, Diaphragm 9013FSG2J20
Part Number:
9013FSG2J20
Alt. Part Number:
FSG-2 20/40, 5B415
MSRP: $27.30
Regular price
$25.67
Unit price
Unit price
/
Unavailable
Shipping Information
Shipping Information
Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
Description
Description
Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.
Specifications:
Specifications:
- Factory Set Cut-In Pressure: 20 psi
- Factory Set Cut-Out Pressure: 40 psi
- Pressure Connection: 1/4" FNPT
- Maximum Voltage Rating: 575VAC
- Amps: 10A
- Maximum Allowable Pressure: 220 psig
- Actuator Type: Diaphragm
- Diaphragm: Nitrile (Buna N)
- UL Listed and CSA Certified
- Indoor Use
