Square D

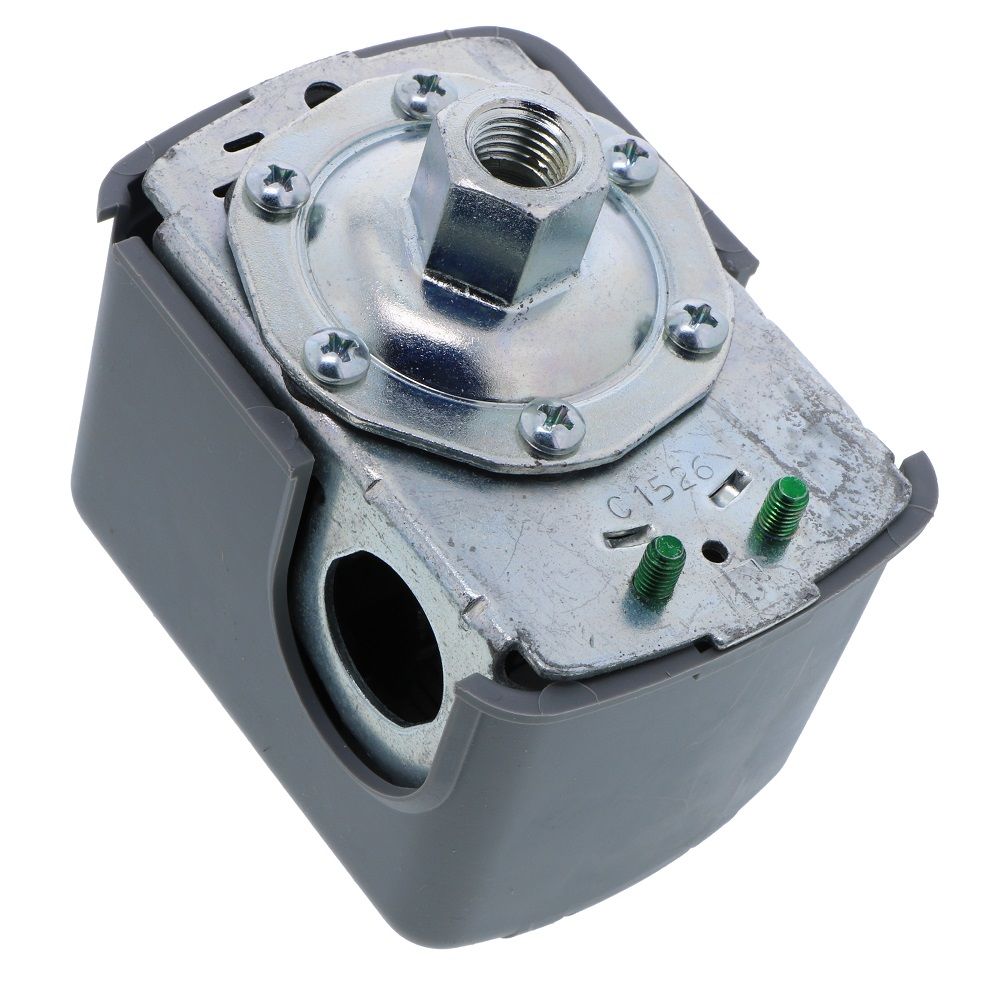

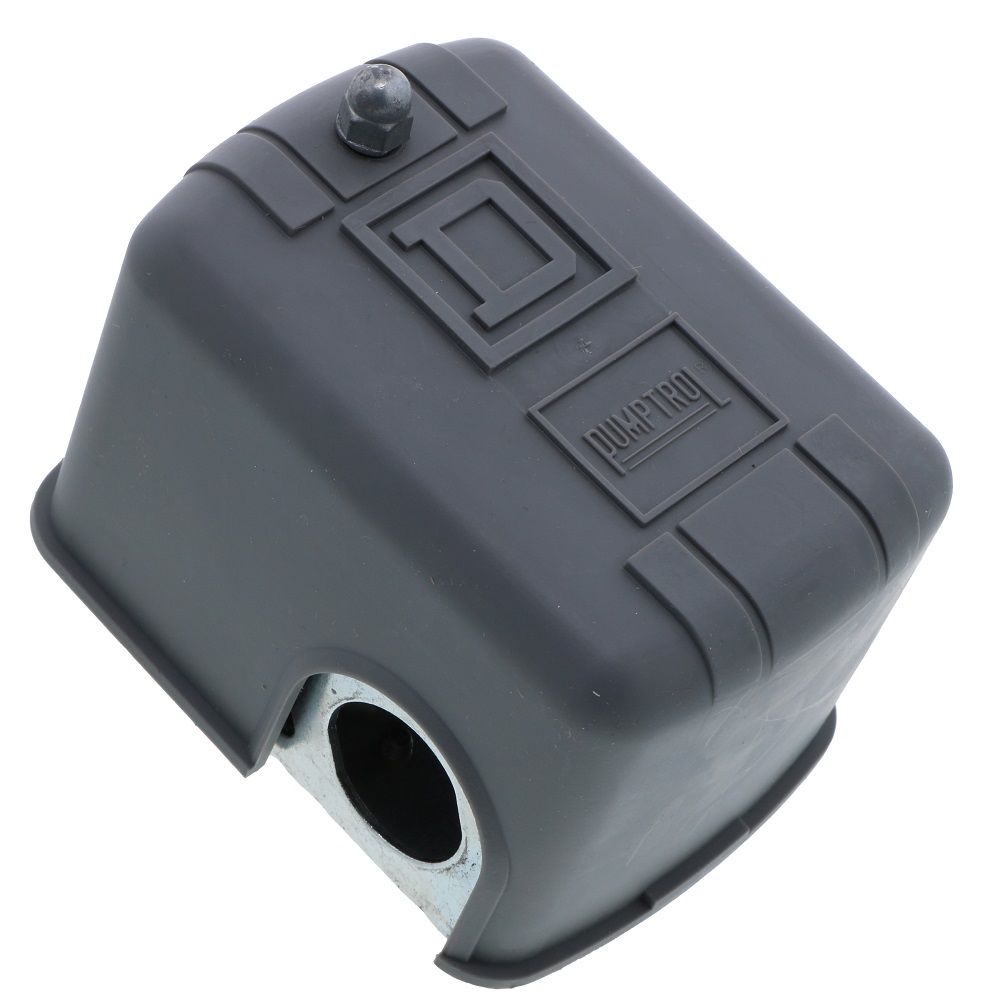

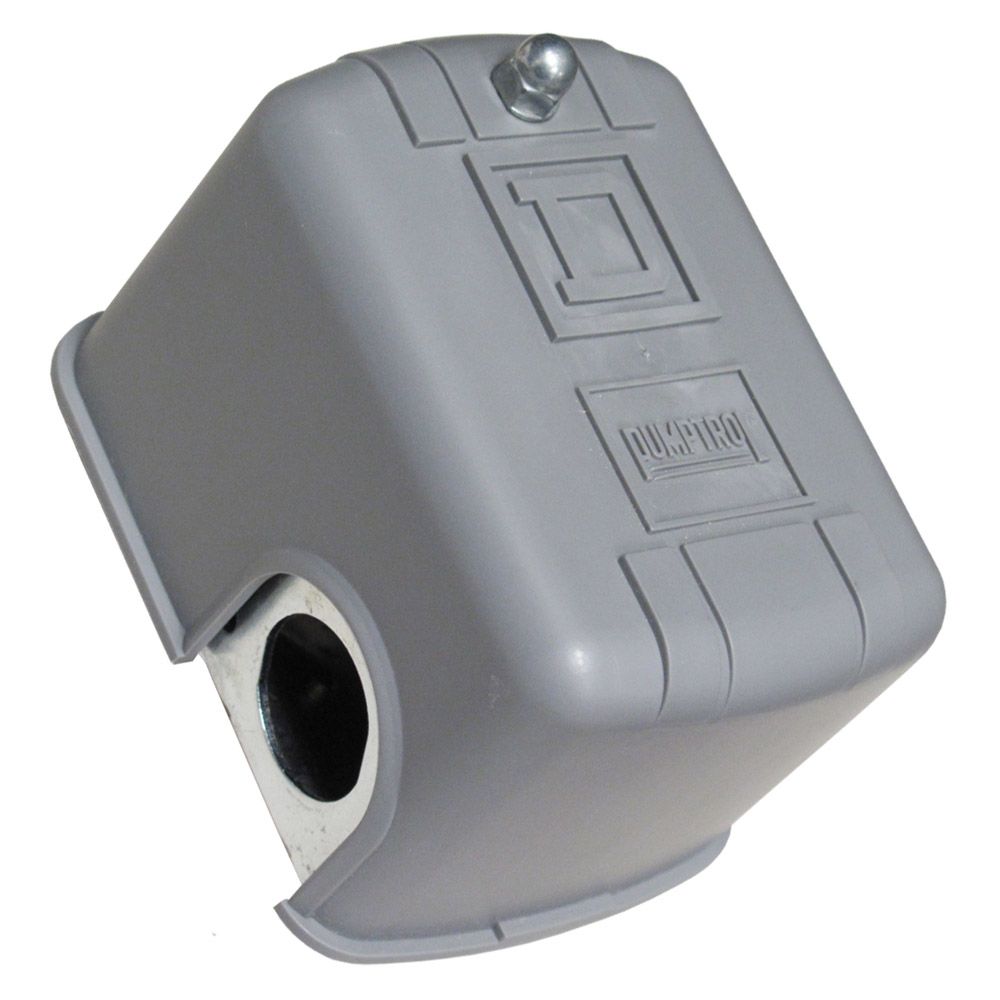

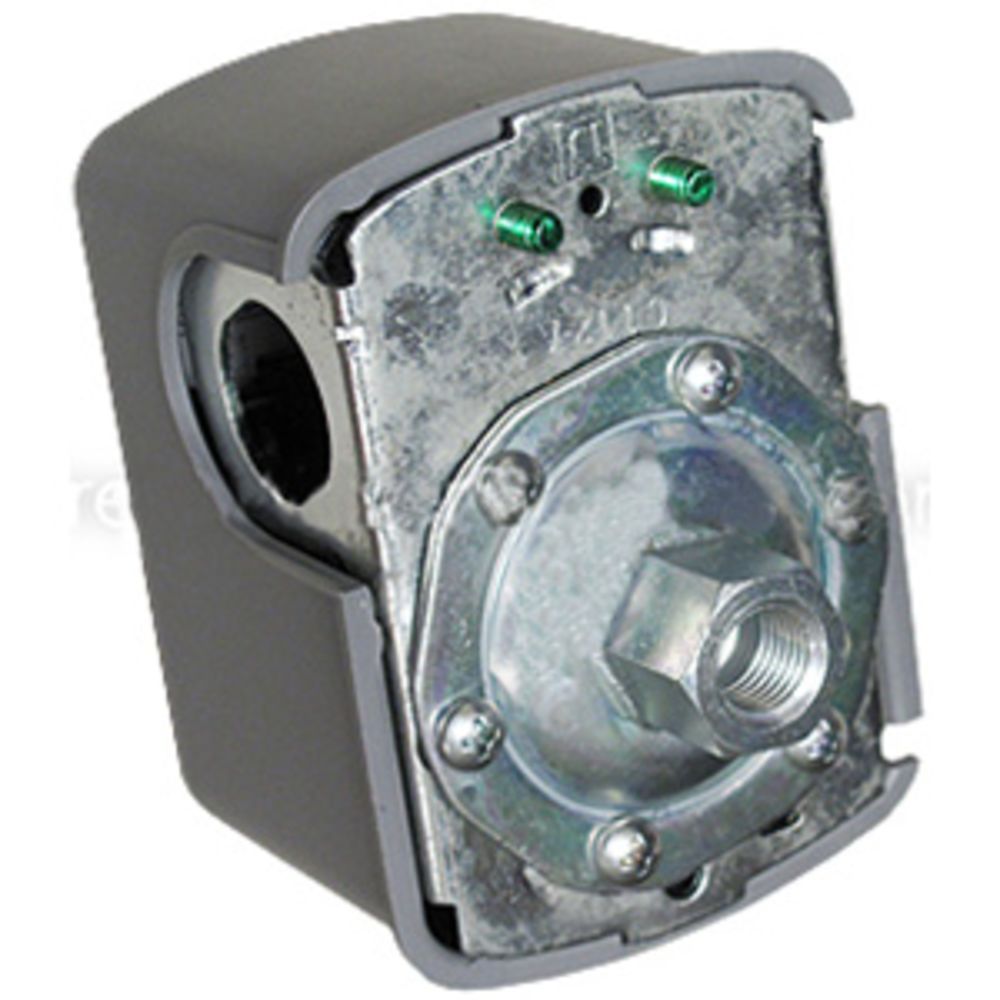

Square D Pressure Switch, DPST, 20/40 PSI, Diaphragm 9013FSG2J20

Part Number: 9013FSG2J20

Alt. Part Number: FSG-2 20/40, 5B415

In Stock

out of stock

In Stock

$16.49


Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Factory Set Cut-In Pressure: 20 psi
  • Factory Set Cut-Out Pressure: 40 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified


Weight & Dimensions

Approx Height (Inches)

2.80 Inches

Approx Weight

1.13 Lbs

Approx Width (Inches)

3.76 Inches

Approx Depth

2.78 Inches

Details

Contact Arrangement

DPST

Differential Type

Adjustable

Enclosure Type

General Purpose (Indoor)

Flange Material

Zinc Plated Steel

Amps

10

Diaphragm Materials

Nitrile (Buna N)

Max Operating Pressure

220 psig

Operating Pressure Range

15 - 30 psig

Origin

Mexico

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 230 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Rating

NEMA 1, 575 VAC

Pressure Setting

20/40 psi

Number Of Poles

2-Pole

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed; CSA Certified


Square





Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Factory Set Cut-In Pressure: 20 psi
  • Factory Set Cut-Out Pressure: 40 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified

Weight & Dimensions

Approx Height (Inches)

2.80 Inches

Approx Weight

1.13 Lbs

Approx Width (Inches)

3.76 Inches

Approx Depth

2.78 Inches

Details

Contact Arrangement

DPST

Differential Type

Adjustable

Enclosure Type

General Purpose (Indoor)

Flange Material

Zinc Plated Steel

Amps

10

Diaphragm Materials

Nitrile (Buna N)

Max Operating Pressure

220 psig

Operating Pressure Range

15 - 30 psig

Origin

Mexico

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 230 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Rating

NEMA 1, 575 VAC

Pressure Setting

20/40 psi

Number Of Poles

2-Pole

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed; CSA Certified
