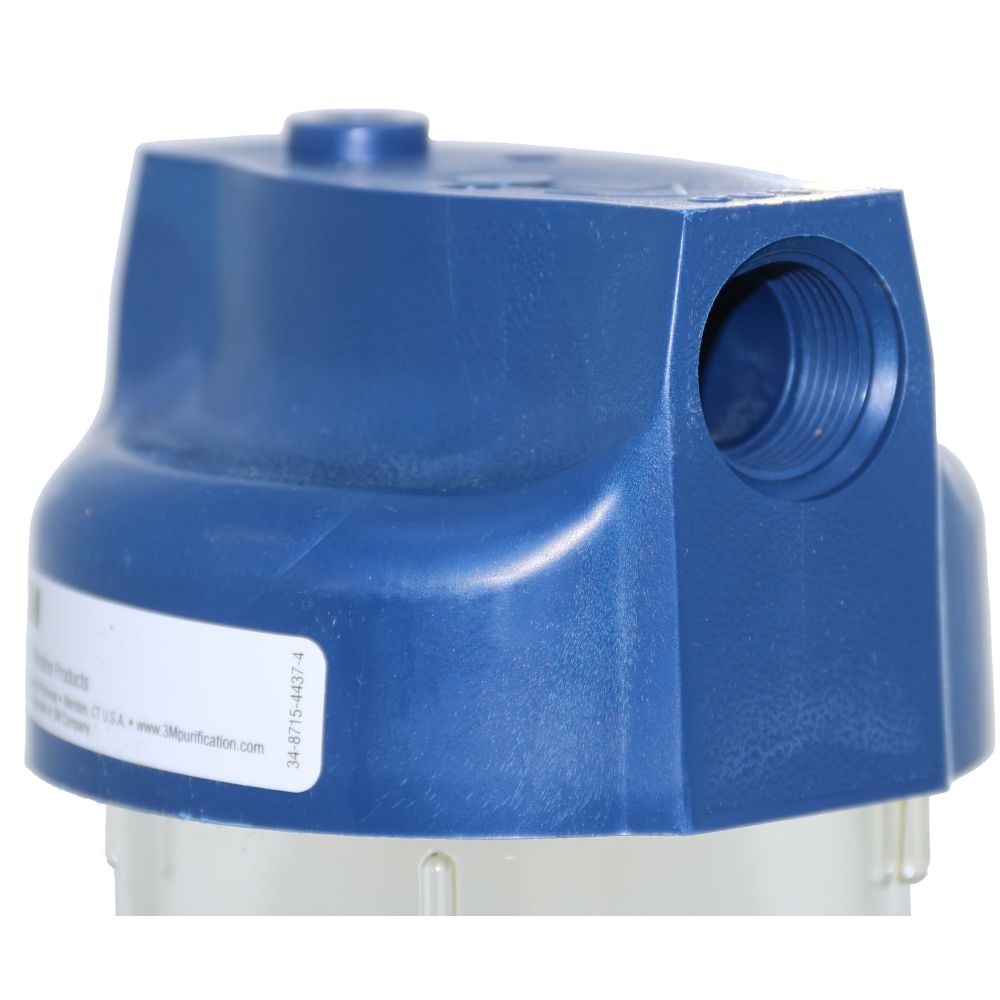

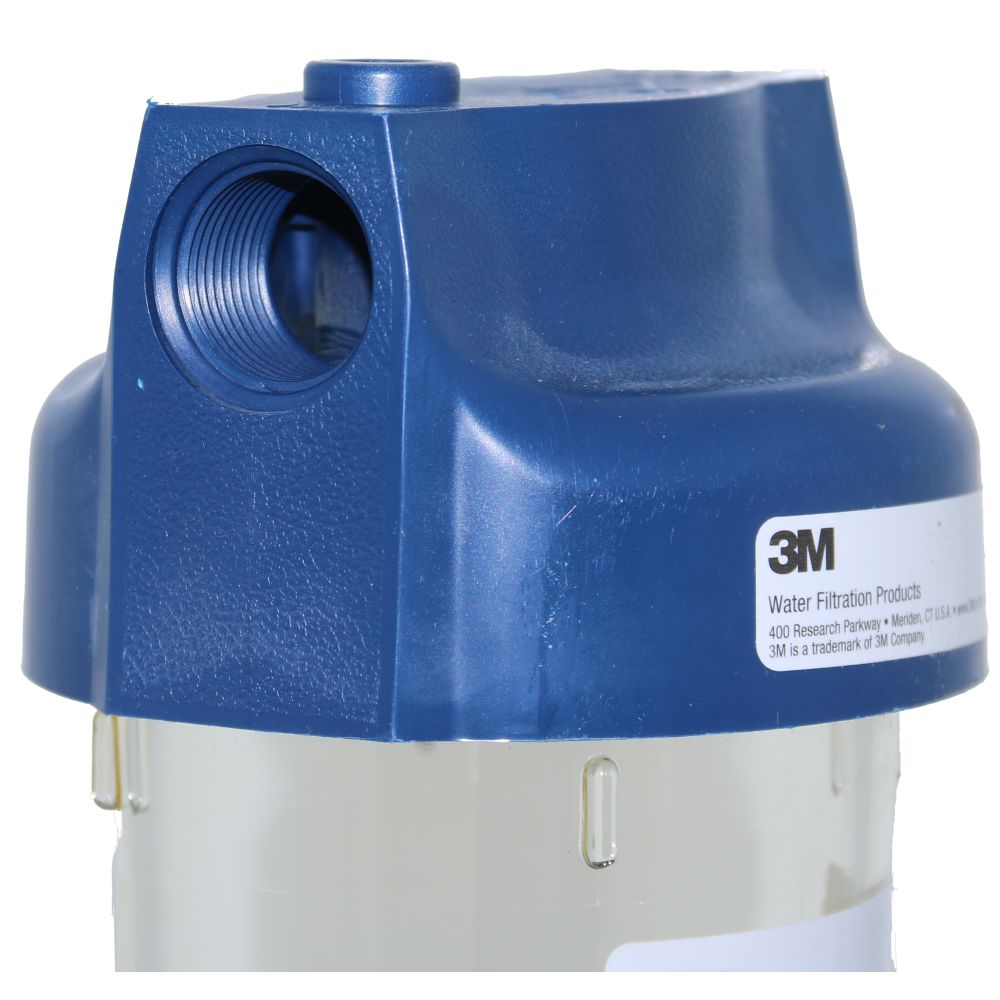

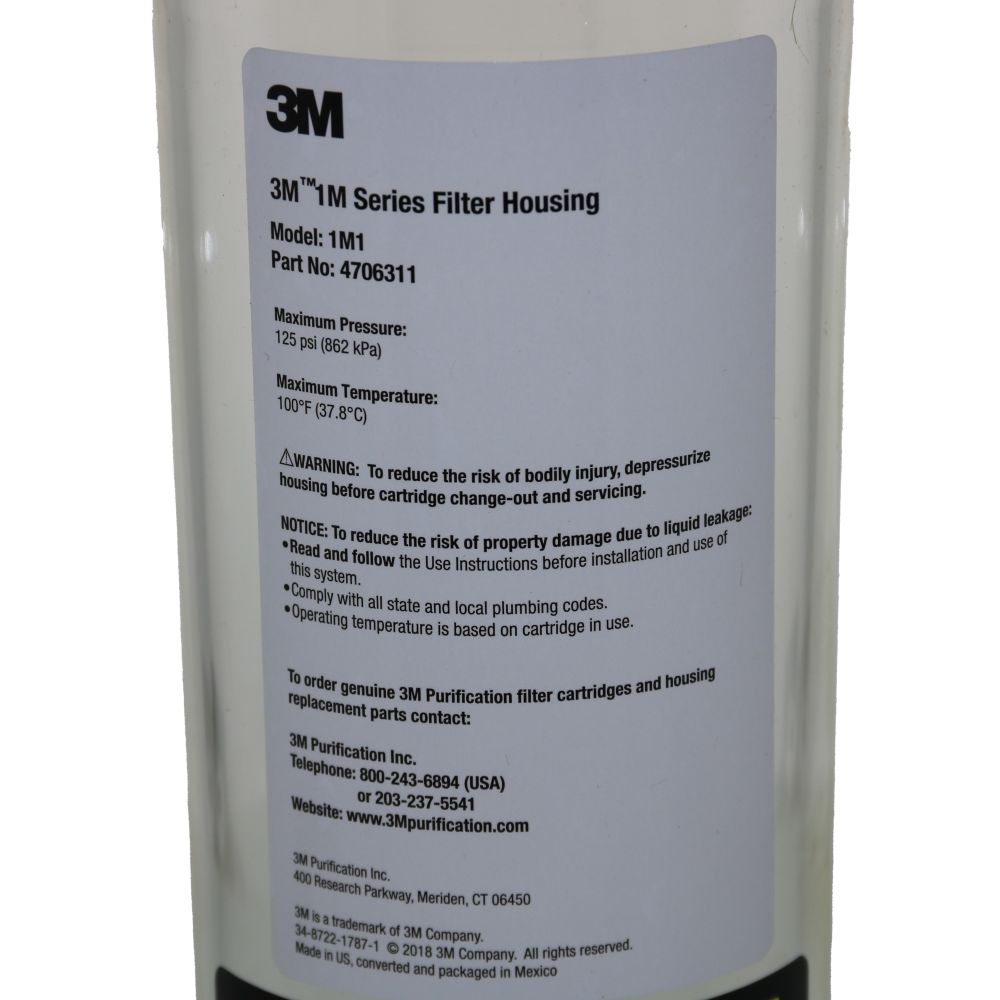

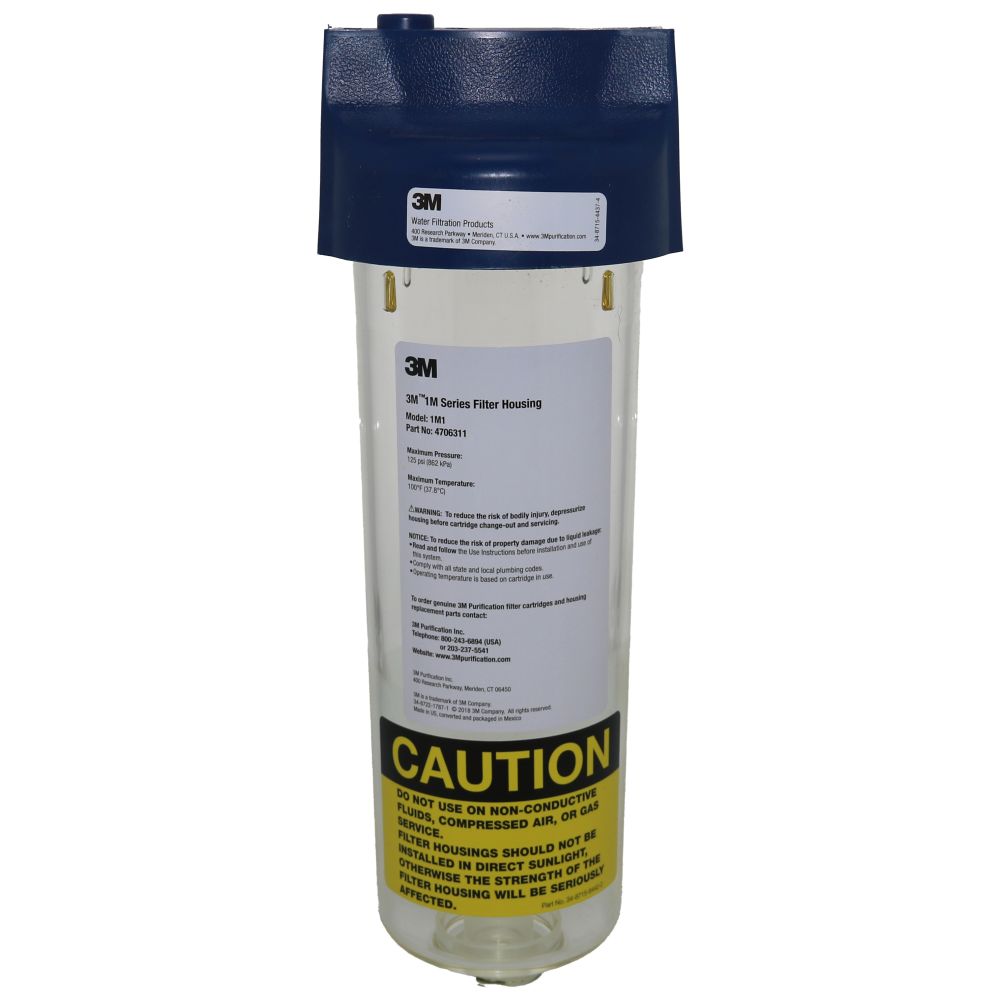

3M 1M Series 10" Clear Housing w/ 3/4" NPT connection

3.0
(0 reviews)
Part Number: 47063-11 Alt. Part Number: 47063-01

3M 1M Series 10" Clear Housing w/ 3/4" NPT connection

3.0
(0 reviews)
Part Number: 47063-11 Alt. Part Number: 47063-01
Regular price $122.18

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Solventum Cuno Valved Head is a 10" filter housing replacement that features a 3/4" NPT connection with a 1/2" adapter. Its slim design and high chemical compatibility make it ideal for those challenging low-flow filtration applications.

Valve-In-Head designs relieve pressure for convenient cartridge changes: Turn to shut off water, then remove housing from head assembly.

Features:
  • Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges.
  • Leak-proof sealing with top-seated 151121 Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Specifications

    Product Details

    Features

    Valve-In-Head

    Housing Material

    Styrene Acrylonitrile

    Inlet Connection

    3/4" FPT

    Max Flow Rate

    8 GPM

    Max Pressure (Psi)

    125

    Max Temp (°F)

    100°F

    Outlet Connection

    3/4" FPT

    Size

    3/4"

    Cap Material

    Polypropylene

    Color / Finish

    Clear

    Connection Type

    Female (FPT)

    Shipping Dimensions

    Shipping Length

    16 in.

    Shipping Width

    5 in.

    Shipping Height

    5 in.

    Product Weight & Dimensions

    Product Height

    10"

    Product Weight (lbs)

    3.2
