3M Purification Inc.

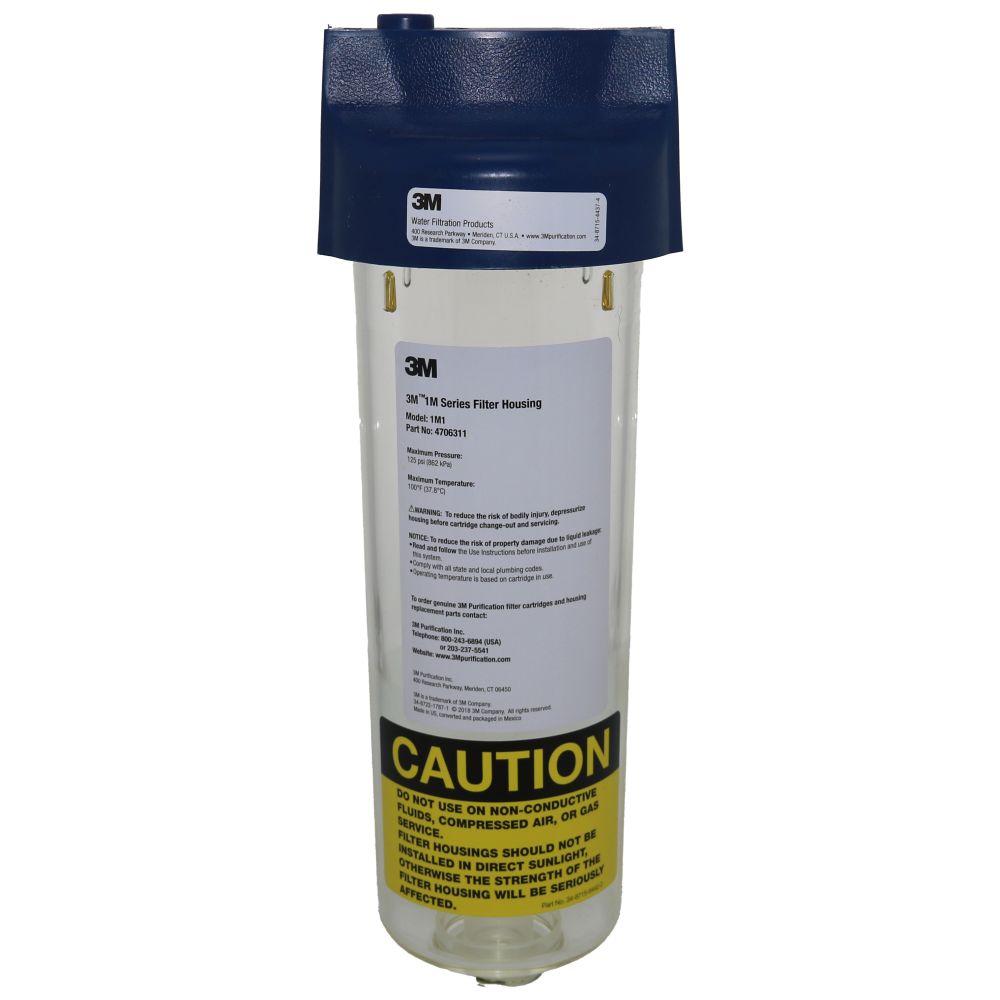

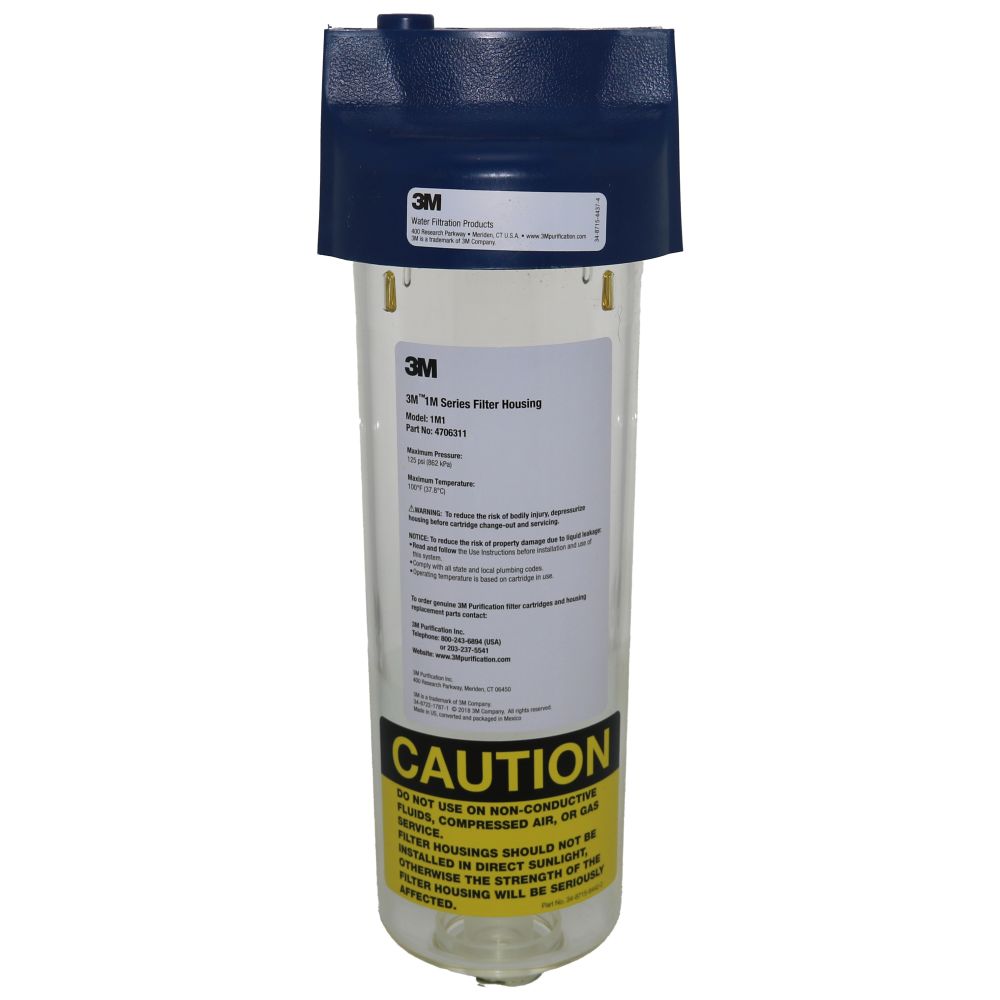

3M 1M Series 10" Clear Housing w/ 3/4" NPT connection

Part Number: 47063-01

In Stock

out of stock

In Stock

$84.99


The 3M Cuno Valved Head model features a built-in shut-off valve with pressure relief buttons that are made from FDA CFR-21 compliant materials. The 10" filter housing replacement features a 3/4" NPT connection with a 1/2" adapter. Its slim design and high chemical compatibility make it ideal for those challenging low-flow filtration applications.

Valve-In-Head designs relieve pressure for convenient cartridge changes: Turn to shut off water, then remove housing from head assembly.

Features:
  • Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges.
  • Leak-proof sealing with top-seated 151121 Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance

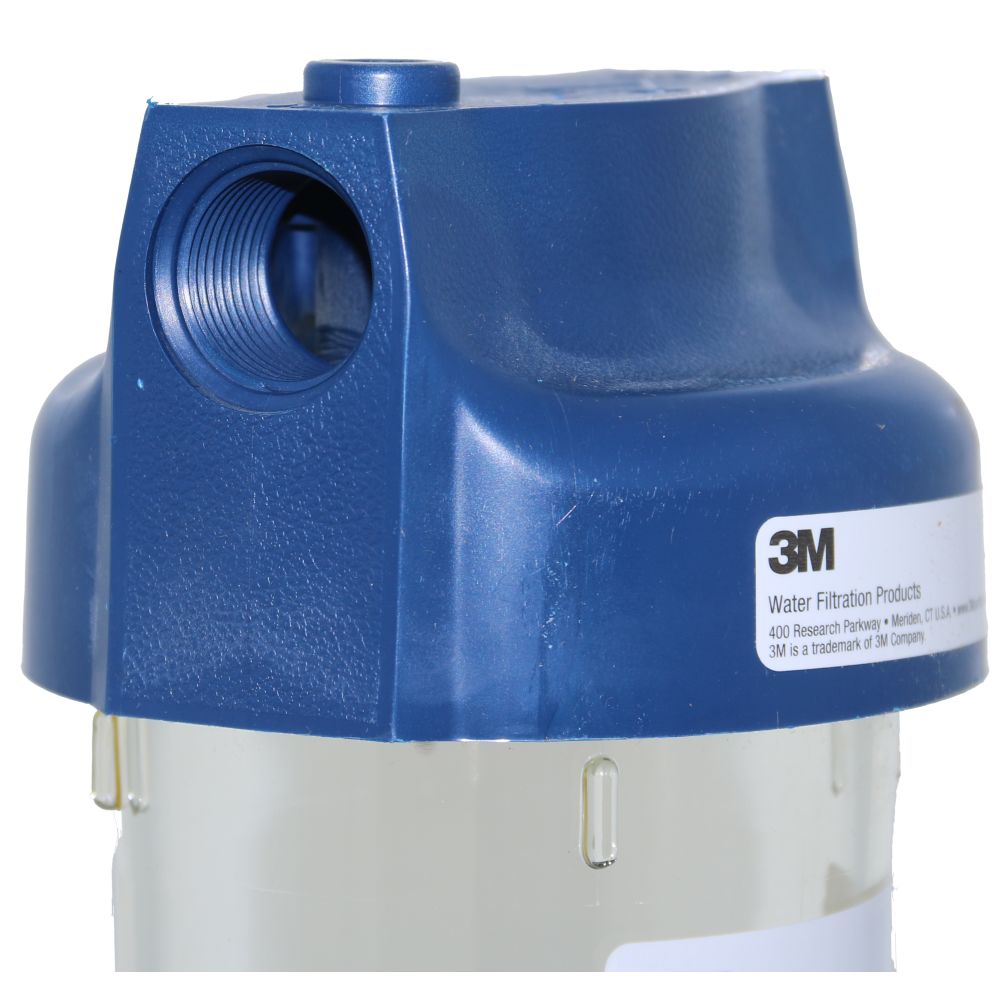

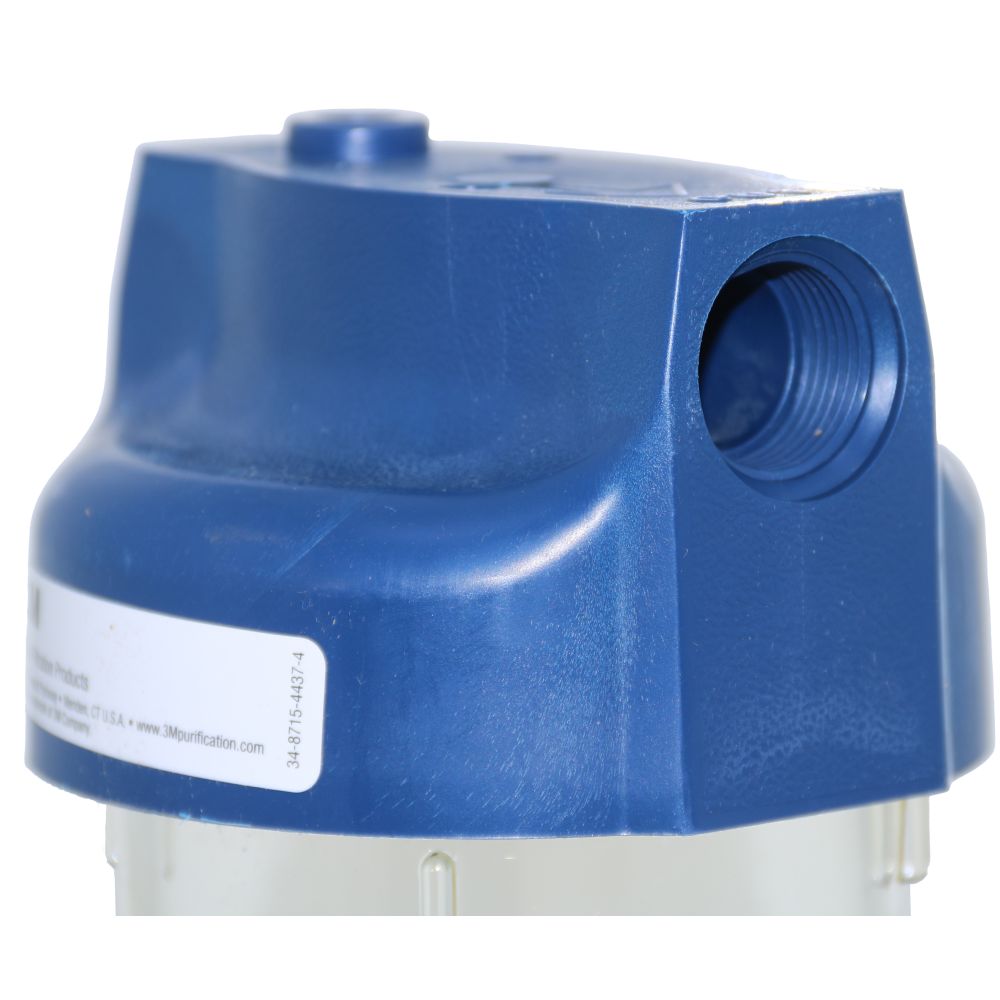

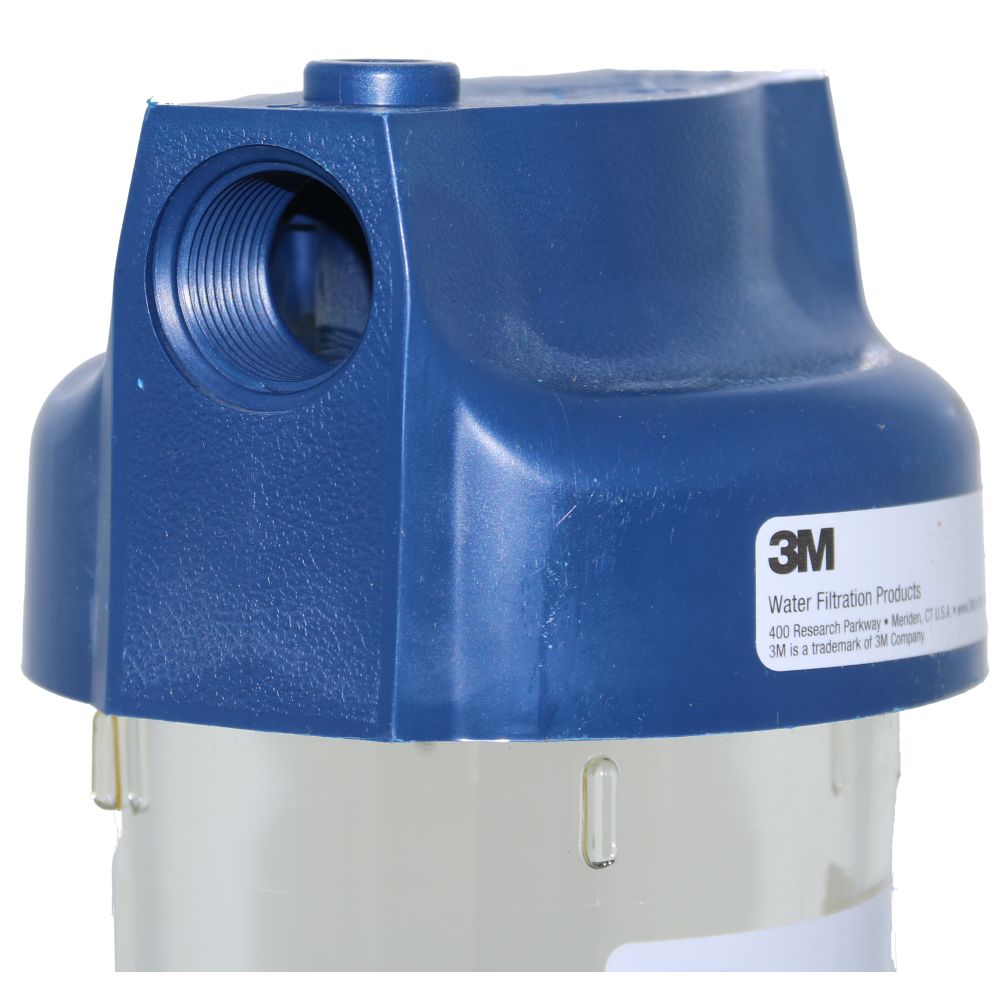

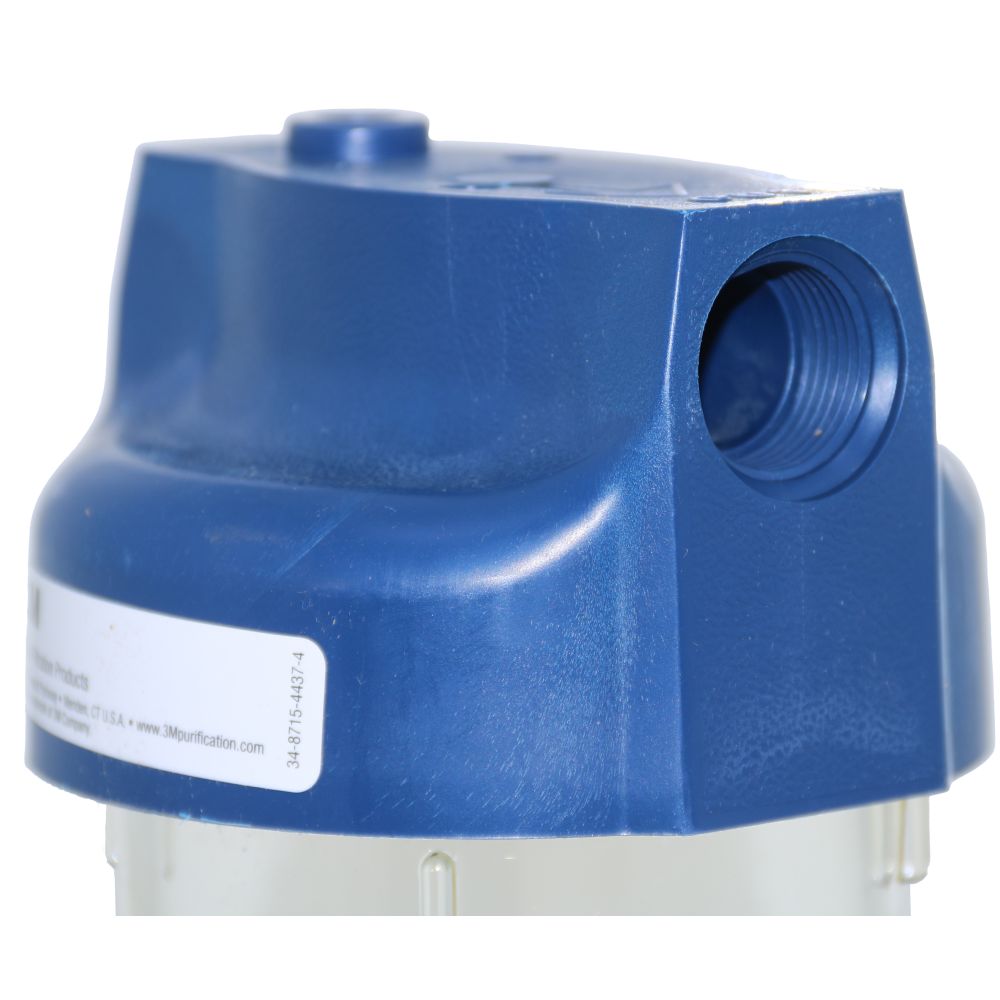

  • Cap has integrated bracket and pressure relief button

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


Weight & Dimensions

Approx Height (Inches)

10 Inches

Details

Cap Material

Polypropylene

Color / Finish

Clear

Features

Valve-In-Head

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

3/4"

Max Flow Rate

8 Max Gallons Per Minute

Max Operating Pressure

125 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Button Assembly

300 series stainless steel, EPDM, Polyproylene




The 3M Cuno Valved Head model features a built-in shut-off valve with pressure relief buttons that are made from FDA CFR-21 compliant materials. The 10" filter housing replacement features a 3/4" NPT connection with a 1/2" adapter. Its slim design and high chemical compatibility make it ideal for those challenging low-flow filtration applications.

Valve-In-Head designs relieve pressure for convenient cartridge changes: Turn to shut off water, then remove housing from head assembly.

Features:
  • Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges.
  • Leak-proof sealing with top-seated 151121 Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance
  • Cap has integrated bracket and pressure relief button

NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Weight & Dimensions

Approx Height (Inches)

10 Inches

Details

Cap Material

Polypropylene

Color / Finish

Clear

Features

Valve-In-Head

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

3/4"

Max Flow Rate

8 Max Gallons Per Minute

Max Operating Pressure

125 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Button Assembly

300 series stainless steel, EPDM, Polyproylene
