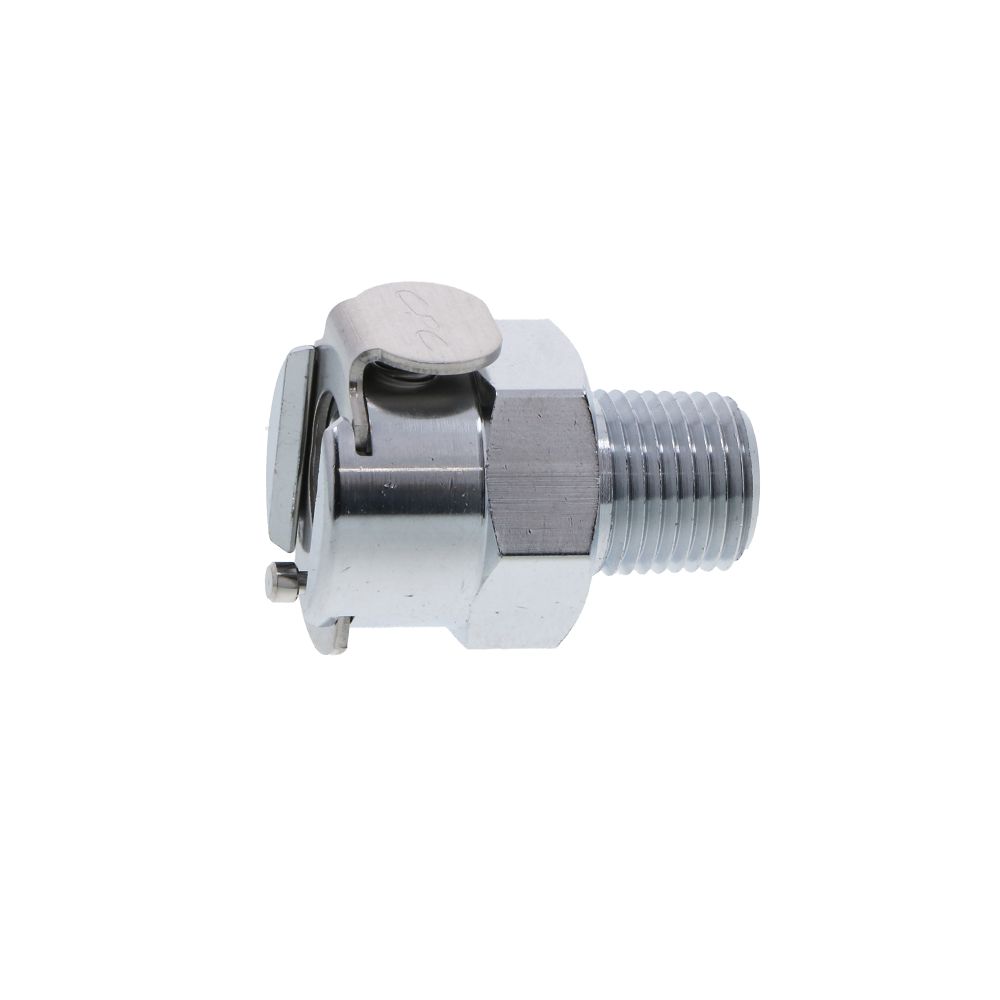

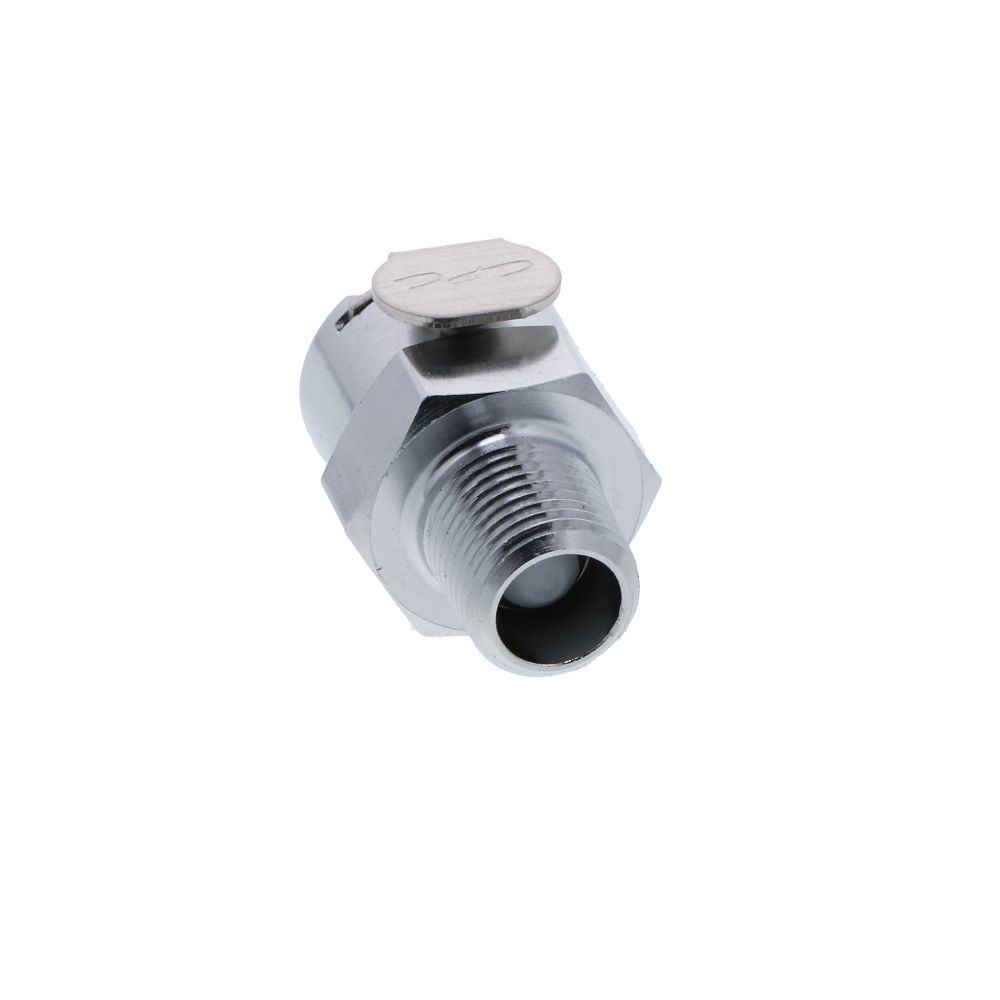

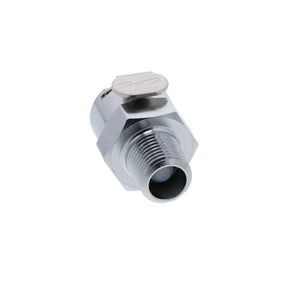

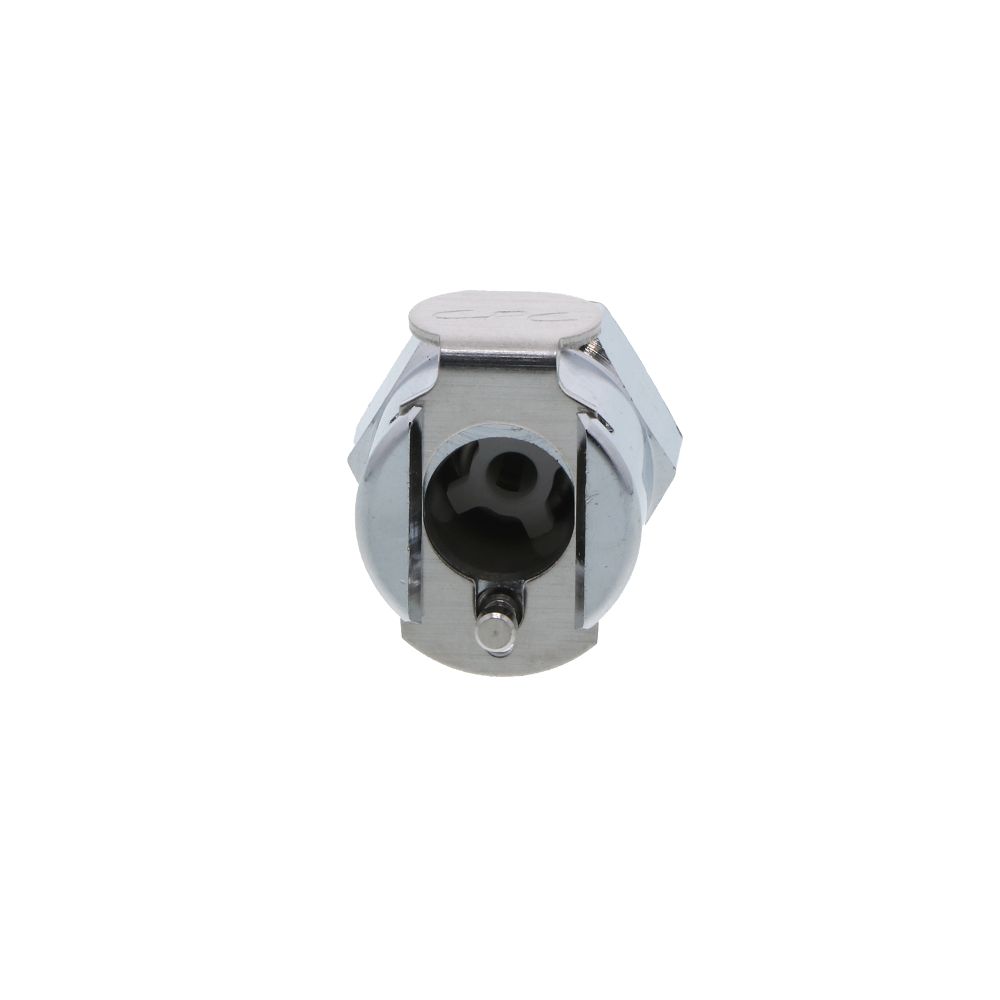

MCD1002 Valved Male Thread Coupling Body 1/8 NPT

5.0

(2 reviews)

Part Number: MCD1002

1 3

Solventum

MCD1002 Valved Male Thread Coupling Body 1/8 NPT

5.0

(2 reviews)

Part Number: MCD1002

MSRP: $15.69

$15.69

Quantity

Unit Price

Price

Savings

$15.69

—

$15.29

$152.98

100

$14.90

$1,490.55

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Product not eligible for free shipping

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: Thread
Valve Option: Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
NSF Listed Version (part # 15500) Available Upon Request

Compatible with:

Colder Couplings & Fittings

15500

Specifications

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	0.625 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1 in.
Product Width	0.625 in.
Product Weight (lbs)	0.046

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

MCD1002 Valved Male Thread Coupling Body 1/8 NPT Manual
