Colder Products

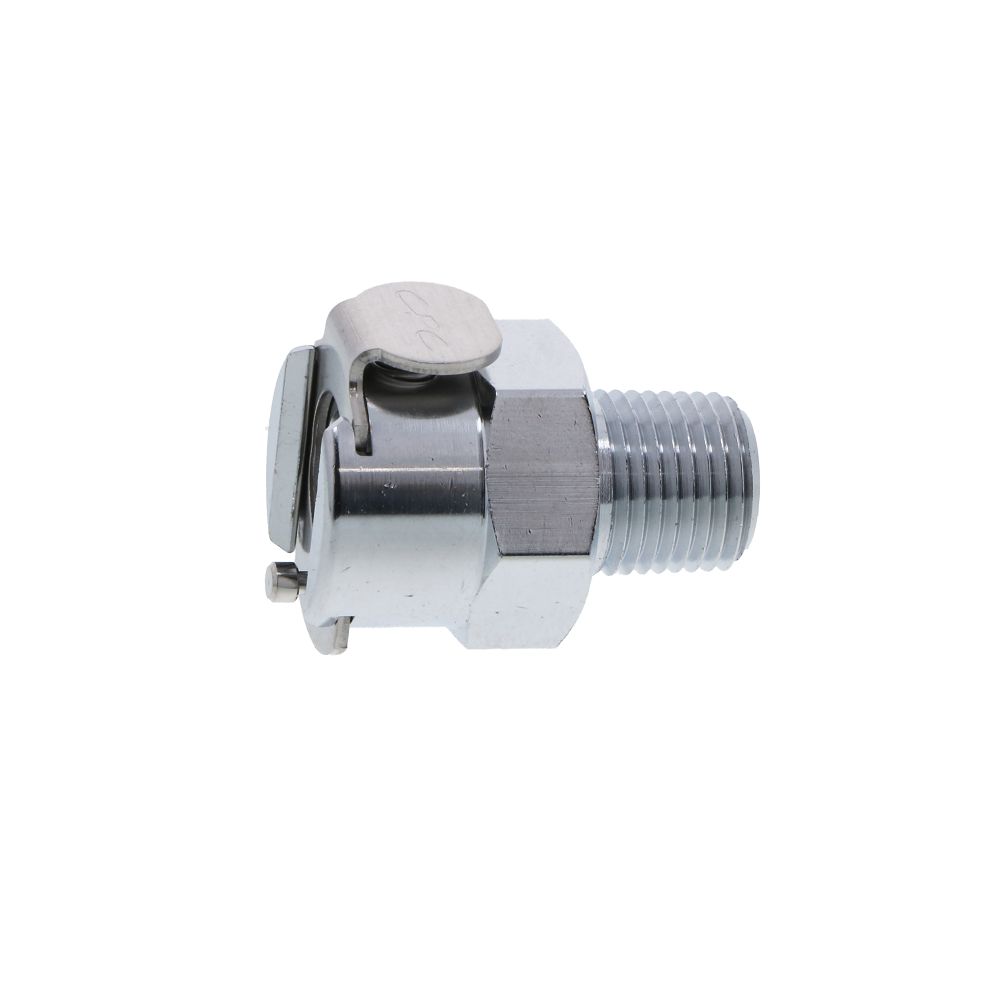

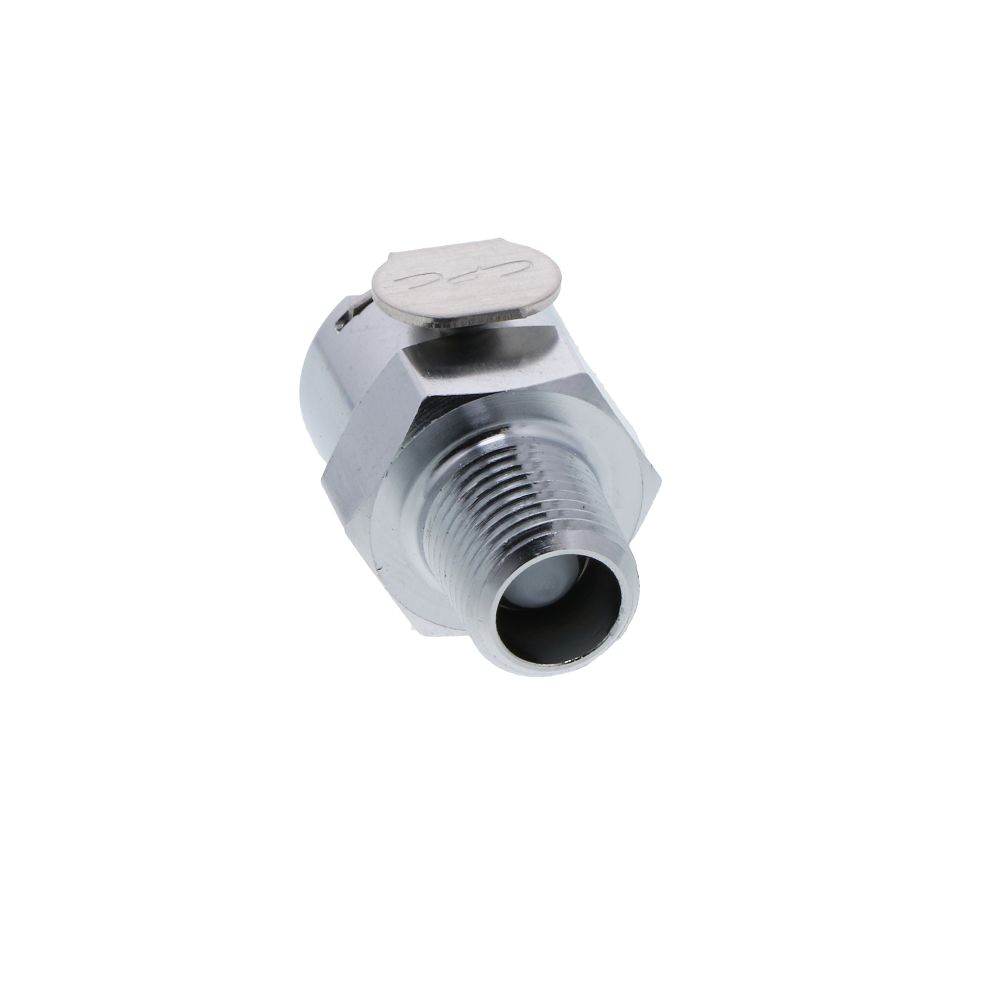

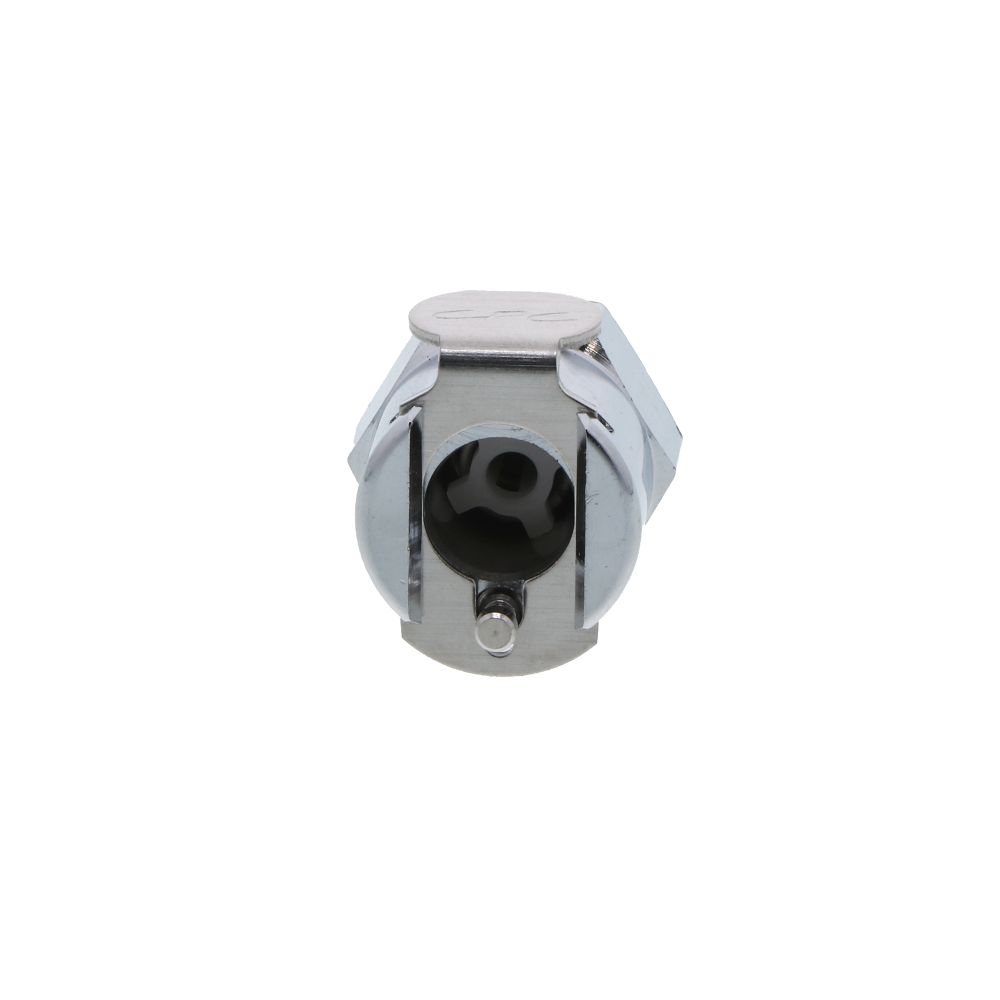

MCD1002 Valved Male Thread Coupling Body 1/8 NPT

Part Number: MCD1002

In Stock

out of stock

In Stock

$21.45

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 15500) Available Upon Request



Compatible with:
Colder Couplings & Fittings15500

Weight & Dimensions

Height (inches)

0.75

Length (inches)

1

Weight (lbs)

0.046

Width (inches)

0.625

Details

Application

Water

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

MC

Size

1/8"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body


MCD1002
