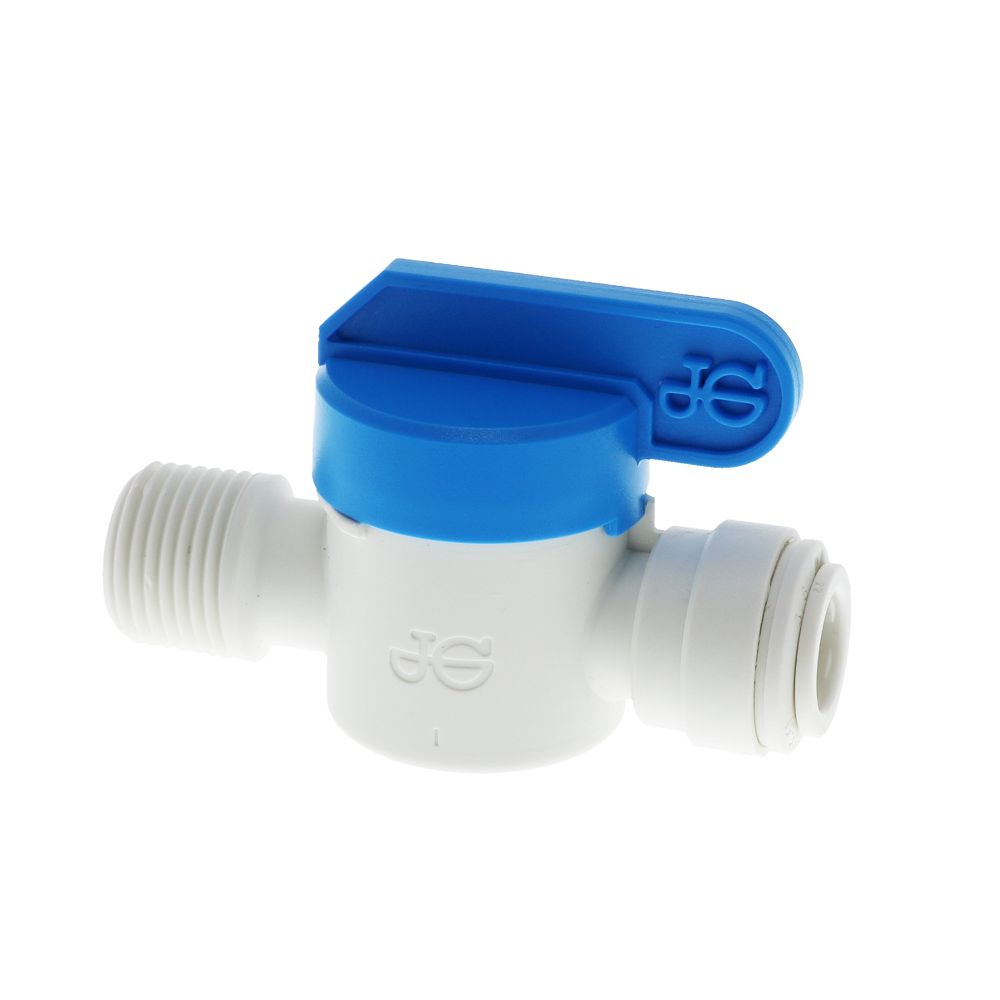

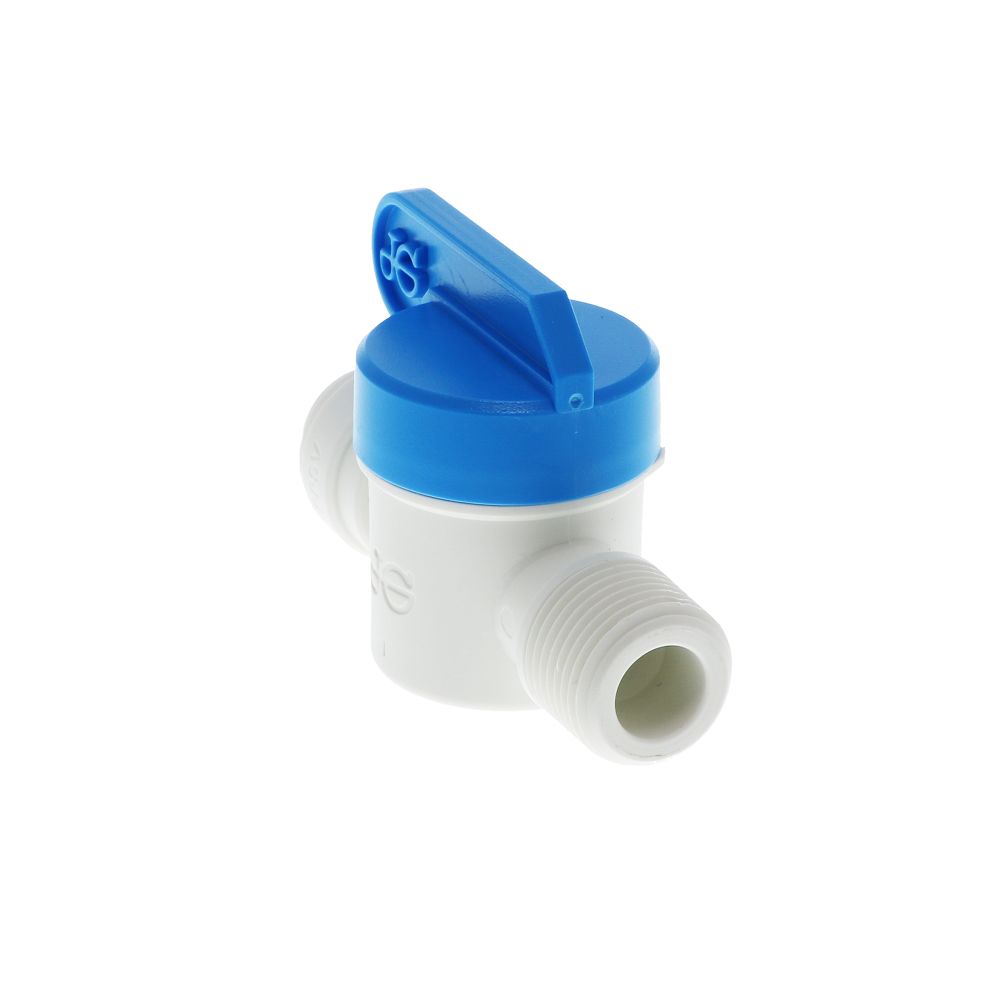

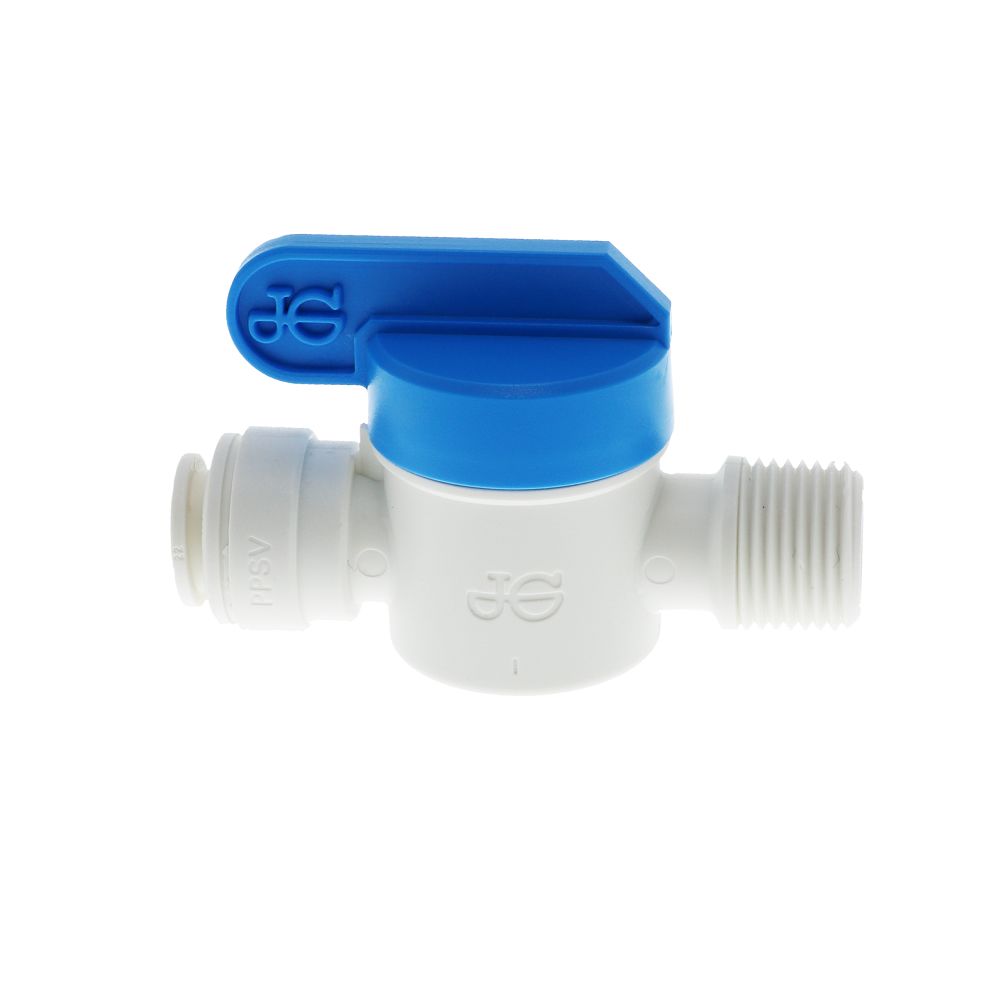

John Guest Shut-Off Valve Polypro Male NPTF - 3/8 Tube x 3/8 Male NPTF

5.0

(4 reviews)

Part Number: PPSV011223W-X Alt. Part Number: AHMC0606

1 3

John Guest

John Guest Shut-Off Valve Polypro Male NPTF - 3/8 Tube x 3/8 Male NPTF

5.0

(4 reviews)

Part Number: PPSV011223W-X Alt. Part Number: AHMC0606

MSRP: $9.47

$6.02

Quantity

Unit Price

Price

Savings

$6.02

—

$5.92

$59.20

100

$5.82

$582.01

500

$5.71

$2,859.50

Product variants

You May Also Need

Optional Accessory
Black 3/8" OD LLDPE Polyethylene Tubing

Regular price From $0.20
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory
John Guest Pipe Insert / Tube Support - 5/16" CTS

Regular price From $0.19
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
John Guest Flow Bend Clip - 3/8

Regular price From $1.27
Optional Accessory
NeoFit - Acetal Locking Clip 3/8"

Regular price From $0.23
Optional Accessory
John Guest Collet Cover - 3/8 OD

Regular price From $0.30

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Shut-Off Valve is used to isolate the supply for service and maintenance. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to isolate the supply for service and maintenance
Quarter turn to open or close
Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

View Prop 65 Warning

Specifications

Product Details
Application	Water Food Beverage
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	3/8" MPT
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.01

Product Details
Application	Water Food Beverage
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	3/8" MPT
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Application	Water Food Beverage
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	3/8" MPT
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	6.17

Product Details
Application	Water Food Beverage
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	3/8" MPT
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Size	3/8"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	21.65 in.
Shipping Width	10.63 in.
Shipping Height	11.42 in.
Product Weight & Dimensions
Product Height	11.42"
Product Length	21.65"
Product Width	10.63"
Product Weight (lbs)	29

Downloads

John Guest Shut-Off Valve Polypro Male NPTF - 3/8 Tube x 3/8 Male NPTF Manual

Reviews (4)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

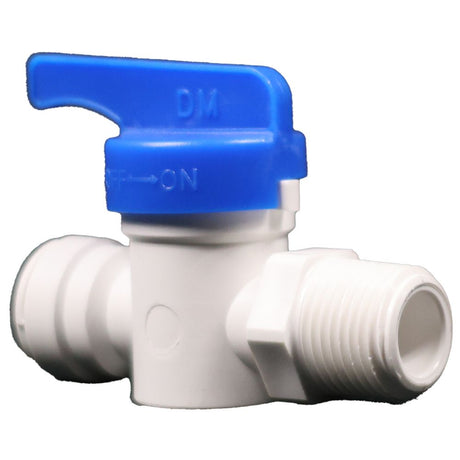

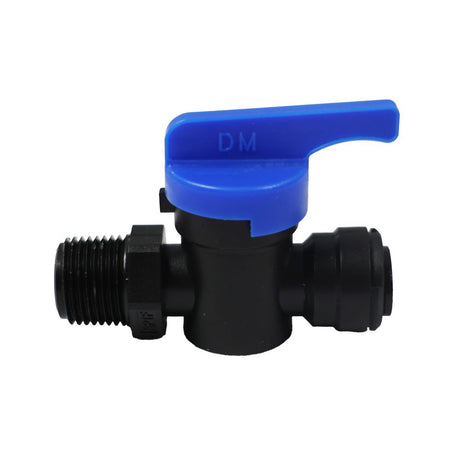

Facet	John Guest John Guest Shut-Off Valve Polypro Male NPTF - 3/8 Tube x 3/8 Male NPTF 5.0 Regular price From $6.02 Low stock Part #: PPSV011223W-X Save up to 5% with bulk pricing Current Product	NeoFit NeoFit - Polypropylene Male Ball Valve 3/8" x 3/8" NPTF 5.0 Regular price From $5.35 Part #: PHVMC6-N3-W Save up to 5% with bulk pricing View details	NeoFit NeoFit - Polypropylene Black Male Ball Valve 3/8" x 3/8" NPTF Regular price From $5.25 Part #: PHVMC6-N3-E Save up to 20% with bulk pricing View details
