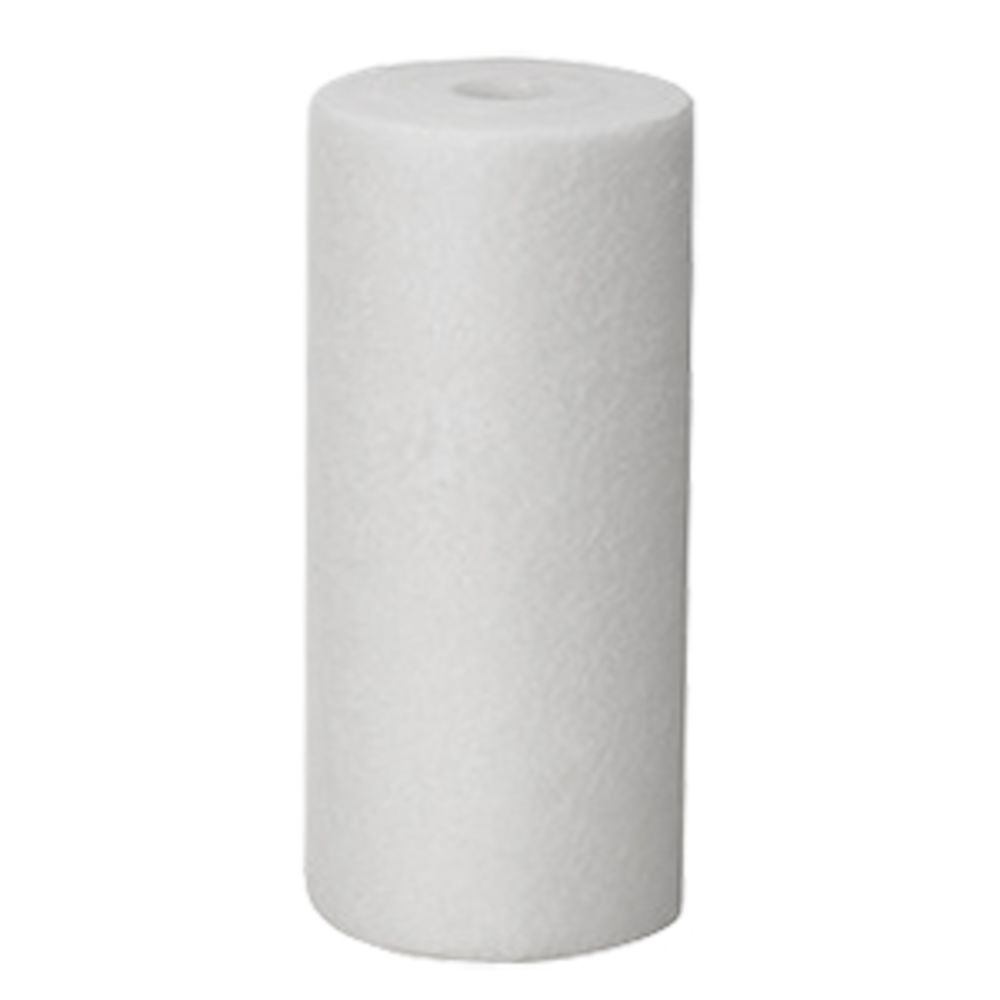

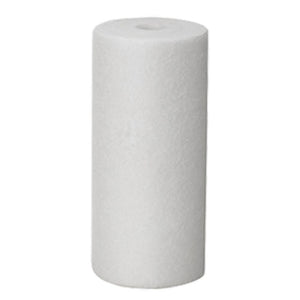

Pentair 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

3.0
(4 reviews)
Part Number: 155359-43 Alt. Part Number: DGD-2501, SGD-45-1001, MB-45098-01

Pentair 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

3.0
(4 reviews)
Part Number: 155359-43 Alt. Part Number: DGD-2501, SGD-45-1001, MB-45098-01
MSRP: $25.35
Regular price $20.28
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155359-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

Features:
  • Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
  • All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.

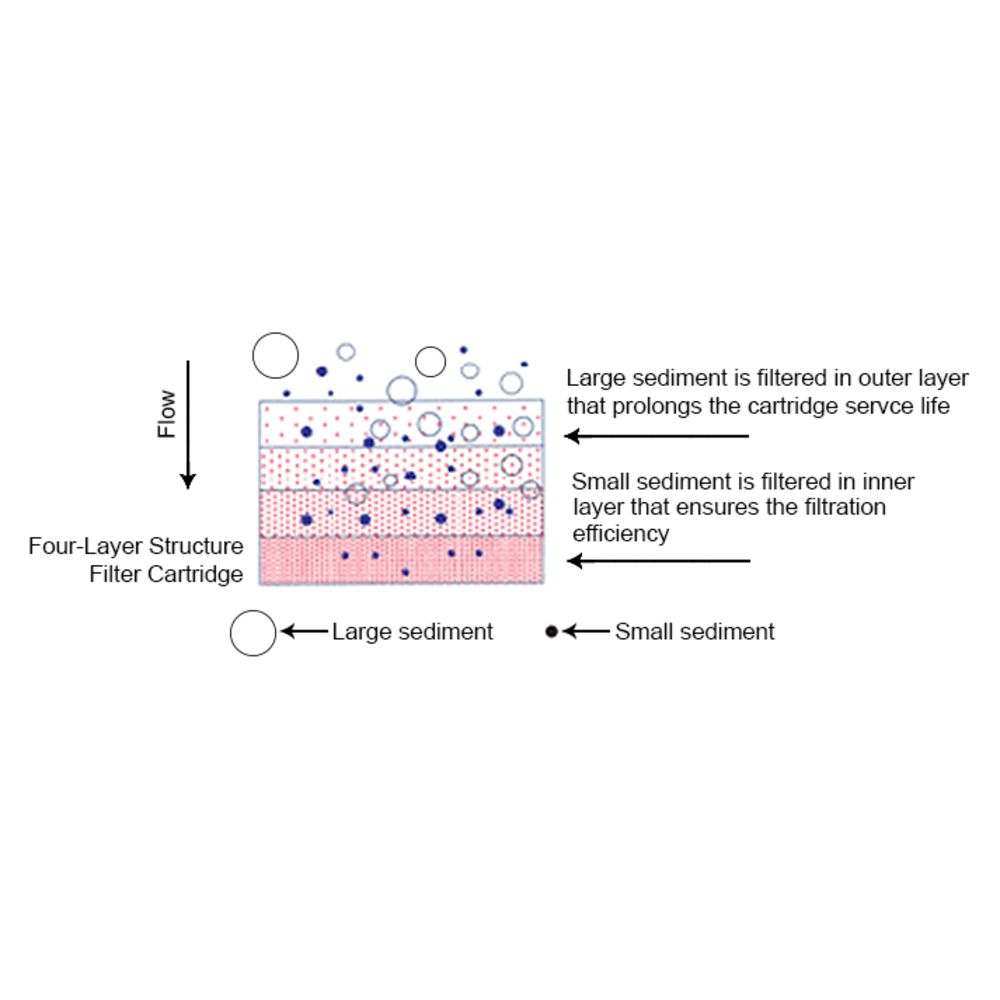

  • Ensures Your Water is Pure and Clean. The outer layer is a 25 micron pre-filter that takes out larger sediment, thus reducing the load on the 1 micron inner-layer post filter allowing it to operate more efficiently and consistently.
Specifications:
  • Length: 10"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 25 μm / Post 1.0 μm
  • NSF 42 Certified
  • FDA CFR-21 Approved

NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.

Compatible with:
BunnS5-30
EverpureEV9108-40, DEV9108-40
Filter SpecialistCMMF01975-45W1
HydronixSDC-45-1001
LiquatecSDF-45-1001
OmniFilter, FlotecRS16
Shurflo15-052-02
Valuetrex1227865-V-BB, VX01-10BB

Specifications

    Product Details

    Body Material

    Polypropylene

    Efficiency

    0.8

    Initial Pressure Drop

    <1 psi typical psid PSI Differential

    Max Temp (°F)

    175°F

    Micron Rating (Nominal)

    Post 1 µm

    Min Temp (°F)

    40°F

    Psid@Flow Rate

    < 1 psid @ 10 GPM

    Cap Material

    Polypropylene

    Cartridge Style

    Drop-in

    Contaminants Reduced

    Sediment/Dirt/Rust

    Diameter

    4-1/2"

    End Cap Type

    Double Open Ended (DOE) - No Cap

    Filter Construction

    Melt Blown

    Filter Type

    Sediment Depth

    Flow Rate

    10 GPM

    Media Type

    Polypropylene

    Micron Rating

    1 µm

    25 µm

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 42

    Shipping Dimensions

    Shipping Length

    14 in.

    Shipping Width

    6 in.

    Shipping Height

    6 in.

    Product Weight & Dimensions

    Product Height

    4.5

    Product Length

    10

    Product Width

    4.5

    Product Weight (lbs)

    1.25

Downloads

Pentair 10Pentair 10
