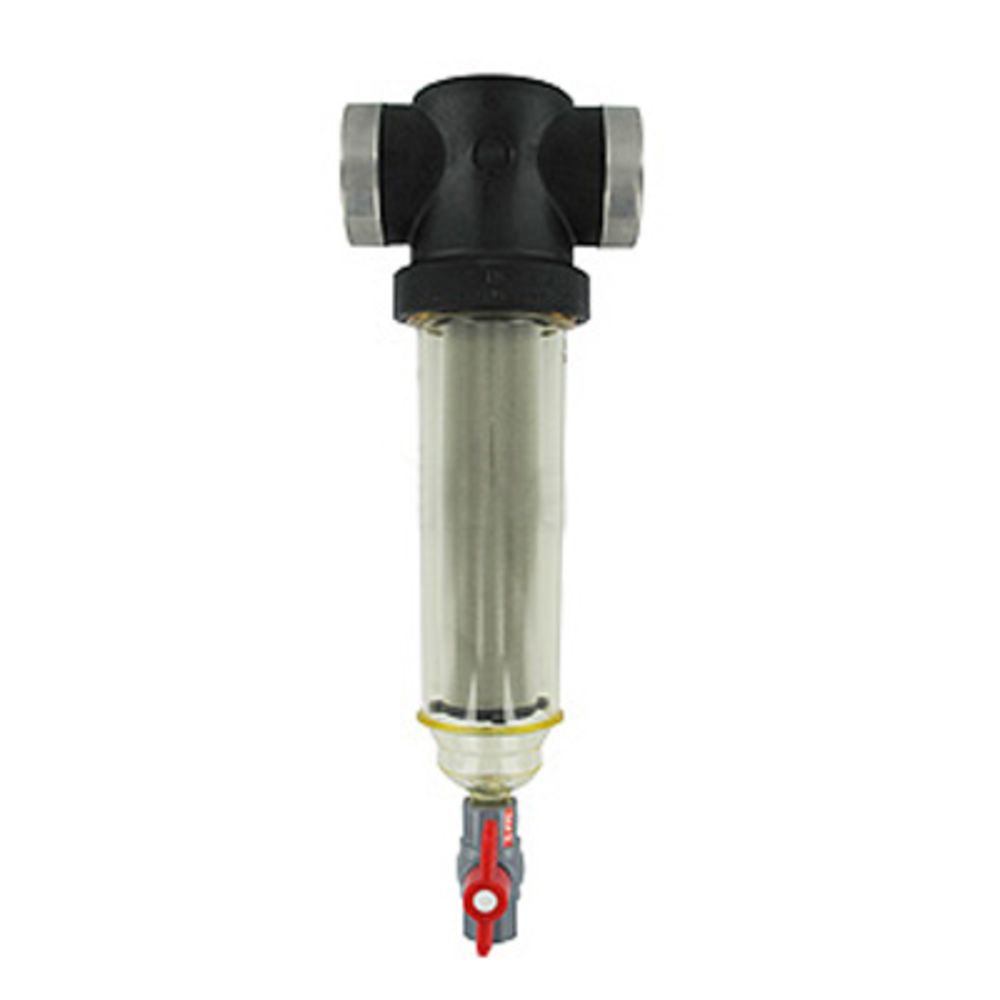

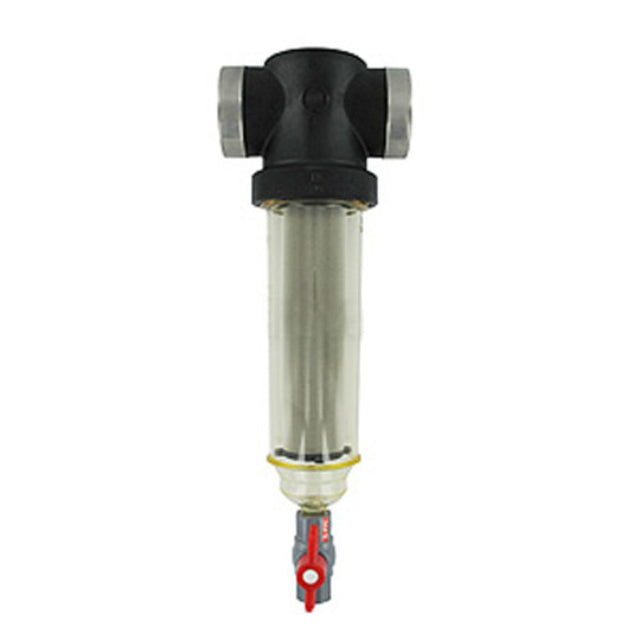

Rusco Hot Water Spin Down Filter System - 3/4" FPT

4.9

(22 reviews)

Part Number: 3/4-30HT-F

1 5

Rusco

Rusco Hot Water Spin Down Filter System - 3/4" FPT

4.9

(22 reviews)

Part Number: 3/4-30HT-F

MSRP: $143.35

$114.05

Choose:

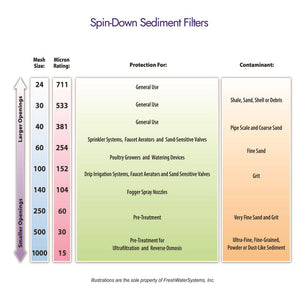

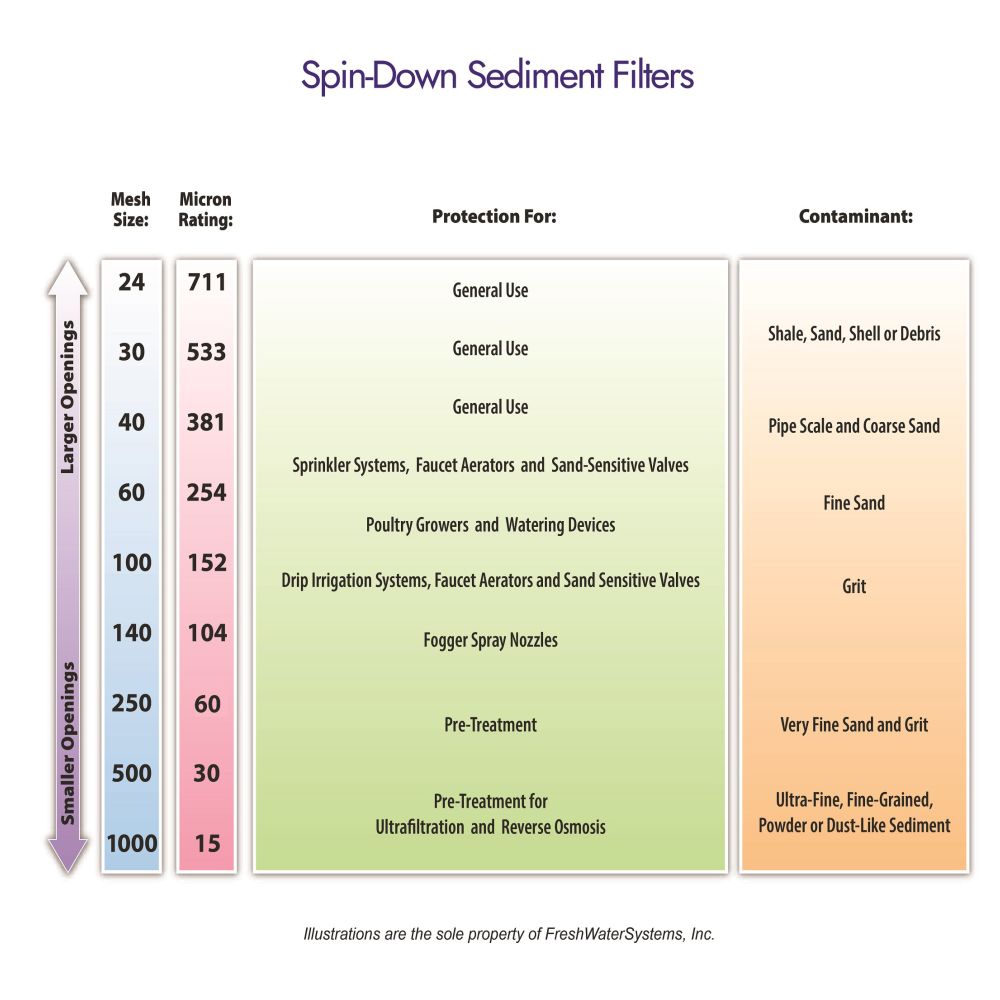

30 Mesh (533 micron) 60 Mesh (254 micron) 100 Mesh (152 micron) 140 Mesh (104 micron) 200 Mesh (74 micron)

Product variants

You May Also Need

Optional Accessory
O-Ring for Rusco/Vu-Flow Filters - 1" Housing

Regular price $1.75
Optional Accessory

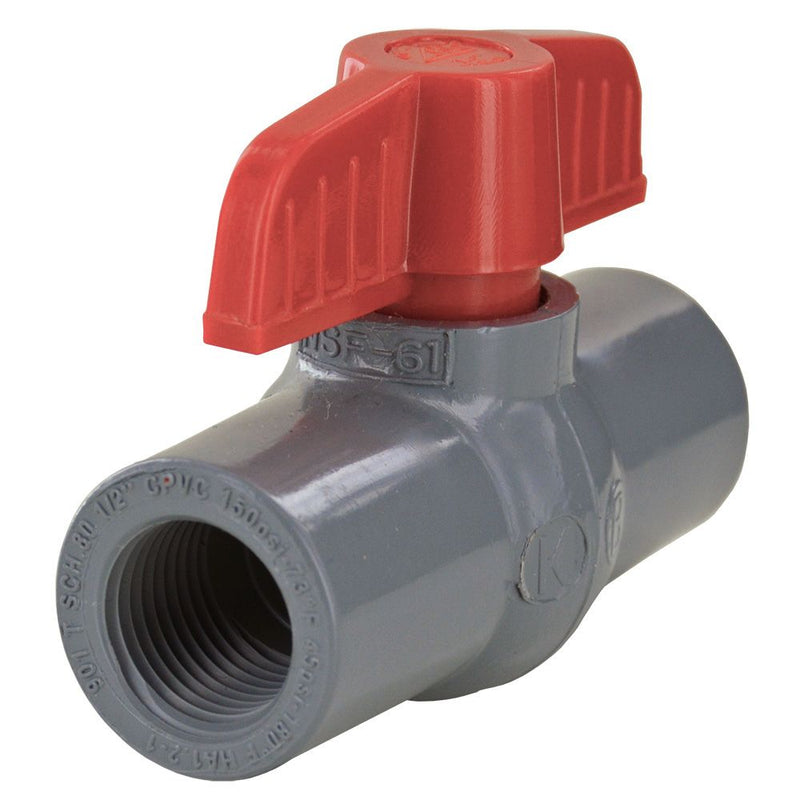

Schedule 80 CPVC Molded-In-Place Ball Valve 1/2" FPT

Regular price $11.00
Optional Accessory

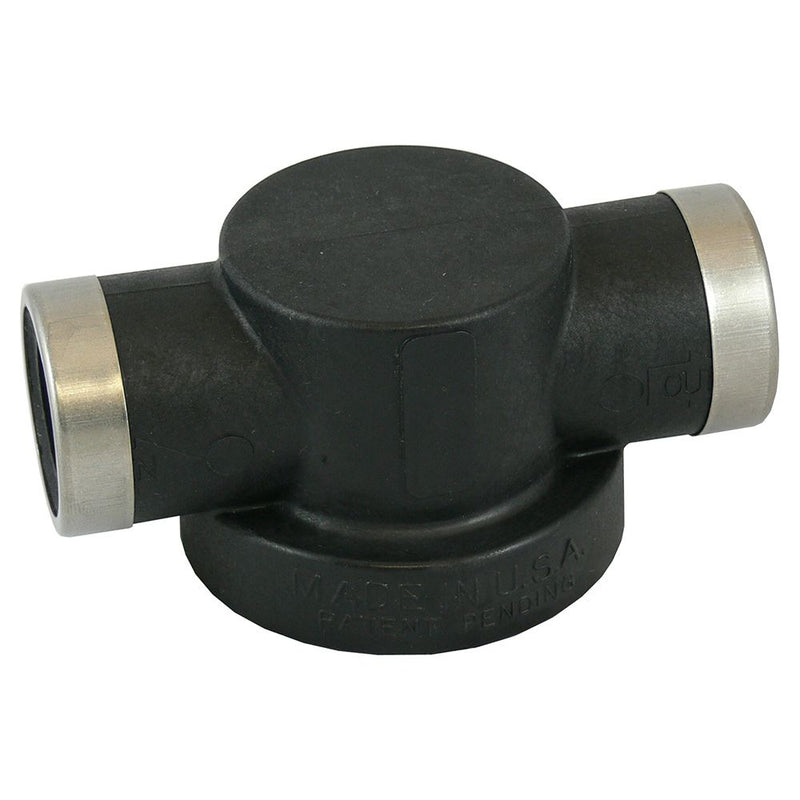

Rusco/Vu-Flow Head Only for HOT Filters - 3/4" FPT

Regular price $33.38
Optional Accessory
Rusco/Vu-Flow HW/CR Filter Cover for Spin-Down/Sediment - 1"

Regular price $41.81

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Rusco Hot Water Spin Down Filter System can operate with water up to 200ºF because of the glass filled polypropylene head that comes with female threads with a stainless steel reinforcing ring over the inlet/outlet. The filter screens are also a durable stainless steel, as well as a chemically resistant and heat resistant filter cover.

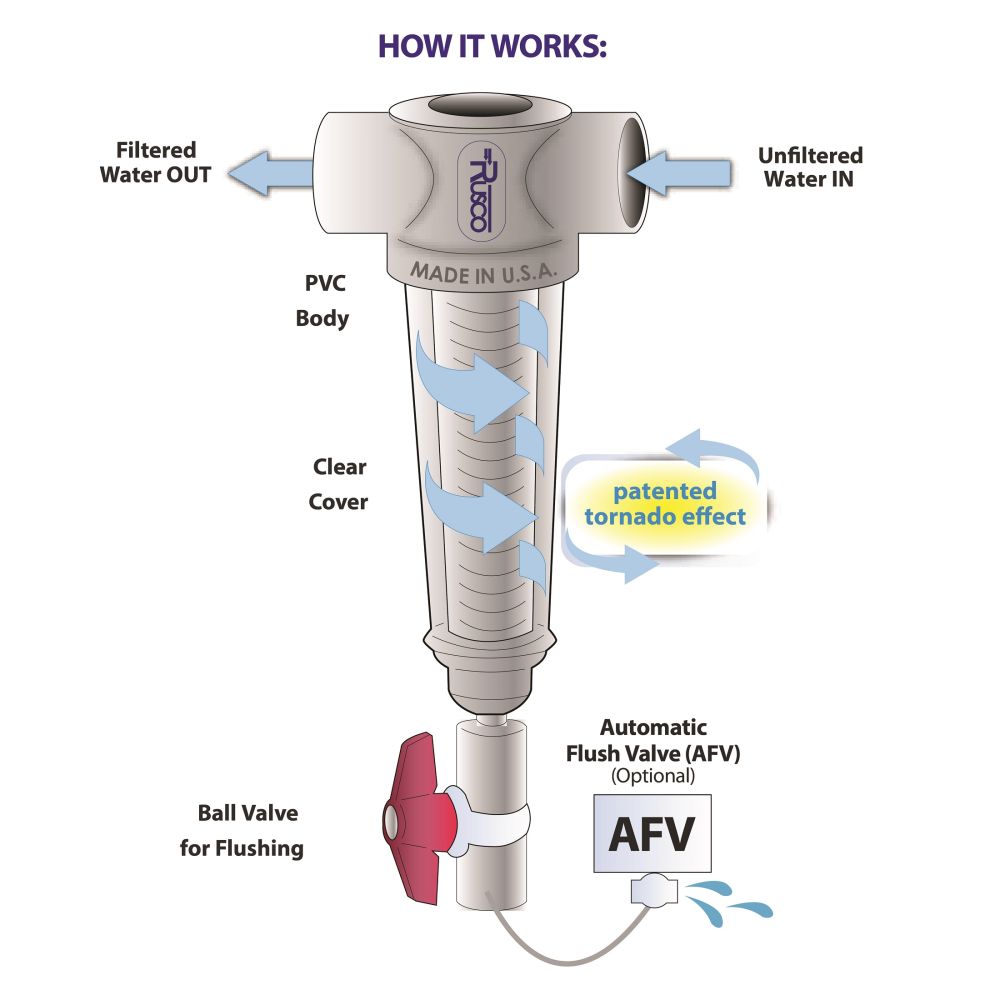

The Rusco Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.

Applications:

Capturing scale flakes from water heaters
Hydronic heating systems
Industrial heat exchangers
Cooling tower make up and evaporator water
Domestic or commercial hot water heaters
Industrial (machine coolant and cutting fluids)
Spas/jacuzzis

Instead of catching all of the scale and scale flakes from your water heater with a Rusco Hot Water Spin Down filter, consider the HydroBlend SC-605 Scale Control System that prevents scale build up in your pipes and water heaters. Overtime HydroBlend also helps soften and remove existing mineral scale deposits.

Specifications

Product Details
Application	Hydronic Heating
Body Material	Polypropylene
Body Size	3/4"
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200°F
O-Rings	EPDM
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Spin-Down
Flow Rate	1-25 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"

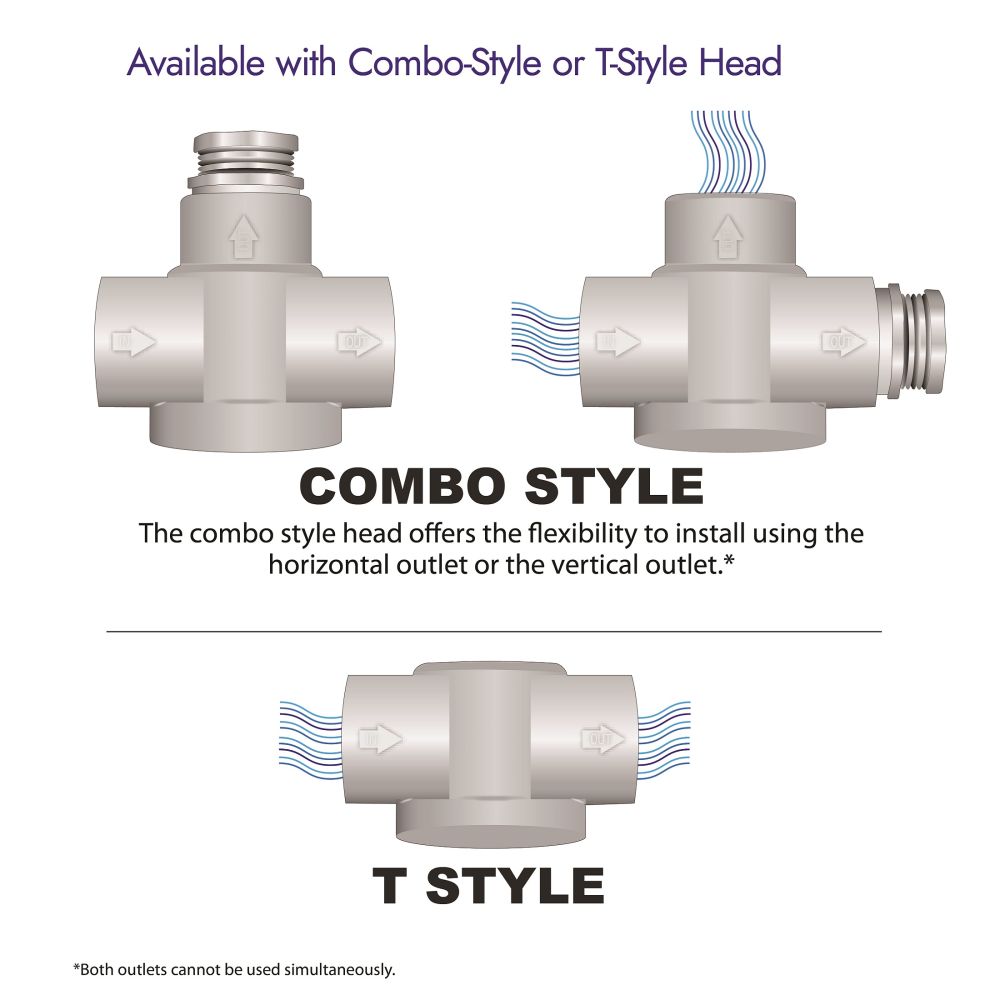

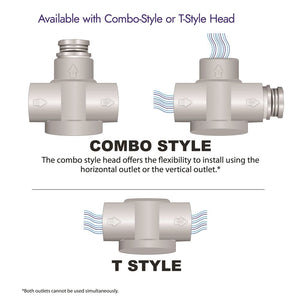

Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5"
Product Length	11-3/8"
Product Width	5"
Product Weight (lbs)	1.55

Product Details
Application	Hydronic Heating
Body Material	Polypropylene
Body Size	3/4"
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200°F
O-Rings	EPDM
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Spin-Down
Flow Rate	1-25 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"
Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5"
Product Length	11-3/8"
Product Width	5"
Product Weight (lbs)	1.55

Product Details
Application	Hydronic Heating
Body Material	Polypropylene
Body Size	3/4"
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200°F
O-Rings	EPDM
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Spin-Down
Flow Rate	1-25 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"
Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5"
Product Length	11-3/8"
Product Width	5"
Product Weight (lbs)	1.55

Product Details
Application	Hydronic Heating
Body Material	Polypropylene
Body Size	3/4"
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200°F
O-Rings	EPDM
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Spin-Down
Flow Rate	1-25 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"
Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5"
Product Length	11-3/8"
Product Width	5"
Product Weight (lbs)	1.6

Product Details
Application	Hydronic Heating
Body Material	Polypropylene
Body Size	3/4"
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	200°F
O-Rings	EPDM
Outlet Connection	3/4" FPT
Cartridge Style	Spin-down
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Spin-Down
Flow Rate	1-25 GPM
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	3/4"
Sub-Type	T-Style System
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5"
Product Length	11-3/8"
Product Width	5"
Product Weight (lbs)	1.55

Downloads

Rusco Hot Water Spin Down Filter System - 3/4
