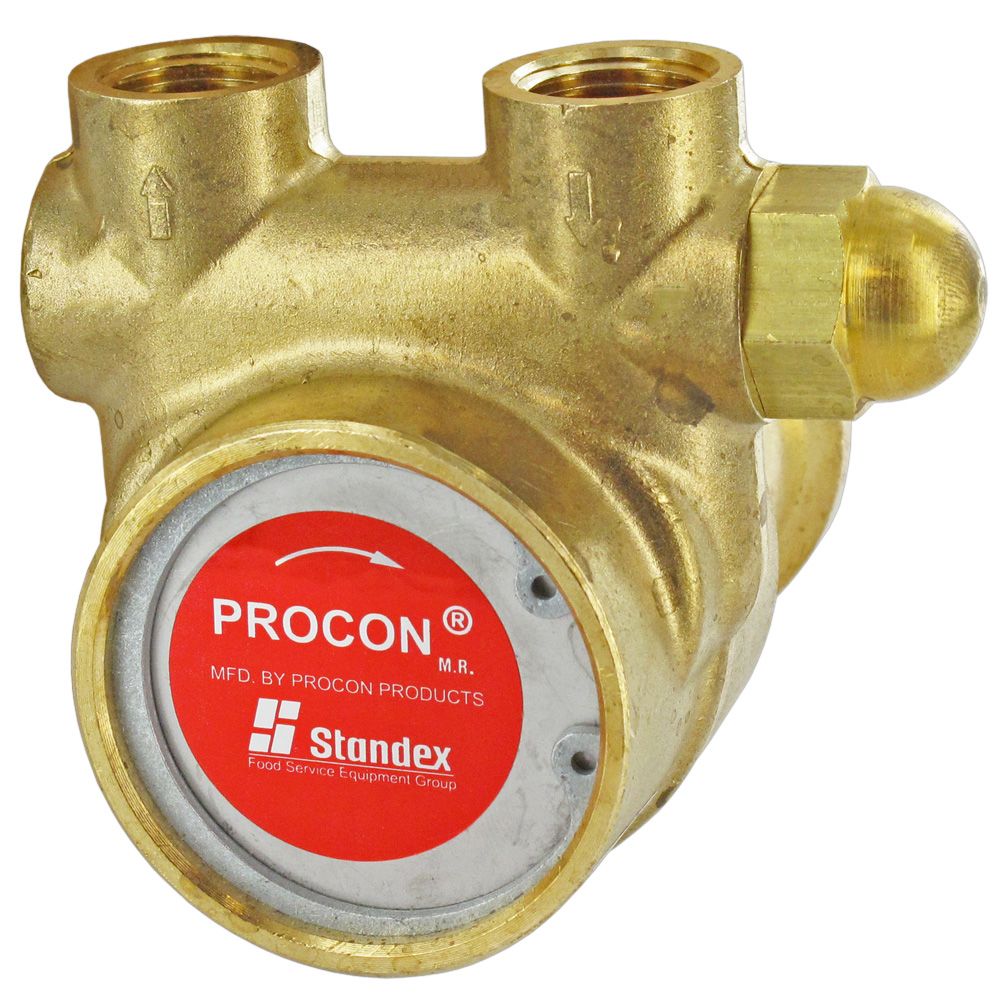

Procon Pump NSF Brass 100 GPH 3/8" NPT - 225 psi PRV w/ .188" Double Flat Drive
Part Number:
102A100F11BA225
Loading...
Sold Out
Procon Pump NSF Brass 100 GPH 3/8" NPT - 225 psi PRV w/ .188" Double Flat Drive
Part Number:
102A100F11BA225
Regular price
$63.09
Unit price
Unit price
/
Unavailable
You May Also Need
You May Also Need
Optional AccessoryProcon 3045 Coupler 7/16 x 5/8 Bolt-On 56C for Series 2, 3, 4 & 5
Regular price From $45.99 Unit priceUnit price /Unavailable
Optional AccessoryProcon mtg bracket for bolt-on 56C for Series 2, 3, 4 & 5
Regular price From $42.95 Unit priceUnit price /Unavailable
Optional AccessoryProcon 1143 Bronze Coupling Slotted Rotor C/O
Regular price From $12.65 Unit priceUnit price /Unavailable
Shipping Information
Shipping Information
Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
Description
Description
The Procon Pump NSF Brass 100 GPH 3/8" NPT - 225 psi PRV w/ .188" Double Flat Drive rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102A100F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 225 PSI. The 102A100F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.
Additional Specifications:
Additional Specifications:
-
Capacity: 100 GPH
-
Nominal Speed: 1725 RPM
-
Relief Valve: 225 PSI
-
Rotation: Clockwise
-
Weight: 2.5 lbs
-
Port Size: 3/8" NPT Inlet and Outlet
- Double Flat Drive: .188"
