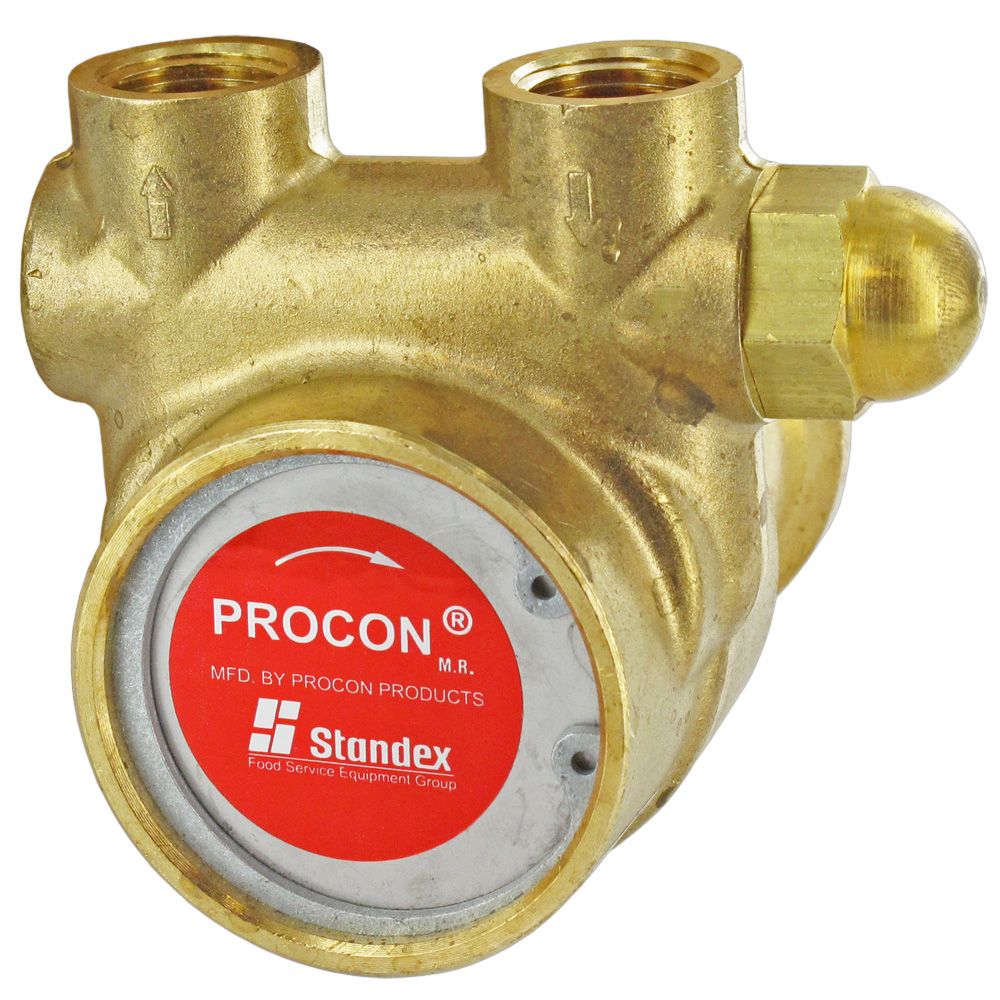

Procon Pump NSF Brass 100 GPH 3/8" NPT - 225 psi PRV w/ .188" Double Flat Drive

Part Number: 102A100F11BA225
similar items
The Procon Pump NSF Brass 100 GPH 3/8" NPT - 225 psi PRV w/ .188" Double Flat Drive rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102A100F11BA225 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 225 PSI. The 102A100F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Relief Valve: 225 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"
