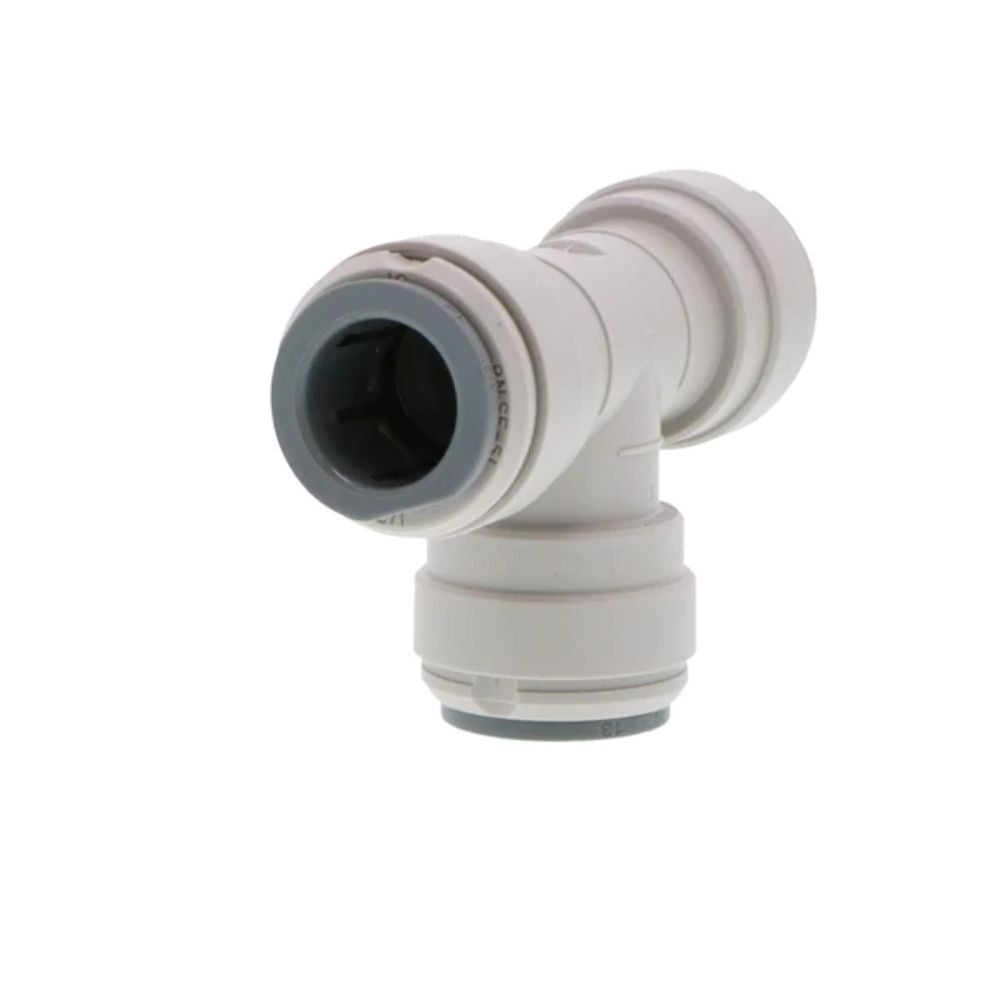

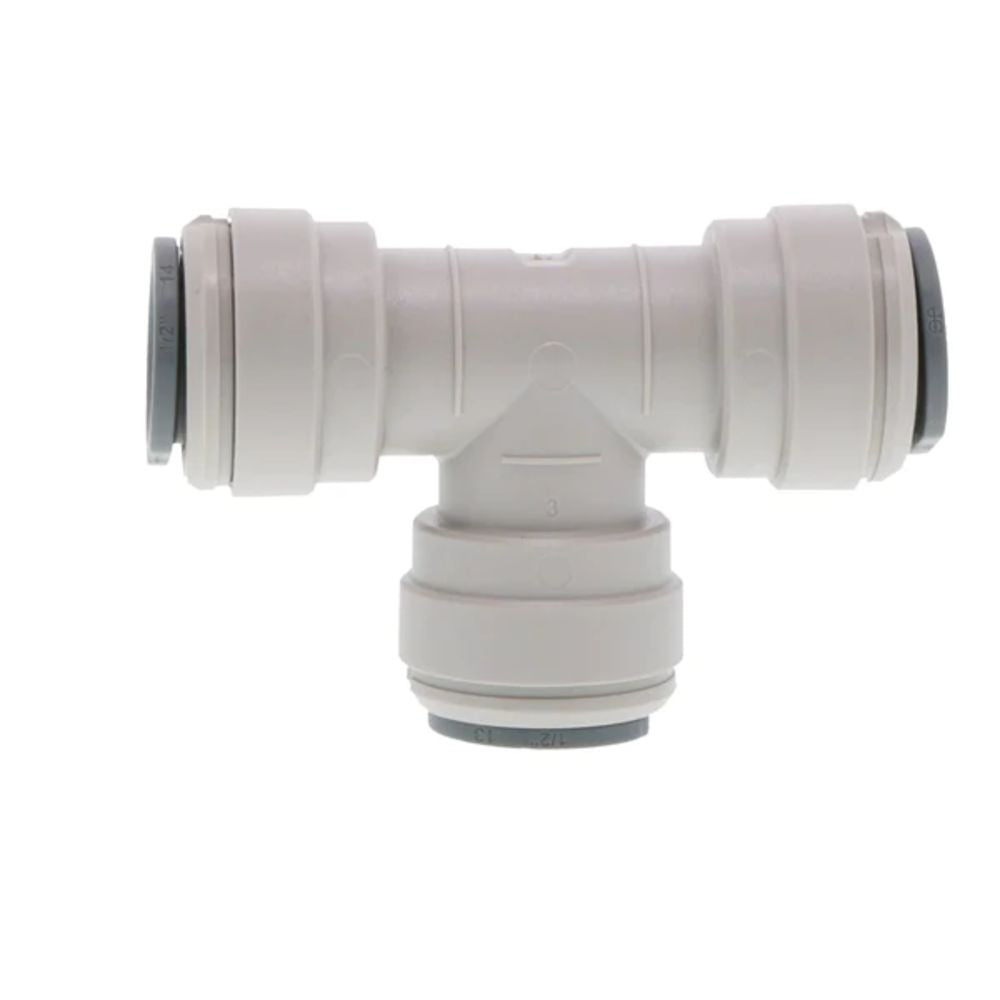

John Guest Union Tee - 3/8

Part Number: PI0212S-X Alt. Part Number: ATU666-G

1 2

John Guest

John Guest Union Tee - 3/8

Part Number: PI0212S-X Alt. Part Number: ATU666-G

MSRP: $5.32

$3.20

Quantity

Unit Price

Price

Savings

$3.20

—

$3.00

$30.00

100

$2.63

$263.05

17%

1000

$2.71

$2,713.20

15%

Product variants

You May Also Need

Optional Accessory
John Guest Blue 3/8" OD LLDPE Polyethylene Tubing

Regular price From $2.05

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest union tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with Nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 68° F
Max. 100 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.01

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.364

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.64

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	3/8" OD
Series	PI
Shape	Tee
Color / Finish	Gray
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	21.65 in.
Shipping Width	10.63 in.
Shipping Height	11.42 in.
Product Weight & Dimensions
Product Height	11.42"
Product Length	21.65"
Product Width	10.63"
Product Weight (lbs)	5

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

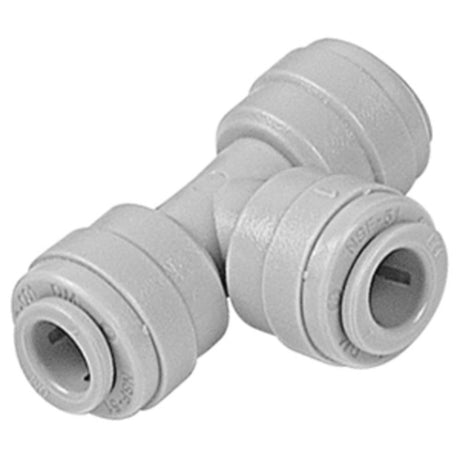

Facet	John Guest John Guest Union Tee - 3/8 Regular price From $3.20 Part #: PI0212S-X Save up to 17% with bulk pricing Current Product	NeoFit NeoFit - Gray Union Tee- 3/8" tube OD Regular price From $2.39 Part #: ATU666-G Save up to 10% with bulk pricing View details	NeoFit NeoFit - Acetal Black Union Tee 3/8" tube 5.0 Regular price From $2.55 Part #: ATU666-E Save up to 10% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Union Tee- 3/8" tube Regular price From $2.55 Part #: ATU666-W Save up to 7% with bulk pricing View details
Price
Price	Regular price From $3.20	Regular price From $2.39	Regular price From $2.55	Regular price From $2.55
Part #
Part #	PI0212S-X	ATU666-G	ATU666-E	ATU666-W
Description
Description	The John Guest union tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are...	The NeoFit union tee connectors are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for...	Features: Black acetal copolymer construction Nitrile Buna-N (NBR) O-rings FDA approved materials NSF 51 Certified Suitable for water, beverages, vacuum, compressed air, and gases Fittings...	The NeoFit union tee connectors are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for...
