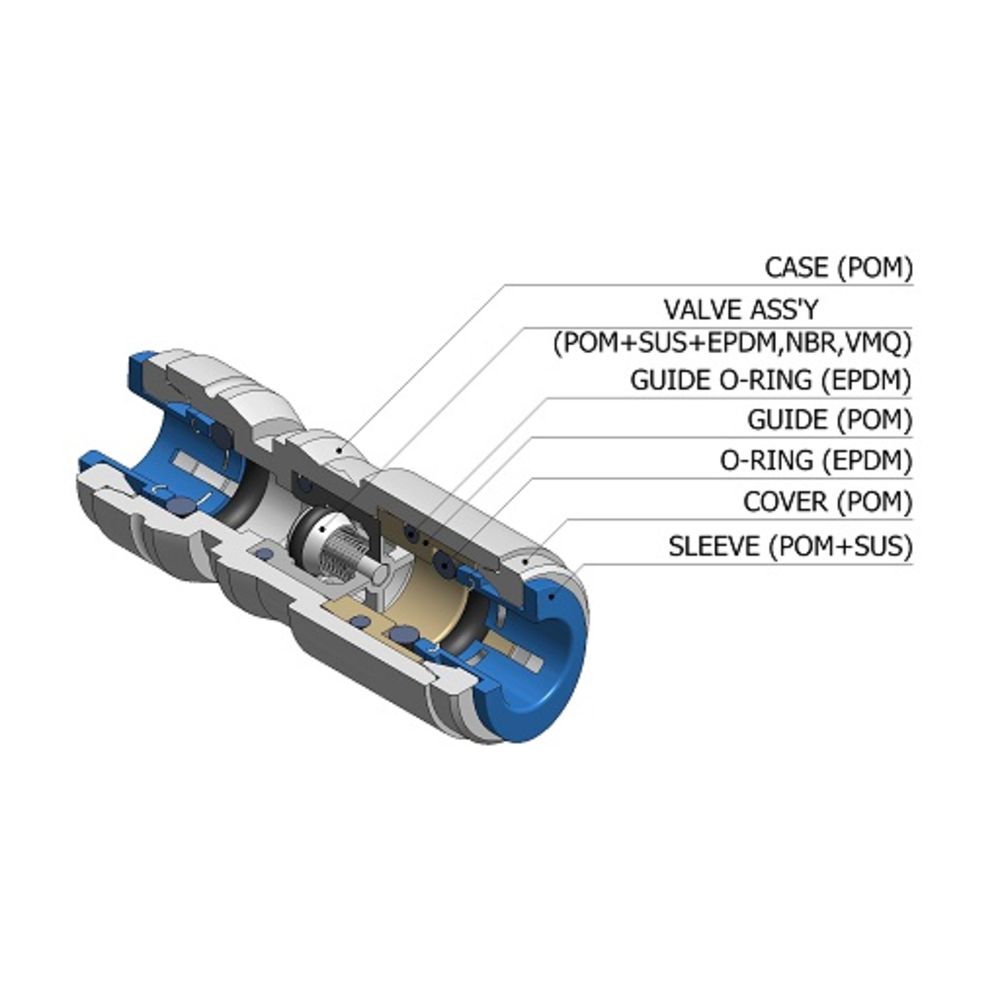

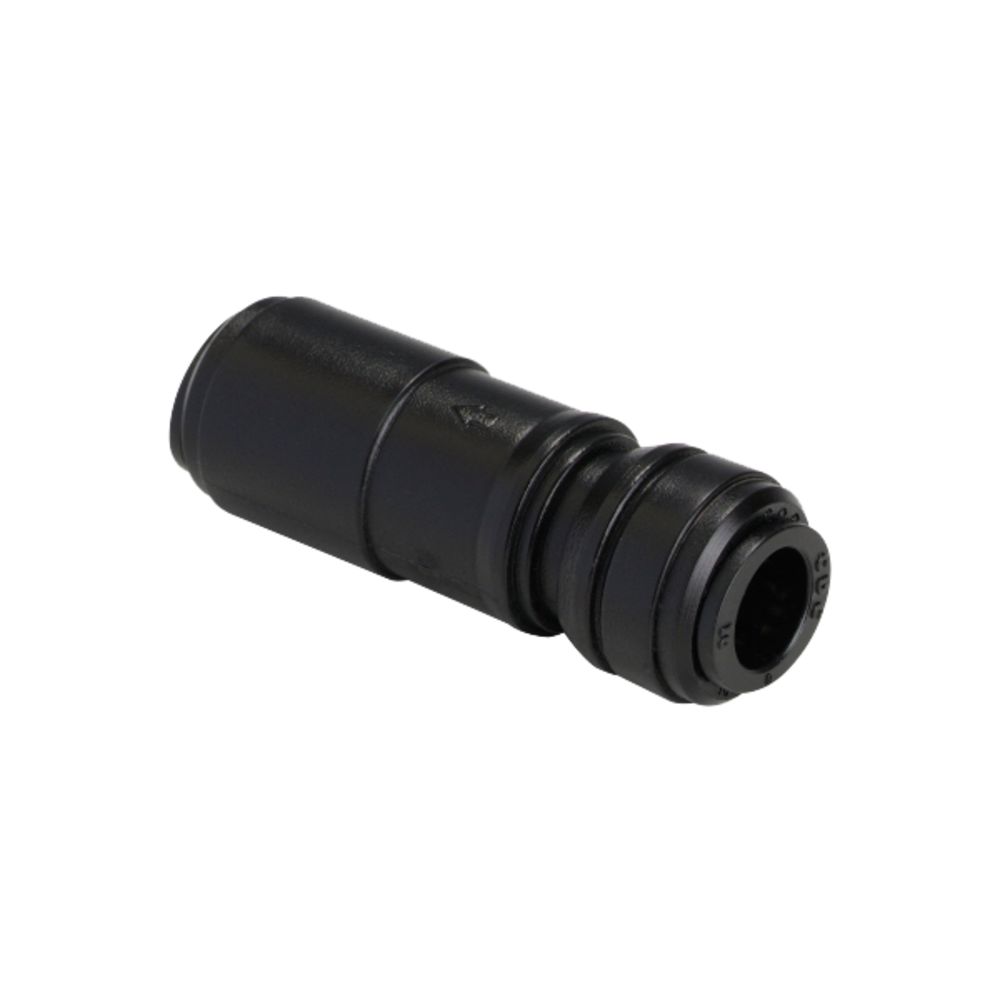

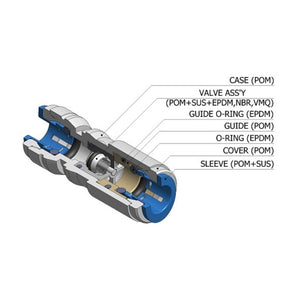

NeoFit - Acetal Black Single Check Valves 1/4" tube - 0.3 psi Crack Pressure

Part Number: ACHV44-E Alt. Part Number: 1/4SCV

1 3

NeoFit

NeoFit - Acetal Black Single Check Valves 1/4" tube - 0.3 psi Crack Pressure

Part Number: ACHV44-E Alt. Part Number: 1/4SCV

MSRP: $12.49

$8.98

Quantity

Unit Price

Price

Savings

$8.98

—

$8.04

$80.40

10%

250

$7.29

$1,822.50

18%

Product variants

You May Also Need

Optional Accessory
DMfit Collet Cover - 1/4"

Regular price From $0.26
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
DMfit Locking Clip Red - 1/4"

Regular price From $0.24
Optional Accessory
John Guest Locking Clip - 1/2"

Regular price From $0.19
Optional Accessory
John Guest Release Tools Set - 3/16, 1/4, 5/16, 8mm, 3/8, 1/2

Regular price From $13.07
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The check valve allows fluid to flow one way and prevents reverse flow. Manufactured in acetal copolymer with food grade EPDM O-ring, these fittings are suitable for pure water, potable liquids and other beverage applications.

Features:

Allows fluid to flow in one direction
Prevents back flow
Compact size for use in small spaces
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade EDPM O-Ring
Made with Lead Free materials
Crack pressure - 0.3 psi

Specifications

Product Details
Application	Water Air Food Beverage
Max Pressure (Psi)	Max. 230 psi at 68° F Max. 150 psi at 150° F
Push-In Size	1/4" OD
Color / Finish	Black
Type	Check Valve
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.8125 in.
Shipping Width	1.8125 in.
Shipping Height	1.8125 in.
Product Weight & Dimensions
Product Height	1.8125 in.
Product Length	1.8125 in.
Product Width	1.8125 in.
Product Weight (lbs)	0.02

Product Details
Application	Water Air Food Beverage
Max Pressure (Psi)	Max. 230 psi at 68° F Max. 150 psi at 150° F
Push-In Size	1/4" OD
Color / Finish	Black
Type	Check Valve
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Height	1.8125 in.
Product Length	1.8125 in.
Product Width	1.8125 in.
Product Weight (lbs)	0.16299559471365638

Product Details
Application	Water Air Food Beverage
Max Pressure (Psi)	Max. 230 psi at 68° F Max. 150 psi at 150° F
Push-In Size	1/4" OD
Color / Finish	Black
Type	Check Valve
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	24

Downloads

NeoFit - Acetal Black Single Check Valves 1/4
