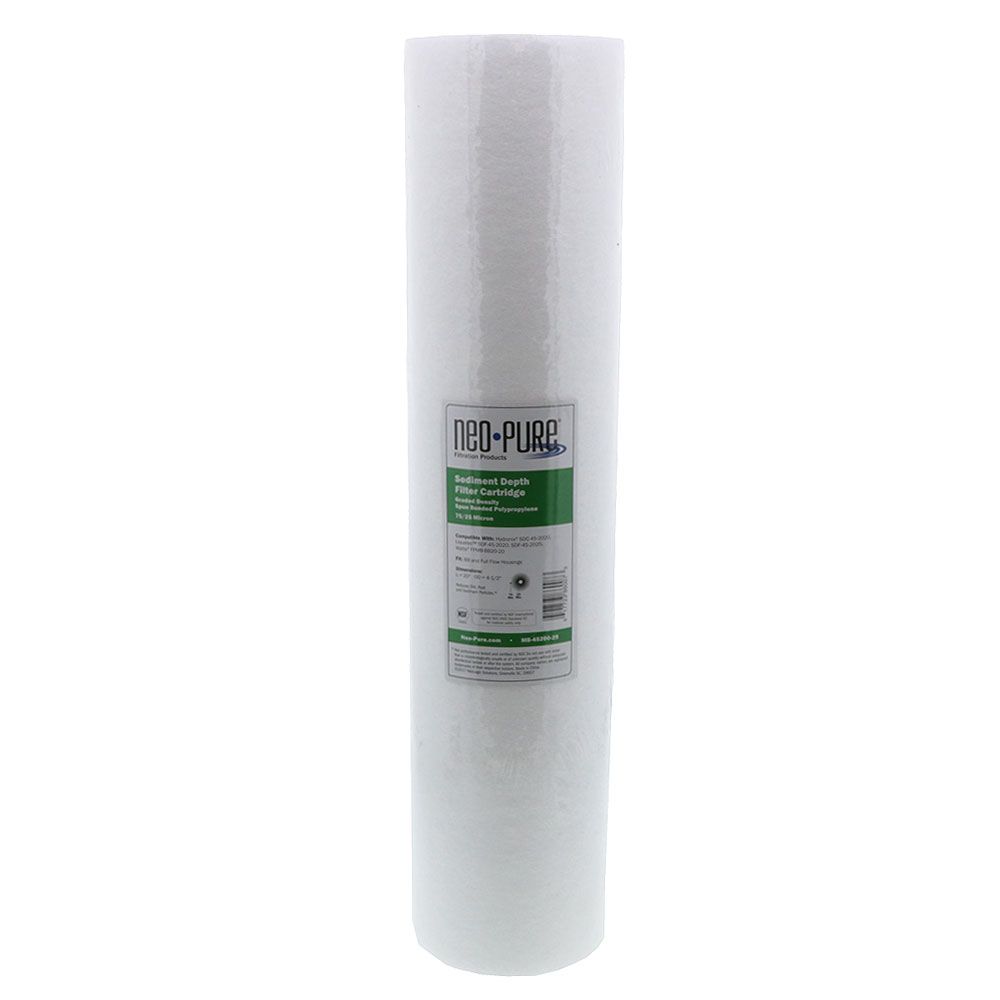

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic

5.0
(4 reviews)
Part Number: MB-45200-25 Alt. Part Number: FPMB-BB20-20, MB-45200-20

Neo-Pure 20" BB Graded Density Polypropylene Sediment Filter 75/25 mic

5.0
(4 reviews)
Part Number: MB-45200-25 Alt. Part Number: FPMB-BB20-20, MB-45200-20
MSRP: $28.00
Regular price $17.26
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Neo-Pure MB-45200-25 is a High Efficiency 75/25 Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 75/25 sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-45200-25 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:
  • NSF CertifiedManufactured for the Neo-Pure line by NeoLogic, The Neo-Pure MB-45200-25 Polypropylene Sediment Filter has been certified to NSF/ANSI Standard 42 requirements.
  • Contaminant ReductionThe filter reduces extra-fine dirt, sand, sediment, silt, rust particles, and scale particles. It has three times the dirt-holding capacity of similar sized sediment water filter cartridges.
  • Typical ApplicationsThe MB-45200-25 Filter is ideal for all residential, rural, commercial, industrial, and municipal applications.
  • Compatible ReplacementCompatible with American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 20" Big Blue Housings.


Compatible with:
HydronixSDC-45-2020, SDC-45-2025
LiquatecSDF-45-2020, SDF-45-2025
Valuetrex1227872-V-BB
WattsFPMB-BB20-20
SDG-45-2050

Specifications

    Product Details

    Max Temp (°F)

    150°F

    Micron Rating (Nominal)

    75/25 µm

    Min Temp (°F)

    40°F

    Psid@Flow Rate

    < 1 psi typical

    Cap Material

    Polypropylene

    Cartridge Style

    Drop-in

    Contaminants Reduced

    Sediment/Dirt/Rust

    Diameter

    4-1/2"

    End Cap Type

    Double Open Ended (DOE) - No Cap

    Filter Construction

    Melt Blown

    Filter Type

    Sediment Depth

    Media Type

    Polypropylene

    Micron Rating

    75 µm

    25 µm

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 42, FDA CFR-21, NSF/ANSI 372

    Shipping Dimensions

    Shipping Length

    20 in.

    Shipping Width

    4.5 in.

    Shipping Height

    4.5 in.

    Product Weight & Dimensions

    Freight_Out_Pallet_Dims

    48x40x90

    Freight_Out_Pallet_Qty

    720

    Freight_Out_Pallet_Weight

    513

    Product Height

    4.5

    Product Length

    20"

    Product Width

    4.5

    Product Weight (lbs)

    1.808

Downloads

Neo-Pure 20Neo-Pure 20Neo-Pure 20
