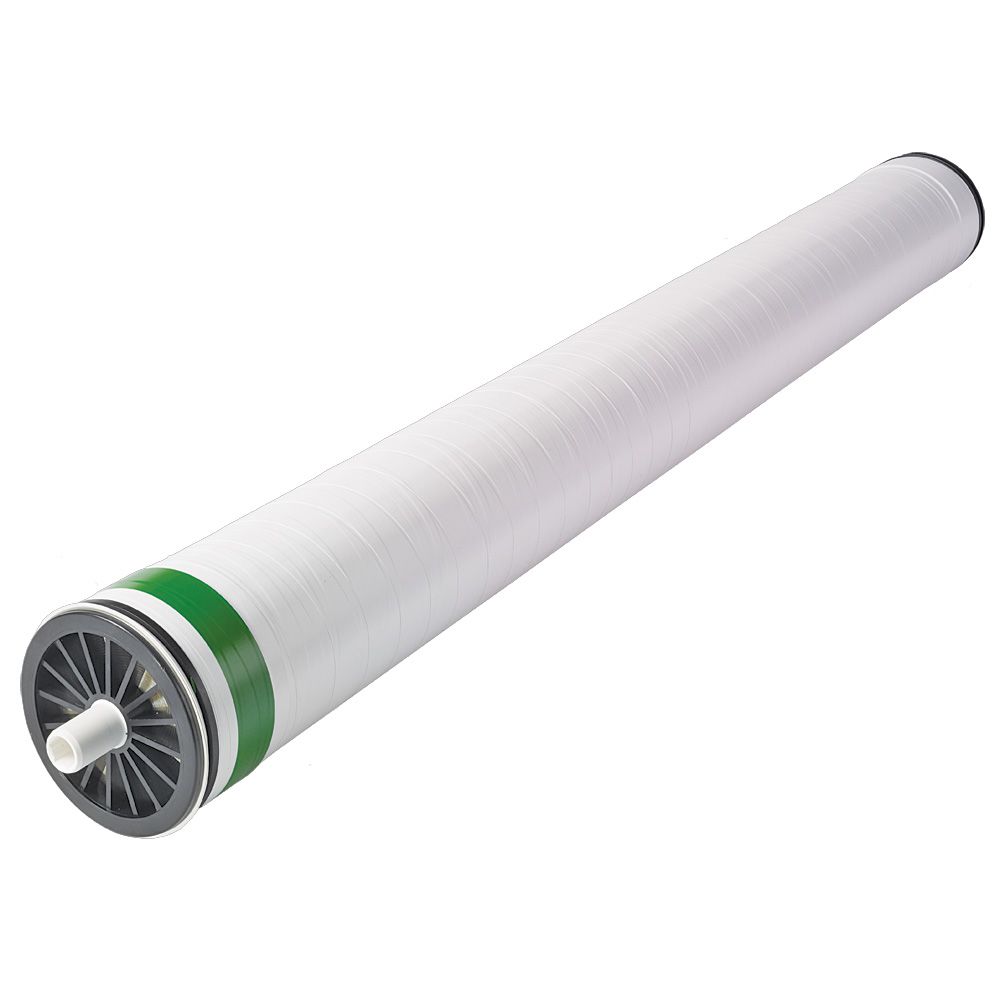

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394
MSRP: $565.00
Regular price $359.00

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF5-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5-4040 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2500 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 80 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF5-4040


AXEON RO membranes are dry packed

Specifications

    Product Details

    Application

    Brackish Water

    Average Nacl Rejection

    0.98

    Chlorine Tolerance

    0 ppm

    Cleaning Ph Range

    1-13

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    80 PSI

    Inner/Outer Wraps

    Tape

    Material Of Construction

    Polyamide Thin-Film

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Feed Water Turbidity

    1 Nephelometric Turbidity Units

    Max Pressure Drop

    13 PSI Differential

    Max Pressure (Psi)

    400psi

    Max Temp (°F)

    113°F

    Membrane Type

    Spiral Wound

    Minimum Salt Rejection Cl- (%)

    0.96

    Permeate Flow Rate

    2500 gpd / (9.46 m³/d)

    Permeate Tube Diameter

    3/4"

    Ph Range

    2-11

    Recovery Rate

    0.15

    Diameter

    3.95"

    Shipping Dimensions

    Shipping Length

    41 in.

    Shipping Width

    4.5 in.

    Shipping Height

    4.5 in.

    Product Weight & Dimensions

    Product Height

    4.5 in.

    Product Length

    41 in.

    Product Width

    4.5 in.

    Product Weight (lbs)

    7.25

Downloads

AXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element Manual

Reviews (8)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Compare Similar Products

A table comparing the facets of 4 products
Facet
4.8
Regular price $359.00

Part #: 200394

Current Product
5.0
Regular price $299.84

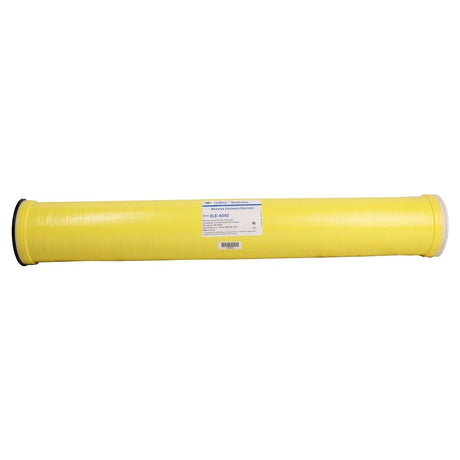

Part #: XLE-4040
