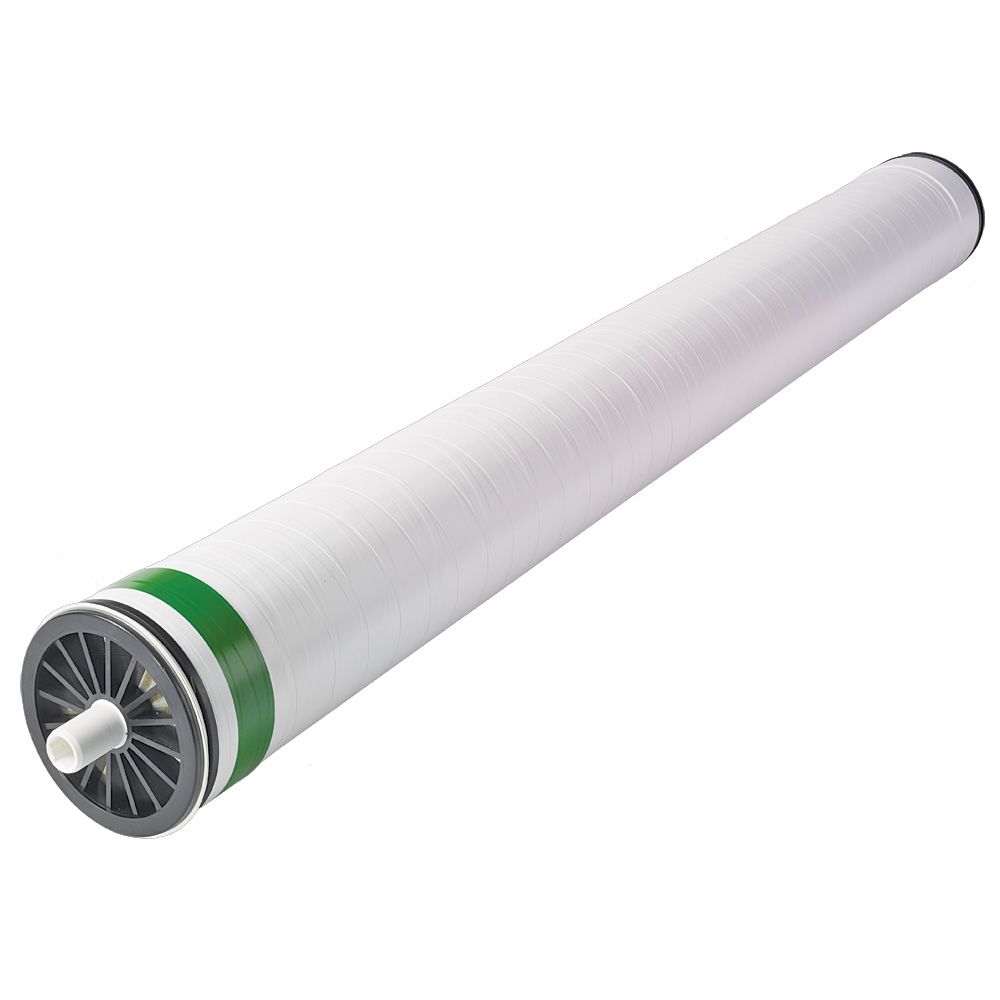

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394
MSRP: $648.04
Regular price $340.22

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF5-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5-4040 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2500 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 80 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF5-4040


AXEON RO membranes are dry packed

Specifications

  • Product Details
  • Average Nacl Rejection
    98
  • Chlorine Tolerance
    0 ppm
  • Cleaning Ph Range
    1-13
  • Direction
    Outside - In
  • Feed Water Temperature
    77°F
  • Feed Water
    Brackish Water
  • Inlet Pressure
    80 PSI
  • Max Feed Silt Density Index
    5 Silt Density Index
  • Max Feed Water Turbidity
    1 Nephelometric Turbidity Units
  • Max Pressure Drop
    13 PSI Differential
  • Membrane Type
    Reverse Osmosis
  • Minimum Salt Rejection Cl
    0.96
  • Permeate Flow Rate
    2500 gpd / (9.46 m³/d)
  • Permeate Tube Diameter
    0.75 in
  • Recovery Rate
    0.15
  • Series
    HF5
  • Shipping Dimensions
  • Shipping Length
    41
  • Shipping Width
    4.5
  • Shipping Height
    4.5

Downloads

AXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element Manual
