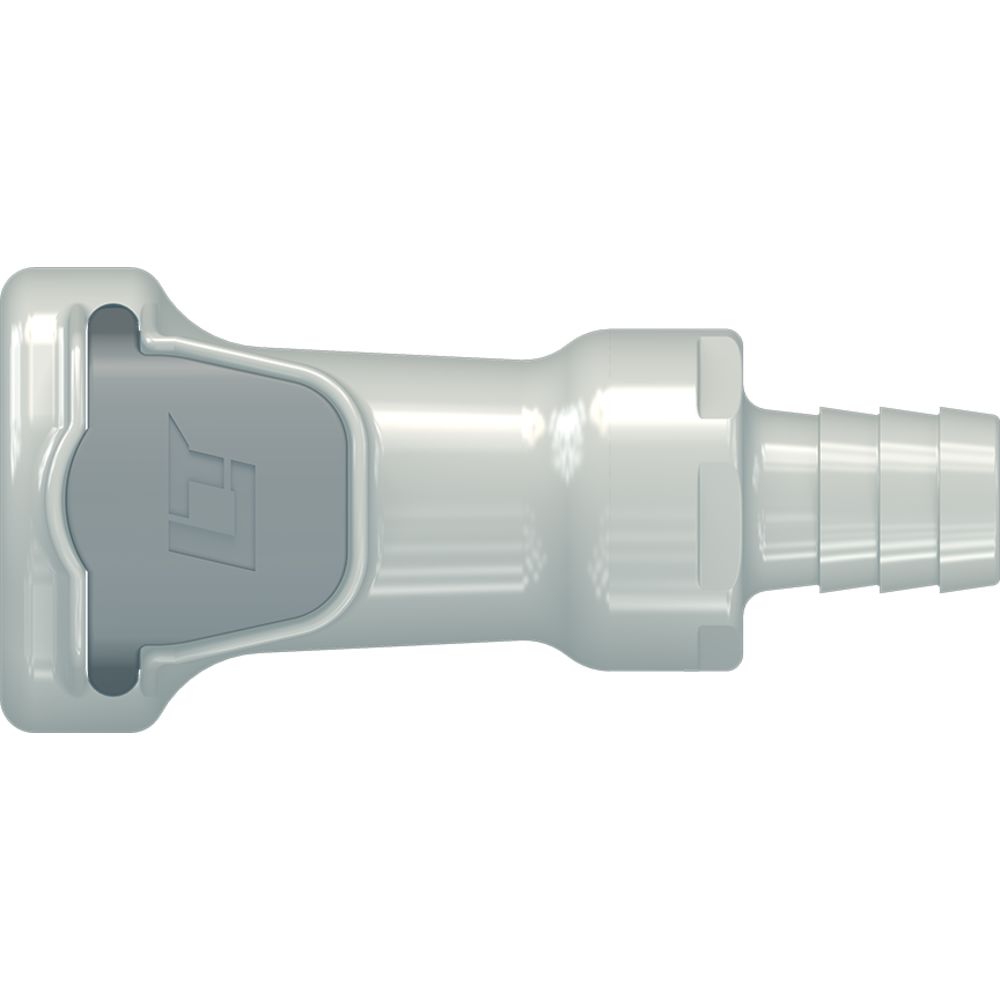

The LinkTech INLINE SOCKET VALVED 1/2HB is a reliable quick-connect coupling designed for applications requiring superior chemical resistance and compliance with NSF 169 standards. Constructed with medical-grade polypropylene, this coupling offers enhanced durability and resistance to a wide range of chemicals, making it ideal for food, beverage, and medical fluid transfer applications. Featuring an intuitive stainless steel thumb-latch, the coupling ensures a secure connection with an audible click for added confidence during operation.

Available in both internal shut-off valve and straight-through configurations, the 1/2HB model is compatible with other industry-standard thumb-latch couplings, providing flexibility across various systems. Additionally, it is offered in two standard colors—almond and grey—allowing for easy identification and system organization.

Key Features & Benefits:

• Durable medical-grade polypropylene construction for enhanced chemical resistance
• Quick and secure thumb-latch coupling with audible click feedback
• Hose barb, PTF, and threaded termination options available
• Available in two colors: almond and grey
• Compatible with similar thumb-latch couplings in the industry
• Suitable for sterilization via gamma irradiation (50kGy max)

Specifications:

• Materials:
  • Bodies & Terminations: Medical Grade Polypropylene
  • Internal Valves: Medical Grade Polypropylene
  • Internal Valve Springs: 316 Stainless Steel
  • O-rings: Peroxide-cured EPDM (other options available)
  • Thumb-latch: Stainless Steel
  • External Springs & Pins: Stainless Steel
• Performance Ratings:
  • Operating Pressure: Vacuum to 120 psi (8.3 bar)
  • Temperature Range: 32°F to 160°F (0°C to 71°C)
  • Flow Capacity: 1/4” (3.2 mm)
  • Tubing Compatibility: 1/4” (6.4 mm) - 3/8” (9.5 mm)
  • Sterilization: Gamma; 50kGy irradiation max

Designed for critical applications in industries requiring high performance and compliance, the LinkTech INLINE SOCKET VALVED 1/2HB ensures safe, efficient, and reliable fluid transfer.
