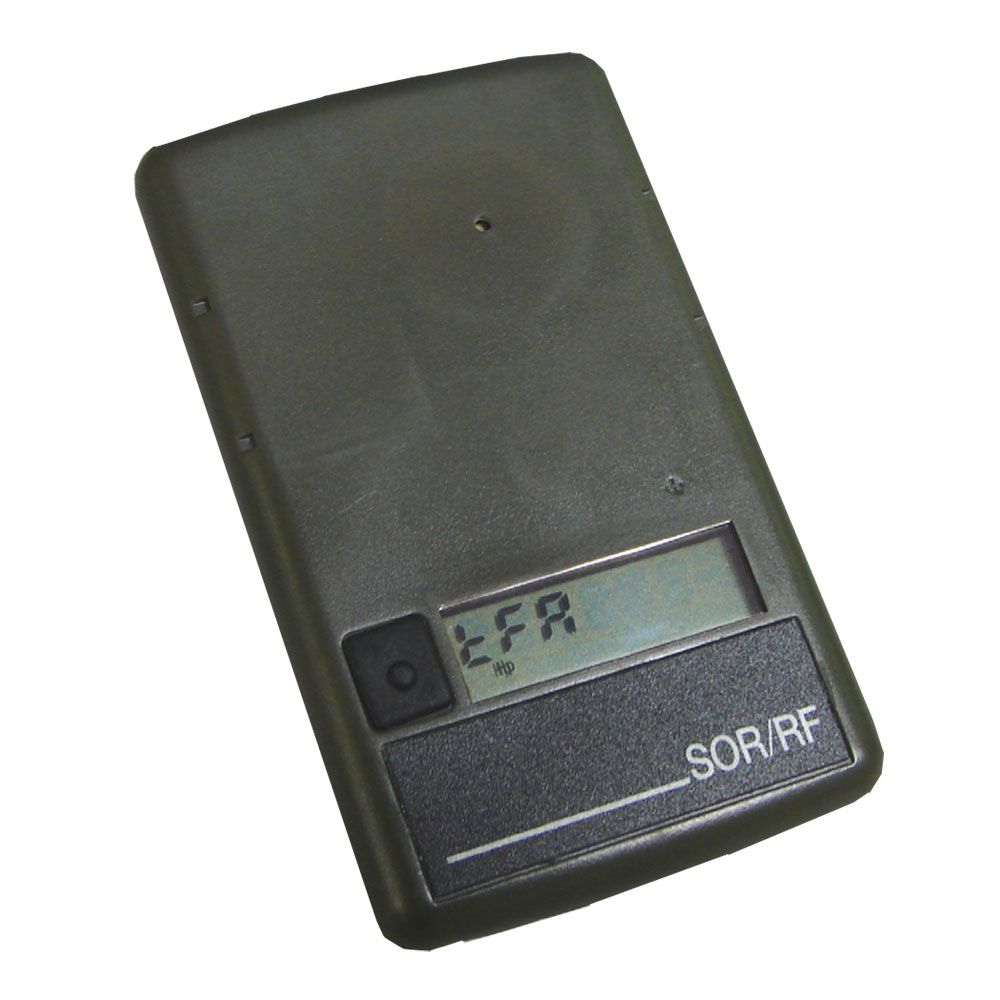

The SOR/RF Electronic Dosimeter represents a substantially increased EMI resistance over the SOR-R and SOR-T product lines. It has been enhanced to exceed the EMI interference requirements of MIL STD-461/810. This small and rugged dosimeter can be used in the battlefield, as well as in various international missions where low level radiations (LLR) performance is needed.

Environmental Characteristics:

• Meets MIL-STD-810 & MIL-STD-461 requirements
• NATO Number 6665 14 563 9423
• Complies with IEC 1283, ANSI 42-20 & NATO D104
• Qualified by most NATO military laboratories
• Resistant to EMP, EMC and radars
• Resistant to water immersion, drops, shock, vibration, low pressure, initial conditions and NBC environmental conditions

Radiological Characteristics:

• Hp(10) dose equivalent measurements
• Flash gamma dose measurement: 5 cGy to 10 Gy
• Ambient gamma dose measurement range: 1µGy to 10 Gy
• Gamma dose rate measurement range: from background to 10 Gy/h
• Gamma dose rate display: from 1 or 10 µGy/h to 10 Gy/h
• Saturation indication (above 10 Gy/h)
• Energy response:
• < +/- 20 % in the range 60 keV to 2 MeV
• < +/- 50 % in the range 2 MeV to 6 MeV

Functional Characteristics:

• Redundant architecture with passive measurement components
• Selectable units: cGy; cGy/h; mSv; mSv/h: mrem; mrem/h
• 4 configurable dose and dose rate alarm levels
• Typical one year lifetime with standard battery
• User selectable display modes
• Periodic exhaustive self-testing including the detector
• Battery fault pre-alarm (16 h) and alarm
• Historical record of measurements and events (750 steps; 10 s; 1 min, 10 min; 1 h; 24 h)
