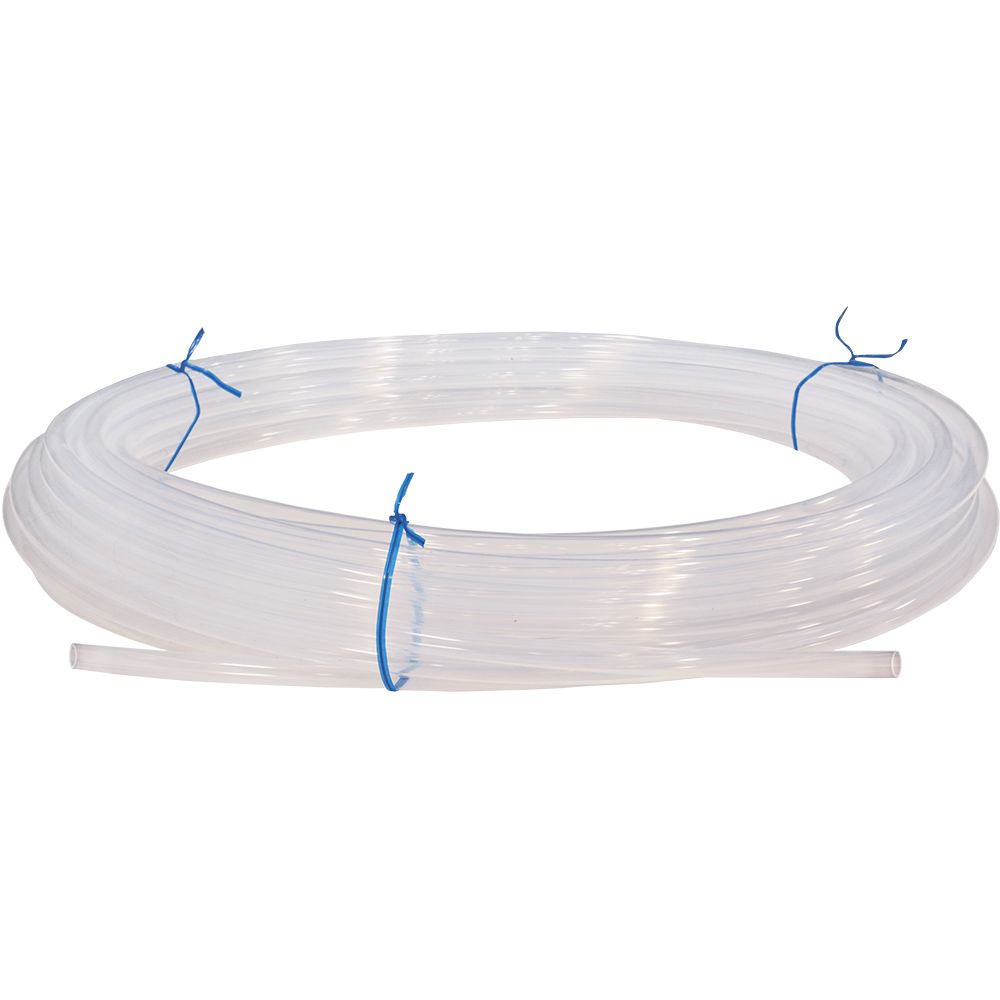

NewAge Industries Fluoropolymer FEP Tubing can be used with virtually any industrial solvent, corrosive material, or chemical, even at high temperatures (it does however react with molten sodium hydroxide, fluorine, and molten alkali metals). Fluoropolymer Tubing can be sterilized chemically or with steam in-line with any industrial solvent, cleaner, or other sterilizing method. Fluoropolymer offers outstanding aging resistance, and it's non-stick properties allow transport of viscous, sticky materials without the risk of line clogging.

FEP (Fluorinated Ethylene Propylene) is known for its gas and vapor permeability properties and excellent UV transmission ratings. While very similar in composition to PTFE, there are a few notable differences. FEP clearer and more flexible than PTFE, and has a lower heat shrink temperature.

Applications:

• Adhesives
• Beverage
• Chemical Plants
• Medical
• Sight Glass
• Corrosives
• Cyrogenics
• Deionized Water Transfer
• Solvents
• Water Sampling
• Food Transfer
• Lighting Covers
• Laboratory
• Pure Water Systems
• Wire Insulation

Features:

• Chemically inert; low permeability
• Proudly made in the USA
• An economical alternative to Teflon® tubing
• Manufactured from FDA compliant materials for use with food contact surfaces
• Lowest coefficient of friction of any solid material
• Excellent electrical and weathering properties; non-flammable
• Made without plasticizer which can leach into critical streams
• Ultra-high-purity grades available for the semiconductor industry

Specifications:

• Inner Diameter: 3/8" (.375")
• Outer Diameter: 7/16" (.438")
• Wall Thickness: .030"
• Working PSI @ 70°F : 110
• Burst PSI @ 70°F: 550
• Standard Coil Length: 25 ft. *
• Hardness: 55-60 Shore D ±5
• Tensile Strength: 4000 psi
• Elongation at Break: 250-330%
• Brittle Temperature: <-450 °F
• Materials: Fluoropolymer FEP
• Maximum Operating Temperature: 400 °F

Note:Any length of tubing less than a 100' must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.

This tubing is comparable to the following brands:

• Cole-Parmer EW-06450-09
• Version P-104
• Grainer 2TXL8
