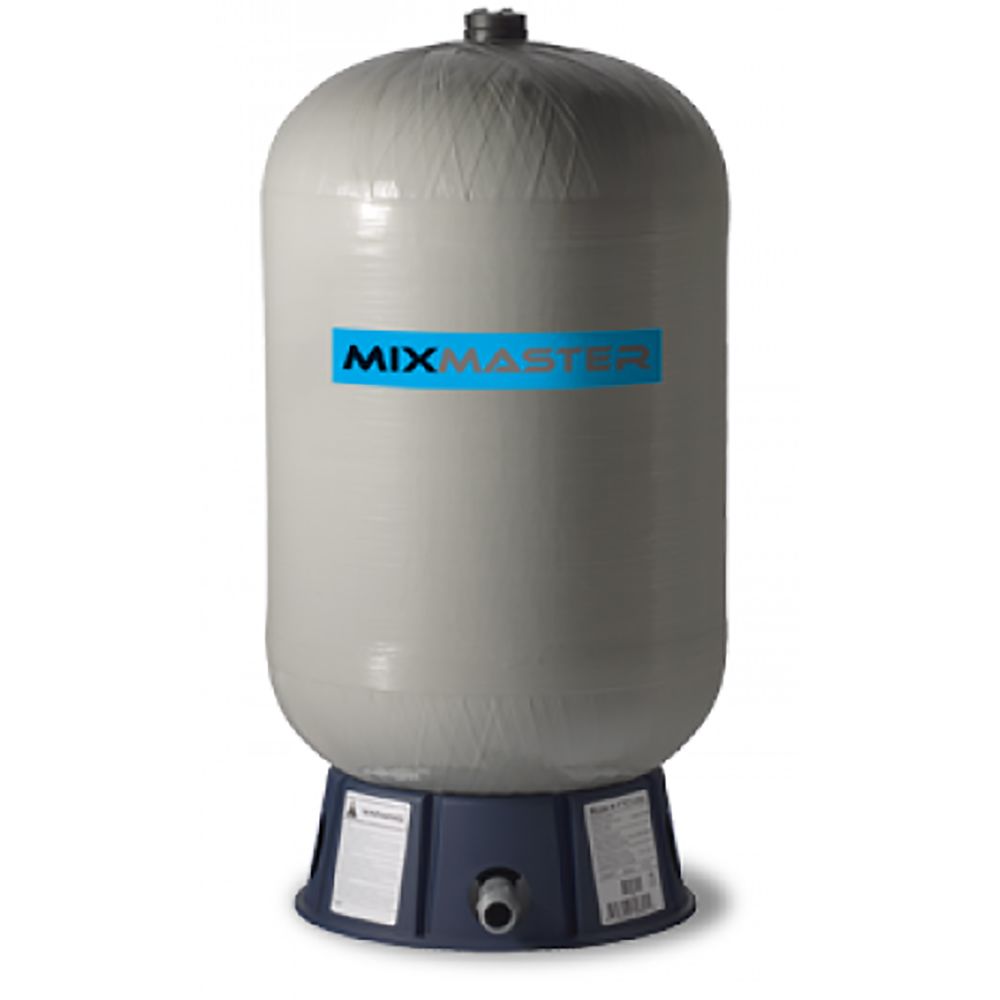

Flexcon Mixmaster Composite Baffled Contact Tank - 90 Gal

Part Number: BAF80
Your price:
similar items
The Mix Master Baffled Contact Tank is the most effective high mixing system available! The Mix Master ensures uniform mixing and sufficient residence time to meet contact time, making this tank the industry choice for chlorine or ozone disinfection. The polyprolyene liner is non-corrosive, and the fiberglass wound outer shell both increases the integrity of the shell, and will not corrode.

Specifications:
  • Baffle Factor: 0.6, as tested by the WQA
  • Contact Time: 20 min
  • Volume: 90 Gal/340 L
  • Connection:
    • EZ Connection Sch 80: 1-1/4" NPT
    • Top Port: 1-1/4" FPT
  • Max Working Pressure: 100 psi/6.89 bar
  • Max Working Temperature: 120°F/48.9°C
Materials of Construction:
  • Top and bottom domes: Injection molded copolymer polypropylene
  • Shell: Extruded copolymer polypropylene
  • Outer shell: Fiberglass-wound, coated with epoxy resin
  • Base: Injection molded high-impact ABS
  • Connection: Rigid Schedule 80 PVC
  • Top port fitting: Stainless steel reinforced glass filled polyproylene insert molded into the top dome
  • Inner baffle: Copolymer polypropylene
  • Inner standpipe: Schedule 40 PVC with diffuser cap
