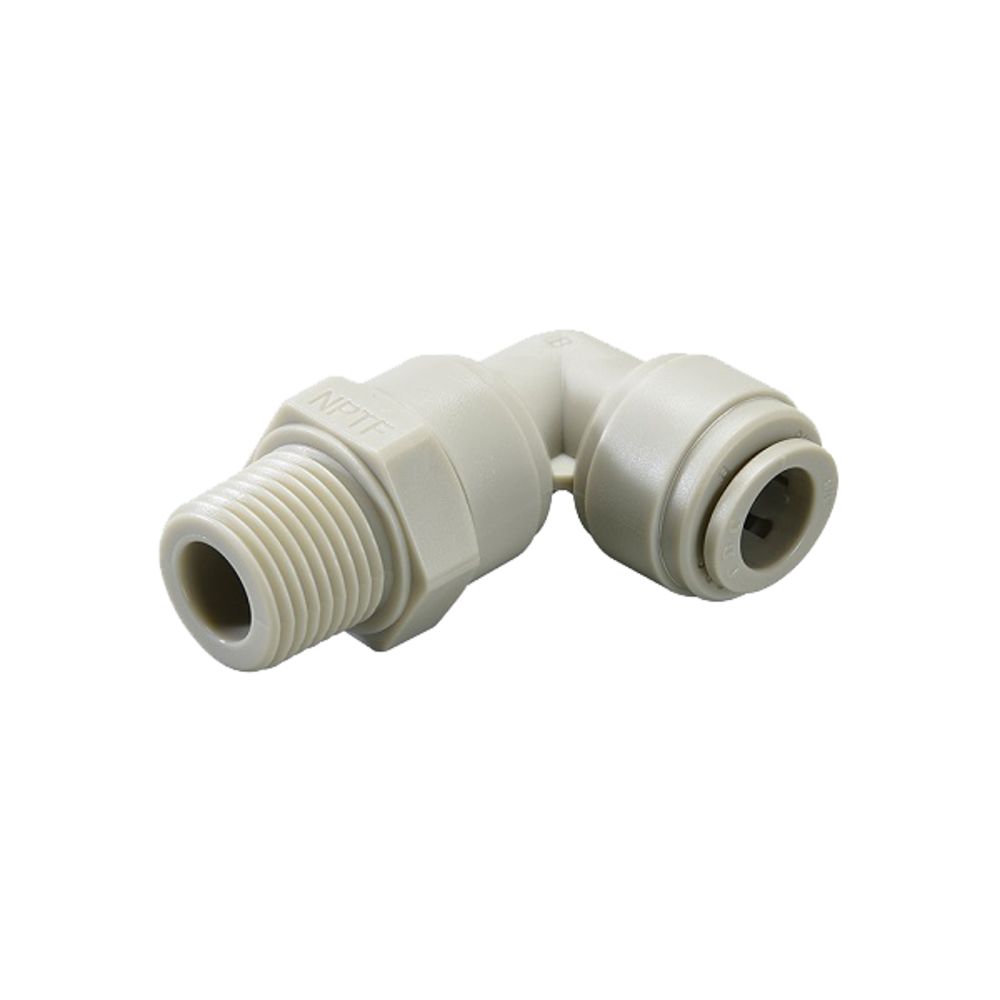

NeoFit - Acetal Gray Male Elbow Swivel- 1/2"tube OD x 1/2"NPTF

Part Number: AMES8-N4-G Alt. Part Number: PI091624S

1 4

NeoFit

NeoFit - Acetal Gray Male Elbow Swivel- 1/2"tube OD x 1/2"NPTF

Part Number: AMES8-N4-G Alt. Part Number: PI091624S

MSRP: $6.84

$4.18

Quantity

Unit Price

Price

Savings

$4.18

—

$4.03

$40.39

$3.90

$195.08

Product variants

Note: These swivel fittings are designed for DIY assembly and are not supplied preassembled.

You May Also Need

Optional Accessory
DMfit Collet Cover - 1/2"

Regular price From $0.37
Optional Accessory
John Guest Collet Cover - 1/2 OD

Regular price From $0.29
Optional Accessory
DMfit Locking Clip Red - 1/2"

Regular price From $0.28
Optional Accessory
John Guest Release Tools Set - 3/16, 1/4, 5/16, 8mm, 3/8, 1/2

Regular price From $13.07
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88
Optional Accessory
John Guest Locking Clip - 1/2"

Regular price From $0.19
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Note: These fittings possess the capability to orient the fitting connection in any direction autonomously, separate from the threaded segment of the fitting.

The NeoFit male swivel elbows are used to connect OD tubing sizes to female NPTF threads. Manufactured in acetal with food grade EPDM O-ring, these fittings were designed for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to connect OD tubing sizes
Swivel elbows allow you to position the tubing in the desired direction
Compatible with plastic or copper OD sized tubing

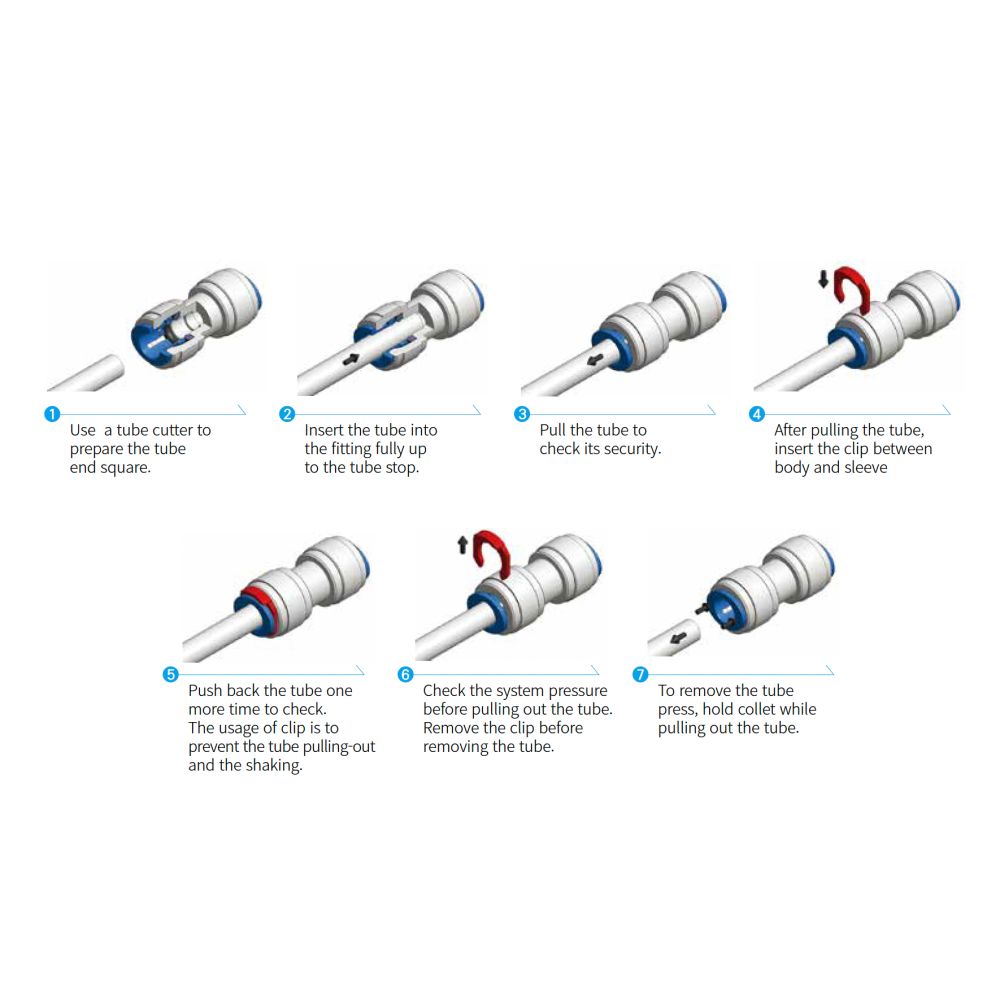

Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Fittings Comparison: Acetal Gray

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI @ Temp
1/4"	290psi @ 68F/ 232psi @ 150F	230psi @ 68F/ 150 psi at 150F	230psi @ 68F/ 100 psi at 150F
3/8"	232psi @ 68F/ 203psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
1/2"	203psi @ 68F/ 116psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

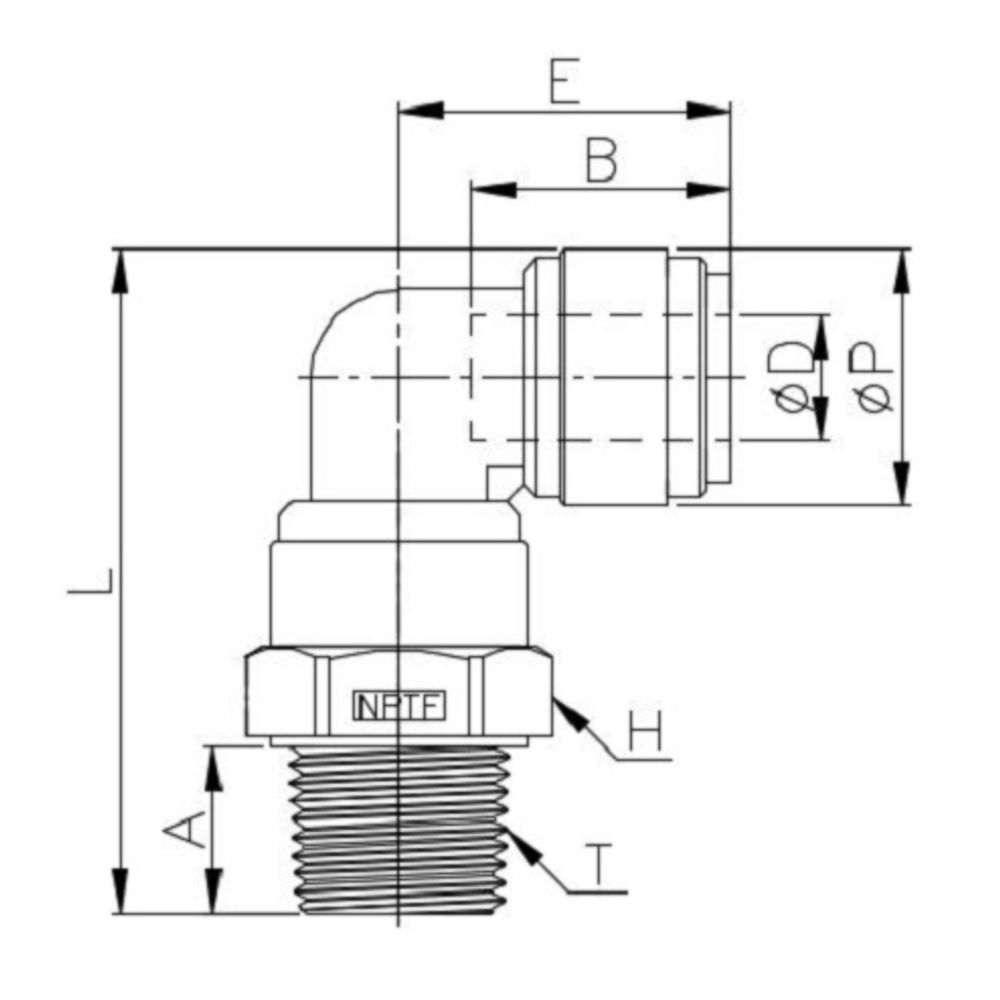

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	1/2" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	2.5

Downloads

NeoFit - Acetal Gray Male Elbow Swivel- 1/2

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	NeoFit NeoFit - Acetal Gray Male Elbow Swivel- 1/2"tube OD x 1/2"NPTF Regular price From $4.18 Part #: AMES8-N4-G Save up to 6% with bulk pricing Current Product	John Guest John Guest Swivel Elbow NPTF - 1/2 x 1/2 NPTF 5.0 Regular price From $4.89 Part #: PI091624S Save up to 7% with bulk pricing View details	Parker Parker LIQUIfit Swivel Elbow - 1/2 x 1/2 NPTF 5.0 Regular price $3.78 Part #: 6509-62-22WP2 View details
Price
Price	Regular price From $4.18	Regular price From $4.89	Regular price $3.78
Part #
Part #	AMES8-N4-G	PI091624S	6509-62-22WP2
Description
Description	Note: These fittings possess the capability to orient the fitting connection in any direction autonomously, separate from the threaded segment of the fitting.The NeoFit male...	The John Guest swivel elbow makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in gray acetal with food grade nitrile...	Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs...
