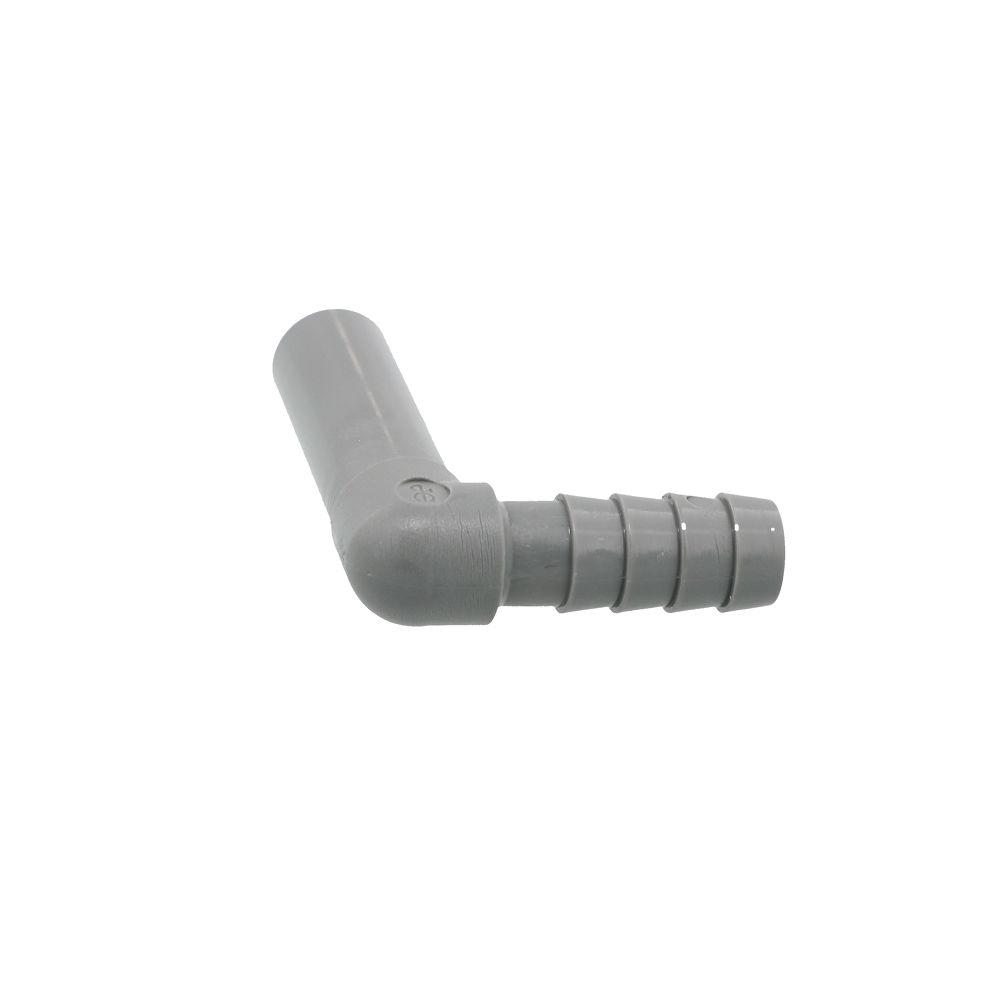

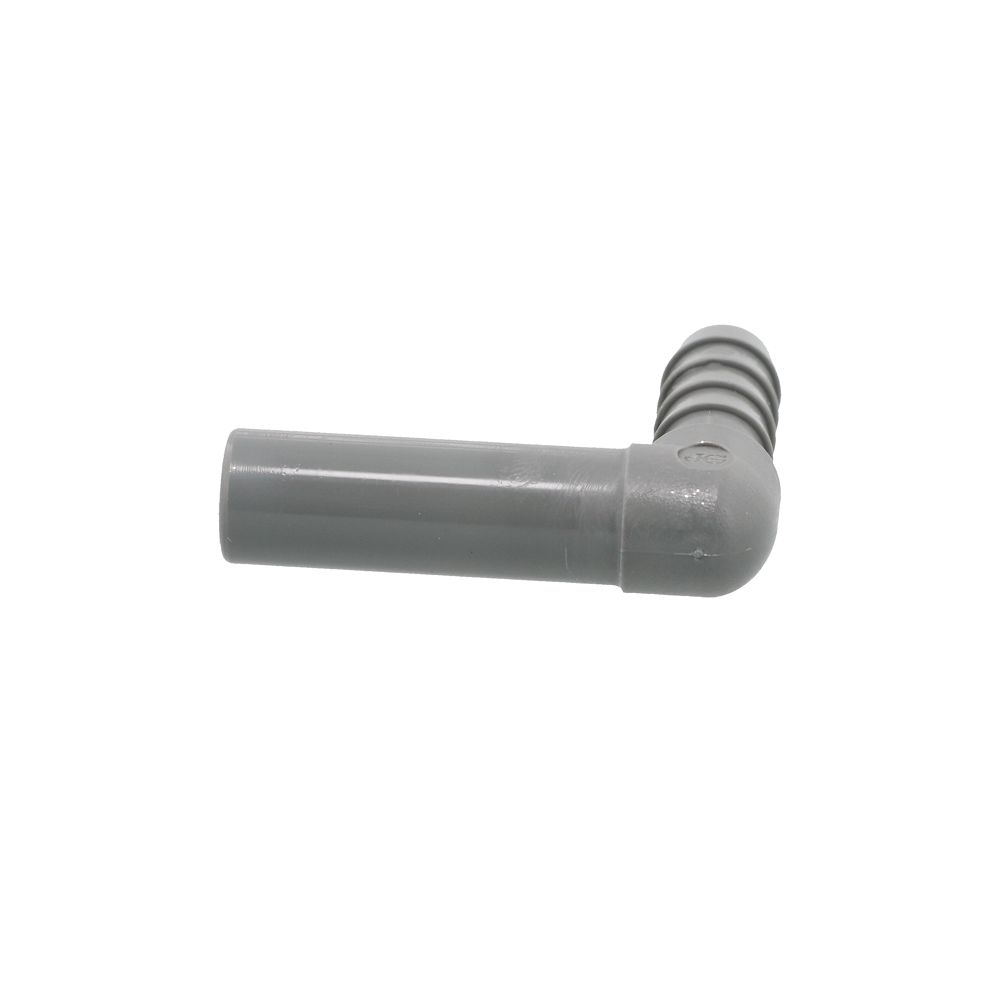

John Guest Stem Elbow Barb Connector - 3/8 OD Stem x 5/16 ID Barb

5.0

(2 reviews)

Part Number: PI291210S Alt. Part Number: PM052214E

1 5

John Guest

John Guest Stem Elbow Barb Connector - 3/8 OD Stem x 5/16 ID Barb

5.0

(2 reviews)

Part Number: PI291210S Alt. Part Number: PM052214E

MSRP: $3.75

$2.25

Quantity

Unit Price

Price

Savings

$2.25

—

$2.02

$20.21

10%

400

$1.96

$786.00

12%

Product variants

You May Also Need

Optional Accessory
Clear Flexible PVC Tubing 5/16 ID x 7/16 OD

Regular price From $2.04
Optional Accessory
John Guest Male Connector NPTF - 3/8 x 3/8 NPTF

Regular price From $2.26
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest tube to hose elbow makes connecting hose to Push-fit Fittings quick and easy. Manufactured in gray acetal, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect hose to Push-fit fittings
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 68° F
Max. 100 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

View Prop 65 Warning

Specifications

Product Details
Barb Size	5/16"
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Series	PI
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Gray
Origin	UK
Sub-Type	Stem to Barb Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Barb Size	5/16"
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Series	PI
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Gray
Origin	UK
Sub-Type	Stem to Barb Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.088

Product Details
Barb Size	5/16"
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Series	PI
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Gray
Origin	UK
Sub-Type	Stem to Barb Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.52

Downloads

John Guest Stem Elbow Barb Connector - 3/8 OD Stem x 5/16 ID Barb Manual

Reviews (2)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

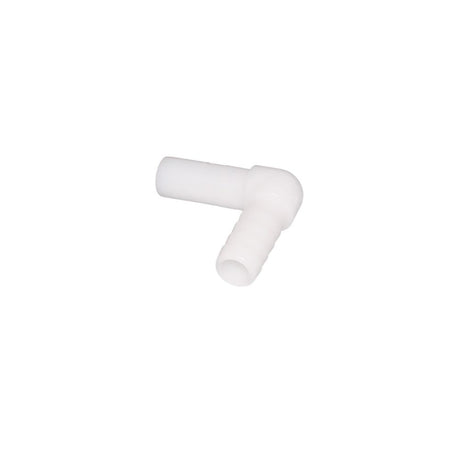

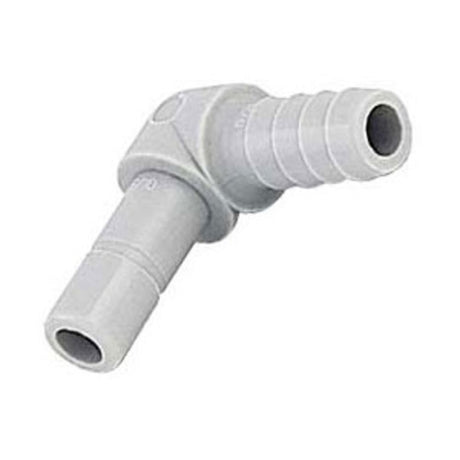

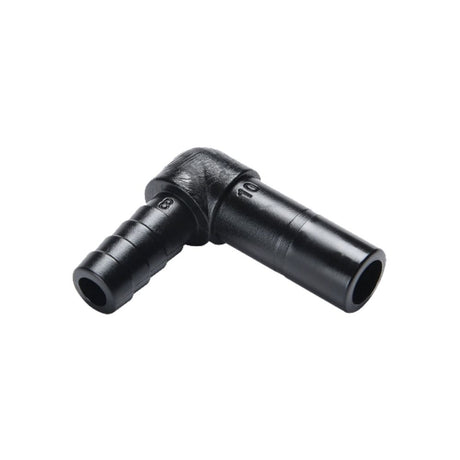

Facet	John Guest John Guest Stem Elbow Barb Connector - 3/8 OD Stem x 5/16 ID Barb 5.0 Regular price From $2.25 Part #: PI291210S Save up to 12% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Stem Barb Elbow Connector 3/8"stem x 8mm (5/16") barb Regular price From $2.02 Part #: ATEB68M-E Save up to 17% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Stem Barb Elbow Connector 3/8"stem x 8mm (5/16") barb Regular price From $2.02 Part #: ATEB68M-W Save up to 17% with bulk pricing View details	DMFit DMfit Stem Elbow Barb Connector - 3/8 OD Stem x 5/16 ID Barb Regular price From $2.21 Part #: ATEB0605 Save up to 18% with bulk pricing View details
