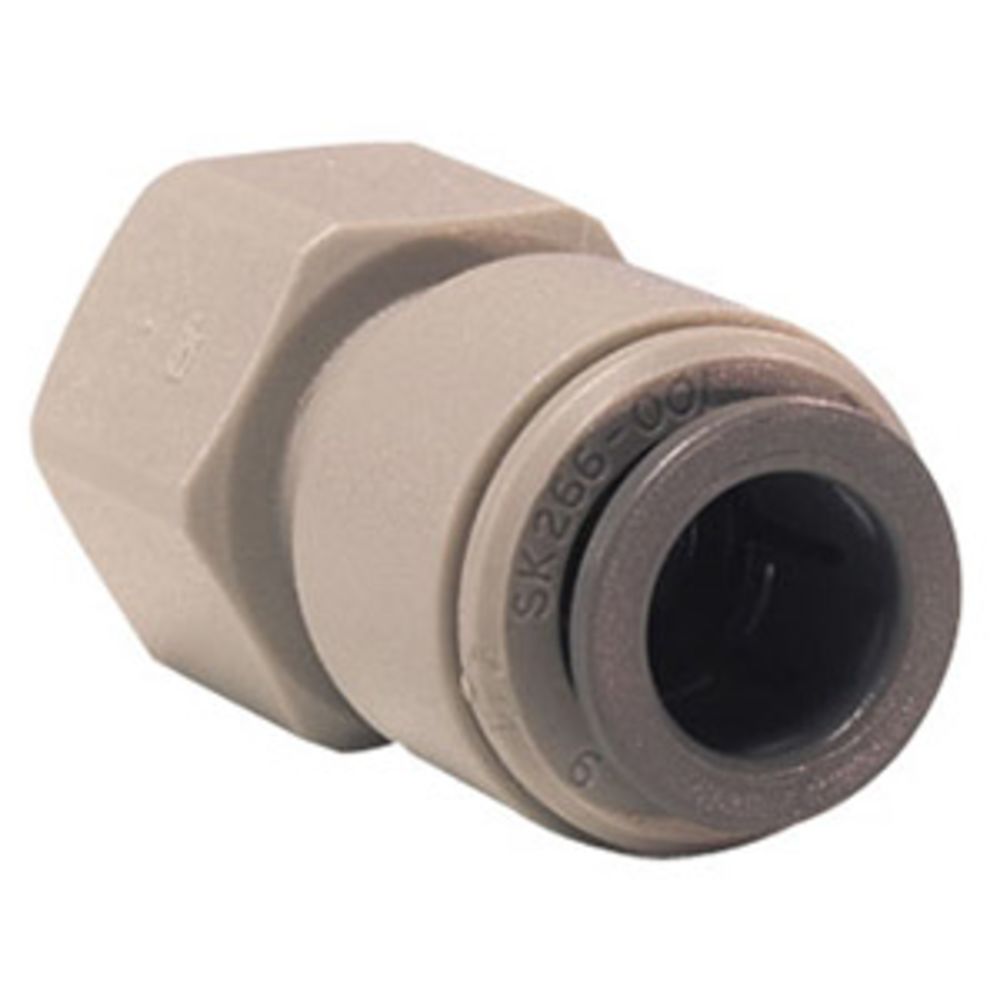

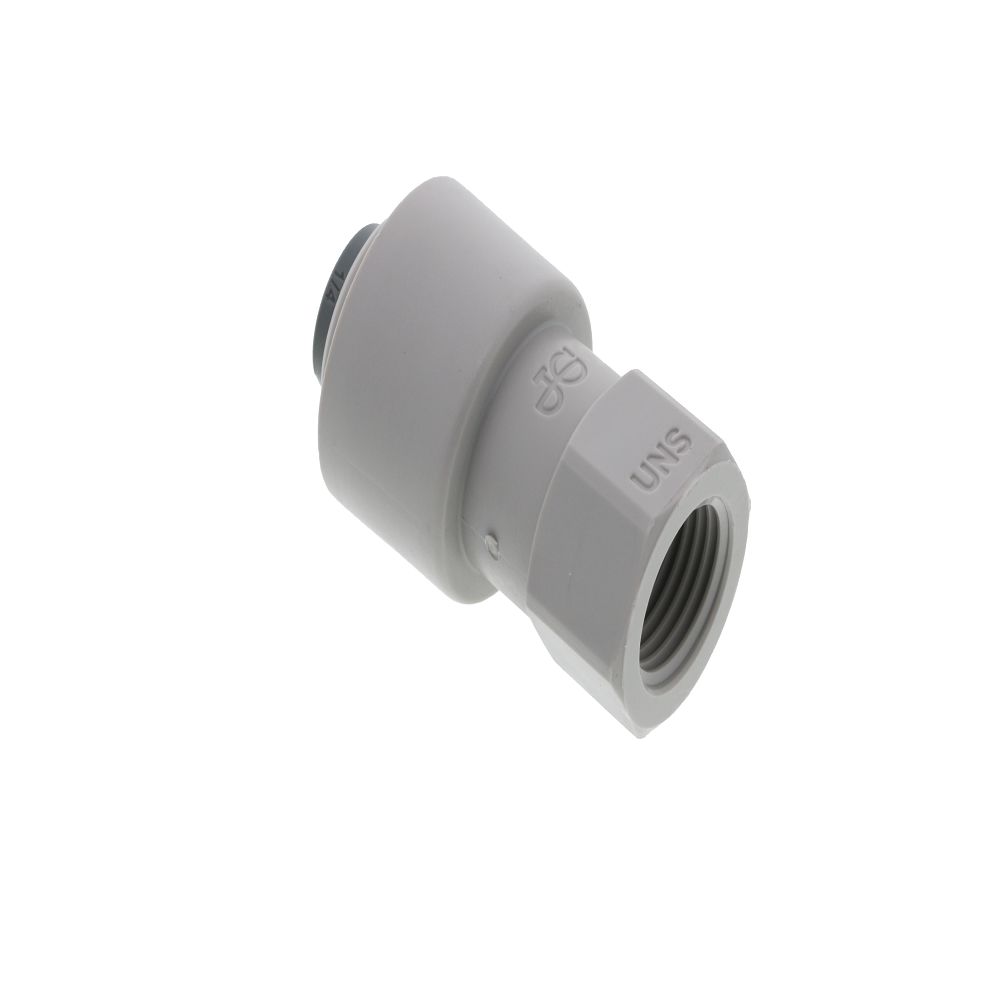

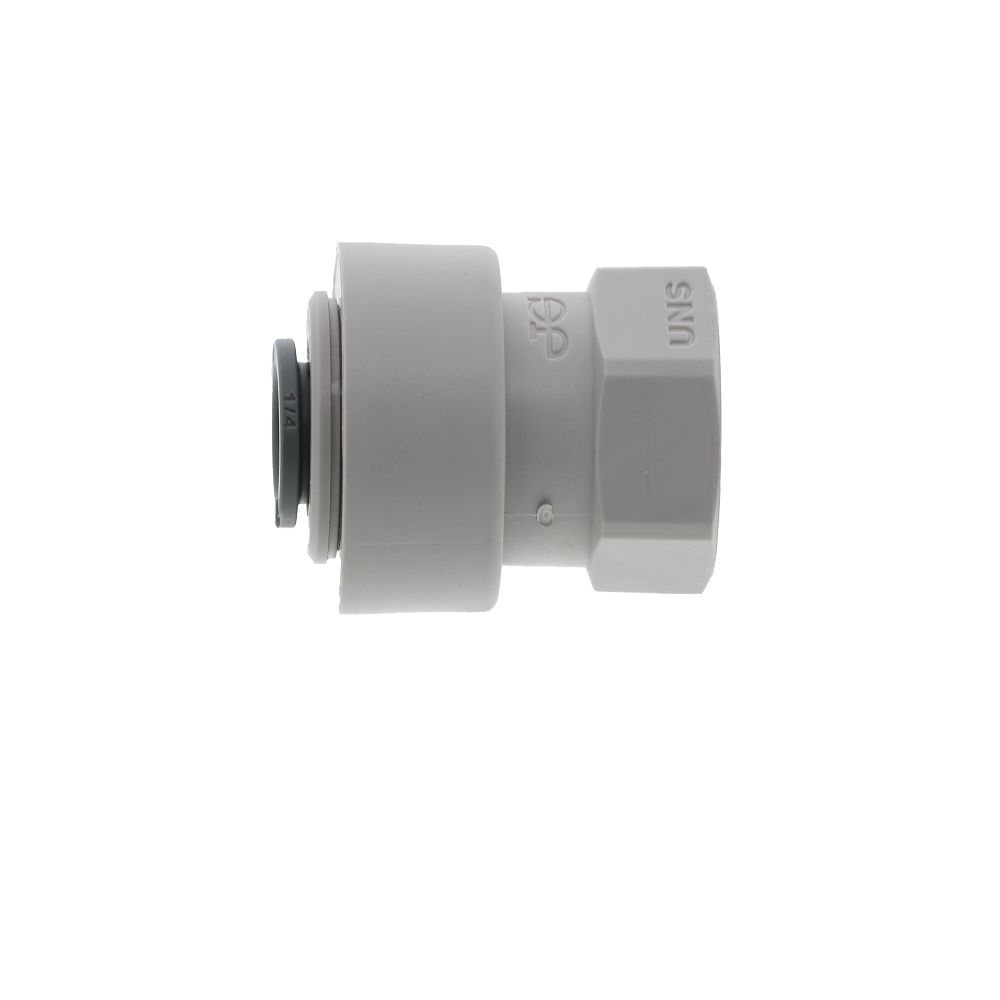

John Guest Faucet Connector UNS - 1/4 x 7/16 UNS

Part Number: CI3208U7S Alt. Part Number: AFAC4-US7-G, CI3208U7S

1 4

John Guest

John Guest Faucet Connector UNS - 1/4 x 7/16 UNS

Part Number: CI3208U7S Alt. Part Number: AFAC4-US7-G, CI3208U7S

MSRP: $3.79

$2.28

Quantity

Unit Price

Price

Savings

$2.28

—

$2.04

$20.43

10%

250

$1.98

$496.49

13%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory
Nylon Plastic Tube Support Insert 1/4 OD Tubing

Regular price From $0.08
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest faucet connector is used to connect OD tubing to the filtered water faucet. Manufactured in gray acetal with food grade nitril O-ring, these fittings are suitable for food, beverage, and potable liquids.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes to male BSPP threads
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	7/16-24 UNS
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	7/16-24 UNS
Push-In Size	1/4" OD
Series	PI
Shape	Straight
Size	7/16-24
Color / Finish	Gray
Connection Type	UNS
Origin	UK
Sub-Type	Faucet Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.375 in.
Shipping Width	0.75 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1.375 in.
Product Width	0.75 in.
Product Weight (lbs)	0.0229

Product Details
Inlet Connection	7/16-24 UNS
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	7/16-24 UNS
Push-In Size	1/4" OD
Series	PI
Shape	Straight
Size	7/16-24
Color / Finish	Gray
Connection Type	UNS
Origin	UK
Sub-Type	Faucet Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.229

Product Details
Inlet Connection	7/16-24 UNS
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	7/16-24 UNS
Push-In Size	1/4" OD
Series	PI
Shape	Straight
Size	7/16-24
Color / Finish	Gray
Connection Type	UNS
Origin	UK
Sub-Type	Faucet Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	5.73
