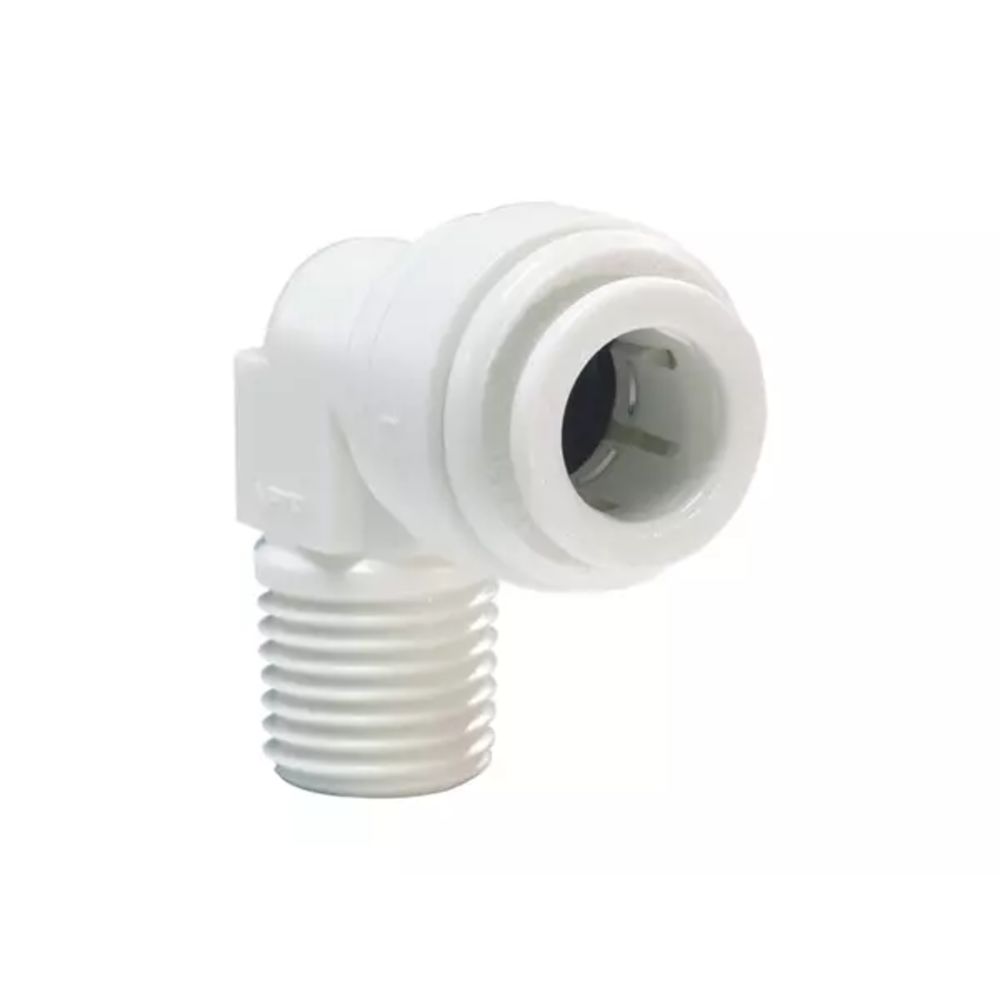

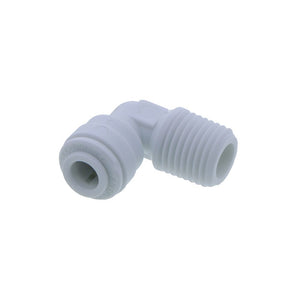

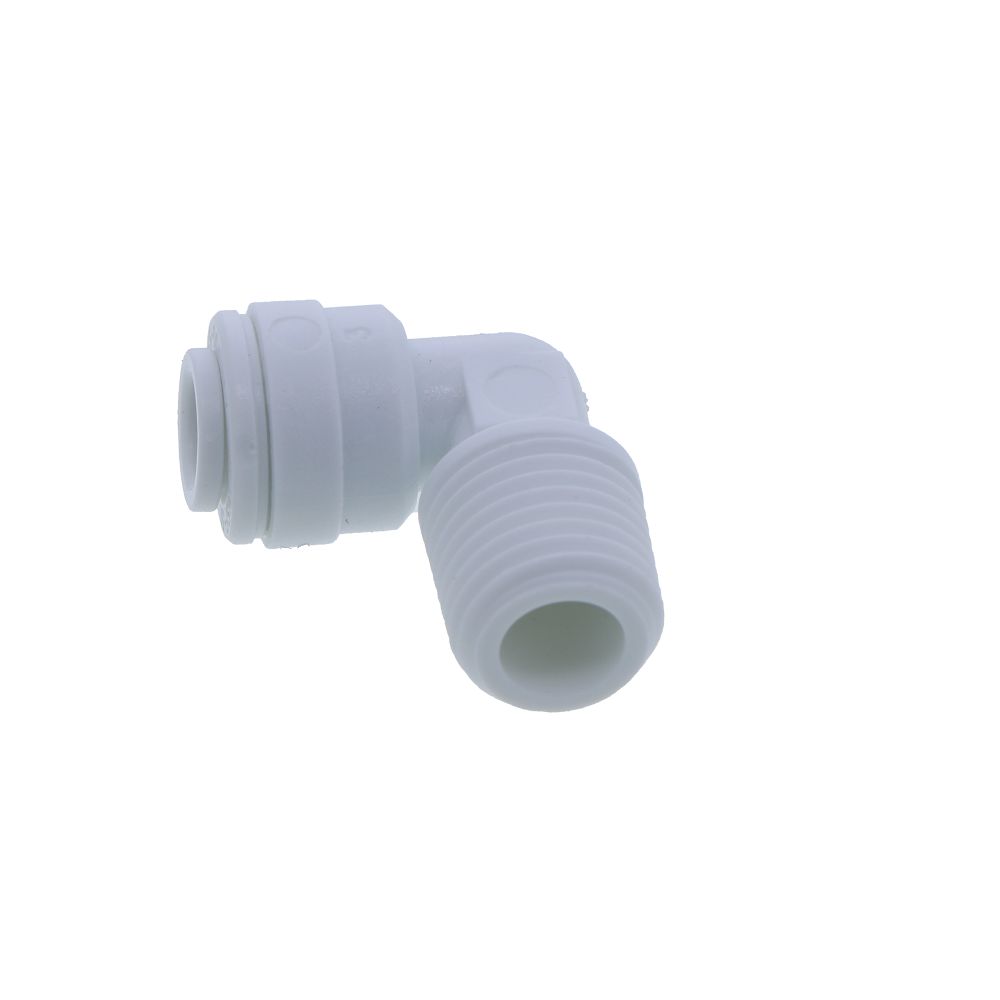

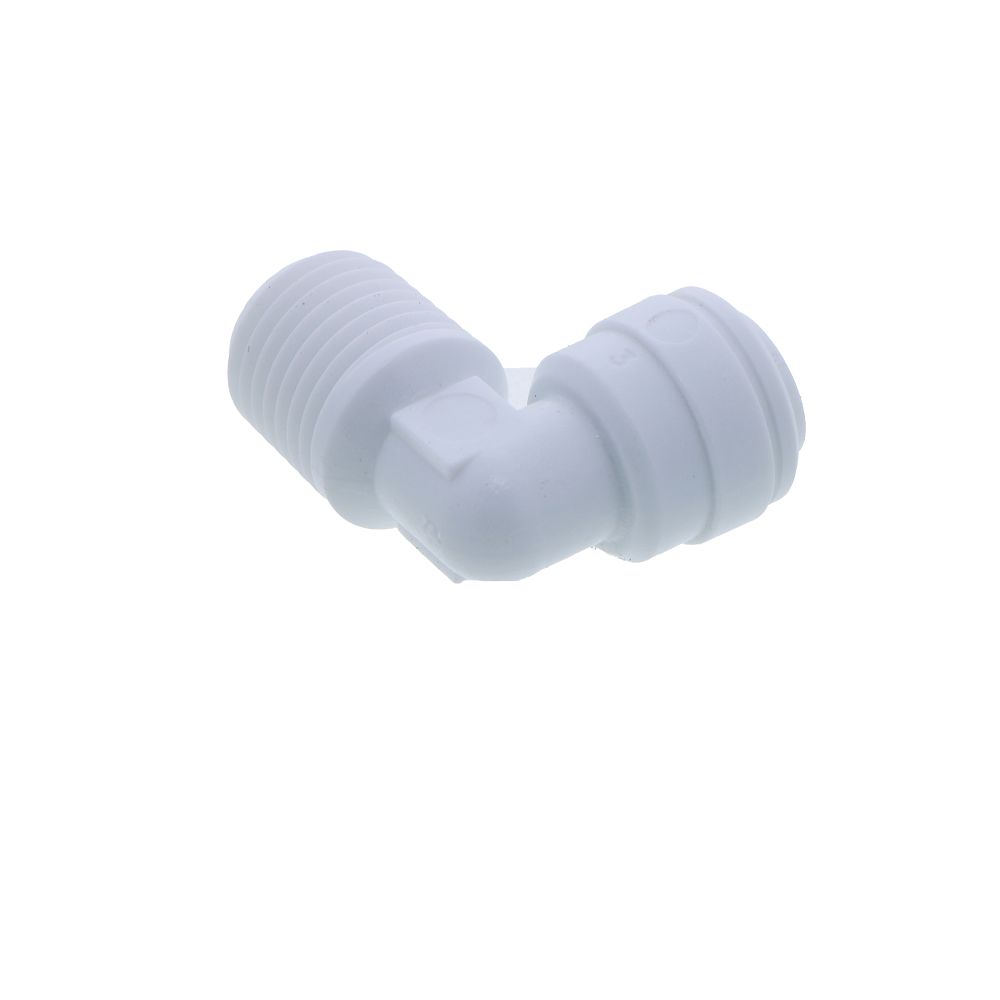

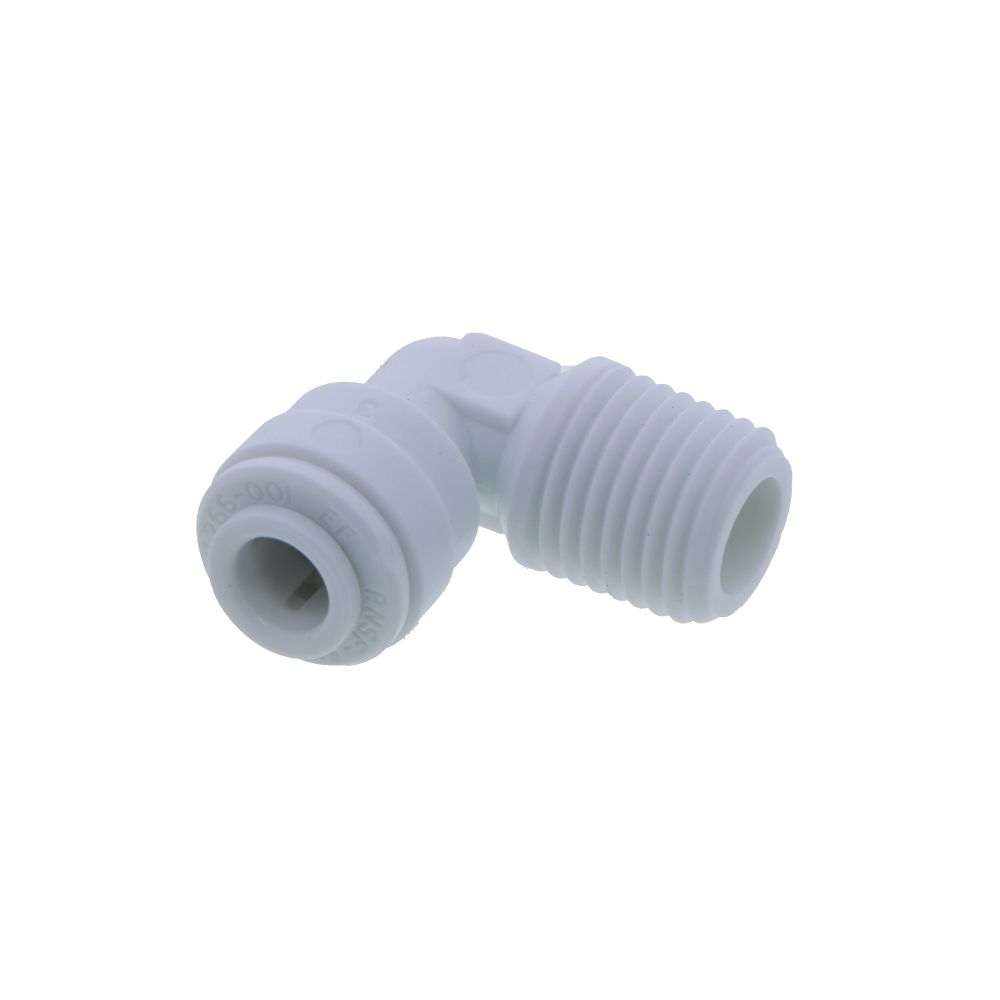

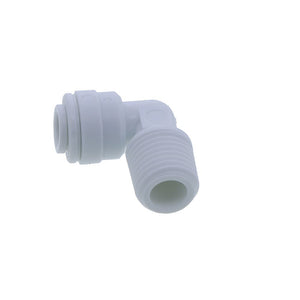

John Guest 3/8" x 1/4" (NPTF) Acetal Fixed Elbow - White

Part Number: CI481222W Alt. Part Number: AME6-N2-W

1 5

John Guest

John Guest 3/8" x 1/4" (NPTF) Acetal Fixed Elbow - White

Part Number: CI481222W Alt. Part Number: AME6-N2-W

MSRP: $5.06

$3.04

Quantity

Unit Price

Price

Savings

$3.04

—

$2.51

$25.16

17%

200

$2.45

$490.20

19%

Product variants

You May Also Need

Optional Accessory
Black 3/8" OD LLDPE Polyethylene Tubing

Regular price From $0.20
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
John Guest Collet Cover - 3/8 OD

Regular price From $0.30
Optional Accessory
NeoFit - Acetal Locking Clip 3/8"

Regular price From $0.23
Optional Accessory
John Guest Flow Bend Clip - 3/8

Regular price From $1.27
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 3/8 OD Tubing

Regular price From $0.15
Optional Accessory
Nylon Plastic Tube Support Insert 1/4" CTS (3/8" OD)

Regular price From $0.15
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

This John Guest 3/8" x 1/4" (NPTF) Acetal Fixed Elbow fitting connects two pipes to form a 90° pipe bend. Manufactured in white push-fit acetal copolymer with EPDM O-Rings, the fitting is suitable for potable water, intermittent hot water applications (up to 149F max), water treatment and purification applications.

Features:

Rigid and hardwearing acetal copolymer material with EDPM O-Ring
Instant push-fit connection and leak tight seal
Connect, disconnect and reconnect in seconds without tools
No scale build up improves performance and equipment lifespan
Superior flow characteristics
Compatible with LLDPE or soft metal pipe/tubing

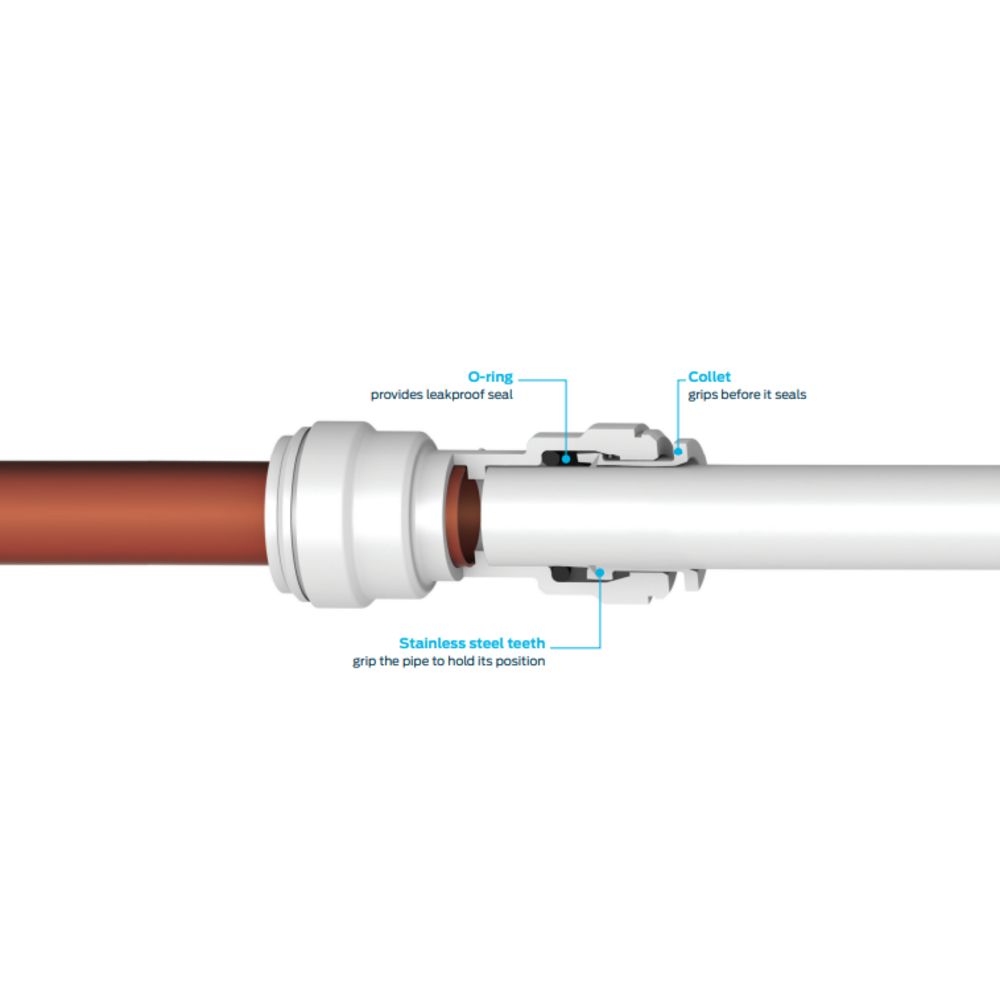

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes to female NPT threads
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade EDPM O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 100 psi at 150° F

NOTE: NOT suitable for air, pneumatic or vacuum applications

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing

Compatible tubing for John Guest fittings

View Prop 65 Warning

Specifications

Product Details
Push-In Size	3/8" OD
Shape	Elbow
Size	1/4"
Color / Finish	White
Sub-Type	Fixed Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.02

Product Details
Push-In Size	3/8" OD
Shape	Elbow
Size	1/4"
Color / Finish	White
Sub-Type	Fixed Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.2

Product Details
Push-In Size	3/8" OD
Shape	Elbow
Size	1/4"
Color / Finish	White
Sub-Type	Fixed Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	4

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

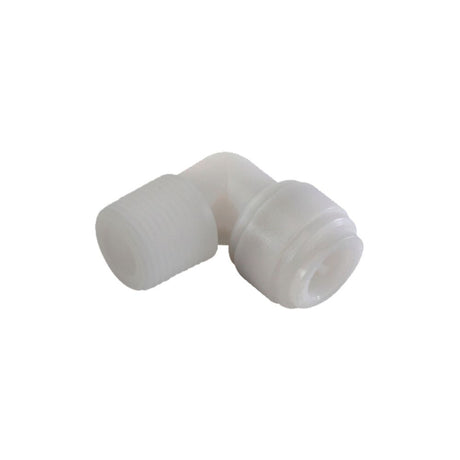

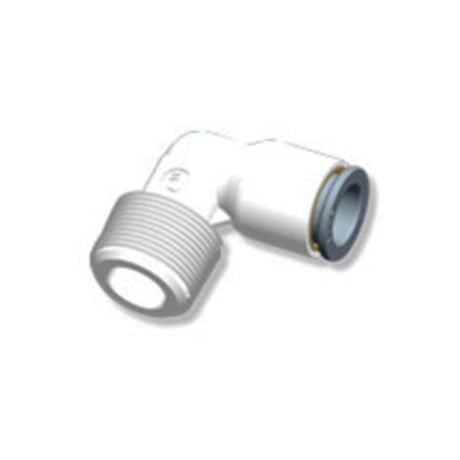

Facet	John Guest John Guest 3/8" x 1/4" (NPTF) Acetal Fixed Elbow - White Regular price From $3.04 Part #: CI481222W Save up to 19% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Male Elbow 3/8"tube x 1/4"NPTF Regular price From $2.43 Part #: AME6-N2-W Save up to 8% with bulk pricing View details	John Guest John Guest Fixed Elbow NPTF - 3/8 x 1/4 NPTF 5.0 Regular price From $3.04 Part #: PI481222S Save up to 12% with bulk pricing View details	Parker Parker LIQUIfit Fixed Elbow - 3/8 x 1/4 NPTF Regular price From $2.54 Part #: 6579-60-14WP2 Save up to 5% with bulk pricing View details
