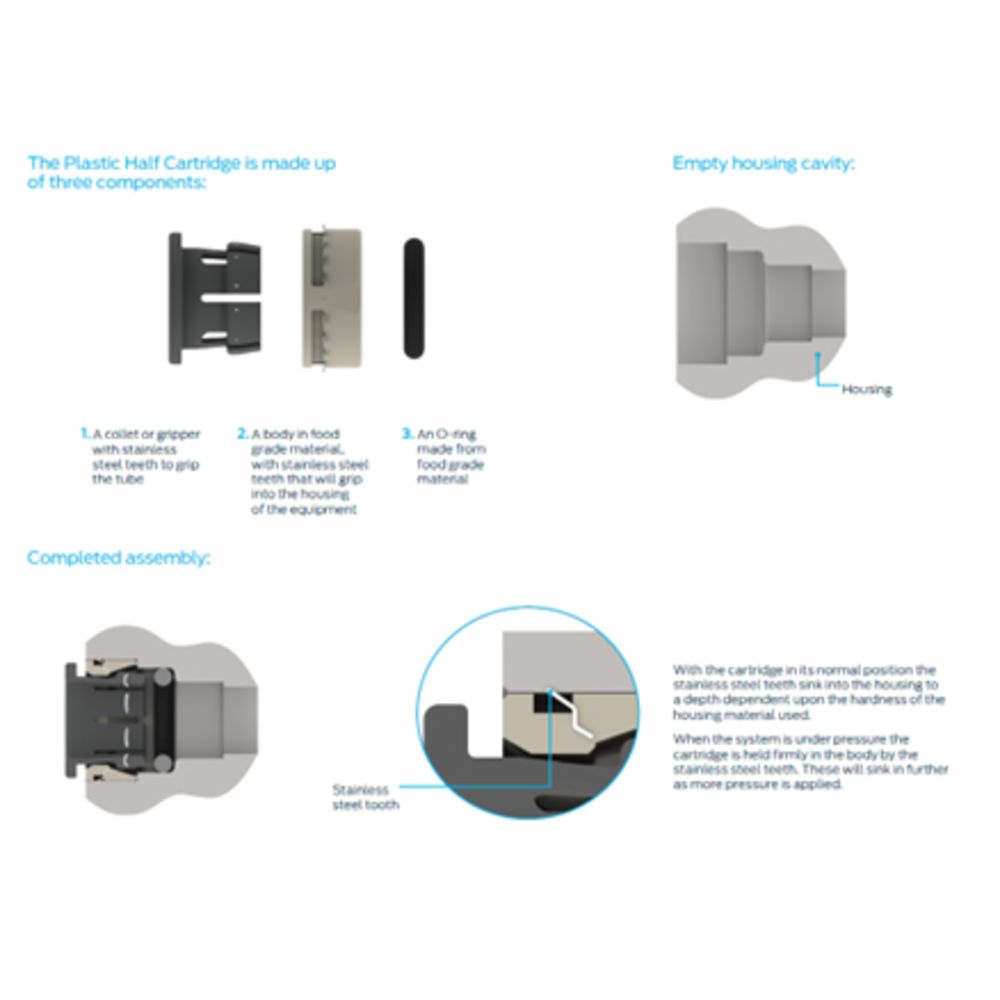

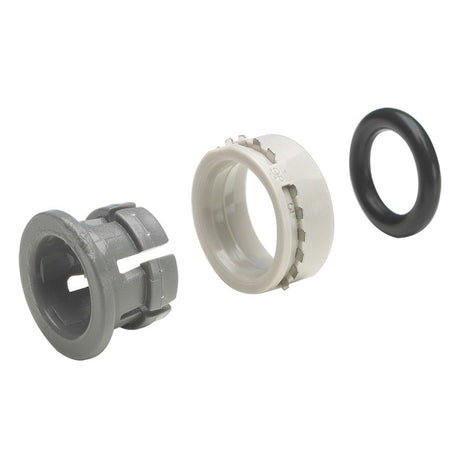

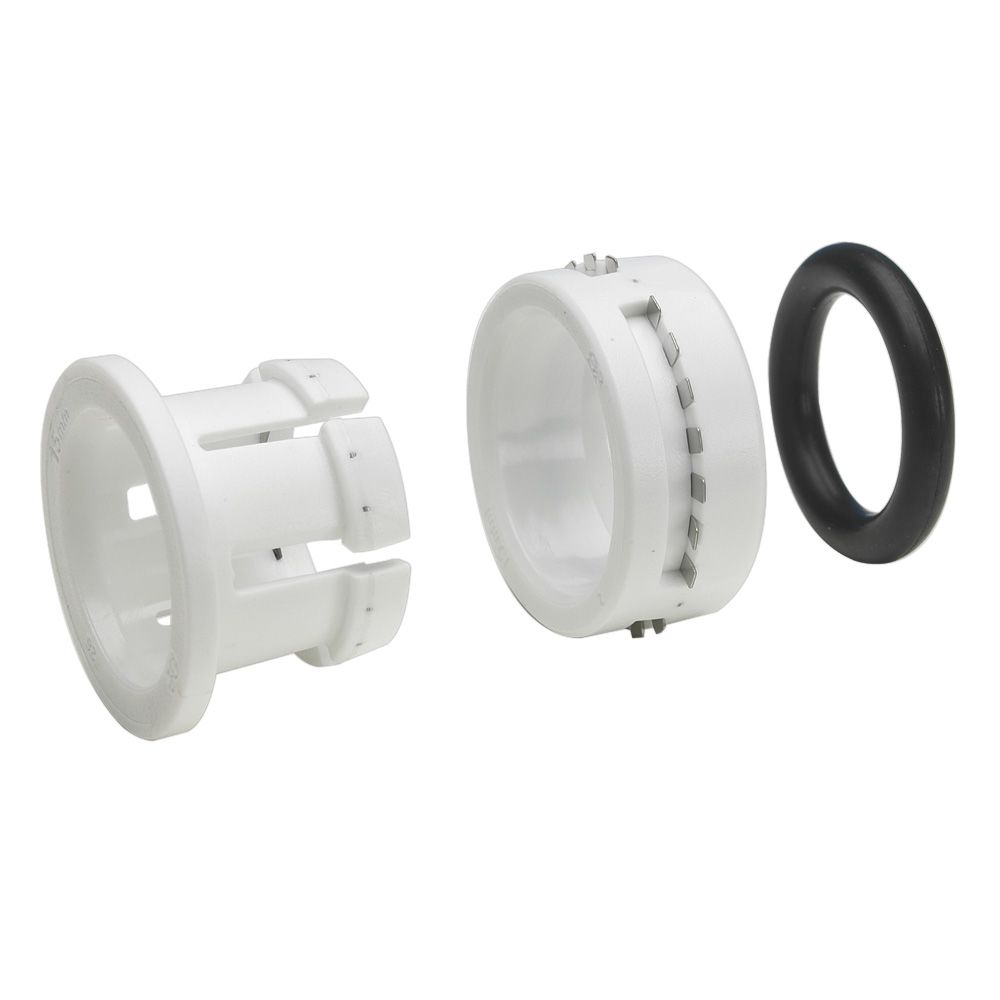

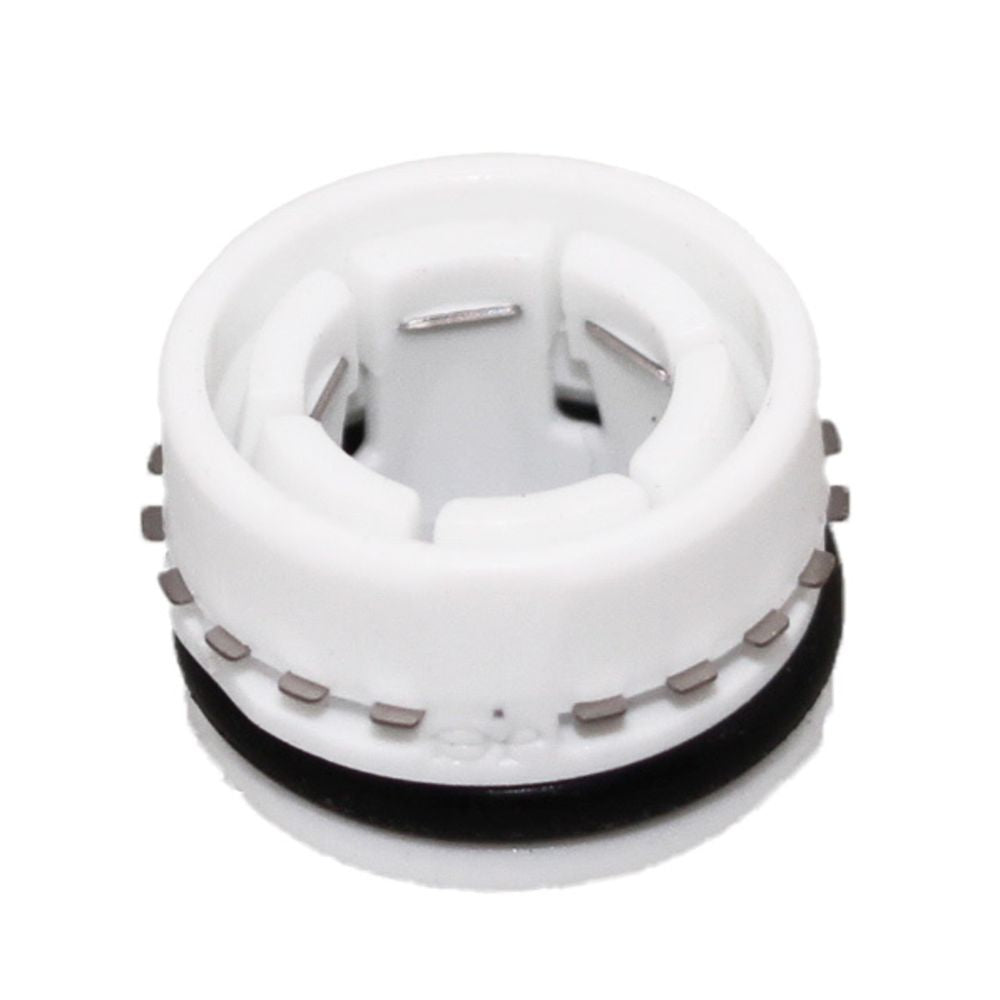

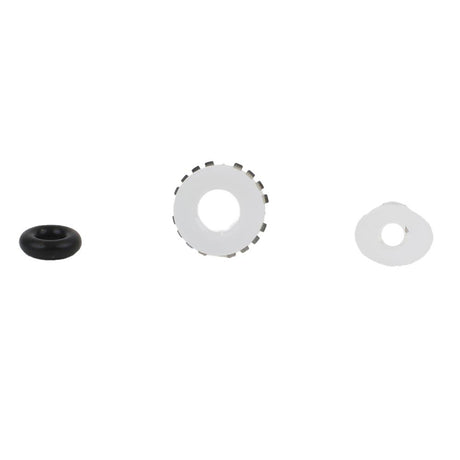

The John Guest plastic half cartridges are an easy and cost-effective way of incorporating a push-fit connection into a wide range of OEM equipment. Easy to assemble and compact, push in connections avoid the need for threaded ports, offer improved product appearance and easy tube connection. Plastic Half Cartridges consist of three components: a collet, a plastic body and O-ring. Plastic Half Cartridges are only recommended for use with plastic and soft metal housing materials.

Features:

• Cartridge requires low insertion loads, making it suitable for different housing materials
• Compatible with plastic or copper OD sized tubing
• For filtration and food grade applications

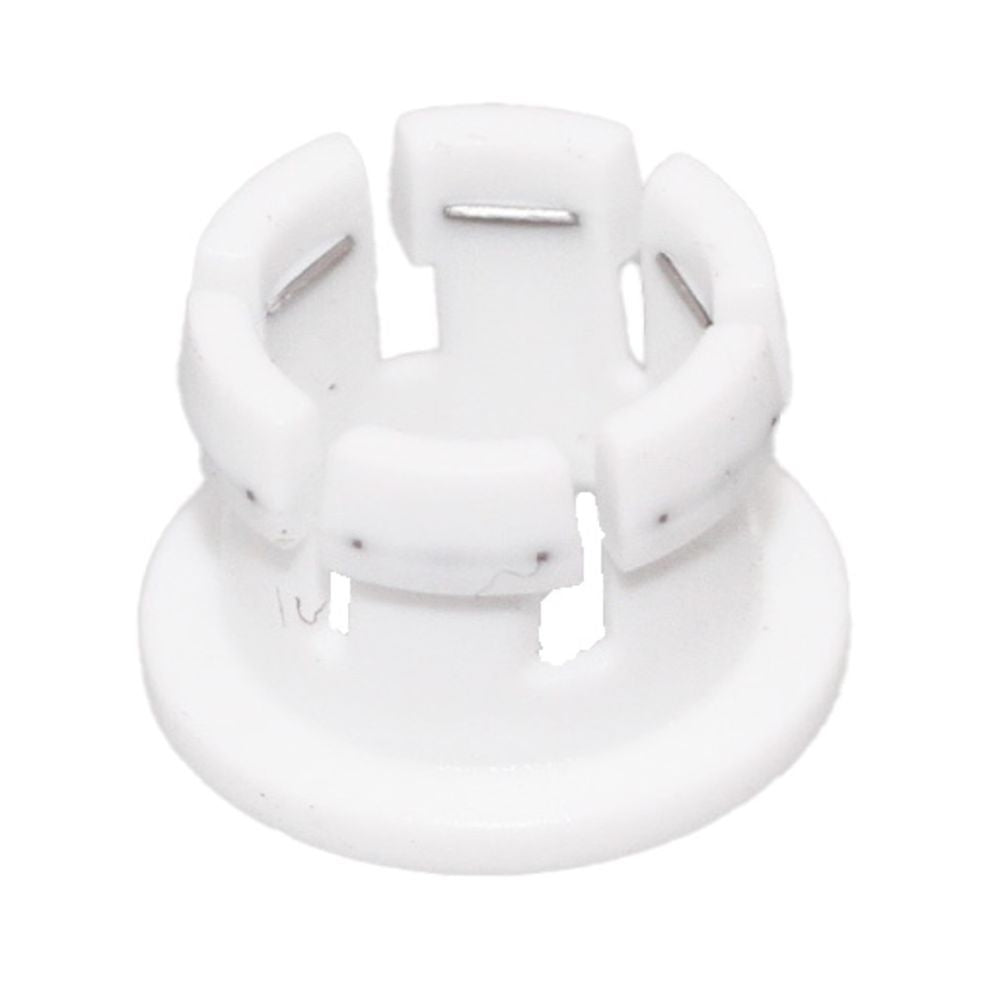

• Polypropylene Collet has stainless steel teeth to grip the tube

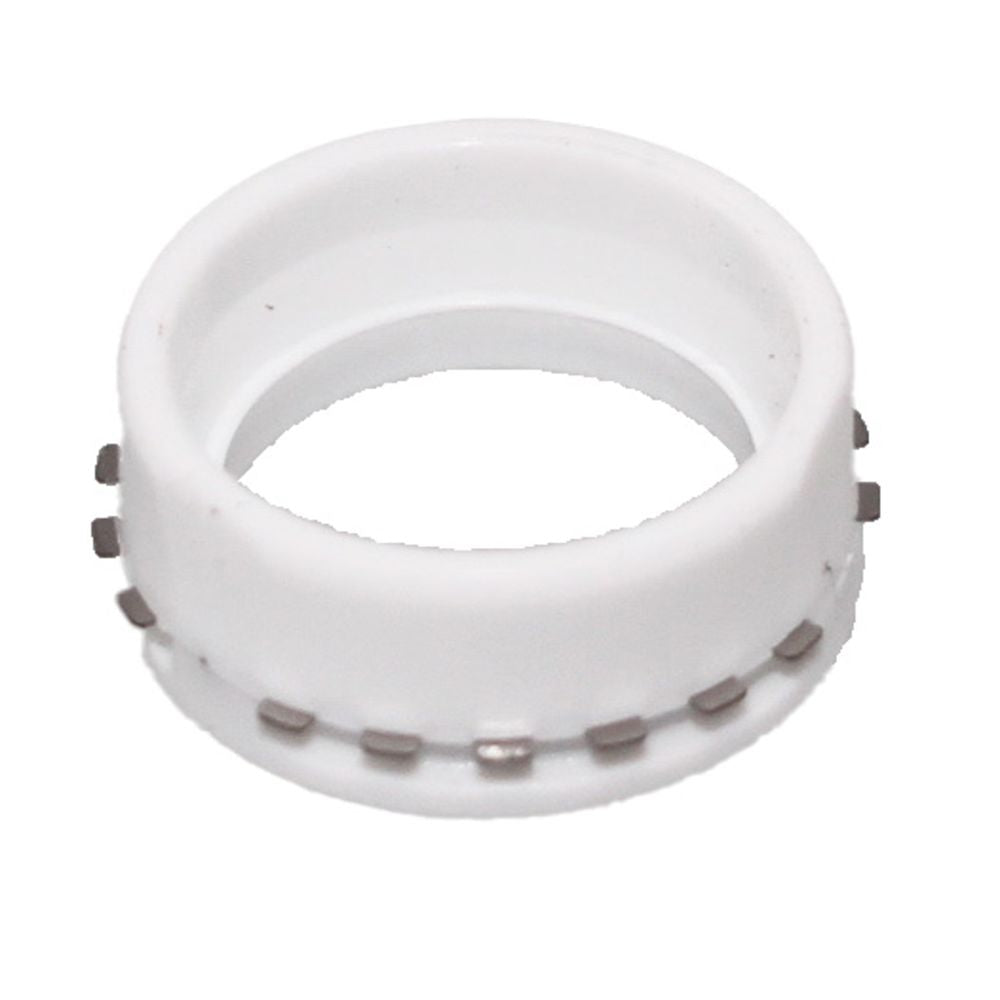

• Polypropylene body with stainless steel teeth that grip into the housing of the equipment

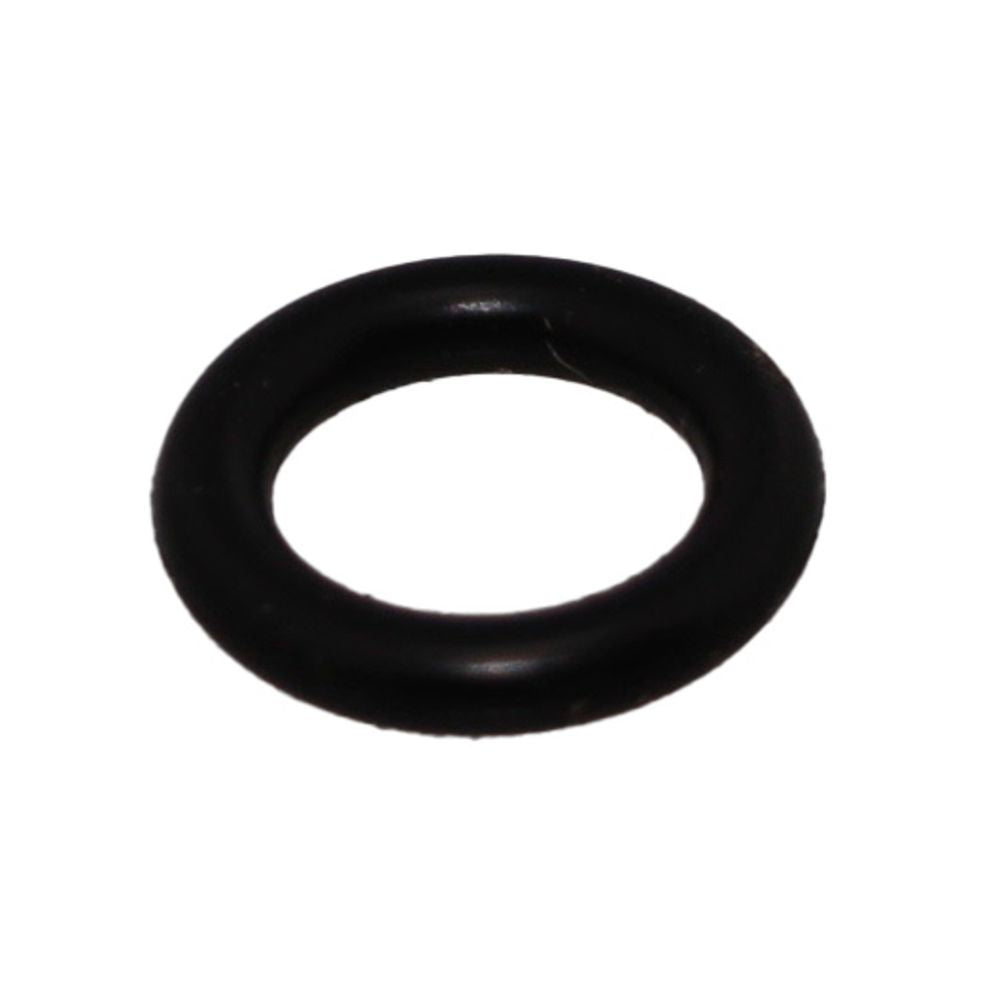

• Food grade EDPM O-Ring
• Made with lead free materials

Working pressure and temperature:

• Max. 150 psi at 70° F
• Max. 60 psi at 140° F

Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
