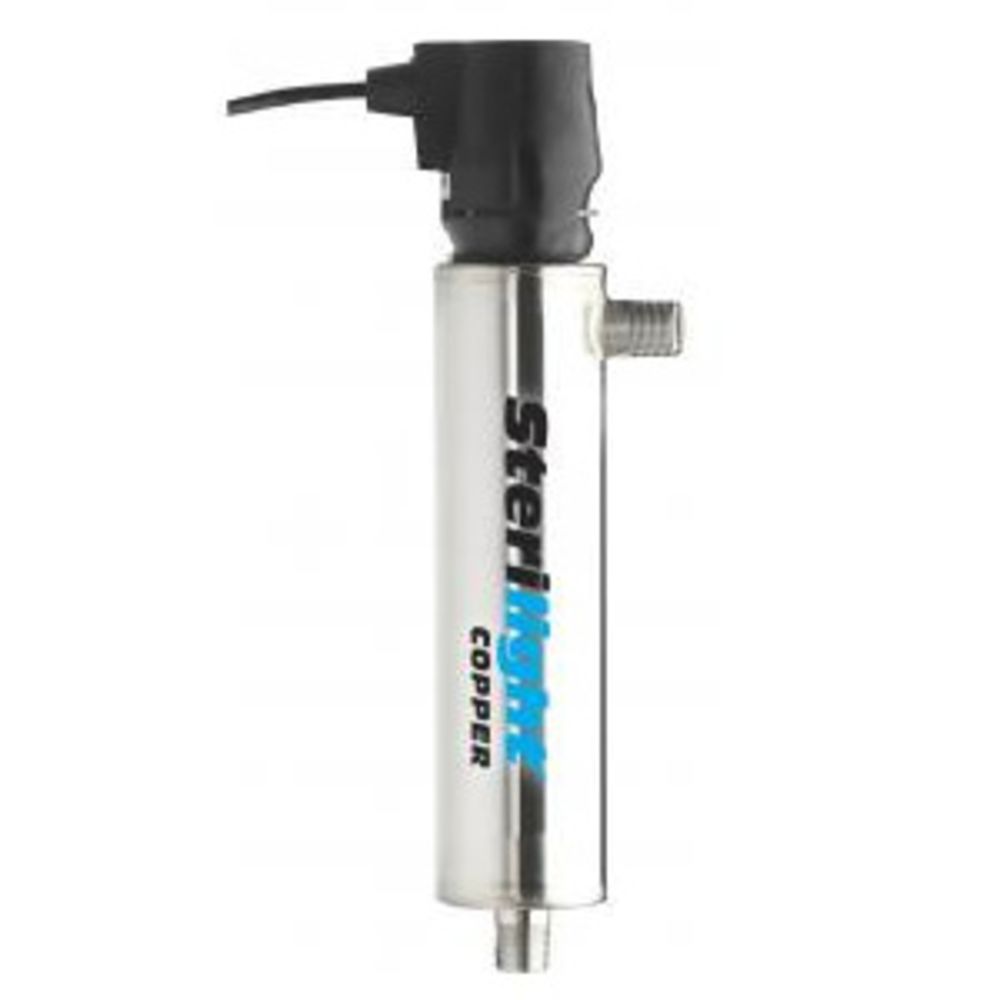

The Viqua Sterilight SC1 Copper UV System 100-130V is specifically designed for point-of-use applications where microbiological control is required. The SC1 UV System controls bacteria, virus and protozoan cyst all in one complete design.

Specifications:

• 304 Stainless Steel Reactors
• Flow Rate: 1 gpm
• Dimensions: 13.5" x 2.5" Diameter
• Max Operating Pressure: 125 psi
• Inlet/Outlet Port Size: 1/2" MPT/ 3/8" FPT
• Volts: 100-130V/50-60Hz

This simple UV disinfection system has a minimal amount of parts with an integral electronic ballast with a visual alarm (LED). the Copper family of systems is ideal for small POU (point-of-use) applications. The ballast is built into the connector of the system. The UV reactor has an axial flow design and is manufactured in 304 stainless steel with combination ports of 3/8" FPT and 1/2" MPT connections.
This system is compatible with the S212RL Sterilight Lamp and the QS-212 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC1 includes:

• Sterilight Lamp (1): S212RL
• Sterilight Quartz Sleeve (1): QS-212
• Sterilight O-Rings (2): 410867
