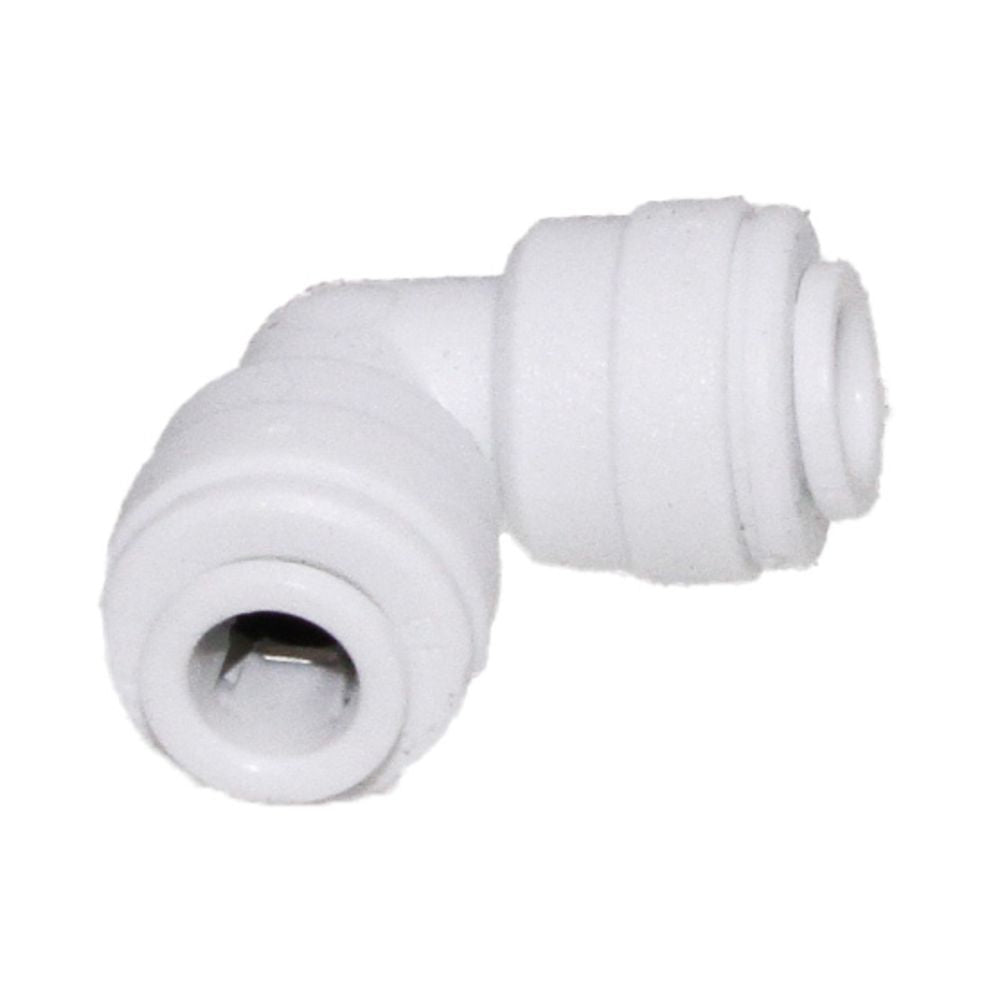

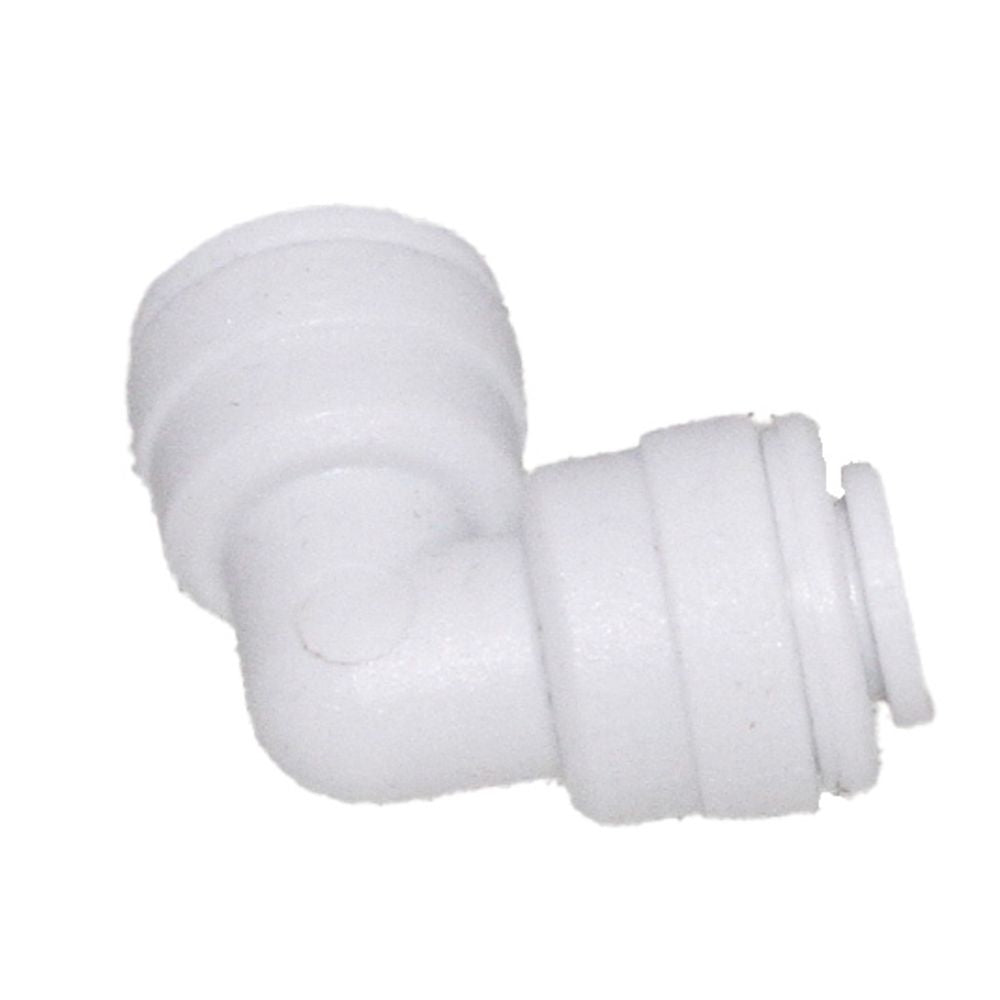

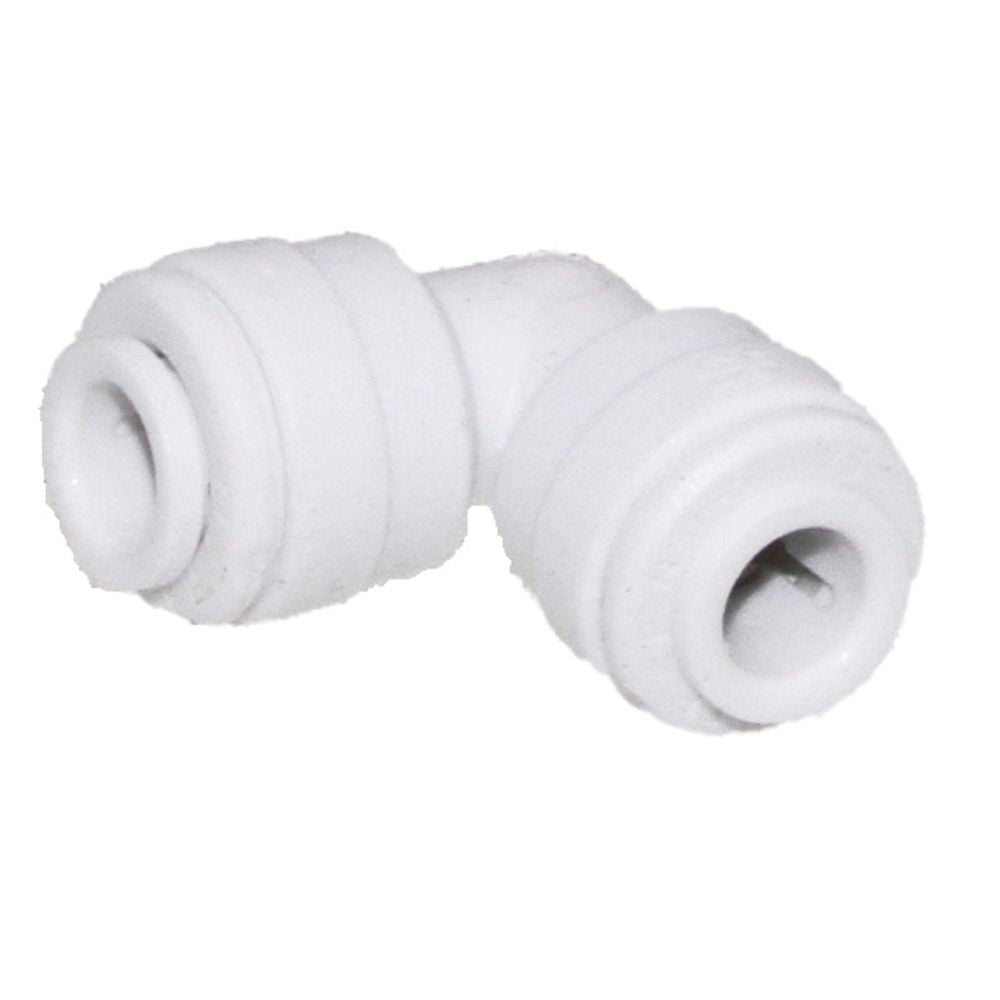

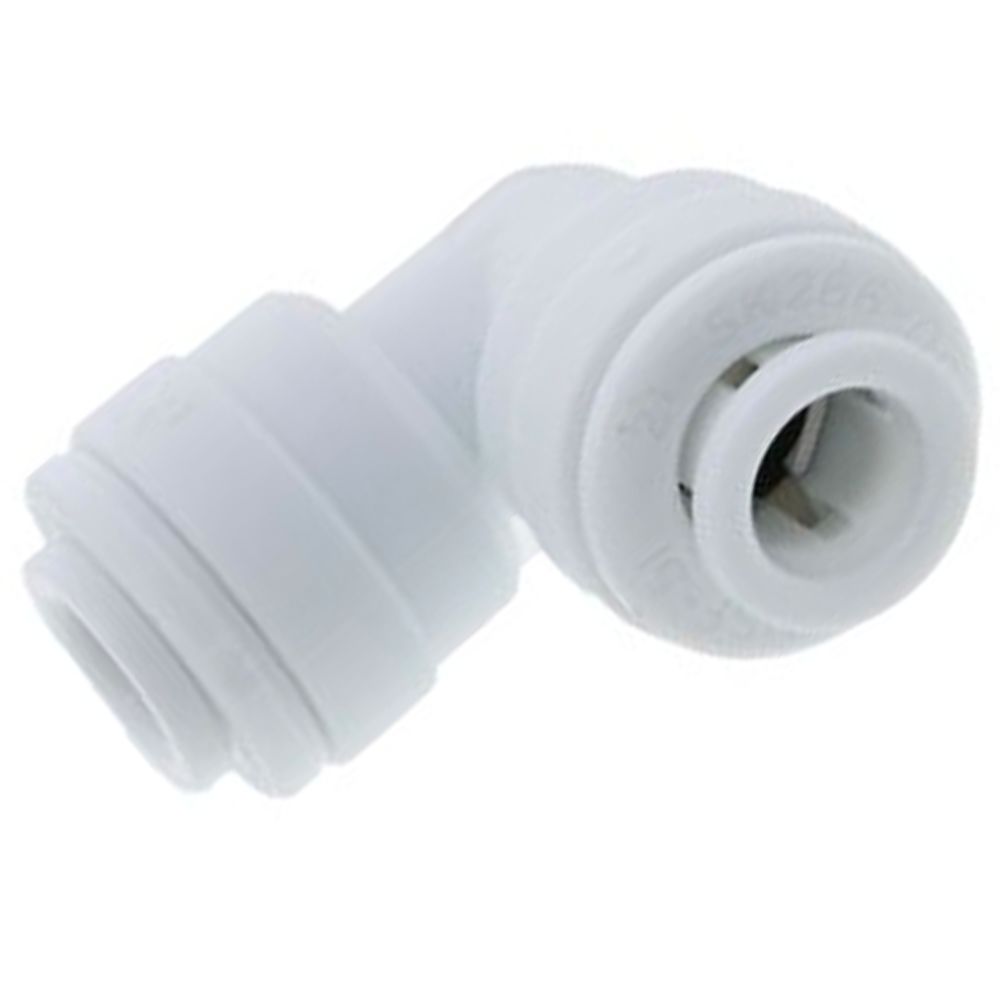

John Guest Union Elbow White Acetal - 1/4

5.0

(1 reviews)

Part Number: CI0308W Alt. Part Number: AEU44-W, PP30120812W

1 6

John Guest

John Guest Union Elbow White Acetal - 1/4

5.0

(1 reviews)

Part Number: CI0308W Alt. Part Number: AEU44-W, PP30120812W

MSRP: $3.37

$2.02

Quantity

Unit Price

Price

Savings

$2.02

—

$1.81

$18.16

10%

400

$1.76

$706.35

12%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/4"

Regular price From $0.21
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory
Nylon Plastic Tube Support Insert 1/4 OD Tubing

Regular price From $0.08
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Union Elbow makes connecting tubing quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

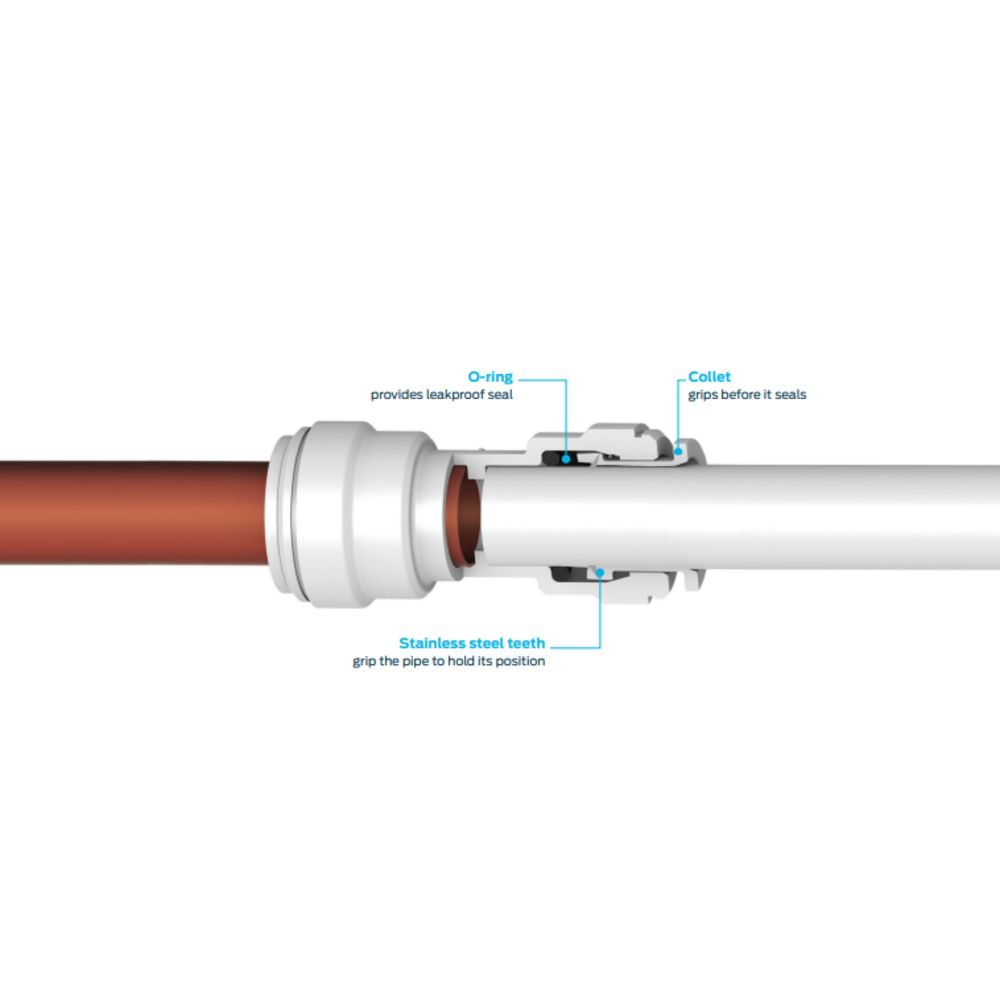

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade EDPM O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 100 psi at 150° F

Note: Not suitable for compressed air and vacuum applications.

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing

Compatible tubing for John Guest fittings

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Color / Finish	White
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	0.5 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.0157

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Color / Finish	White
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.121

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Color / Finish	White
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	4.84

Downloads

John Guest Union Elbow White Acetal - 1/4 Manual

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	John Guest John Guest Union Elbow White Acetal - 1/4 5.0 Regular price From $2.02 Part #: CI0308W Save up to 12% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Union Elbow 1/4" tube x 1/4" tube Regular price From $1.62 Part #: AEU44-W Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Black Union Elbow 1/4" tube x 1/4" tube Regular price From $1.62 Part #: AEU44-E Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Gray Union Elbow 1/4" tube x 1/4" tube 5.0 Regular price From $1.54 Part #: AEU44-G Save up to 3% with bulk pricing View details
Price
Price	Regular price From $2.02	Regular price From $1.62	Regular price From $1.62	Regular price From $1.54
Part #
Part #	CI0308W	AEU44-W	AEU44-E	AEU44-G
Description
Description	The John Guest Union Elbow makes connecting tubing quick and easy. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for...	The union elbow makes connecting OD tubing sizes quick and easy. Manufactured in acetal, these plugs are suitable for food, beverage, and potable liquids. They...	Features: Black acetal copolymer construction Nitrile Buna-N (NBR) O-rings FDA approved materials NSF 51 Certified Suitable for water, beverages, vacuum, compressed air, and gases Fittings...	The NeoFit Union Elbow Connectors are designed to connect OD tubing with ease. Made from durable acetal and featuring a food-grade Nitrile O-ring, these fittings are ideal...
