John Guest Union Elbow - 1/4

5.0

(1 reviews)

Part Number: PI0308S-US

1 5

John Guest

John Guest Union Elbow - 1/4

5.0

(1 reviews)

Part Number: PI0308S-US

MSRP: $3.37

$2.02

Quantity

Unit Price

Price

Savings

$2.02

—

$1.81

$18.16

10%

400

$1.76

$706.35

12%

Product variants

You May Also Need

Optional Accessory
Blue 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

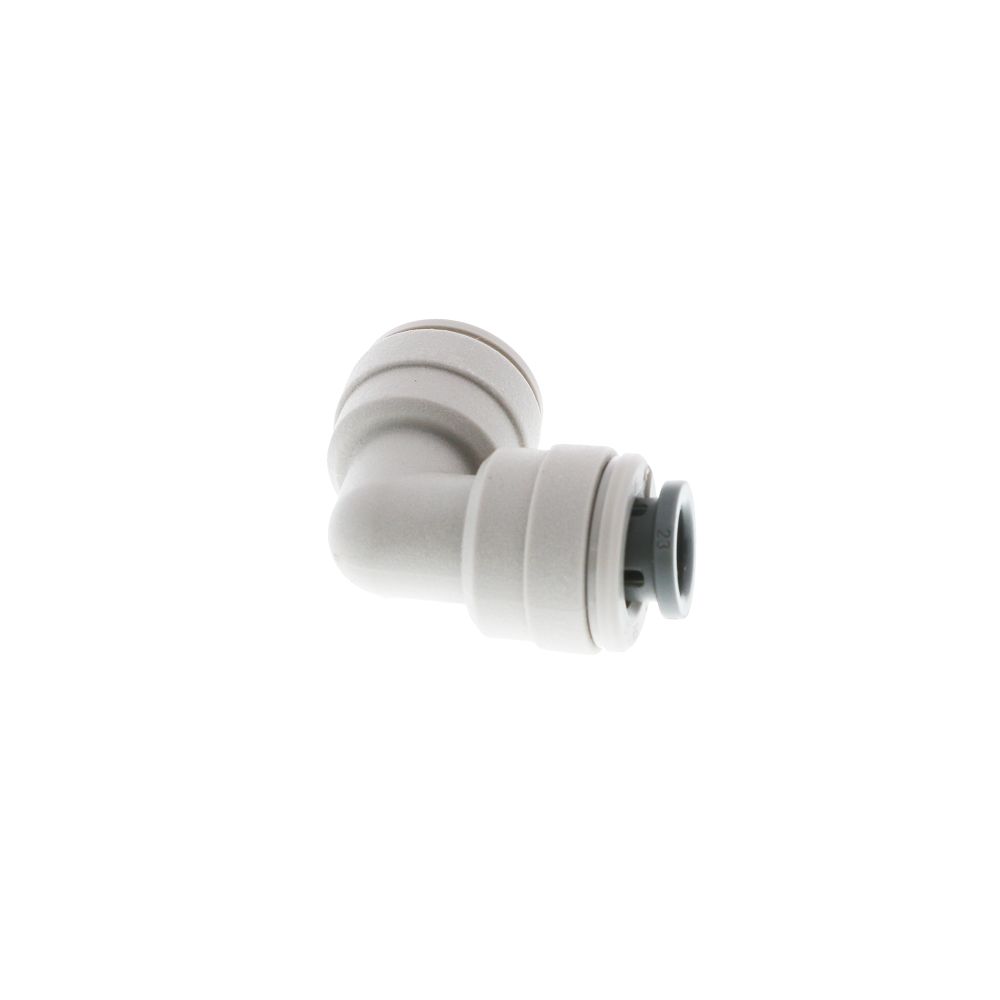

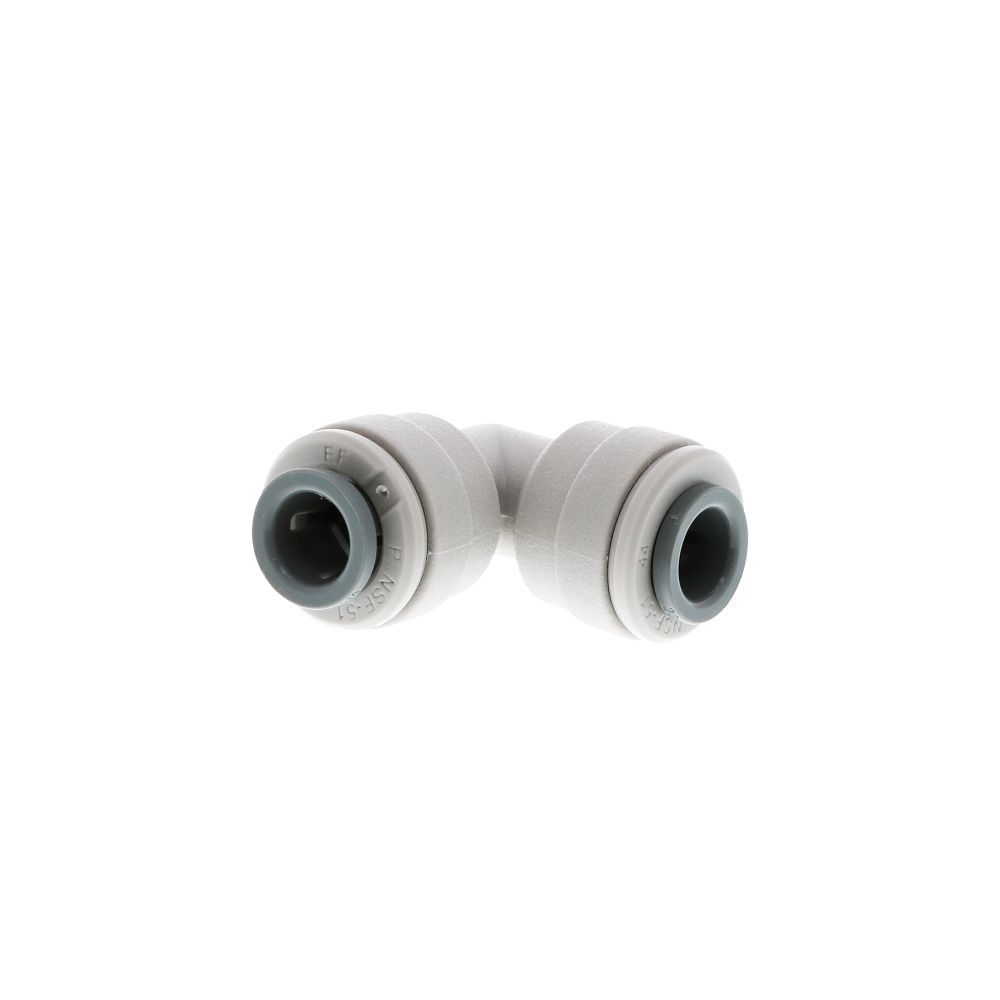

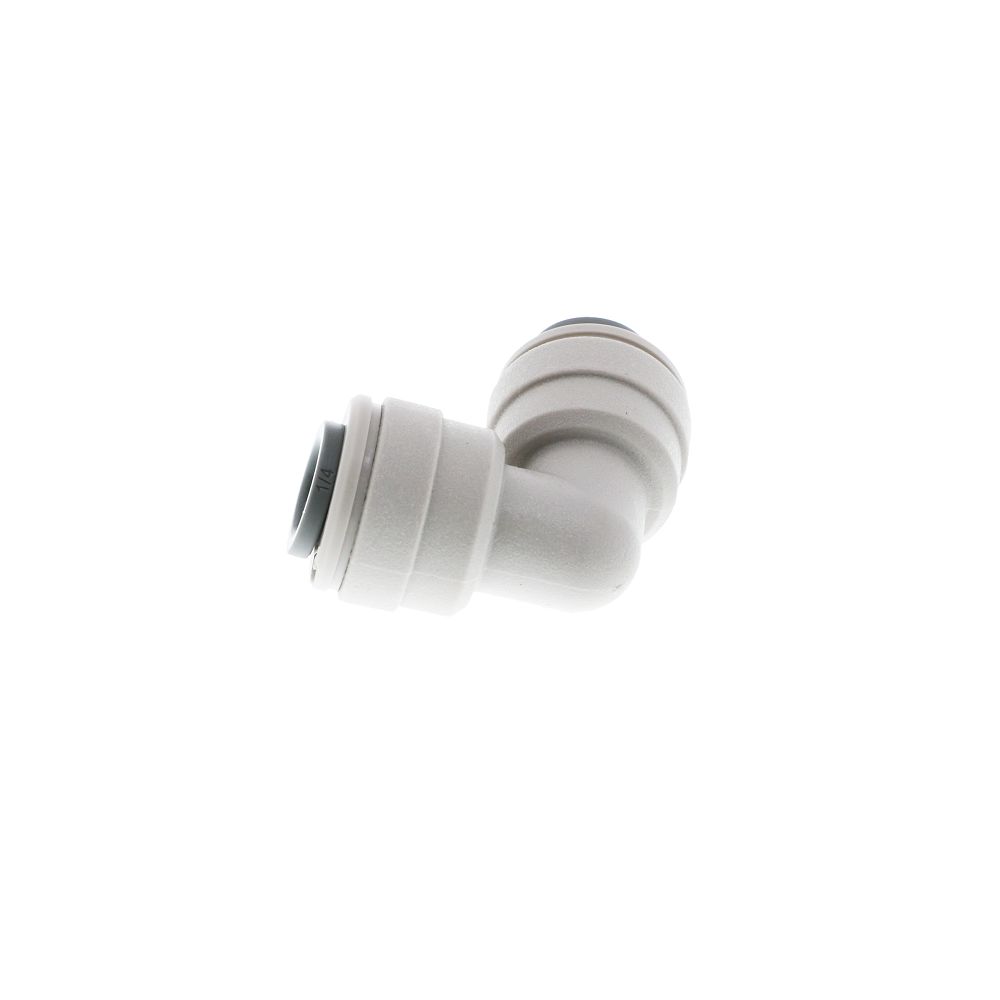

The John Guest union elbow makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes
Acetal body with Nitrile O-Ring
Made with lead free materials
Can be used for air/pneumatic & vacuum applications
Food Quality and suitable for potable liquids and pure water applications
Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Color / Finish	Gray
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5 in.
Product Length	1 in.
Product Width	1 in.
Product Weight (lbs)	0.0099

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Color / Finish	Gray
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.099

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Color / Finish	Gray
Origin	UK
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.96

Downloads

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

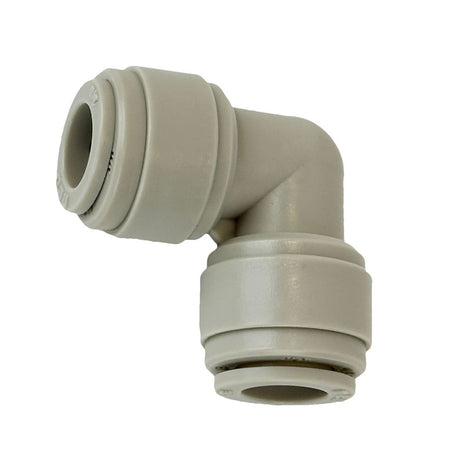

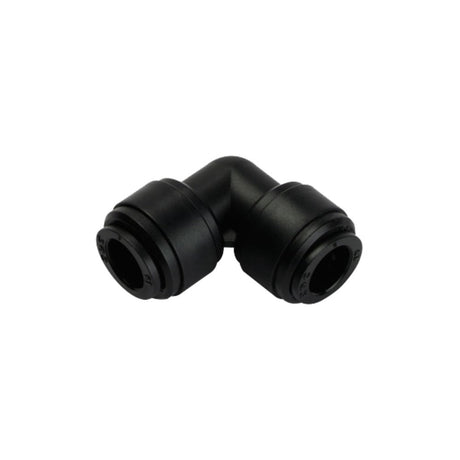

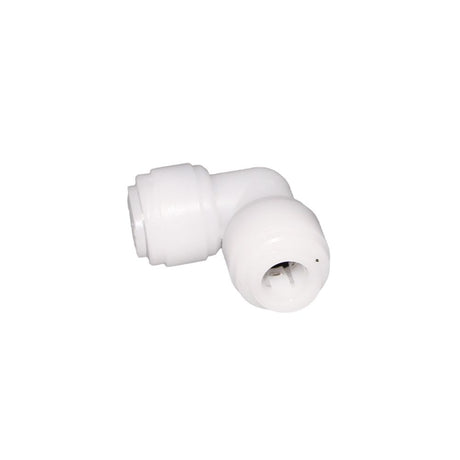

Facet	John Guest John Guest Union Elbow - 1/4 5.0 Regular price From $2.02 Part #: PI0308S-US Save up to 12% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Union Elbow 1/4" tube x 1/4" tube Regular price From $1.62 Part #: AEU44-E Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Union Elbow 1/4" tube x 1/4" tube Regular price From $1.62 Part #: AEU44-W Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Gray Union Elbow 1/4" tube x 1/4" tube 5.0 Regular price From $1.54 Part #: AEU44-G Save up to 3% with bulk pricing View details
