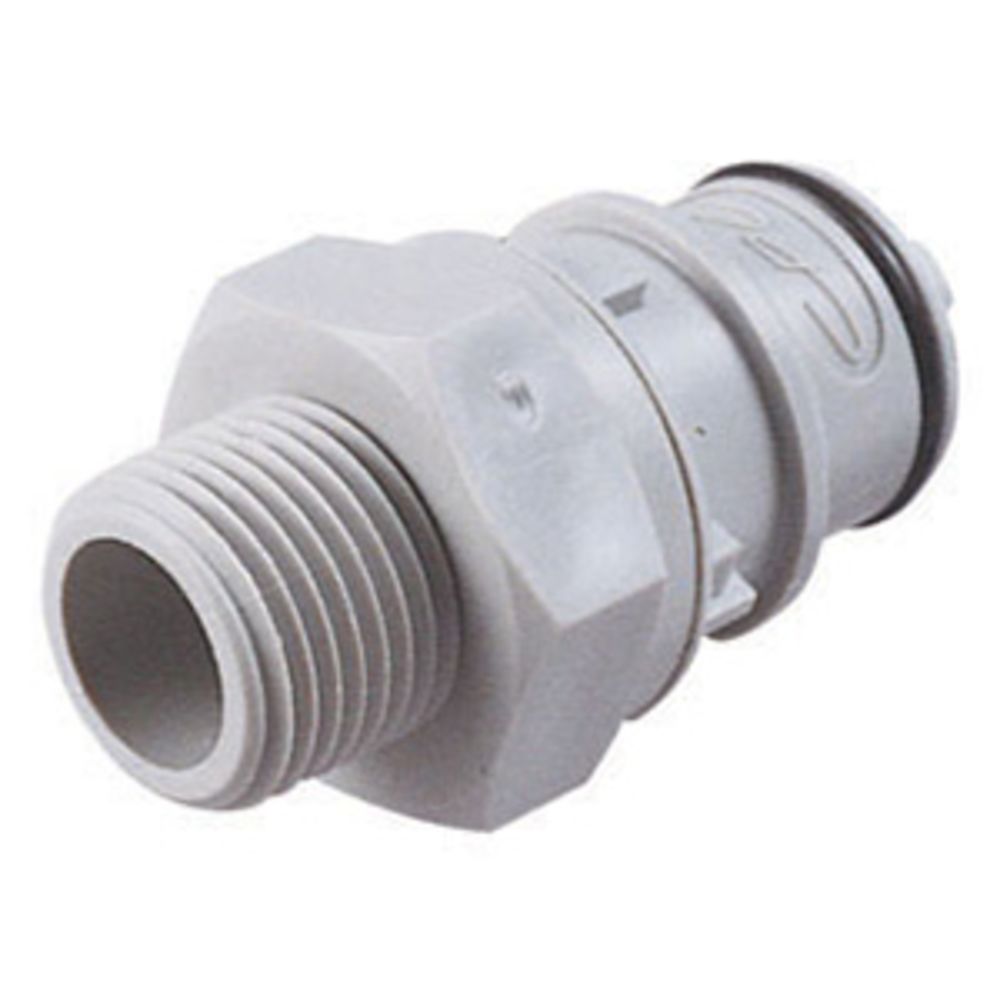

60400 NSF Valved Coupling Insert 1/2 NPT

Part Number: 60400 Alt. Part Number: 60PPV-PE1-08

Colder Products

60400 NSF Valved Coupling Insert 1/2 NPT

Part Number: 60400 Alt. Part Number: 60PPV-PE1-08

MSRP: $40.02

$12.56

Quantity

Unit Price

Price

Savings

$12.56

—

$12.24

$122.46

100

$11.93

$1,193.19

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Colder APC Series Couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Valve Option: Valved
Mounting Option: Thread
Temperature Range: 32°F to 160°F
Pressure Range: Vacuum to 60 psi, 4.2 bar
Color: Gray
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel

Specifications

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	Yes
Outlet Connection	1/2" MPT
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	2.125 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.024

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	Yes
Outlet Connection	1/2" MPT
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	3 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Weight (lbs)	3

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	Yes
Outlet Connection	1/2" MPT
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

60400 NSF Valved Coupling Insert 1/2 NPT Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Colder Products 60400 NSF Valved Coupling Insert 1/2 NPT Regular price From $12.56 Very low stock Part #: 60400 Save up to 5% with bulk pricing Current Product	Sold Out Colder Products HFCD24812 Valved Male Thread Coupling Insert 1/2 NPT Regular price From $12.64 Sold out Part #: HFCD24812 Save up to 5% with bulk pricing View details	Linktech LinkTech 60PP Series Male Thread Male, Valved, 1/2" MNPT, Polypropylene, EPDM Regular price From $10.28 Low stock Part #: 60PPV-PE1-08 Save up to 14% with bulk pricing View details
Price
Price	Regular price From $12.56	Regular price From $12.64	Regular price From $10.28
Part #
Part #	60400	-	60PPV-PE1-08
Description
Description	Colder APC Series Couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a...	The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent...	These LinkTech 60PP Series couplings bring the highest available 3/8” flow with both valved and non-valved configurations. They are manufactured from medical grade, gamma sterilizable polypropylene. The...
