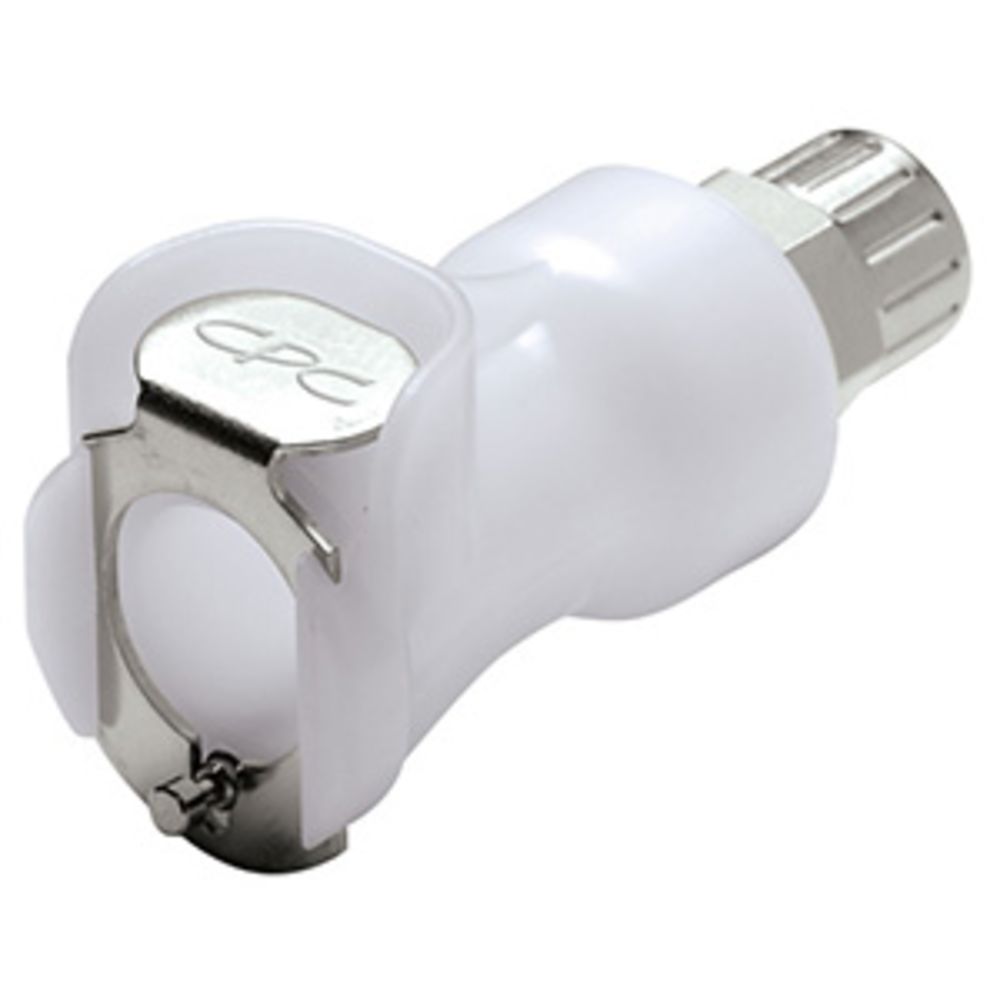

24300 NSF Valved In-Line Coupling Body 1/4 PTF

Part Number: 24300 Alt. Part Number: 40ACV-SB9-04

Colder Products

24300 NSF Valved In-Line Coupling Body 1/4 PTF

Part Number: 24300 Alt. Part Number: 40ACV-SB9-04

MSRP: $40.02

$12.18

Quantity

Unit Price

Price

Savings

$12.18

—

$11.87

$296.89

250

$11.57

$2,892.74

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PLC Series offers the largest selection of sizes and configurations and has been proven worldwide in thousands of applications.

Specifications:

Material: Acetal
Material Finish: Natural
Color: White
Valve Option: Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40°F to 180°F (-40°C to 82°C)
Seal Options: FDA BUNA-N
Valve Spring: 316 Stainless Steel

Specifications

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	PLC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1.25 in.
Product Weight & Dimensions
Product Weight (lbs)	0.028

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	PLC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	PLC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

24300 NSF Valved In-Line Coupling Body 1/4 PTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

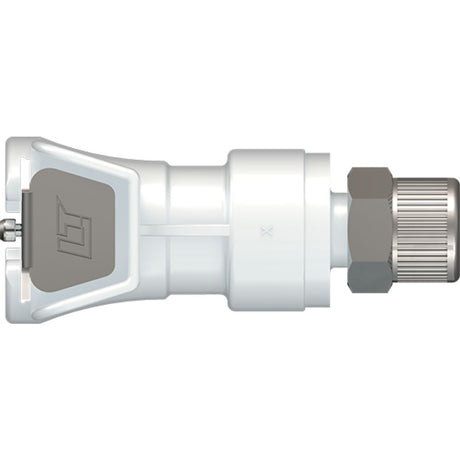

Facet	Colder Products 24300 NSF Valved In-Line Coupling Body 1/4 PTF Regular price From $12.18 Part #: 24300 Save up to 5% with bulk pricing Current Product	Colder Products PLCD13004 Valved In-Line PTF Coupling Body 1/4 PTF Regular price From $11.43 Low stock Part #: PLCD13004 Save up to 5% with bulk pricing View details	Linktech LinkTech 40AC Series Straight Female, Valved, 1/4" PTF, Natural Acetal, Buna N Regular price From $12.05 Part #: 40ACV-SB9-04 Save up to 15% with bulk pricing View details
Price
Price	Regular price From $12.18	Regular price From $11.43	Regular price From $12.05
Part #
Part #	24300	PLCD13004	40ACV-SB9-04
Description
Description	Colder PLC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years...	The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings...	The LinkTech 40AC Series general purpose 1/4” flow size couplings are produced in a durable natural Acetal (POM) thermoplastic. They feature a thumb-latch release which provides a...
