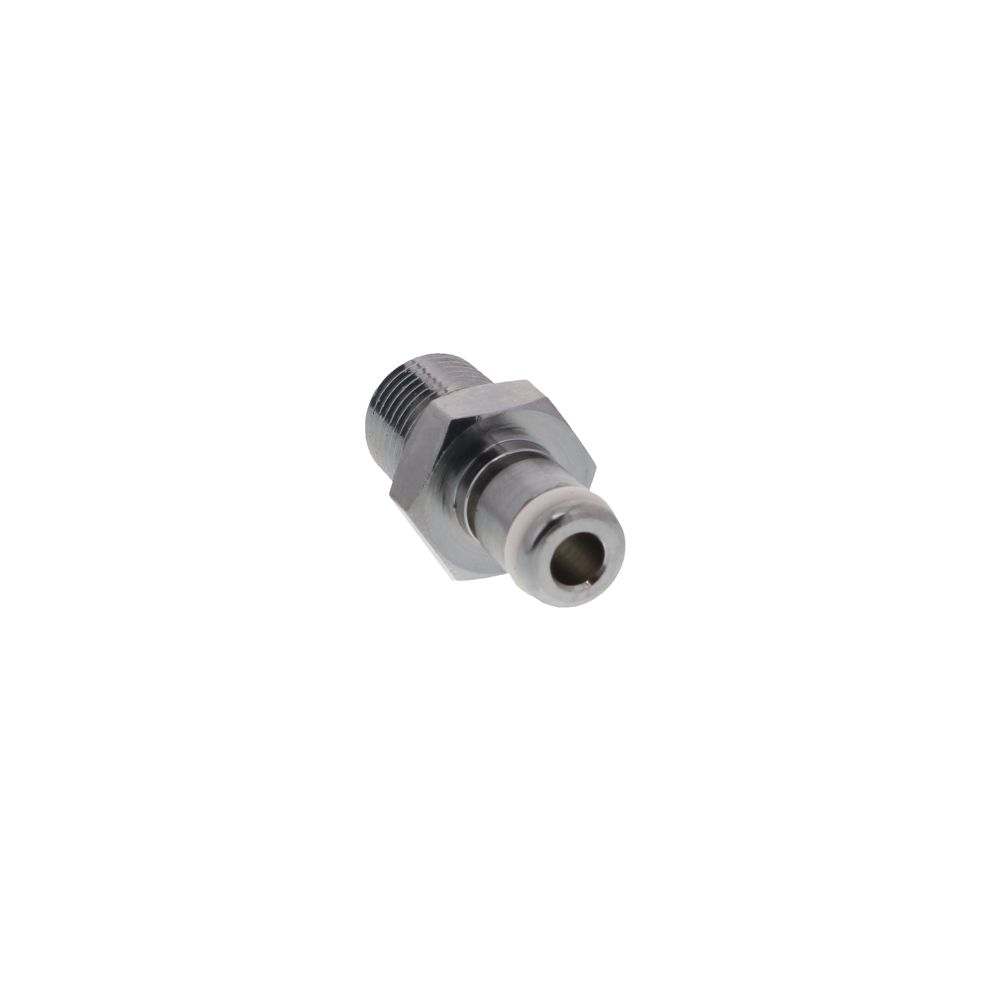

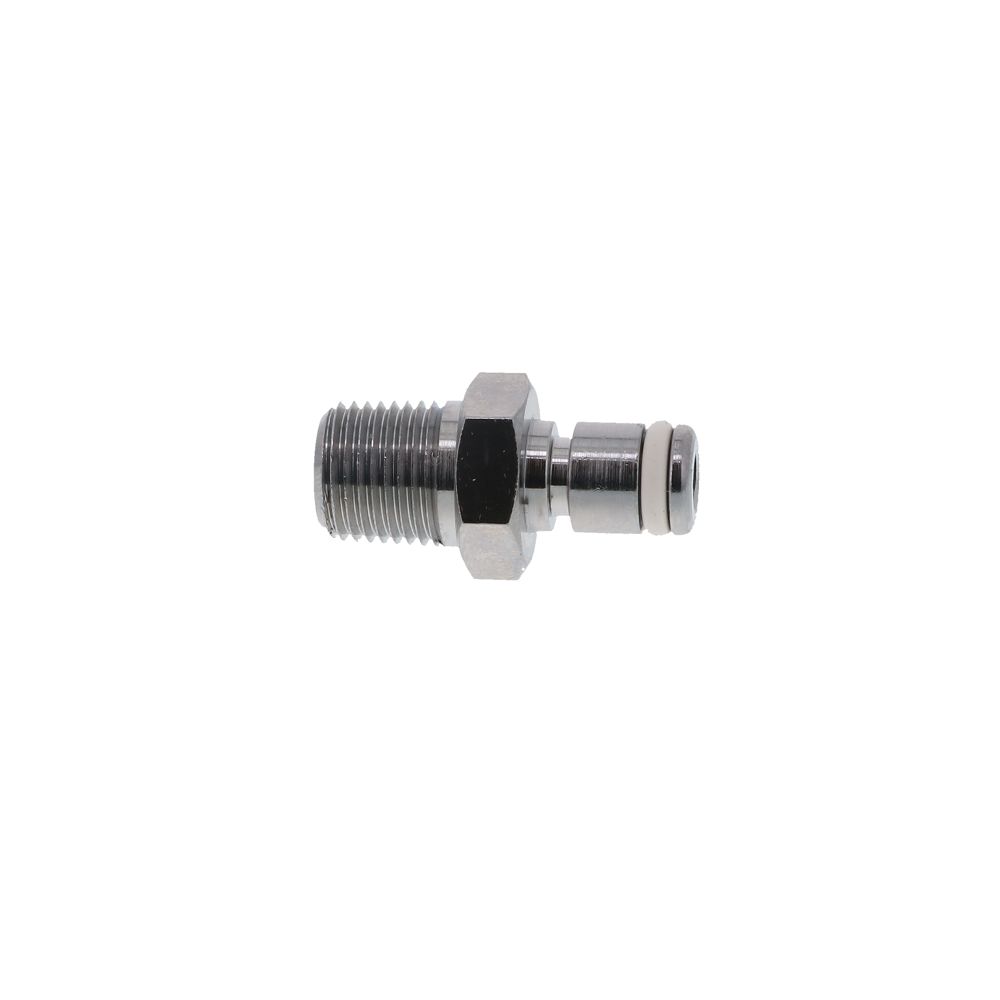

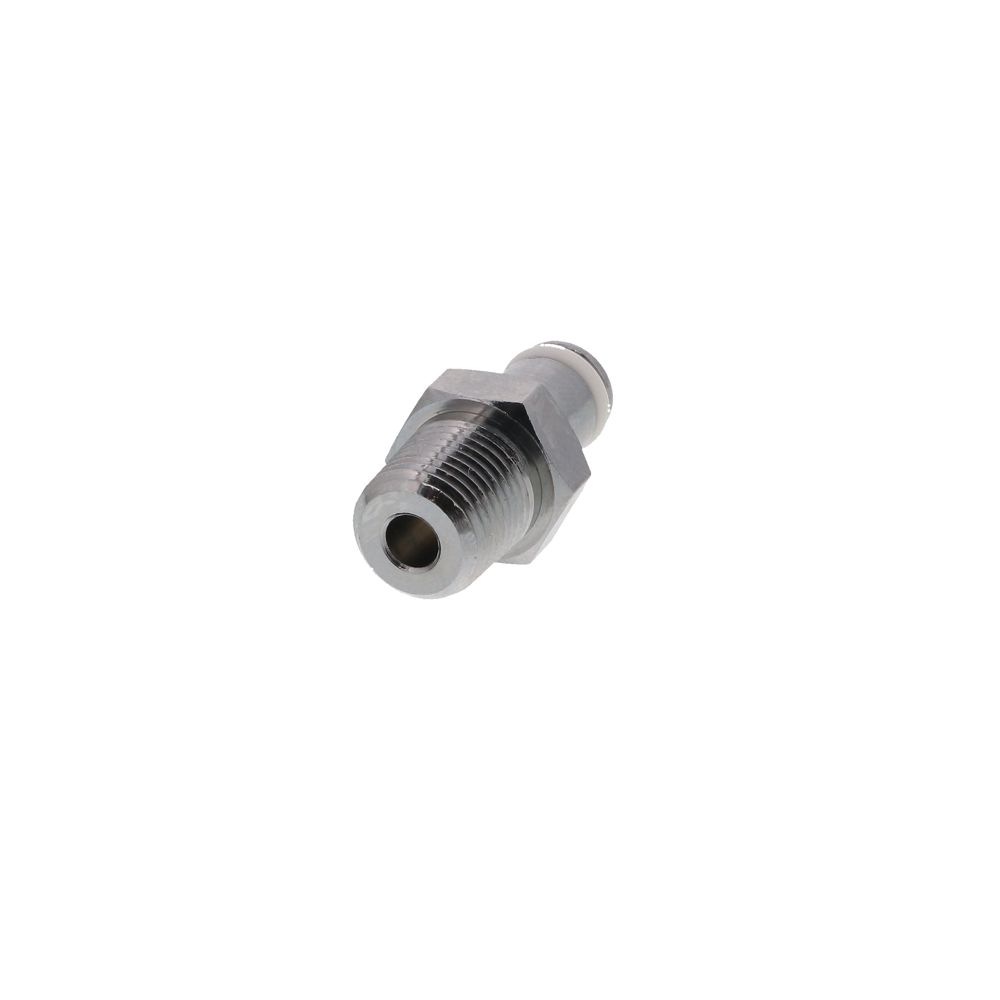

17300 NSF Non-Valved Coupling Insert 1/8 NPT

Part Number: 17300 Alt. Part Number: 20CB-PB1-02

1 3

Colder Products

17300 NSF Non-Valved Coupling Insert 1/8 NPT

Part Number: 17300 Alt. Part Number: 20CB-PB1-02

MSRP: $40.02

$8.43

Quantity

Unit Price

Price

Savings

$8.43

—

$8.21

$82.19

100

$8.00

$800.85

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects. MC NSF parts are listed under the criteria of the NSF/ANSI Standards.

Specifications:

Material: Brass
Material Finish: Chrome
Color: Chrome
Valve Option: Non-Valved
Mounting Option: Thread
Temperature Range: -40°F to 180°F
Pressure Range: Vacuum to 250 psi, 17.3 bar
Seal Options: BUNA-N

Specifications

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	0.38 in.
Shipping Height	0.38 in.
Product Weight & Dimensions
Product Height	0.38 in.
Product Length	1 in.
Product Width	0.38 in.
Product Weight (lbs)	0.003125

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.35

Product Details
Inlet Connection	1/8" MPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	Yes
Outlet Connection	1/8" MPT
Series	MC
Shape	Straight
Size	1/8"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Male (MPT)
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

17300 NSF Non-Valved Coupling Insert 1/8 NPT Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

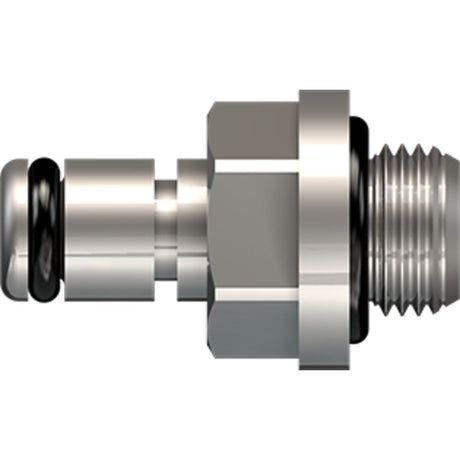

Facet	Colder Products 17300 NSF Non-Valved Coupling Insert 1/8 NPT Regular price From $8.43 Part #: 17300 Save up to 5% with bulk pricing Current Product	Colder Products MC2402 Male Thread Coupling Insert 1/8 NPT 5.0 Regular price From $7.67 Part #: MC2402 Save up to 5% with bulk pricing View details	Linktech LinkTech 20CB Series Male Thread Male, Non-valved, 1/8" MNPT, Chrome Brass, Buna N Regular price From $8.34 Part #: 20CB-PB1-02 Save up to 15% with bulk pricing View details
Price
Price	Regular price From $8.43	Regular price From $7.67	Regular price From $8.34
Part #
Part #	17300	MC2402	20CB-PB1-02
Description
Description	MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures,...	Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or...	The LinkTech 20CB Series 1/8” flow size couplings are produced in food grade chrome plated brass, and are more durable and withstand higher pressures. They are available...
