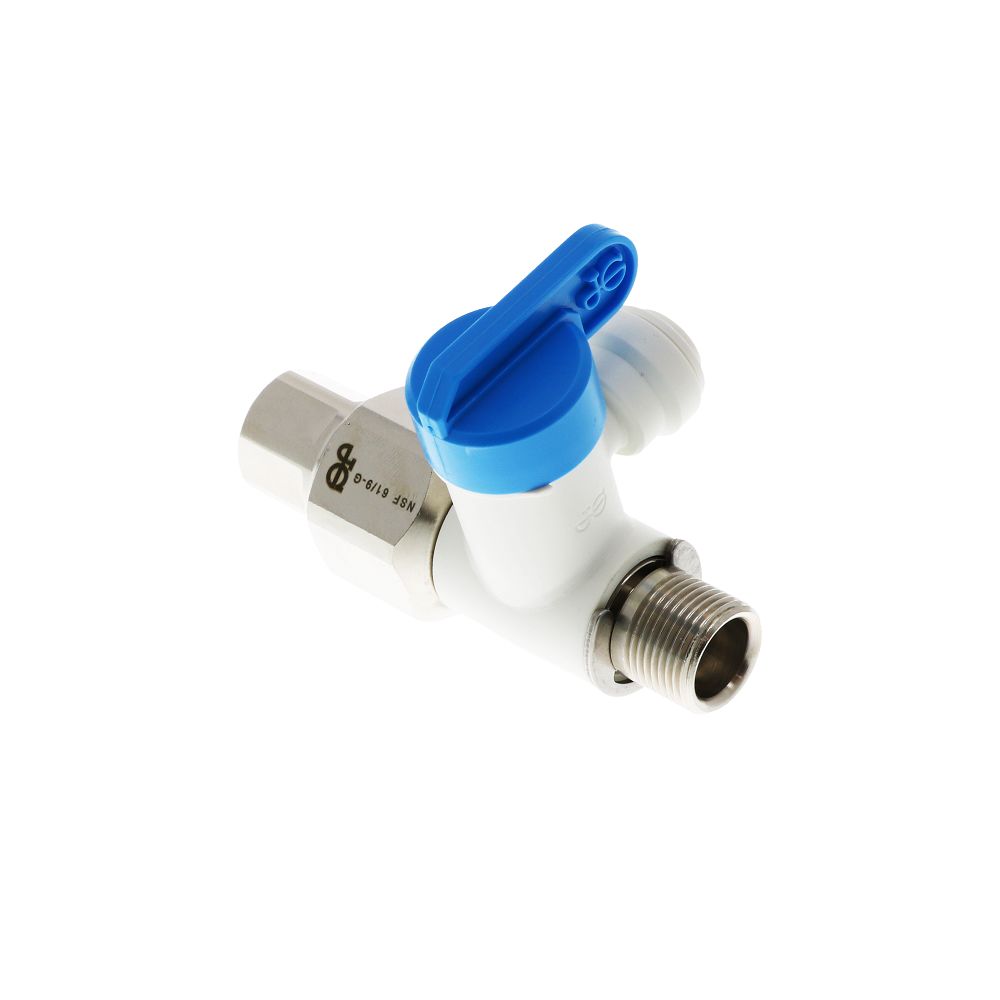

John Guest Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 1/4

5.0

(0 reviews)

Part Number: ASVPP5LF Alt. Part Number: ASVPP5

1 10

John Guest

John Guest Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 1/4

5.0

(0 reviews)

Part Number: ASVPP5LF Alt. Part Number: ASVPP5

MSRP: $30.90

$19.68

Quantity

Unit Price

Price

Savings

$19.68

—

$19.15

$574.74

150

$18.78

$2,818.08

300

$18.26

$5,478.57

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Angle Stop Adapter Valve provides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:

For use with plastic or copper OD sized tubing
For cold water supply use only
Threads onto 3/8 in compression chrome supply stop
Quarter turn to open or close
White Polypropylene body, EPDM seals
Lead Free materials
Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:

Max 150 psi at 70°F
Max 60 psi at 140°F

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”

View Prop 65 Warning

Specifications

Product Details
Application	Water Supply
Inlet Connection	1/2" NPS 3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	1/2" NPS,3/8" Compression
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	PI
Size	1/2" 3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	NPS Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	2.169 in.
Shipping Width	1.386 in.
Shipping Height	2.165 in.
Product Weight & Dimensions
Product Height	2.165 in.
Product Length	2.169 in.
Product Width	1.386 in.
Product Weight (lbs)	0.2205

Product Details
Application	Water Supply
Inlet Connection	1/2" NPS 3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	1/2" NPS,3/8" Compression
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	PI
Size	1/2" 3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	NPS Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	6.62

Product Details
Application	Water Supply
Inlet Connection	1/2" NPS 3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	1/2" NPS 3/8" Compression
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	PI
Size	1/2" 3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	NPS Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	20 in.
Shipping Height	12 in.
Product Weight & Dimensions
Product Weight (lbs)	37.25

Product Details
Application	Water Supply
Inlet Connection	1/2" NPS 3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158°F
Min Temp (°F)	33°F
Outlet Connection	1/2" NPS 3/8" Compression
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	PI
Size	1/2" 3/8"
Valve Type	Angle Stop Valve
Color / Finish	White
Connection Type	NPS Compression
Origin	UK
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	21.65 in.
Shipping Width	10.63 in.
Shipping Height	11.42 in.
Product Weight & Dimensions
Product Height	11.42"
Product Length	21.65"
Product Width	10.63"
Product Weight (lbs)	66.15

Downloads

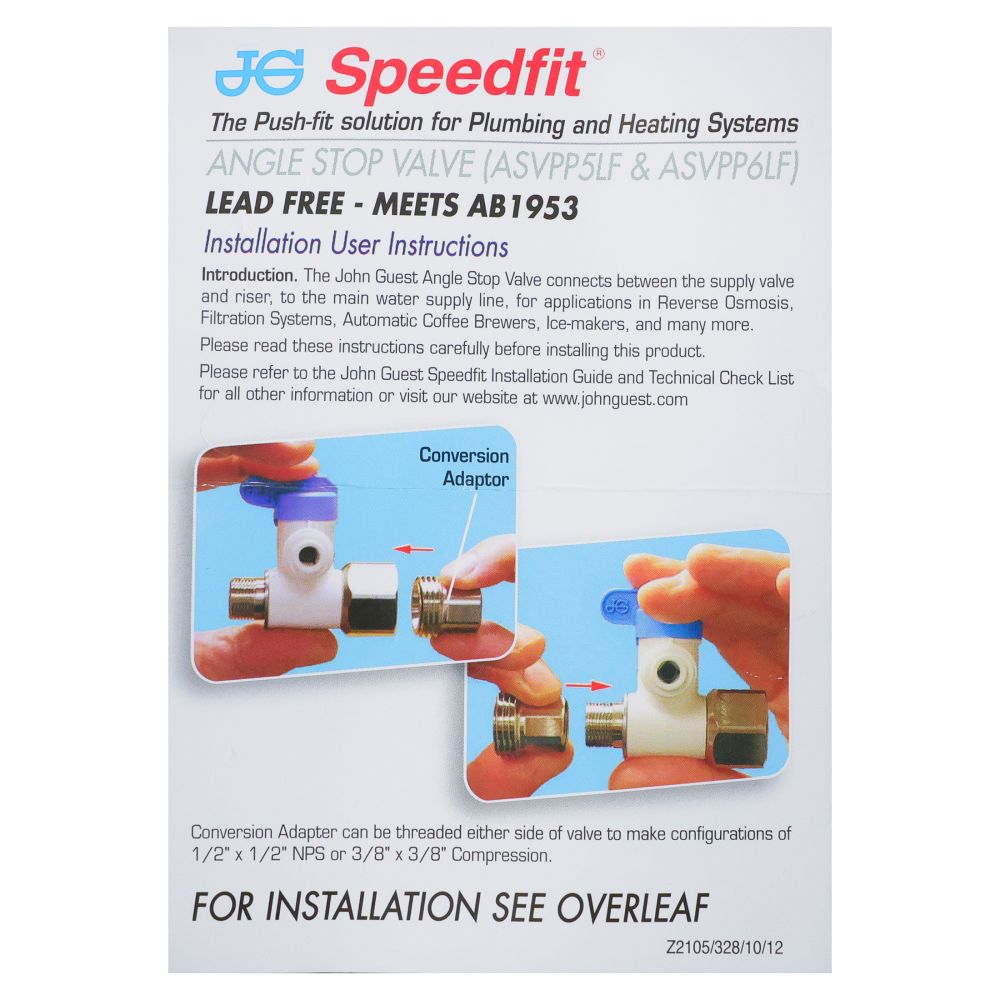

John Guest Angle Stop Adapter Valve Lead-Free - 1/2 x 3/8 x 1/4 Manual
