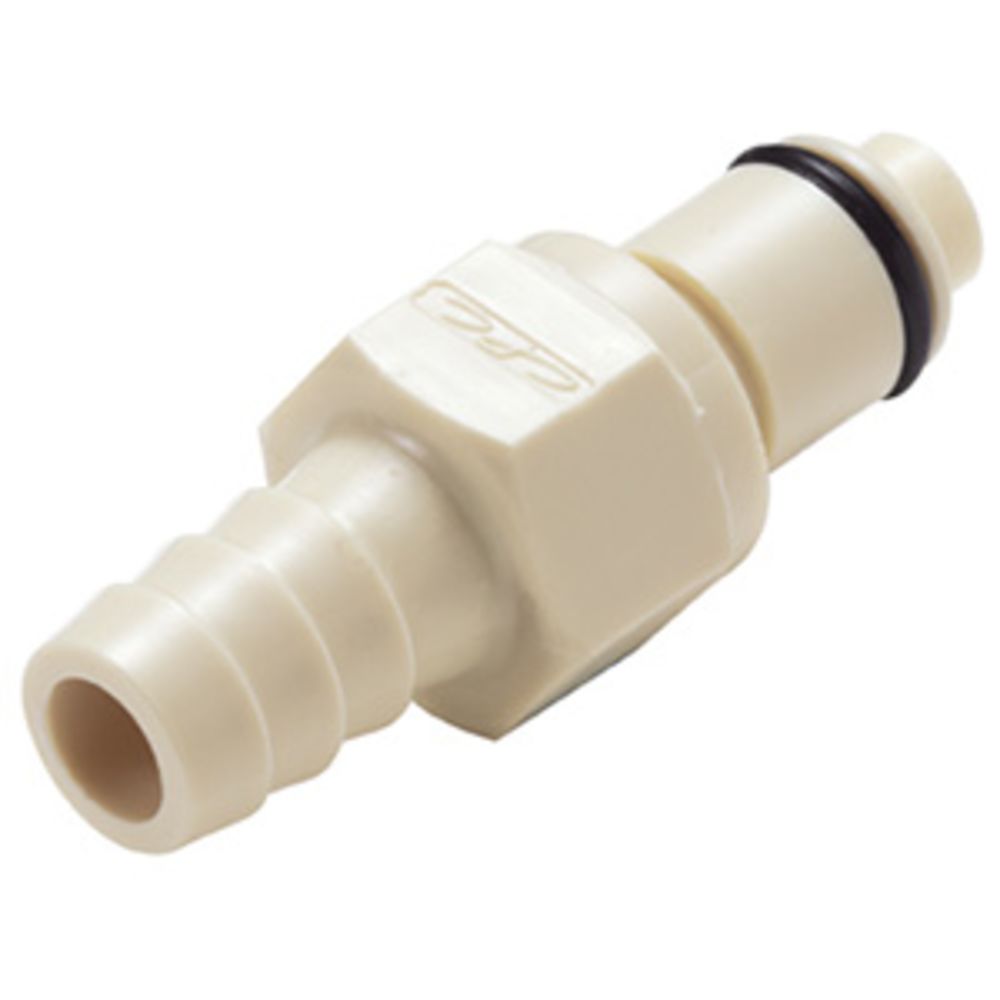

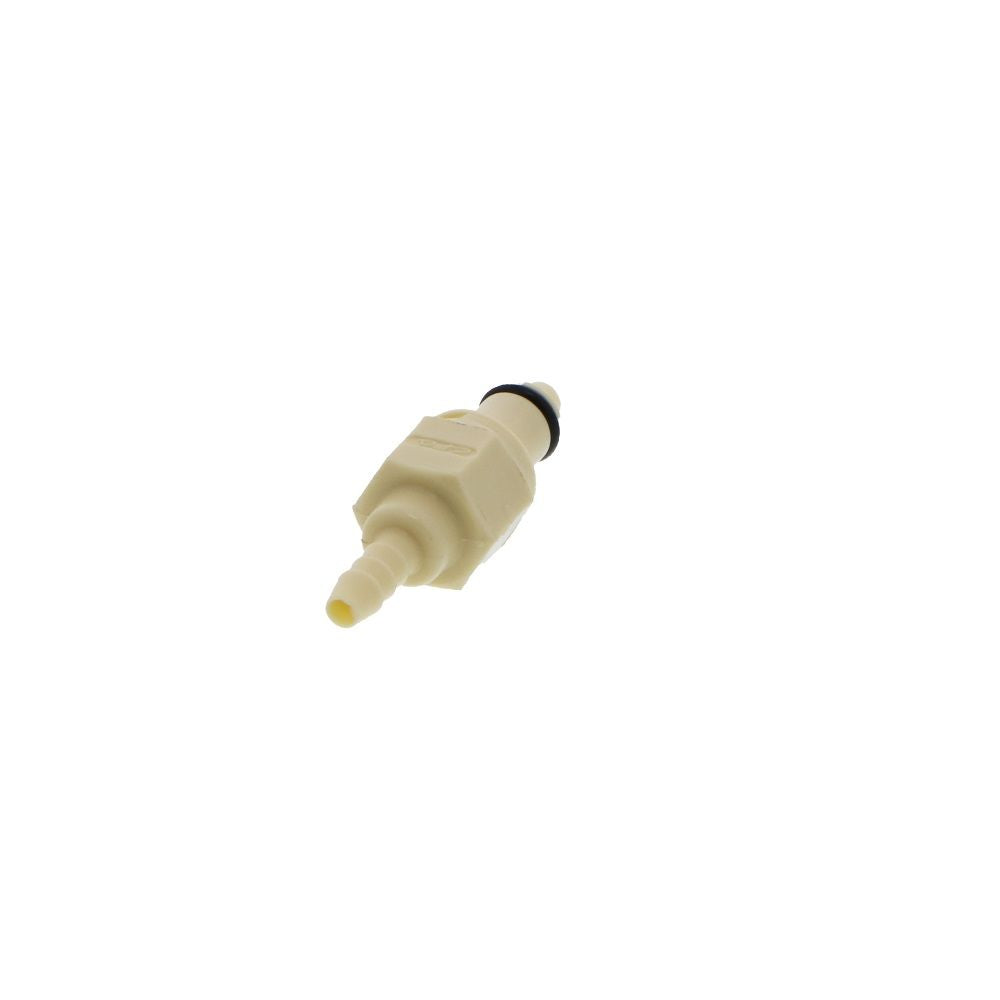

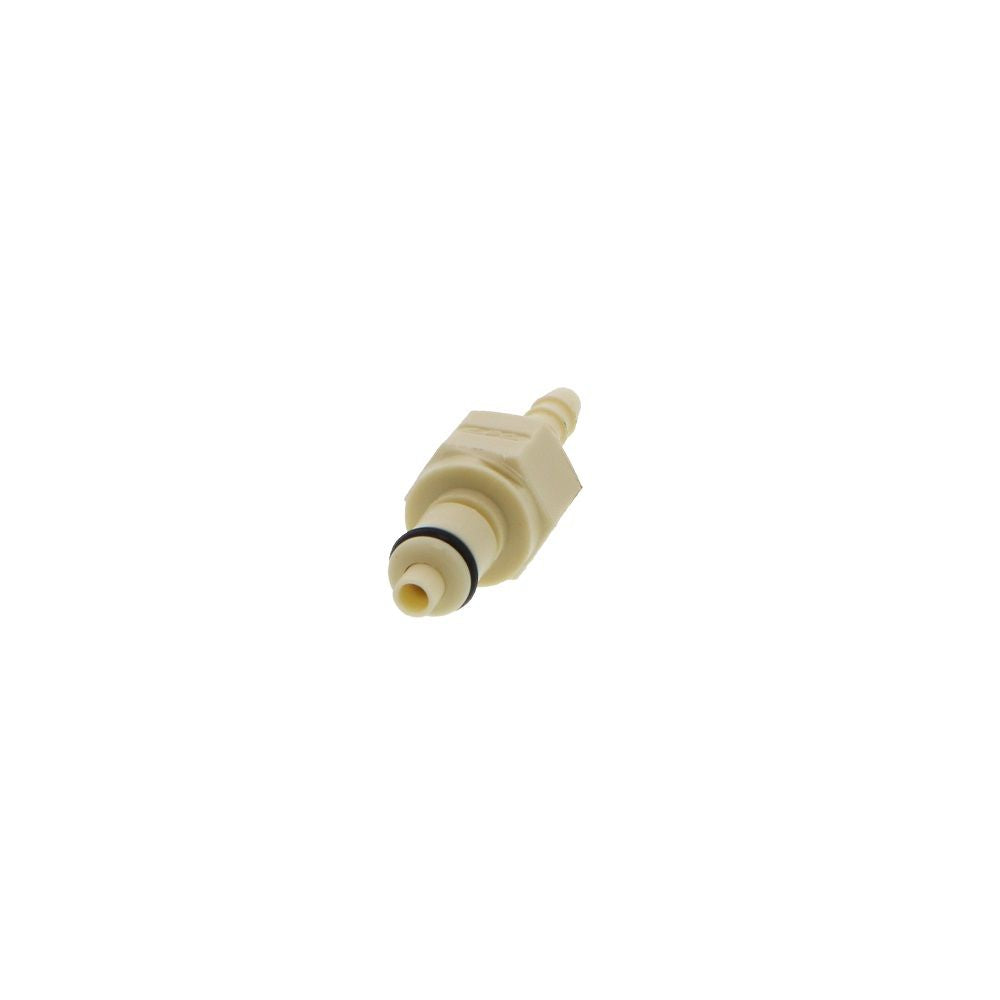

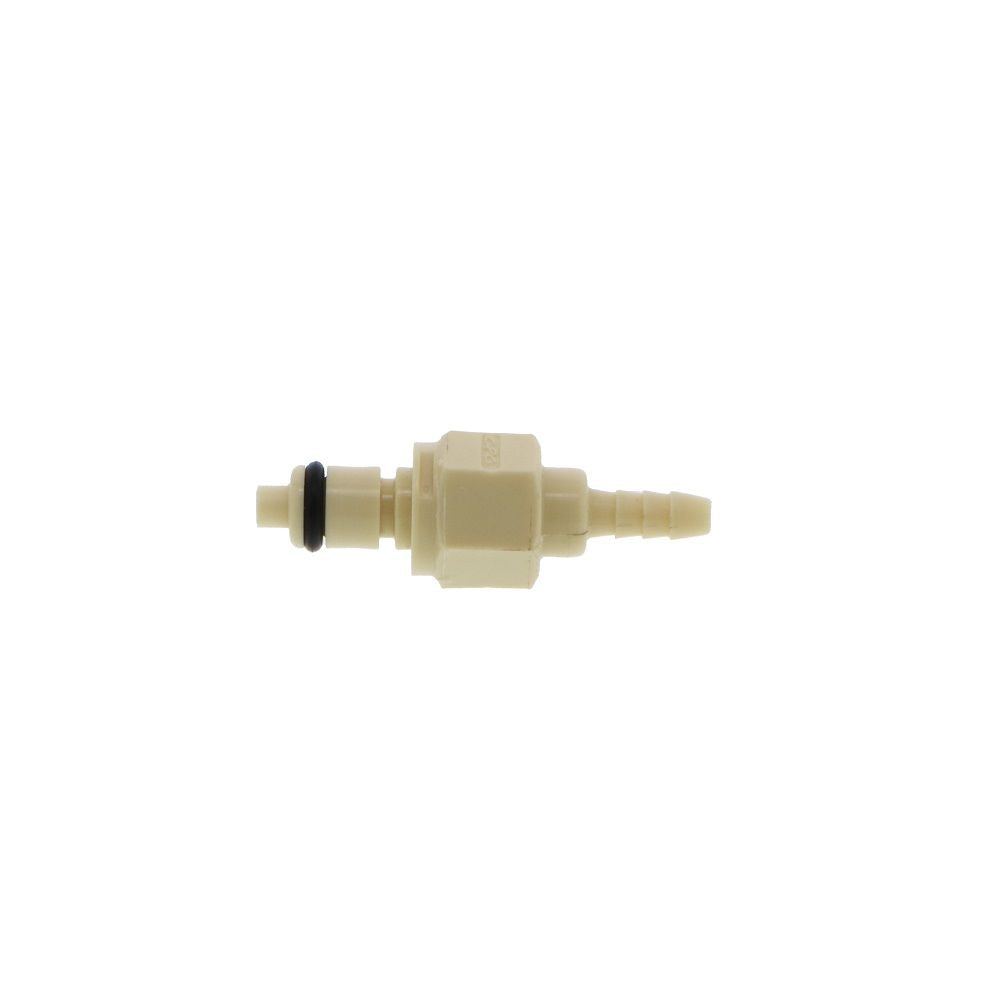

PMCD220212 Valved In-Line Hose Barb Coupling Insert 1/8 ID Barb

1.0

(0 reviews)

Part Number: PMCD220212 Alt. Part Number: 20PPV-PE2-02MALD

1 4

Colder Products

PMCD220212 Valved In-Line Hose Barb Coupling Insert 1/8 ID Barb

1.0

(0 reviews)

Part Number: PMCD220212 Alt. Part Number: 20PPV-PE2-02MALD

MSRP: $9.24

$9.24

Quantity

Unit Price

Price

Savings

$9.24

—

$9.00

$225.23

250

$8.77

$2,194.50

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Valve Spring: 316 Stainless Steel
Seal Options: EPDM
Available in Bags of 25 units

Specifications

Product Details
Barb Size	1/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PMC12
Shape	Straight
Valve Type	Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	0.625
Product Length	1.625
Product Width	0.625
Product Weight (lbs)	0.028

Product Details
Barb Size	1/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PMC12
Shape	Straight
Valve Type	Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1
Product Length	3.5
Product Width	5.5
Product Weight (lbs)	0.151

Product Details
Barb Size	1/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PMC12
Shape	Straight
Valve Type	Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PMCD220212 Valved In-Line Hose Barb Coupling Insert 1/8 ID Barb Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

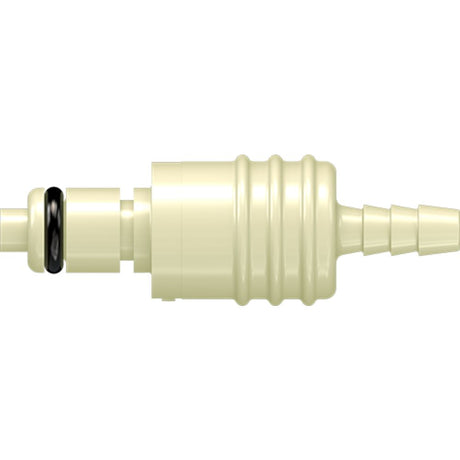

Facet	Colder Products PMCD220212 Valved In-Line Hose Barb Coupling Insert 1/8 ID Barb 1.0 Regular price From $9.24 Part #: PMCD220212 Save up to 5% with bulk pricing Current Product	Linktech LinkTech 20PPV Inline Plug, Valved, 1/8" HB Regular price From $7.97 Part #: 20PPV-PE2-02 Save up to 15% with bulk pricing View details	Linktech LinkTech 20PPV Inline Plug, Valved, 1/8" HB Almond Color Regular price From $7.99 Part #: 20PPV-PE2-02MALD Save up to 15% with bulk pricing View details
Price
Price	Regular price From $9.24	Regular price From $7.97	Regular price From $7.99
Part #
Part #	PMCD220212	20PPV-PE2-02	20PPV-PE2-02MALD
Description
Description	The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more...	Nordson MEDICAL’s LinkTech line of 20AC quick connect couplings are produced in a durable natural acetal (POM) thermoplastic. These couplings are resistant to most mild...	Nordson MEDICAL’s LinkTech line of 20AC quick connect couplings are produced in a durable natural acetal (POM) thermoplastic. These couplings are resistant to most mild...
