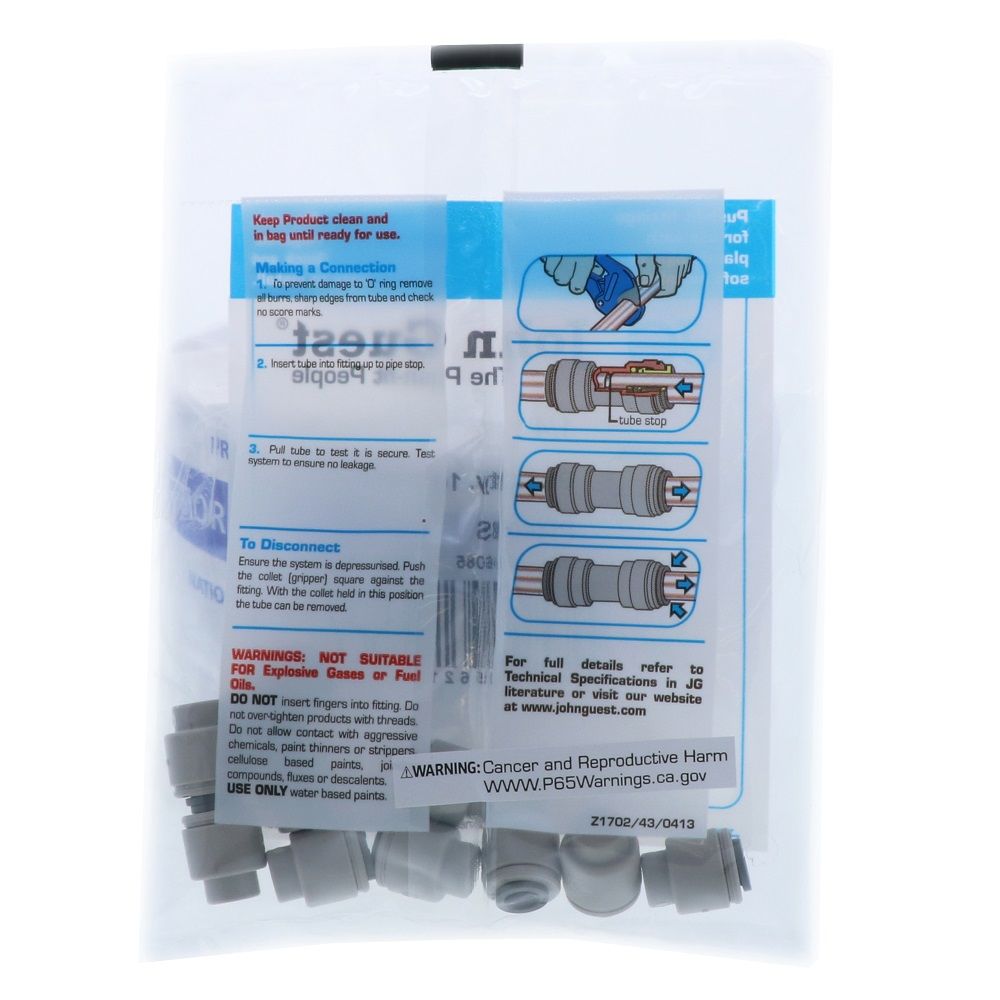

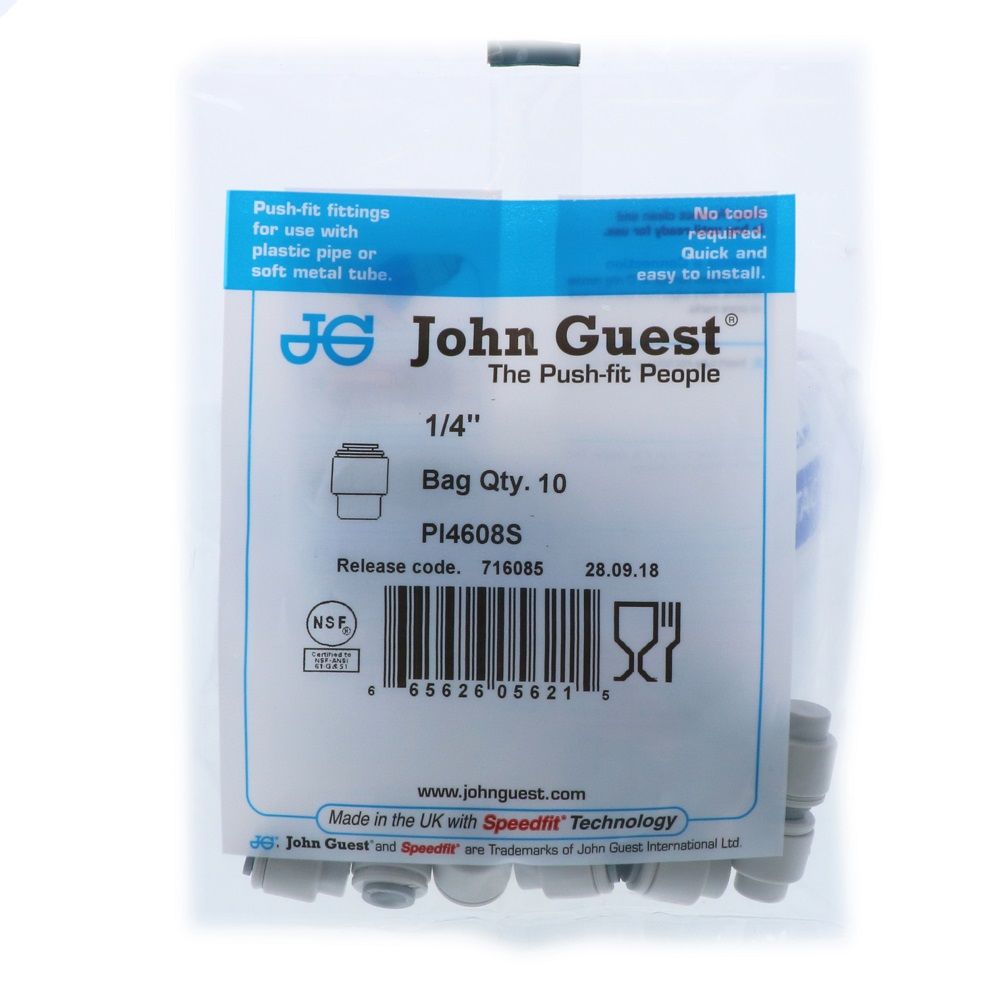

John Guest End Stop - 1/4

5.0

(1 reviews)

Part Number: PI4608S Alt. Part Number: TSI20

1 4

John Guest

John Guest End Stop - 1/4

5.0

(1 reviews)

Part Number: PI4608S Alt. Part Number: TSI20

MSRP: $1.99

$1.20

Quantity

Unit Price

Price

Savings

$1.20

—

$1.07

$10.73

10%

500

$1.04

$521.38

13%

Product variants

You May Also Need

Optional Accessory
Blue 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

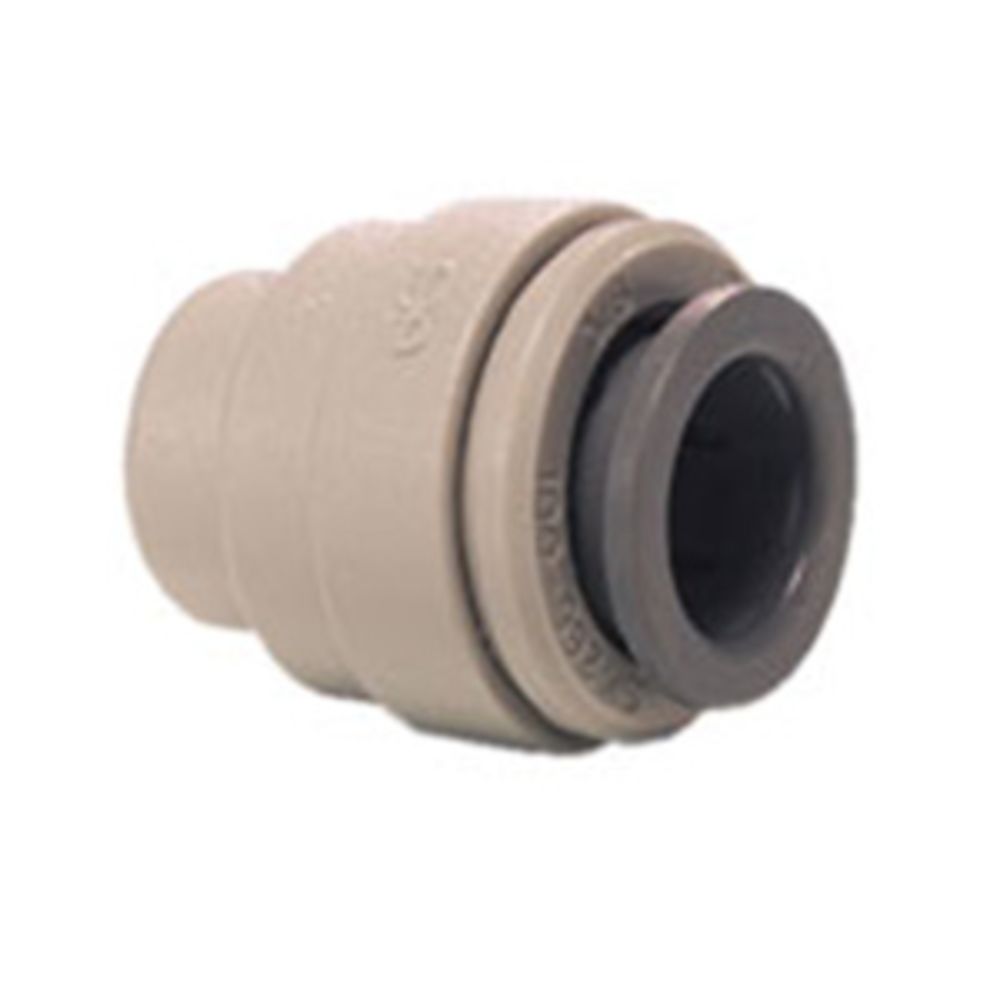

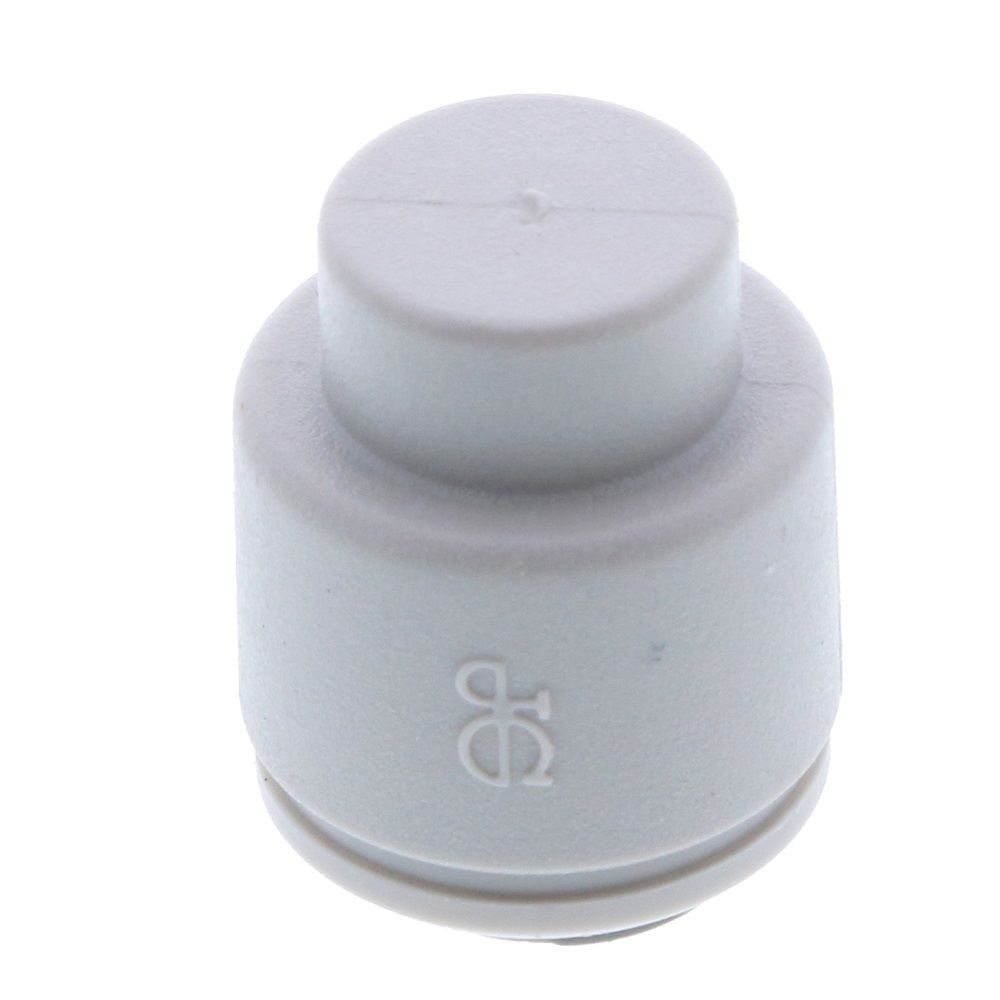

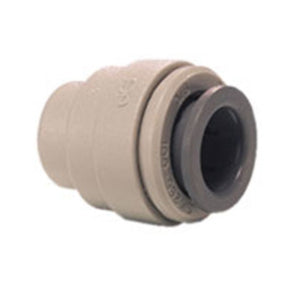

The John Guest end stops are used to cap OD sized tubing. Manufactured in gray acetal with food grade nitrile O-rings, these end stops are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to cap OD sized tubing
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with Nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	End Stop
Color / Finish	Gray
Origin	UK
Type	End Stop
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	0.75 in.
Shipping Width	0.5 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	0.75 in.
Product Width	0.5 in.
Product Weight (lbs)	0.0079

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	End Stop
Color / Finish	Gray
Origin	UK
Type	End Stop
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.079

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Push-In Size	1/4" OD
Series	PI
Shape	End Stop
Color / Finish	Gray
Origin	UK
Type	End Stop
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.95
