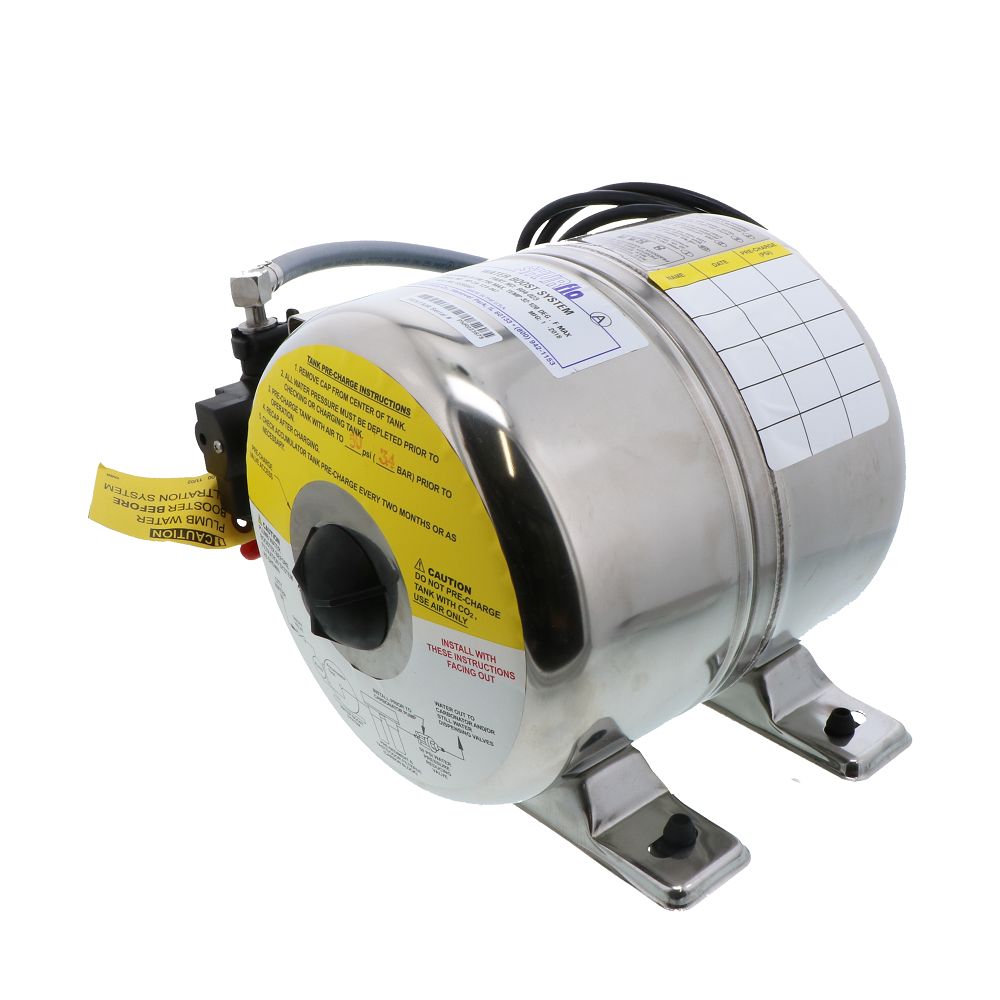

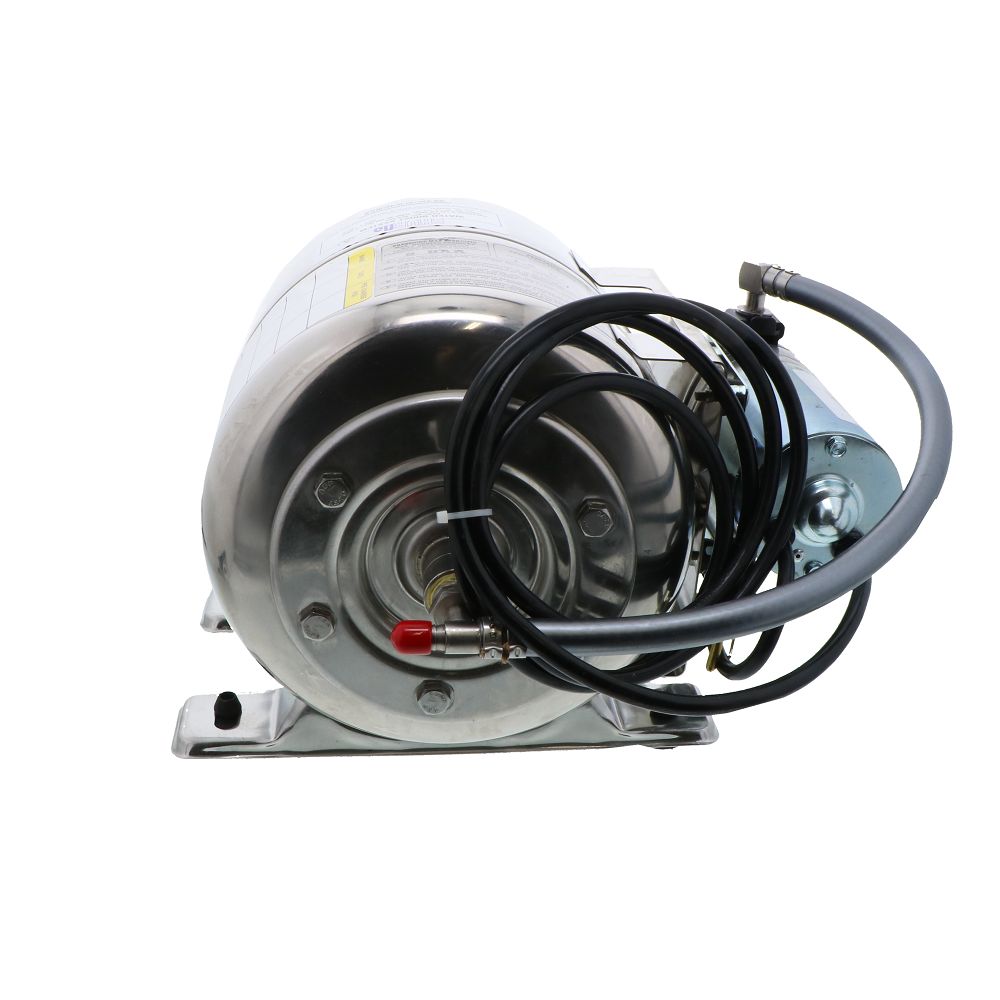

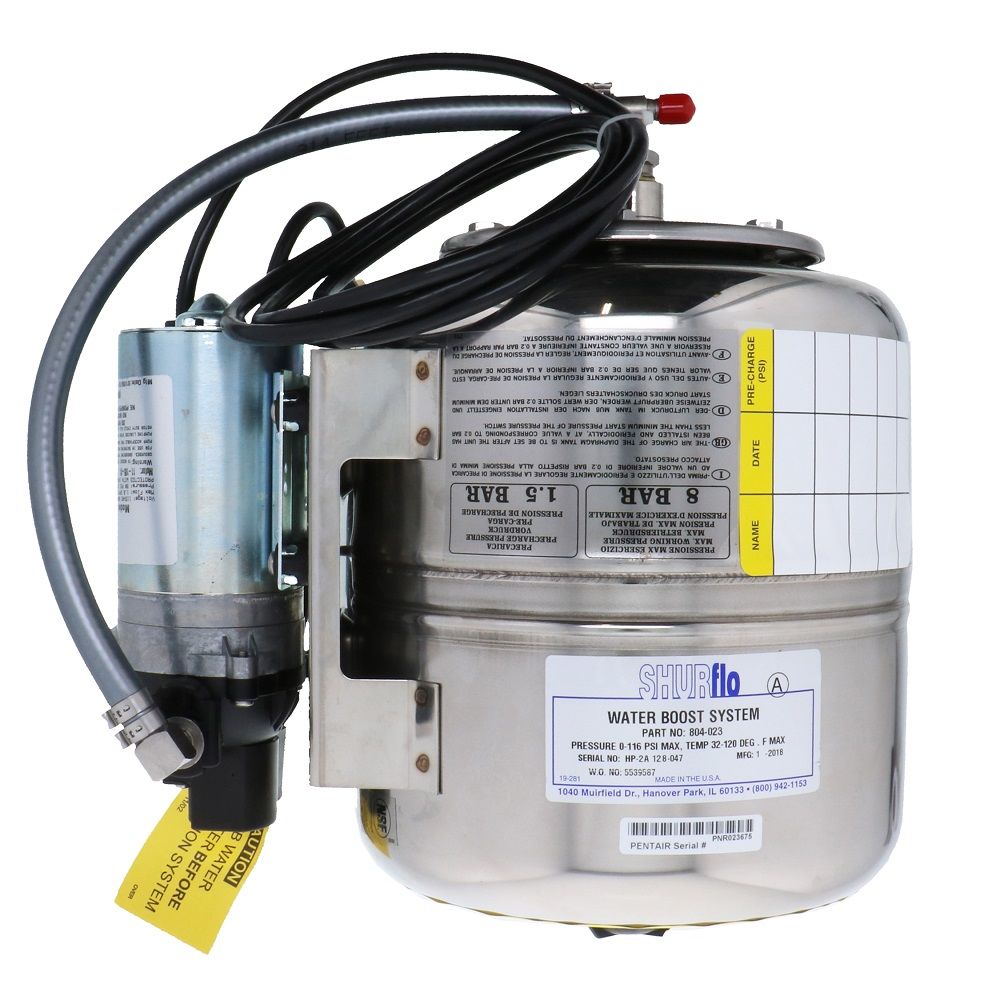

SHURflo 804-023 Medium Water Boost System

Part Number: 804-023

SHURflo 804-023 Medium Water Boost System

Part Number: 804-023
MSRP: $1,094.31
Regular price $613.58

Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

Expected Ship Date: December 16, 2025

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

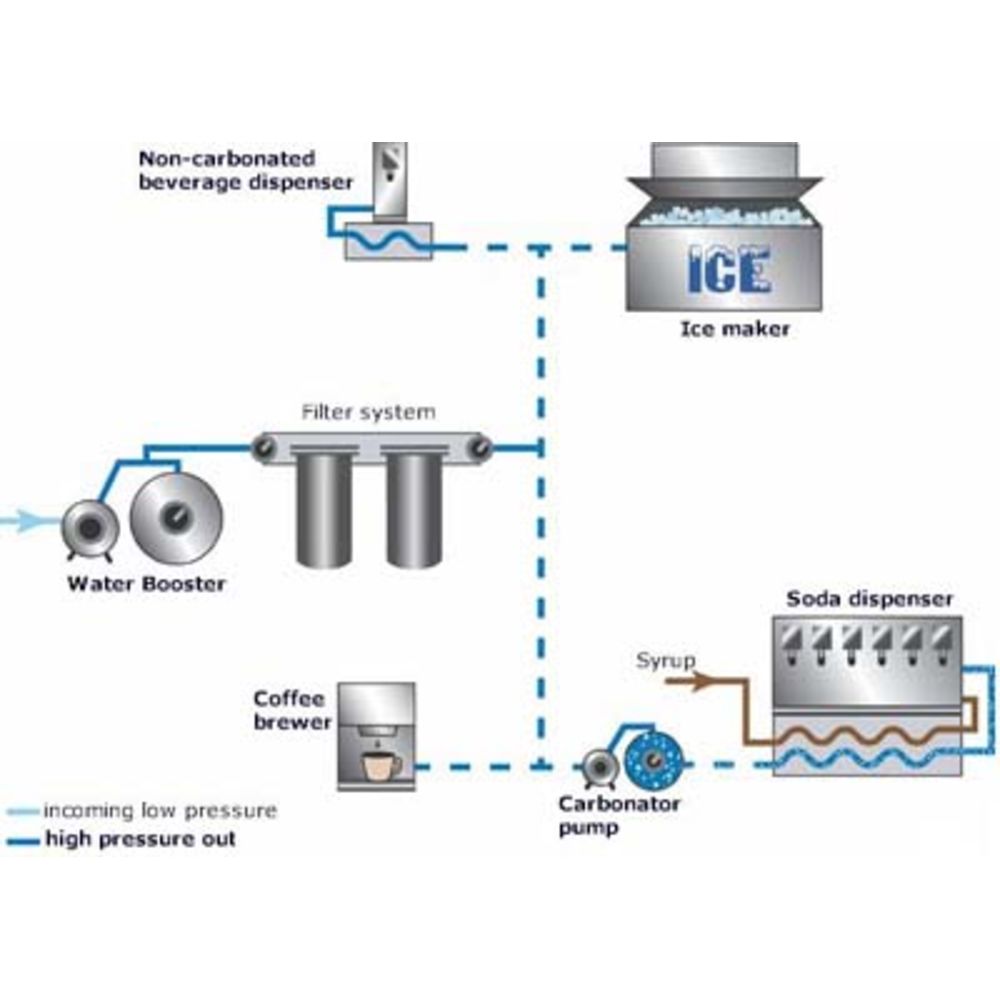

The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Additional Specifications:
  • Pump and tank are NSF, UL, and CSA listed
  • SHURflo 8000 Series Pump, 90 psi, 115 VAC
  • 2 Gallon Stainless Steel Accumulator Tank
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Increase flow and pressure to carbonated and non carbonated soda valves
  • Maximizes filter life on filtration systems
  • Low profile allows for undercounter installation


Specifications

    Product Details

    Barb Size

    3/8"

    Diaphragm Materials

    Santoprene

    Liquid Temperature

    34-120 °F

    Pump Max Flow Rate (Gpm)

    0.9

    Pump Max Pressure (Psi)

    117

    Series

    8000

    Voltage Type

    AC

    Wire Option

    Wall Plug

    Type

    Water Pressure Booster System

    Voltage

    115VAC

    Warranty & Certifications

    Warranty

    1 Year

    Shipping Dimensions

    Shipping Length

    14.25 in.

    Shipping Width

    14.25 in.

    Shipping Height

    10.5 in.

    Product Weight & Dimensions

    Product Height

    10.5

    Product Length

    14.25

    Product Width

    14.25

    Product Weight (lbs)

    13.401

Downloads

SHURflo 804-023 Medium Water Boost System ManualSHURflo 804-023 Medium Water Boost System Manual
