SHURflo

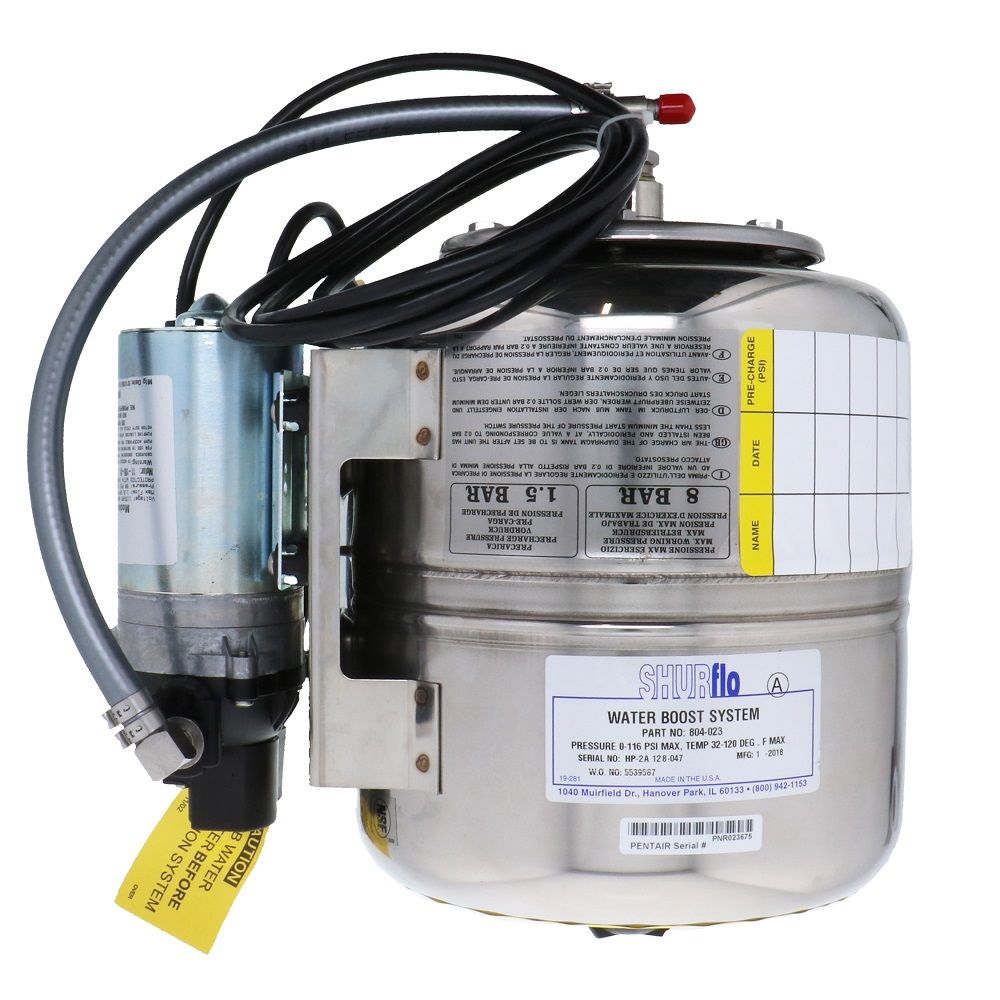

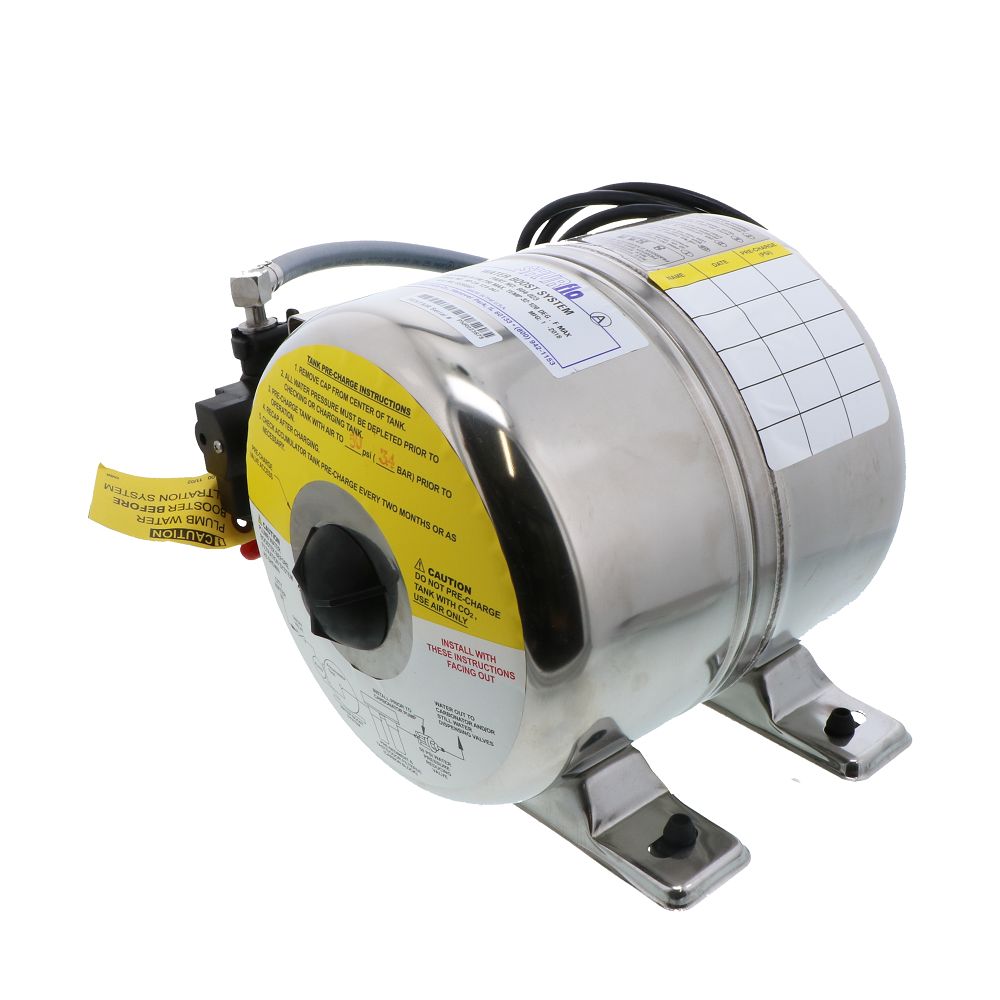

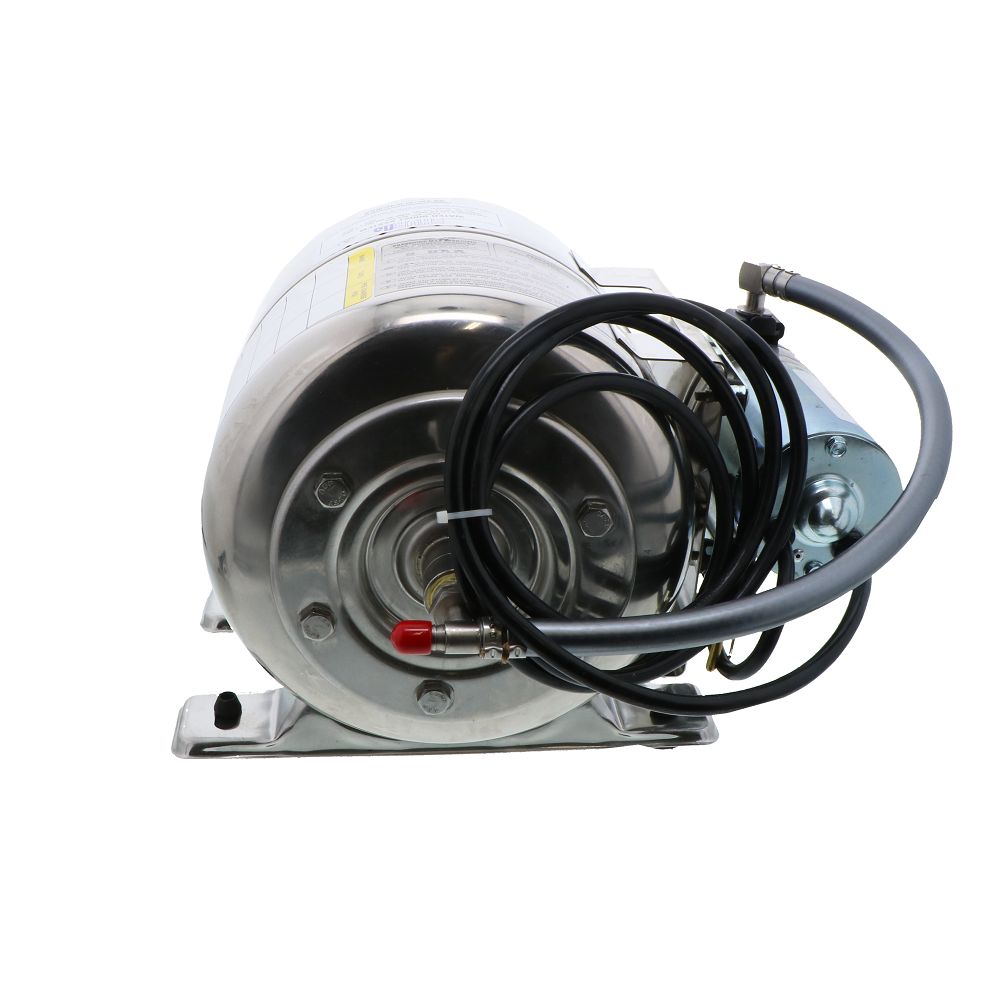

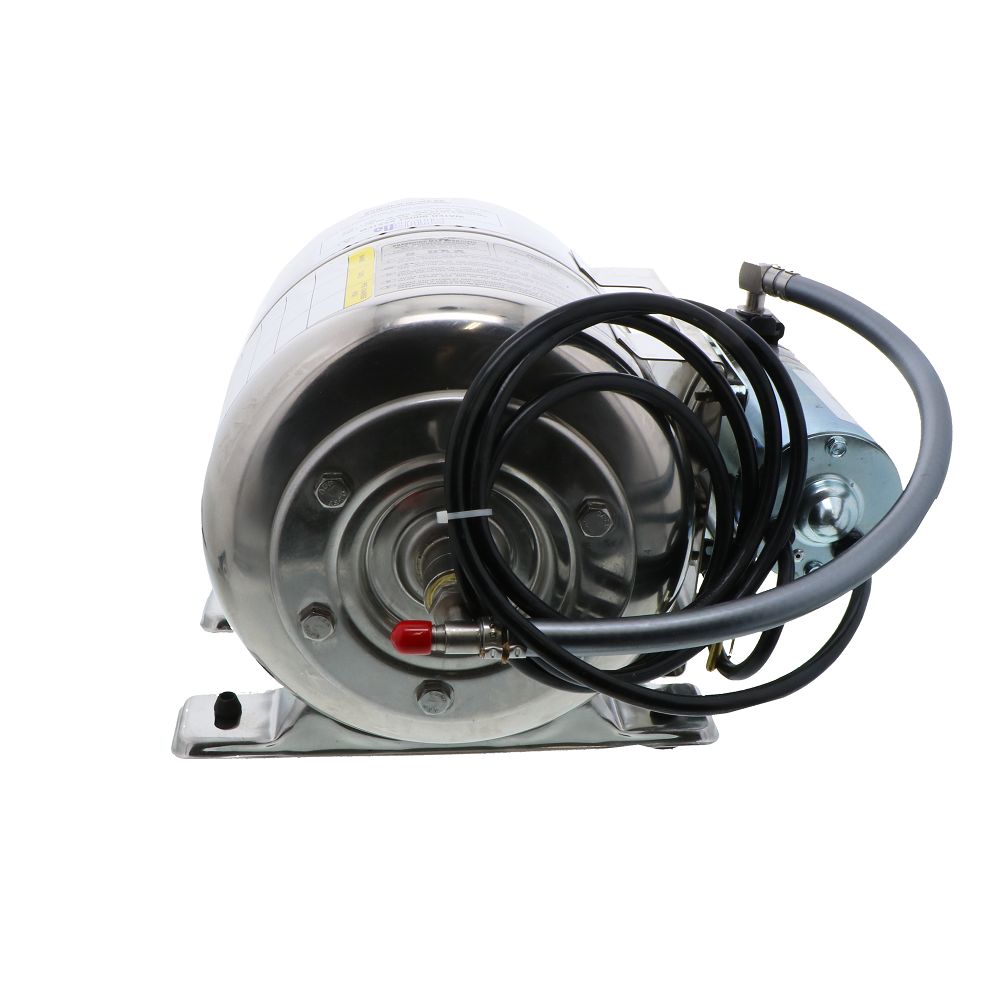

SHURflo 804-023 Medium Water Boost System

Part Number: 804-023

In Stock

out of stock

In Stock

$349.00

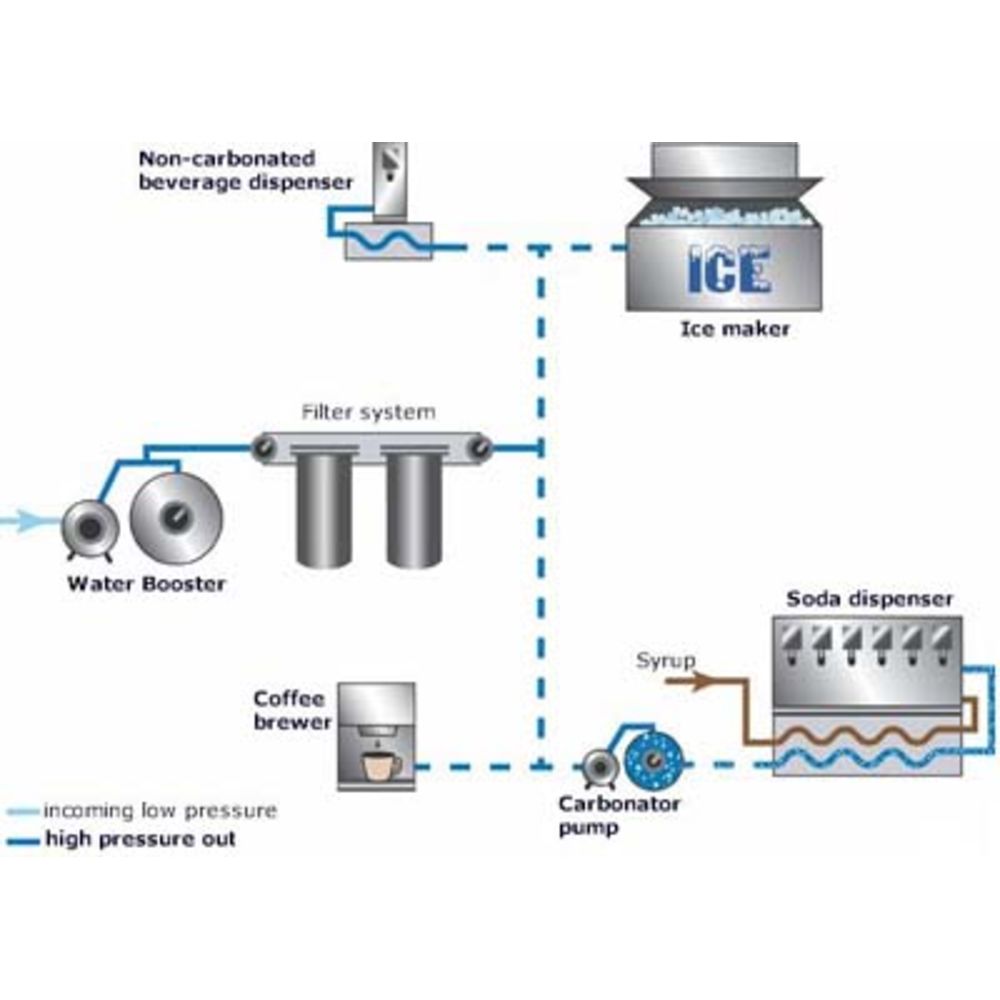

The increased popularity of non-carbonated drinks and the inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. SHURflo's Water Boost Systems are for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Additional Specifications:
  • Pump and tank are NSF, UL, and CSA listed
  • SHURflo 8000 Series Pump, 90 psi, 115 VAC
  • 2 Gallon Stainless Steel Accumulator Tank
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Increase flow and pressure to carbonated and non carbonated soda valves
  • Maximizes filter life on filtration systems
  • Low profile allows for undercounter installation



PSI BAR
GPM
LPM
Amps
20  1.6 1.6  5.40  0.23
40  2.8  1.42  4.80  0.61
60  4.1  1.13  4.30  0.73
90  6.2  0.68  2.60  0.90


Weight & Dimensions

Height (inches)

10.5

Length (inches)

14.5

Weight (lbs)

14

Width (inches)

14.25

Details

Barb Size

3/8" ID

Diaphragm Materials

Santoprene

Drawdown Volume

0.75 Gallons @ 30/50 Setting

Housing Material

Zinc Plated Steel

Liquid Temperature

34-120 °F

Max Pressure (Psi)

117

Psi Bypass

60 PSI

Series

8000

Tank Pre-Charge

50 PSI

Wire Option

Wall Plug

Flow Rate

0.9 GPM

Type

Water Pressure Booster System

Voltage

115VAC

Warranty & Certifications

Certifications

NSF; UL; CSA

Warranty

1 Year
