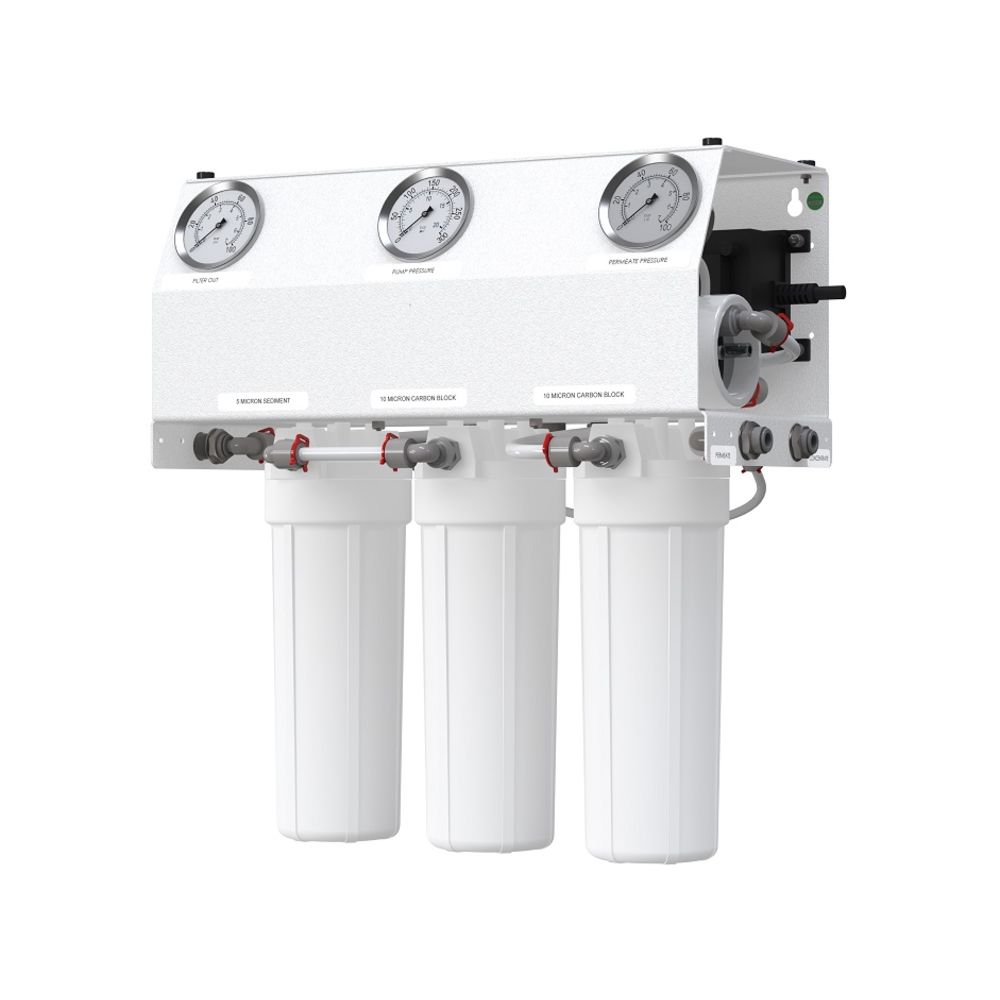

AXEON L1-200 Series Commercial Reverse Osmosis System 200 gpd

Part Number: 207315

Alt. Part Number: 200024

In Stock

out of stock

In Stock

$895.00


AXEON L1-200 Series Reverse Osmosis Systems are manufactured in the USA and designed for light commercial applications. Featuring a compact wall mount design, the L1-200 can be installed in areas where space is at a premium. AXEON L1-200 Series Reverse Osmosis Systems require minimal set up and come pre-assembled for immediate on-line service.
The AXEON L1-Series replaces the Flexeon LT-Series, and introduces some features that were not previously offered. The L1-Series includes three pressure gauges to monitor prefilters and pump pressure.

Features:
  • Flow Rate: 200 gpd
  • Includes Aquatec components including high flow booster pump
  • Features John Guest quick connect fittings with locking clips
  • Includes 5 micron sediment prefilter and 10 micron carbon prefilter and postfilter
  • Uses AXEON HF4 Extra Low Energy Membrane
  • Uses AXEON glycerine-filled pressure gauges
  • Made in the USA


Weight & Dimensions

Postfilter Length

2.5" x 10"

Prefilter Length

2.5" x 10"

Approx Weight

42 Lbs

Dimensions

9x20x19

Details

Configuration

Single Pass

Max Hardness

1 Grains per Gallon

Standard Recovery Rate

40 Percent

Ambient Temperature Range

Max 120 Degrees Fahrenheit

Capacity

200 Gallons per day

Flow Rate

200 Gallons per day, 0.14 Gallons Per Minute

Inlet Size

3/8" QC

Liquid Temperature

Max 85 Degrees Fahrenheit

Max Operating Pressure

120 PSI

Origin

Made in the USA

Voltage

110V 60Hz, 220V 50Hz

Average Nacl Rejection

98.5 Percent

Cleaning Ph Range

12-2

Contaminants Reduced

1 Nephelometric Turbidity Units

Inlet Pressure

Max 85 PSI

Rating

<3 Silt Density Index

Ph Range

11-3

Membrane Size

2.5" x 14"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

1000 Parts per Million

Membrane Quantity

1

Warranty & Certifications

Warranty

1 Year
