AXEON Water

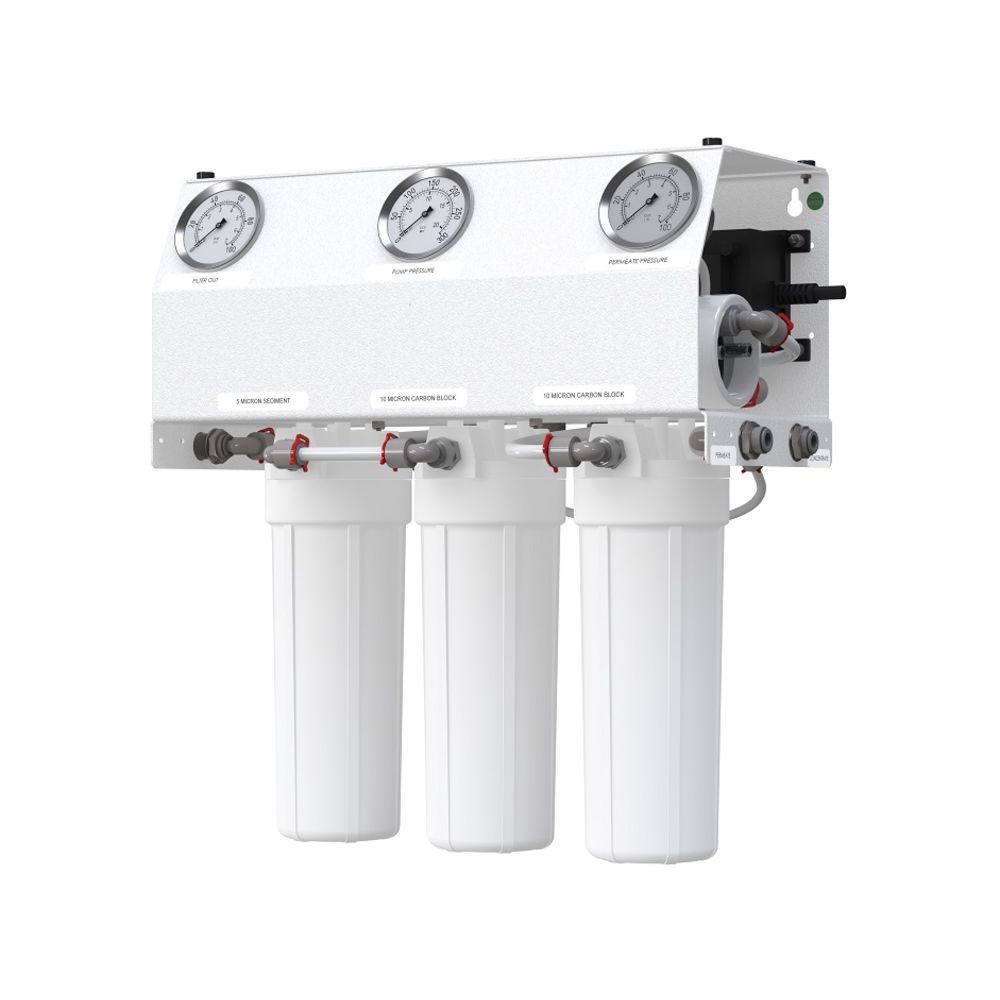

AXEON L1-200 Series Commercial Reverse Osmosis System 200 gpd

Part Number: 207315

Alt. Part Number: 200024

In Stock

out of stock

In Stock

$895.00


AXEON L1-200 Series Reverse Osmosis Systems are manufactured in the USA and designed for light commercial applications. Featuring a compact wall mount design, the L1-200 can be installed in areas where space is at a premium. AXEON L1-200 Series Reverse Osmosis Systems require minimal set up and come pre-assembled for immediate on-line service.
The AXEON L1-Series replaces the Flexeon LT-Series, and introduces some features that were not previously offered. The L1-Series includes three pressure gauges to monitor prefilters and pump pressure.

Features:
  • Flow Rate: 200 gpd
  • Includes Aquatec components including high flow booster pump
  • Features John Guest quick connect fittings with locking clips
  • Includes 5 micron sediment prefilter and 10 micron carbon prefilter and postfilter
  • Uses AXEON HF4 Extra Low Energy Membrane
  • Uses AXEON glycerine-filled pressure gauges
  • Made in the USA


Weight & Dimensions

Postfilter Length

2.5" x 10"

Prefilter Length

2.5" x 10"

Approx Weight

42 Lbs

Dimensions

9x20x19

Details

Configuration

Single Pass

Max Hardness

1 Grains per Gallon

Standard Recovery Rate

40 Percent

Ambient Temperature Range

Max 120 Degrees Fahrenheit

Capacity

200 Gallons per day

Connections

3/8" QC

Flow Rate

200 Gallons per day; 0.14 Gallons Per Minute

Inlet Size

3/8" QC

Liquid Temperature

Max 85 Degrees Fahrenheit

Max Operating Pressure

120 PSI

Origin

Made in the USA

Type

Aquatec 8800

Voltage

110V 60Hz; 220V 50Hz

Average Nacl Rejection

98.5 Percent

Cleaning Ph Range

12-2

Contaminants Reduced

1 Nephelometric Turbidity Units

Inlet Pressure

Max 85 PSI

Rating

<3 Silt Density Index

Ph Range

11-3

Membrane Size

2.5" x 14"

Max Chlorine Content

0 Parts per Million Free Chlorine

Max Tds Content

1000 Parts per Million

Membrane Quantity

1

Warranty & Certifications

Warranty

1 Year


AXEON

AXEON
