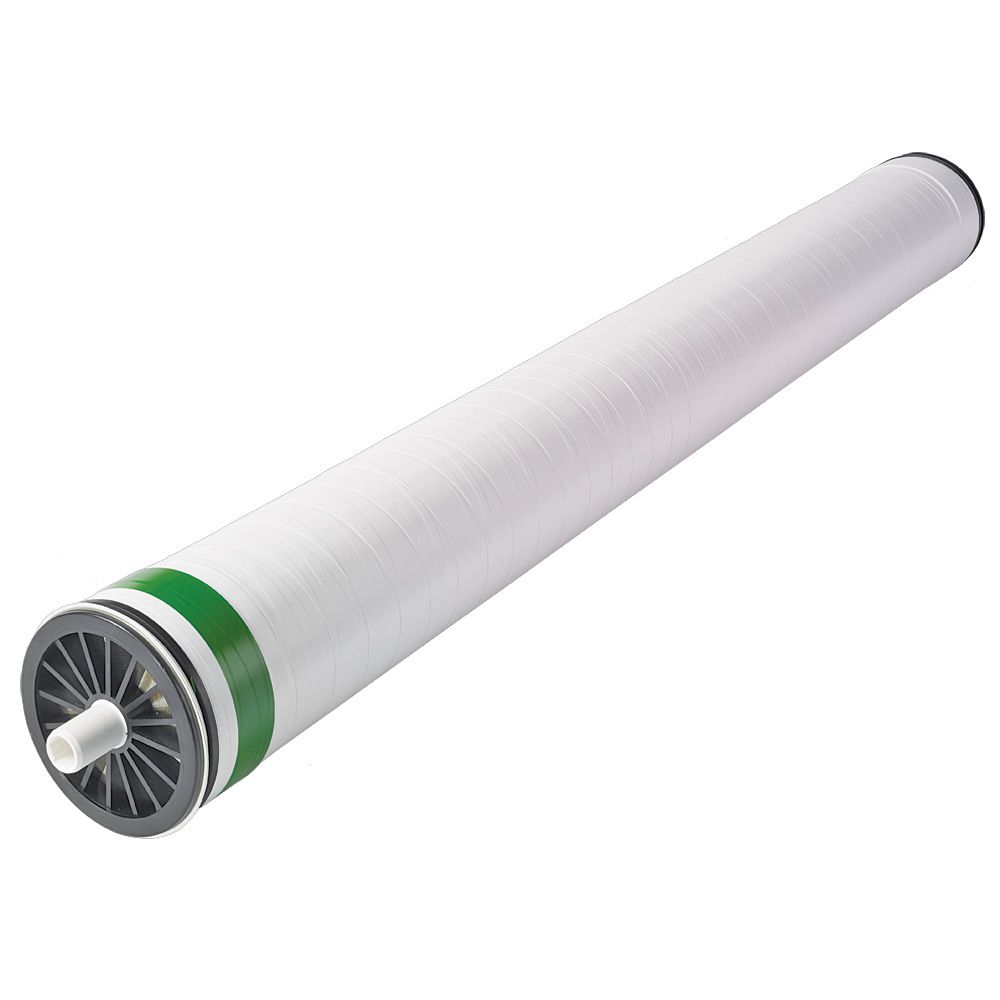

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394

AXEON HF5-4040 2500 GPD RO Membrane Element

4.8
(8 reviews)
Part Number: 200394
MSRP: $565.00
Regular price $359.00

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF5-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5-4040 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2500 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 80 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF5-4040


AXEON RO membranes are dry packed

Specifications

    Product Details

    Average Nacl Rejection

    98

    Chlorine Tolerance

    0 ppm

    Cleaning Ph Range

    1-13

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    80 PSI

    Inner/Outer Wraps

    Tape

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Feed Water Turbidity

    1 Nephelometric Turbidity Units

    Max Pressure Drop

    13 PSI Differential

    Max Pressure (Psi)

    400psi

    Max Temp (°F)

    113°F

    Membrane Type

    Reverse Osmosis

    Minimum Salt Rejection Cl- (%)

    0.96

    Outer Diameter

    3.95 in

    Permeate Flow Rate

    2500 gpd / (9.46 m³/d)

    Permeate Tube Diameter

    0.75 in

    Ph Range

    2-11

    Recovery Rate

    0.15

    Series

    HF-High Flow

    Filter Type

    Membrane

    Media Type

    Thin Film Composite

    Shipping Dimensions

    Shipping Length

    41 in.

    Shipping Width

    4.5 in.

    Shipping Height

    4.5 in.

    Product Weight & Dimensions

    Product Height

    4.5 in.

    Product Length

    40

    Product Width

    4.5 in.

    Product Weight (lbs)

    7.25

Downloads

AXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element ManualAXEON HF5-4040 2500 GPD RO Membrane Element Manual
