Amtrol

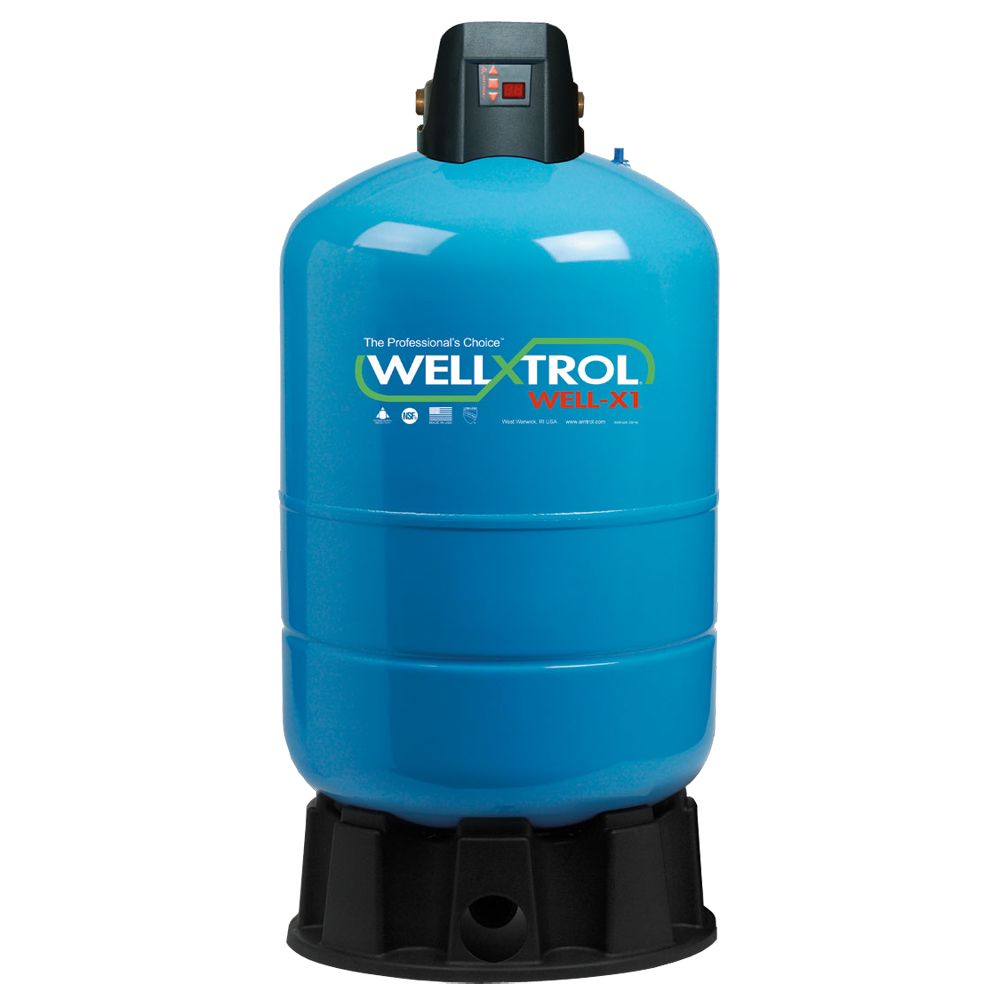

Well-X1 WX1-302 Constant Pressure Well Tank System 86 gal

Part Number: WX1-302

Alt. Part Number: WX1302D

In Stock

out of stock

In Stock

$1,144.65

The Amtrol Well-X1 WX1-302 Constant Pressure System gives you city-like water pressure utilizing your existing well pump. Designed to be an alternative to expensive and difficult to install variable speed drive (VFD) systems the WX1-302 is pre-assembled and ready to install making it the ultimate combination of quality, savings and performance..

Features:
  • Maintains 10 psig differential for smooth, consistent flow
  • Saves Energy; Pump does not run constantly
  • Includes 62 gallon Well-X-Trol Well Tank:
    • Tank features Tuf-Kote indoor/outdoor coating
    • Includes DuraBase composite tank base
    • 7 Year Warranty
  • Controlled by Amtrol Guardian CP Digital Control:
    • Digital Pressure Gauge
    • Adjustable up to 80 psi
    • Real Time System Diagnostics
    • 2 Year Warranty
  • Installation is fast and easy:
    • Simple 4-wire setup
    • Compatible with 115 or 230 VAC setups
    • Remains idle if wired improperly
    • Pre-assembled
Well-X1 WX1-302 Constant Pressure Well Tank System Comes Pre-Assembled With:
  • Guardian CP Control
  • Decorative Cap
  • Mounting Bracket
  • Brass Tank Tee
  • Copper Tubing
  • Compression Fittings
  • Relief Valve
  • Drain Assembly
  • Press Sleeves




Weight & Dimensions

Height W/ Stand

55-1/4"

Weight (lbs)

134

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diaphragm Materials

Butyl Rubber

Drawdown Volume

29.2 Gallons @ 30/50 Setting

Inlet/Outlet Connection

1" FPT, 1-1/4" MPT

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

1", 1-1/4"

Tank Pre-Charge

38 PSI

Volume

86 Gallons

Connection Type

Female (FPT), Male (MPT)

Diameter

26"

Origin

USA

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

Tank: 7 Years Controller: 2 Years
