Amtrol

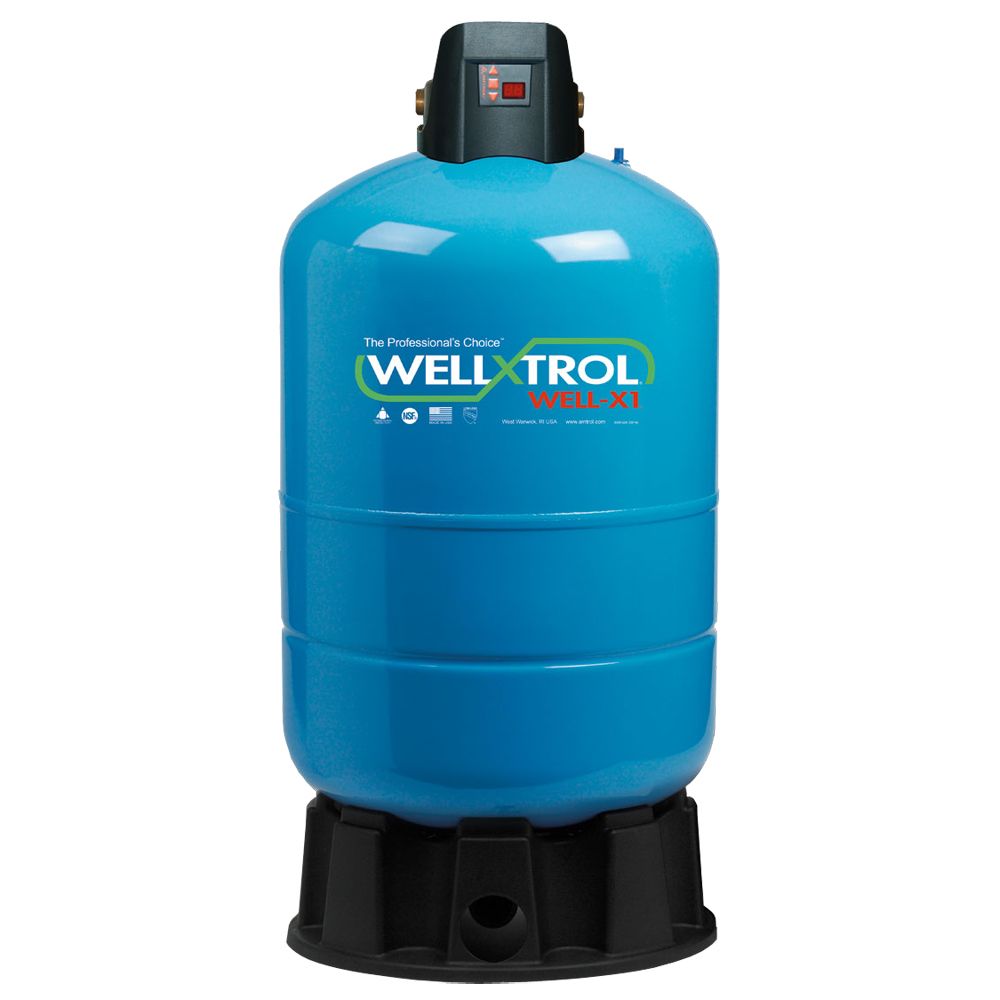

Well-X1 WX1-251 Constant Pressure Well Tank System 62 gal

Part Number: WX1-251

Alt. Part Number: WX1251D

In Stock

out of stock

In Stock

$941.59


The Amtrol Well-X1 WX1-251 Contant Pressure System gives you city-like water pressure utilizing your existing well pump. Designed to be an alternative to expensive and difficult to install variable speed drive (VFD) systems the WX1-251 is pre-assembled and ready to install making it the ultimate combination of quality, savings and performance.

Features:
  • Maintains 10 psig differential for smooth, consistent flow
  • Saves Energy; Pump does not run constantly
  • Includes 62 gallon Well-X-Trol Well Tank:
  • Tank features Tuf-Kote indoor/outdoor coating
  • Includes DuraBase composite tank base
  • 7 Year Warranty
  •     Controlled by Amtrol Guardian CP Digital Control:
  • Digital Pressure Gauge
  • Adjustable up to 80 psi
  • Real Time System Diagnostics
  • 2 Year Warranty
  •     Installation is fast and easy:
  • Simple 4-wire setup
  • Compatible with 115 or 230 VAC setups
  • Remains idle if wired improperly
  • Pre-assembled
Well-X1 WX1-251 Constant Pressure Well Tank System Comes Pre-Assembled With:
  • Guardian CP Control
  • Decorative Cap
  • Mounting Bracket
  • Brass Tank Tee
  • Copper Tubing
  • Compression Fittings
  • Relief Valve
  • Drain Assembly
  • Press Sleeves


Weight & Dimensions

Approx Weight

103 Lbs

Height W/ Stand

54-3/4 Inches

Details

Drawdown Volume

21.1 Gallons @ 30/50 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTF, 1-1/4" NPTM

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Tank Pre Charge

38 PSI

Volume

62 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

Tank: 7 Years Controller: 2 Years


Well-X1

Well-X1





The Amtrol Well-X1 WX1-251 Contant Pressure System gives you city-like water pressure utilizing your existing well pump. Designed to be an alternative to expensive and difficult to install variable speed drive (VFD) systems the WX1-251 is pre-assembled and ready to install making it the ultimate combination of quality, savings and performance.

Features:
  • Maintains 10 psig differential for smooth, consistent flow
  • Saves Energy; Pump does not run constantly
  • Includes 62 gallon Well-X-Trol Well Tank:
  • Tank features Tuf-Kote indoor/outdoor coating
  • Includes DuraBase composite tank base
  • 7 Year Warranty
  •     Controlled by Amtrol Guardian CP Digital Control:
  • Digital Pressure Gauge
  • Adjustable up to 80 psi
  • Real Time System Diagnostics
  • 2 Year Warranty
  •     Installation is fast and easy:
  • Simple 4-wire setup
  • Compatible with 115 or 230 VAC setups
  • Remains idle if wired improperly
  • Pre-assembled
Well-X1 WX1-251 Constant Pressure Well Tank System Comes Pre-Assembled With:
  • Guardian CP Control
  • Decorative Cap
  • Mounting Bracket
  • Brass Tank Tee
  • Copper Tubing
  • Compression Fittings
  • Relief Valve
  • Drain Assembly
  • Press Sleeves

Weight & Dimensions

Approx Weight

103 Lbs

Height W/ Stand

54-3/4 Inches

Details

Drawdown Volume

21.1 Gallons @ 30/50 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1" NPTF, 1-1/4" NPTM

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Tank Pre Charge

38 PSI

Volume

62 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

Tank: 7 Years Controller: 2 Years
